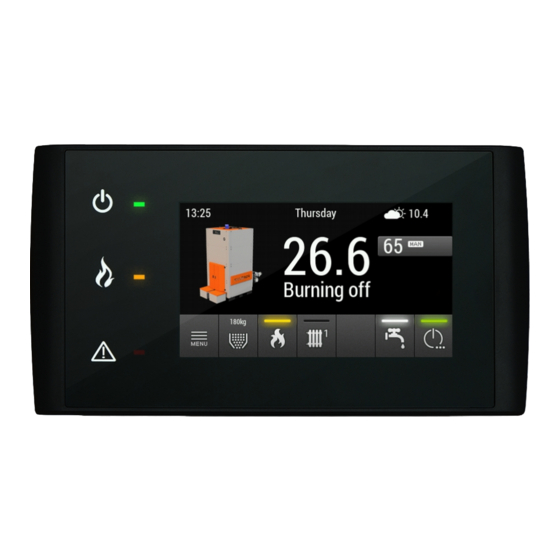

Summary of Contents for Estyma IGNEO touch

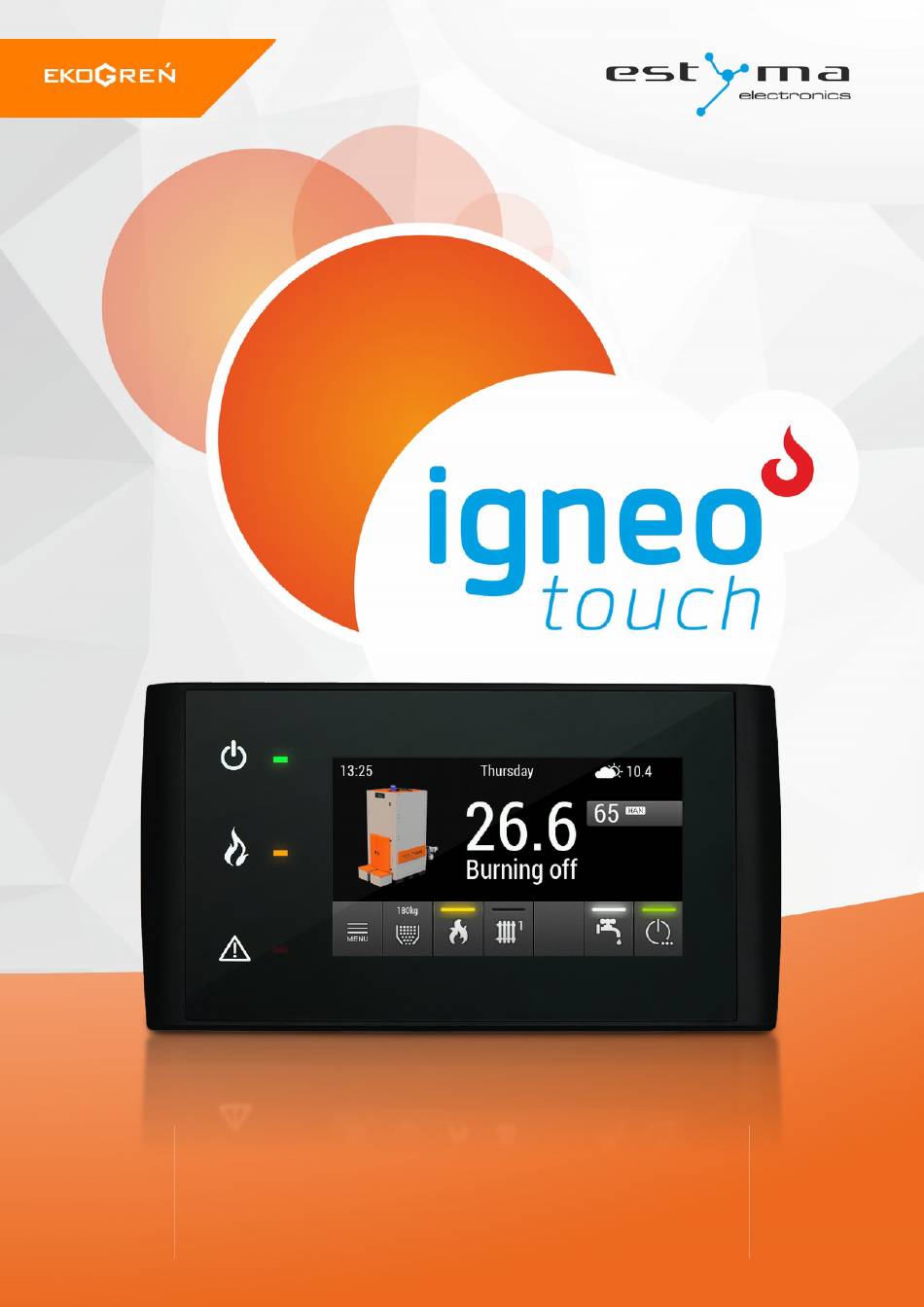

  • Page 1 Installers manual EG-Multifuel...
  • Page 3: Table Of Contents

    4.3 Heating................................. 14 4.4 Hot water..............................15 4.5 Solar heating............................... 15 4.6 Buffer................................15 4.7 Sound alarm..............................15 4.8 Configuration.............................. 15 4.9 Out test................................ 16 4.10 Statistics..............................16 4.11 Net................................16 Chapter 5. Alarms 5.1 Detailed descriptions..........................17 www.estyma.pl EGM-ENG-I 20171123...
  • Page 4: Chapter 1. Safety

    The regulator must be installed by the boiler producer. Any electrical connections must comply with circuit diagrams and local standards and regulations.  Additional safety devices must be used to protect the boiler and heating elements from eventual regulator www.estyma.pl EGM-ENG-I 20171123...
  • Page 5: Disposal Of Waste Electrical And Electronic Equipment

    This electronic device consists of partly recycleable materials. It has to be disposed of by taking it to a designated used electric and electronic equipment collection point or a retailer. It should not be mixed with general household waste. www.estyma.pl EGM-ENG-I 20171123...
  • Page 6: Chapter 2. Technical Specifications

    Module power supply voltage ~230V/50Hz ±10% Module power consumption <6VA Temperature measurement accuracy ±4ºC Sensors NTC 10kΩ B25/85=3877K±0,75% VISHAY BC components Ambient temperature limits 0-60ºC Humidity 5-95%, no condensation Software class MODULE OUTPUT CAPACITIES DO1-DO11 100W AO1-AO4 150W www.estyma.pl EGM-ENG-I 20171123...
  • Page 7: Chapter 3. Installation And Servicing Instructions

    1. It must be free of excessive moisture, flamable gasses and corosive factors. 2. Do not place next to high power electric appliances, electric devices and welding equipment. 3. The room temperature must not drop below 0ºC or exceed 60ºC. Humidity must fall between 5% and 95%, without condensation. www.estyma.pl EGM-ENG-I 20171123...
  • Page 8: Assembly

    Remember to secure the panel in place by using the locking frame. IO modules are designed for a standard DIN 35mm rail. CAUTION! For security and reliability reasons the device must be accessible only to authorized and properly trained personel. www.estyma.pl EGM-ENG-I 20171123...
  • Page 9: Connections

    – Jumper off – burner photo sensor – Jumper on – exhaust temperature sensor ONNECTION DIAGRAM Shown below are typical connections for CAN IO . The details of inputs and outputs are specified in the tables. www.estyma.pl EGM-ENG-I 20171123...
  • Page 10 Installer's manual IGNEO touch www.estyma.pl EGM-ENG-I 20171123...
  • Page 11 CAUTION! 1. STB switch will disconnect N1 outputs after detecting boiler overheating. In result all devices connected to N1 outputs will also be disconnected. 2. Hall sensor is compatible only with CAN IO ver. 2.0 or higher. 3. Boiler operation permission is compatible only with CAN IO ver. 3.2 or higher. www.estyma.pl EGM-ENG-I 20171123...
  • Page 12: Firmware Updates

    CAUTION! Wait 10 seconds before turning off the power supply to ensure that the changes were saved correctly. 3.11 ACTORY SETTINGS To reset the device to factory settings, go to Menu level (PIN) (see section 3.9) and set the value to 6666. www.estyma.pl EGM-ENG-I 20171123...
  • Page 13: Chapter 4. Service Menu/Function Descriptions

    Enables or disables the oxygen modulation using Lambda sensor. Lambda control Oxygen power 30% Oxygen percent value for 30% burner power. Oxygen power 100% Oxygen percent value for 100% burner power. Extra exhaust fan The power of the additional exhaust fan. www.estyma.pl EGM-ENG-I 20171123...
  • Page 14: Blower Power Modulation

    On – the pump keeps working after reaching set room temperature. The calculated CH temperature value is lowered (when using CH and room temperature sensor). Off – After reaching set room temperature the pump is turned off. www.estyma.pl EGM-ENG-I 20171123...
  • Page 15: Hot Water

    Automatically detects connected modules and devices. Main module IO Main IO module selection. Heating circuits number The amount of central heating circuits. Outside temperature sensor Exterior temperature sensor selection. Hot water Determines if the hot water circuit is used. www.estyma.pl EGM-ENG-I 20171123...
  • Page 16: Out Test

    – Output off, settings and programs are ignored – Always on, settings and programs are ignored 4.10 S TATISTICS Statistics useful during troubleshooting and maintenance. 4.11 N Shows the state of all connected CAN modules. www.estyma.pl EGM-ENG-I 20171123...
  • Page 17: Chapter 5. Alarms

    ETAILED DESCRIPTIONS Code 1 Boiler sensor malfunction The panel received a boiler temperature sensor disconnection/short circuit. It may be caused by sensor malfunction or connection cable damage. Code 2 Boiler overheating Boiler temperature exceeded the maximum value. www.estyma.pl EGM-ENG-I 20171123...
  • Page 18 Notes:...
  • Page 20 Produced by estyma electronics tel. +48 87 429 86 75 biuro@estyma.pl Gajewo, Aleja Lipowa 4 11-500 Giżycko www.estyma.pl POLAND...
