ALFAtron SC61E Manual

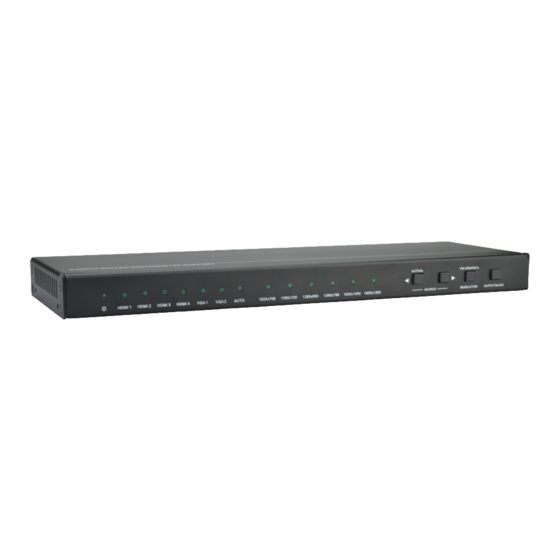

Compact scaler switcher 6x1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ALFATRON ALF-SC61E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC61E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALFAtron SC61E

Summary of Contents for ALFAtron SC61E

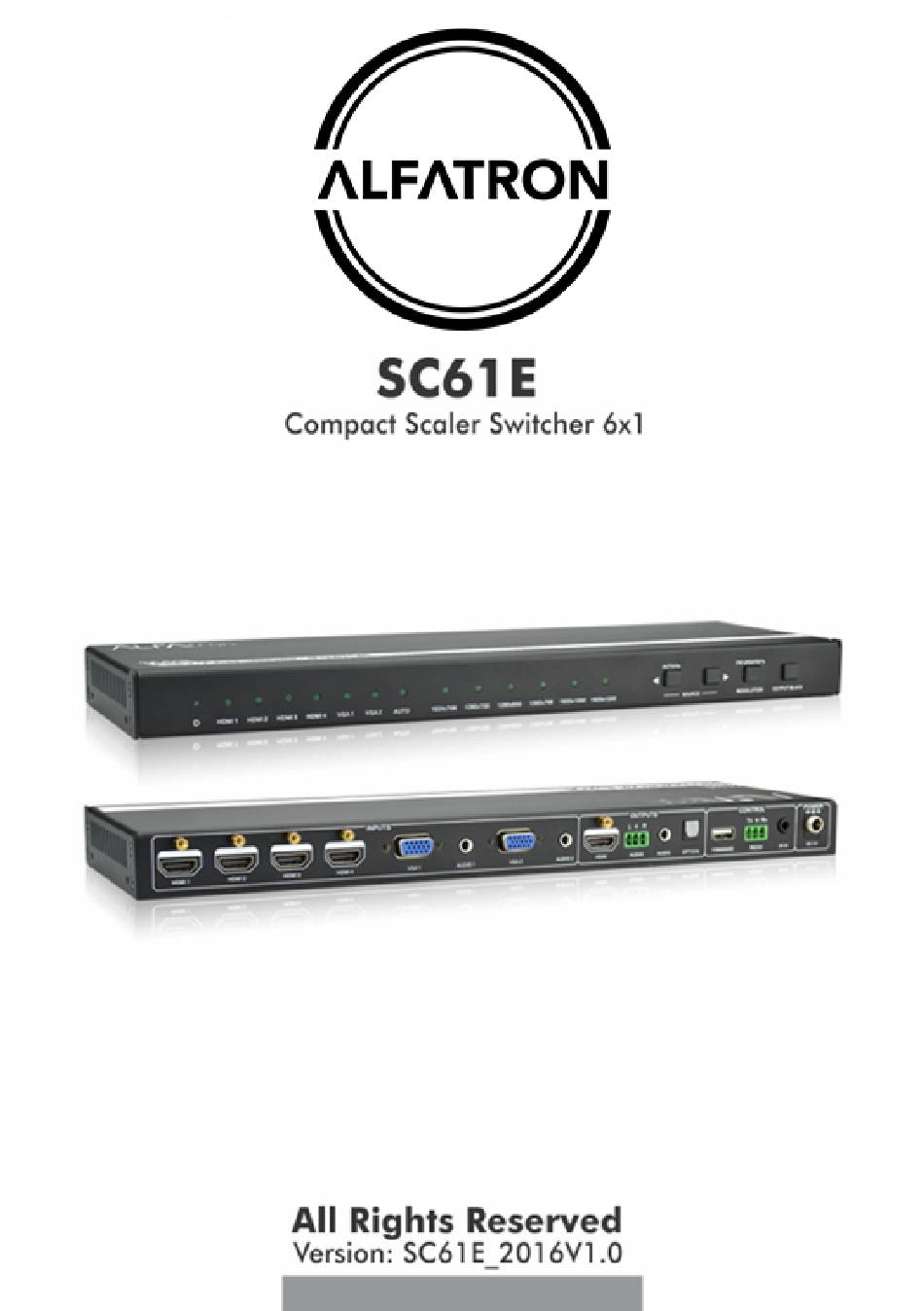

  • Page 1 ALFATRON ALF-SC61E...
  • Page 2 ALFATRON ALF-SC61E Preface Read this user manual carefully before using this product. Pictures shown are this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage.
  • Page 3 ALFATRON ALF-SC61E SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    ALFATRON ALF-SC61E Contents 1. Introduction ......................... 1 1.1 Introduction to SC61E Scaler Switcher .............. 1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................3 2.1 Front Panel ......................3 2.2 Rear Panel ......................4 3. System Connection ..................... 5 3.1 Usage Precautions ....................

  • Page 5: Introduction

    1. Introduction 1.1 Introduction to SC61E Scaler Switcher The SC61E Scaler Switcher is a compact 6x1 mini unit with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio).
  • Page 6 ALFATRON ALF-SC61E  1 x IR Receiver  1 x IR Remote (Cell battery is not included)  1 x User manual Note： Confirm all the accessories are included, if not, please contact with the dealers.

  • Page 7: Panel Description

    ALFATRON ALF-SC61E 2. Panel Description 2.1 Front Panel AUTO/3s FW UPDATE/7s HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 VGA 2 AUTO 1024x768 1280x720 1280x800 1360x768 1920x1080 1920x1200 SOURCE RESOLUTION OUTPUT BLACK Name Description Indicator for power status ①...

  • Page 8: Rear Panel

    ALFATRON ALF-SC61E 2.2 Rear Panel INPUTS OUTPUTS CONTROL POWER HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 AUDIO 1 VGA 2 AUDIO 2 HDMI AUDIO AUDIO OPTICAL FIRMWARE RS 232 IR IN DC 5V Name Description  HDMI: 4 HDMI/DVI video source input ports (embedded ①...

  • Page 9: System Connection

    ALFATRON ALF-SC61E 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment that has temperature and humidity control 2) All of the power switches, plugs, sockets and power cords should be insulated and safe. 3) All devices should be connected before power on.

  • Page 10: System Operations

    The auto-switching mode abides by the following principles:  New input principle Once detecting a new input signal, SC61E would switch to this new signal automatically.  Rebooting device principle The SC61E has the ability of power-off memory. If the last switching mode is auto-switching, once rebooted, it will automatically enter auto-switching mode, and then detect all inputs and memorize their connection status for future rebooting using.

  • Page 11: Rs232 Control

    ALFATRON ALF-SC61E  Remove the signal of HDMI3, Compact Scaler Switcher will detect from HDMI1 to VGA2. And when it detects that HDMI2 is available, it will choose HDMI2 to output.  Cut off the power of Compact Scaler Switcher, then reboot. As the unit is in auto-switching mode, it will choose HDMI2 to output.

  • Page 12: Rs232 Communication Commands

    ALFATRON ALF-SC61E Parameter Configuration area Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area.
  • Page 13 ALFATRON ALF-SC61E 50785% Enable auto-switching Auto Switching 50786% Disable auto-switching Manual Switching Resolution Select Commands for VGA Input 50619% Change the resolution to 1360X 768 Resolution: 1360x768 Change resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA 50626% Change the resolution to 1024X768 XGA...
  • Page 14 ALFATRON ALF-SC61E enable Embedded Audio Output: 50649% Disable HDMI embedded audio output disable Auto-adjust the input parameter for (VGA 50606% VGA Input Auto only) Check the system version Version Vx.x.x 50699% 50697% Exit standby mode Wake up! 50797% Enter standby mode...
  • Page 15 ALFATRON ALF-SC61E 50631% Check the input source Input: xx 50632% Check the output resolution Resolution: xx 50633% Check the image mode Picture Mode: xx 50634% Check the audio mode Sound Mode: xx 50635% Check the image aspect ratio Aspect Ratio: xx...

  • Page 16: Ir Control

    ALFATRON ALF-SC61E Enter Output Position 50678% Enable screen output adjusting Adjust 50679% Disable screen output adjusting Exit Output Position Adjust Notes: 1 Please remember to end the commands with the ending symbol “%”. 2 EDID commands are for HDMI sources only.

  • Page 17: Firmware Updating

    ALFATRON ALF-SC61E Standby button ① Enter/ exit standby mode. Input channel selection buttons ② Selection video source via pressing corresponding button (audio switched following the corresponding VGA). Auto button ③ Enter/ exit auto-switching mode. Resolution selection buttons ④ Select resolution via pressing corresponding button.

  • Page 18: Specification

    ALFATRON ALF-SC61E 5. Specification Video Input Video Output Input 4 HDMI, 2 VGA Output 1 HDMI Input 4 female HDMI (Type-A) Output 1 female HDMI Connector 2 female VGA (15Pin) connector Video Signal HDMI/DVI,VGA Video Signal HDMI HDMI: up to 4Kx2K...
  • Page 19 ALFATRON ALF-SC61E Supported Input Resolutions Format Resolution 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz, HDMI/DVI 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz, 1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz,...

  • Page 20: Panel Drawing

    ALFATRON ALF-SC61E 6. Panel Drawing AUTO/3s FW UPDATE/7s HDMI 1 HDMI 2 HDMI 3 HDMI 4 VGA 1 VGA 2 AUTO 1024x768 1280x720 1280x800 1360x768 1920x1080 1920x1200 SOURCE RESOLUTION OUTPUT BLACK 13.5 mm 350 mm...

  • Page 21: Troubleshooting & Maintenance

    ALFATRON ALF-SC61E 7. Troubleshooting & Maintenance Problems Causes Solutions Fail connection of power Make sure the power cord Power LED doesn’t cord connection is normal work or no response to Power adapter doesn’t Please replace the power any operation suitable...
  • Page 22 ALFATRON ALF-SC61E 8. Warranty 1. Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company.
  • Page 23 ALFATRON ALF-SC61E 1.10 The Company will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty: 1.10.1 Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition.;...
