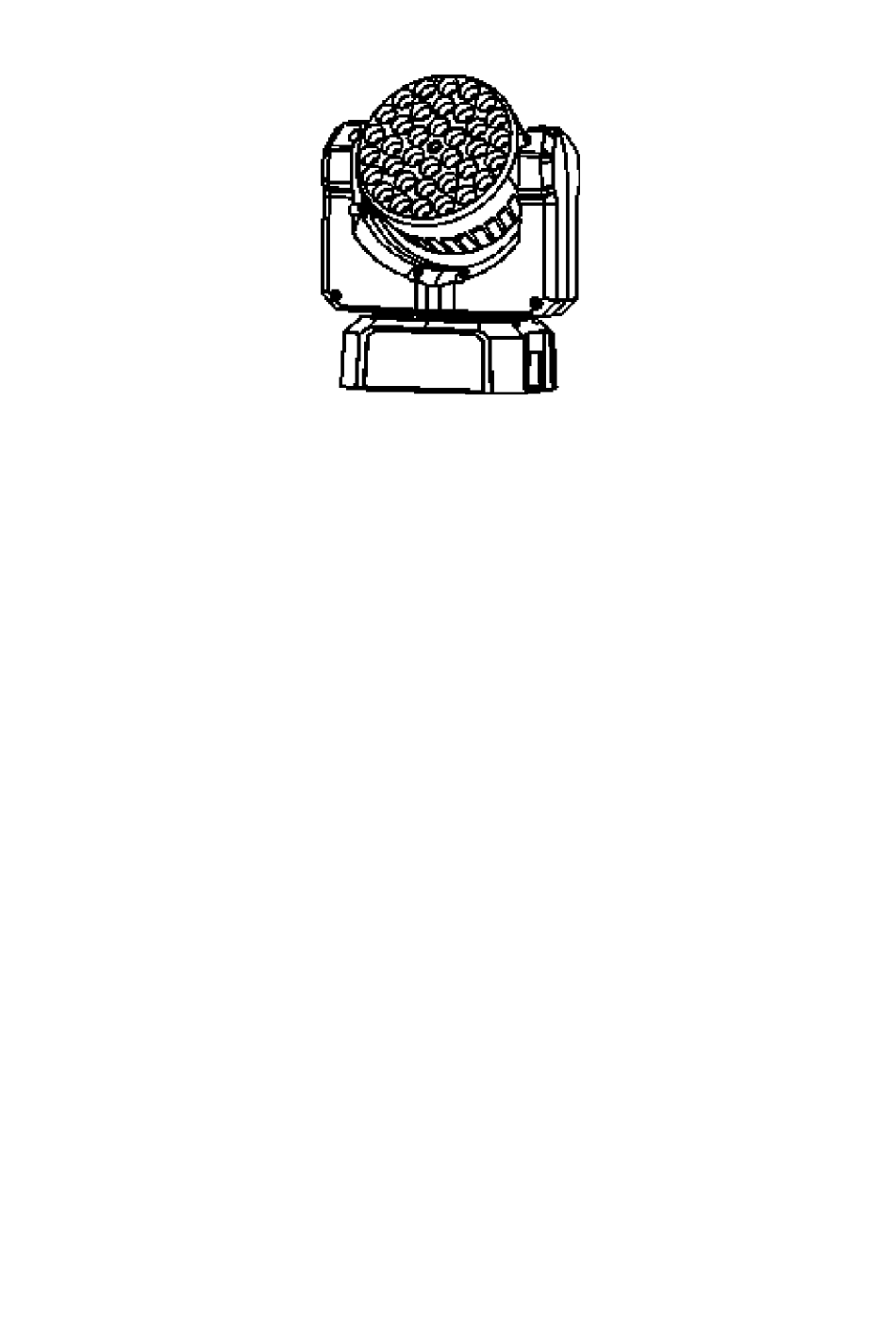

- Page 1 Pin Power Color Moving Head User Manual...
- Page 2 Important Safety Information Instructions pertaining to continued protection against fire, electric shock, and injury to persons are found in Appendix A. Please read all instructions prior to assembling, mounting, and operating this equipment. Symbols The following international caution and warning symbols appear in margins in this manual CAUTION: This symbol appears next to Caution messages.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Product Overview! Features ....................Operation ....................Construction ....................Related products and accessories ............Specifications ..................Physical specifications .................. Shipping dimensions & weight ................Mounting information ................... Electrical/Optical information ................. Operation ....................Chapter 2 Setup and Configuration! Unpacking the fixture ................ - Page 4 Auto / Sound ....................Mic Sense ....................... TC Switch ....................... Scan setting ....................Dimmer curve ....................Dimmer speed ....................DMX Reset ............................................Information ..................... The DMX Menu ..................DMX Address ....................No DMX signal ....................DMX Channels ....................The MACRO Menu ..................
-
Page 5: Product Overview
Chapter 1 Product Overview The LM-2013 Pin Power Color Moving Head is a very small sized and very powerful LED luminaire, only 3.6 kg. weight. Very narrow and bright beam; scan movement runs extremely fast. It covers the full spectrum of RGB color mixing, and provides color wheel effects. Smooth dimming from 0-100%;... -
Page 6: Specifications
Specifications Physical specifications Fixture Dimensions: 242 mm x 130 mm x 289 mm Fixture Weight: 3.6 kg Shipping dimensions & weight Single fixture carton Dimensions: 280 mm x 175 mm x 340 mm Weight: 4.1 kg Four fixtures carton Dimensions: 595 mm x 365 mm x 360 mm Weight: 18 kg Flight case dimensions (8 pcs/case):... -
Page 7: Mounting Information
Mounting information LM-2013 can be truss mounted using suitable clamps through the center hole on the fixture base. Clamps and accessories for truss mounting installation should be ordered separately. It can also stand upright on a suitable and stable surface. -
Page 8: Setup And Configuration
6. Configure the fixture for DMX control. Unpacking the fixture The LM-2013 fixture is transported in a shipping box or flight case specifically designed to protect the product during transportation. When unpacking, inspect the fixture for physical damage of its components. Khroma Technologies Ltd. assumes no responsibility for products that are damaged during transport. -
Page 9: Mounting The Fixture Upright
Mounting the fixture upright To mount the fixture upright, place the fixture on a stable non-flammable surface that will support more than the 3.6 kg weight of the fixture. If the surface is above floor height, use safety cables to secure the fixture to the surface.Mounting the fixture on a truss To mount the fixture upright, place the fixture on a stable non-flammable surface that will support more than the 3.6 kg weight of the fixture. -
Page 10: Linking Fixtures
Linking Fixtures LM-2013 fixtures operate on a standard DMX512 link controlled by a DMX console. The number of fixtures on a link will be determined by the combined number of channels required by all the fixtures. A KL-3036-PPC fixture using Standard protocol requires a maximum of 12 channels on a DMX512 link. -
Page 11: Powering On The Fixture
To set the Start Channel on an fixture: 1. Access the LM-2013 fixture’s menu system via the display on the fixture’s head. For a detailed description of the menu system, see Chapter 3: The Menu System. -
Page 12: The Menu System
Chapter 3 The Menu System Menu navigation Access the menu system via the four menu navigation buttons on the fixture. The display will show the menu items you can select from the menu map. To access the menu system: press the corresponding button until desired menu appears on the display. - Page 13 Level 1 Level 2 Level 3 Level 4 Description Regulated Sets the cooling fan speed to auto regulated Full Sets the cooling fan speed to maximum Time Sets the time Date Sets the date Information Information Information Use time Shows the fixture used time DMX Address Changes the existing DMS start channel Stop Run...
-
Page 14: Menu Options
Menu options The sections below explain how to access the fixture options shown in the menu map. The SET Menu Reset Machine When you set this menu item on, the fixture performs a reset. Selecting the OFF option will have no effect. To reset the fixture: 1. -
Page 15: Mic Sense
1. Press <Set/Esc> until SET appears on the display. Press <Enter> 2. Scroll to the Auto/Sound menu. Press <Enter>. 3. Scroll to the desired mode. 4. Press <Enter> to store. Mic Sense The Mic.Sense menu option sets the fixture’s built-in microphone sensitivity level. To set the fixture’s mic sensitivity: 1. -
Page 16: Dimmer Curve
2. Scroll to the Scan Setting menu. Press <Enter>. Scroll to the Reverse Pan menu. Press <Enter>. 3. Scroll to ON. Press <Enter> to store. Reverse Tilt 1. Press <Set/Esc> until SET appears on the display. Press <Enter> 2. Scroll to the Scan Setting menu. Press <Enter>. Scroll to the Reverse Pan menu. Press <Enter>. -
Page 17: Dmx Reset
2. Scroll to the Dimmer Speed menu. Press <Enter>. 3. Scroll to the desired value. 4. Press <Enter> to store. DMX Reset When this option is enabled, you’ll be able to perform a reset from a lighting console. To enable the DMX reset: 1. -
Page 18: Dmx Channels
Stop Run: The fixture will stop running. Hold Run: Last fixture state will be kept. Auto Run: The fixture will be set to Auto Mode. Sound Run: The fixture will be set to Sound Mode. DMX Channels Use this menu item to change the current protocol option: HSV Mode 1. -
Page 19: Dmx Programming Basics
Chapter 4 DMX Programming Basics DMX Programming Overview DMX512 Links A lighting console typically uses a DMX512 protocol to communicate with automated lighting fixtures and conventional dimmers. This protocol consists of 512 unique channels of control per output link (universe). Typically a lighting fixture or device will use a channel for each parameter’s function. -
Page 20: Protocol Modes
Protocol modes You can choose from several protocol modes for variable programming styles. Khroma Technologies Limited is distributing the detailed DMX protocols as requested to console manufacturers to ensure that the fixture libraries are created in a method that allows optimum control of the fixture. - Page 21 Ch. # Function DMX Value Description 000-009 No function 010-014 Reset the fixture (value must be held for 8 seconds) 015-039 No function 040-044 Pan and Tilt speed is NORMAL 045-049 Pan and Tilt speed is FAST 050-054 Pan and Tilt speed is SLOW 055-059 No function 060-064...
-
Page 22: Stage Mode 9 Channels
Stage mode 9 channels Ch. # Function DMX Value Description 000-255 Red 0 to 100% intensity Green 000-255 Green 0 to 100% intensity Blue 000-255 Blue 0 to 100% intensity Dimmer 000-255 0 to 100% intensity 000-019 Shutter open 020-064 Strobe1(fast to slow) 065-069 Shutter open... -
Page 23: Fixture Control
Fixture control Pan and Tilt LM-2013 fixtures have a pan range of 540º or 630º (selectable through menu options) and a tilt range of 240º. In HSV Mode, Stage 12 Channels mode, Stage 9 Channels mode and Stage 8 Channels mode, 2 channels for pan and 2 channels for tilt are used to provide 16.bit position adjustment to a... -
Page 24: Appendix
Appendix Important Safety Information Warning: For Continued Protection Against Fire 1. This equipment is designed for use with specified LED only. Use of any other type LED may be hazardous and may void the warranty. 2. Do not mount on a flammable surface. 3.
