Kudux LM 2013 User Manual

Led moving head
Hide thumbs Also See for LM 2013:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
LM 2013
LED Moving head
User manual
!
Please read the manual before installing and using this lighting
Keep it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM 2013 and is the answer not in the manual?

Questions and answers

Related Manuals for Kudux LM 2013

Summary of Contents for Kudux LM 2013

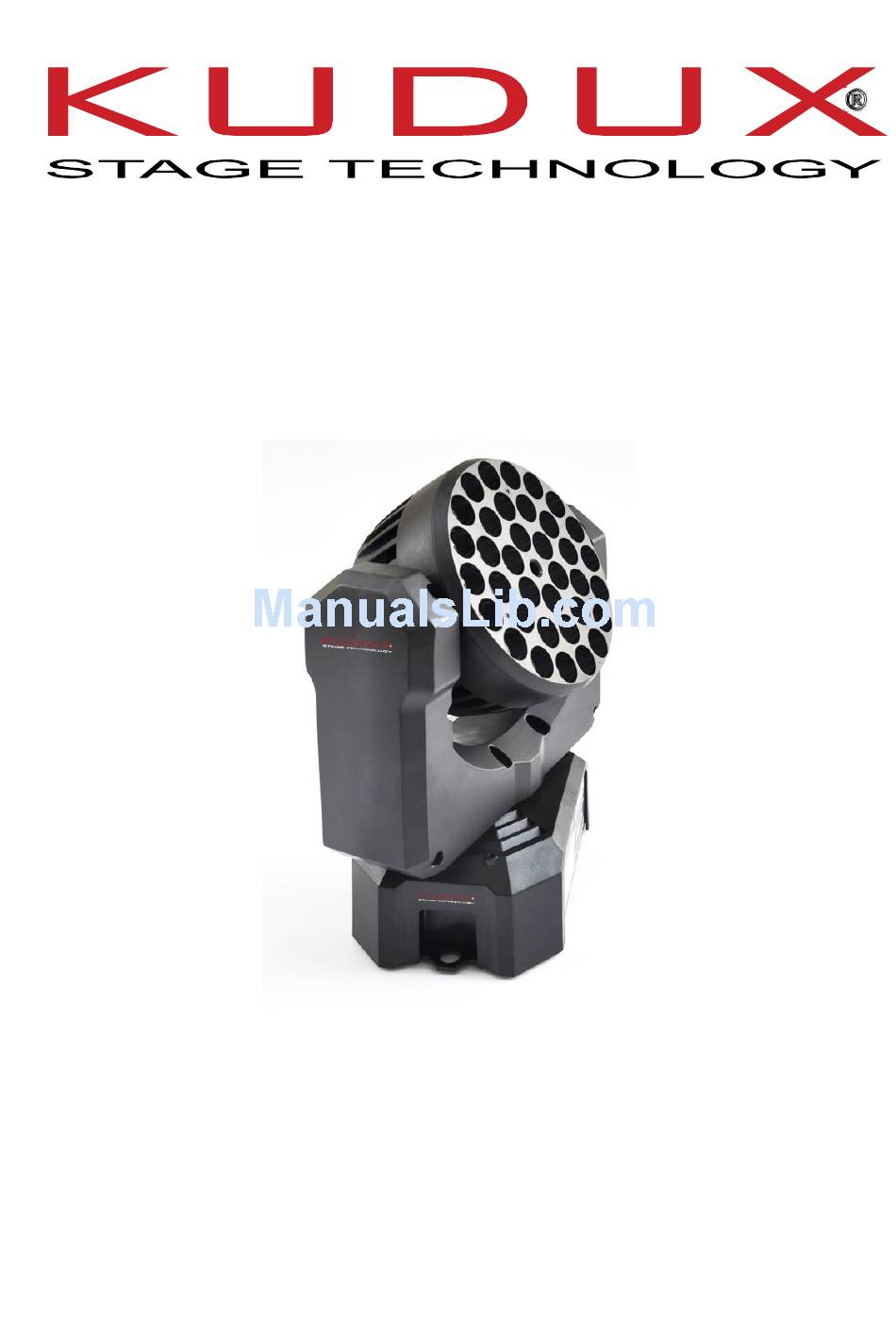

  • Page 1 LM 2013 LED Moving head User manual Please read the manual before installing and using this lighting Keep it for future reference...

  • Page 2: Table Of Contents

    Contents Introduction ......................3 Main Futures ......................3 Overview and Dimensions ..................4 Safety information ....................4 Power connections ....................5 Handling ......................... 6 Physical installation ....................7 DMX protocol ......................8 Butt on ........................14 Menu ........................15 Technical parameters: ..................19 Contacts: ......................

  • Page 3: Introduction

    Introduction Thank you for using our products! LM-2013 is a very small and light LED Moving head light, its weight is only 3.6 kg. Its beam is very narrow and very bright . It runs extremely fast. It is suitable for bar, disco, stage , decoration ,etc .

  • Page 4: Overview And Dimensions

    Overview and Dimensions Power in socket Power out socket dimensions are in millimeters...

  • Page 5: Safety Information

    Safety information Important ! Every person involved with the installation , operation and maintenance of this device has to be qualified and follow the instructions of this manual . Manufacturer will not with responsibility for those operation not according to this Instruction �...

  • Page 6: Power Connections

    Power connections Installing a Neutrik connector on a power cable � Put bushing and chuck onto the cable. � Prepare cable as shown above. The power cable must is a three-conductor 2.5mm cable. � Insert the wire into the terminals and fasten the clamping device by a flat screw driver.

  • Page 7: Handling

    Handling Relaying power to other devices The lightings can be linked in a chain by power cables which installed a blue and a light-gray connectors on the two ends. the light-gray connector connects to the power out socket of the first lighting , and the blue connector connects to the power in socket of the subsequent lighting, and so on.

  • Page 8: Physical Installation

    Physical installation This lighting can be placed on a horizontal surface such as a stage or clamped to a truss or similar rigging structure in any orientation using a rigging clamp. When suspending the fixture above ground level, verify that the structure can hold at least 10 times the weight of all installed devices.

  • Page 9: Dmx Protocol

    DMX protocol This lighting has five Channels modes , including: HSV Mode 7 Channels Mode 12 Channels Mode 9 Channels Mode STAGE Mode 8 Channels Mode 5 Channels Mode The default mode is STAGE 12 Channels Mode. If you want to alter it, enter DMX menu . STAGE 12 channels mode Channel Value...
  • Page 10 170-184 strobe7:burst pulse(fast to slow) 185-189 shutter open 190-204 strobe8:random burst pulse (fast to slow) 205-255 shutter open Global dimmer 0~100% 000-255 0~540°/0~630° CH3: 000-255 （the maximum angle base in the setting in menu） 000-255 Pan fine Tilt CH5: 0~240° 000-255 CH6: 000-255...
  • Page 11 Color wheel Dimmer channel enable 000-009 Moroccan pink 010-014 Pink 015-019 Special rose pink 020-024 Follies pink 025-029 Fuchsia pink 030-034 Surprise pink 035-039 Congo Blue 040-044 Tokyo Blue 045-049 Deep Blue Just 050-054 Blue Medium 055-059 Blue Double CT 060-064 Blue Slate Blue 065-069...
  • Page 12 165-169 Deep Golden Amber 170-174 Flame Red 175-179 Open Color wheel rotation effect 180-201 Clock wise fast→slow 202-207 Stop this will stop wherever the color is at the time） Counter – clockwise slow→fast 208-229 230-234 Open Random color 235-239 Fast Medium 240-244 245-249...
  • Page 13 000-255 0~100% Global dimmer 000-255 0~100% strobe shutter open 000-019 strobe1(fast to slow) 020-064 shutter open 065-069 strobe2:opening pulse(fast to slow) 070-084 shutter open 085-089 strobe3: closing pulse (fast to slow) 090-104 shutter open 105-109 strobe4:random strobe(fast to slow) 110-124 shutter open 125-129 strobe5:random opening pulse(fast to slow)
  • Page 14 STAGE 8 channels mode Channel Value Function Red dimmer 000-255 0~100% Green dimmer 000-255 0~100% Blue dimmer 000-255 0~100% Global dimmer 0~100% 000-255 CH5: 000-255 0~540°/0~630° （the maximum angle base in the setting in menu） 000-255 Pan fine Tilt 000-255 0~240°...

  • Page 15: Butt On

    HVS 7 channels mode Channel Value Function 000-255 0~100% Saturation 000-255 0~100% Value 000-255 0~100% CH4: 000-255 0~540°/0~630° （the maximum angle base in the setting in menu） 000-255 Pan fine Tilt 0~240° 000-255 CH7: 000-255 Tilt fine Butt on Call the main menu, or escape the current menu(i.e. return to the upper menu and give up the selected item or parameter) .

  • Page 16: Menu

    Menu...

  • Page 20: Technical Parameters

    LED life span: about 50000hours LED quantity：12R+12G+12B Color mixing： R：0~255，G：0~255 ，B：0~255 Effect: strobe, fade , color wheel Beam angle：8° Rotation Angle：Pan 540°/630°，Tilt 240°，self-correcting Channel quantity：5，7，8，9，12 Control mode：DMX512，Master/slave Sound active Protection grade：IP20 Working environment: indoor Environment temperature：-30~+40℃ Size： L242*W130*H289mm Weight：3.6kg Contacts: www.kudux.com office@kudux.com...
