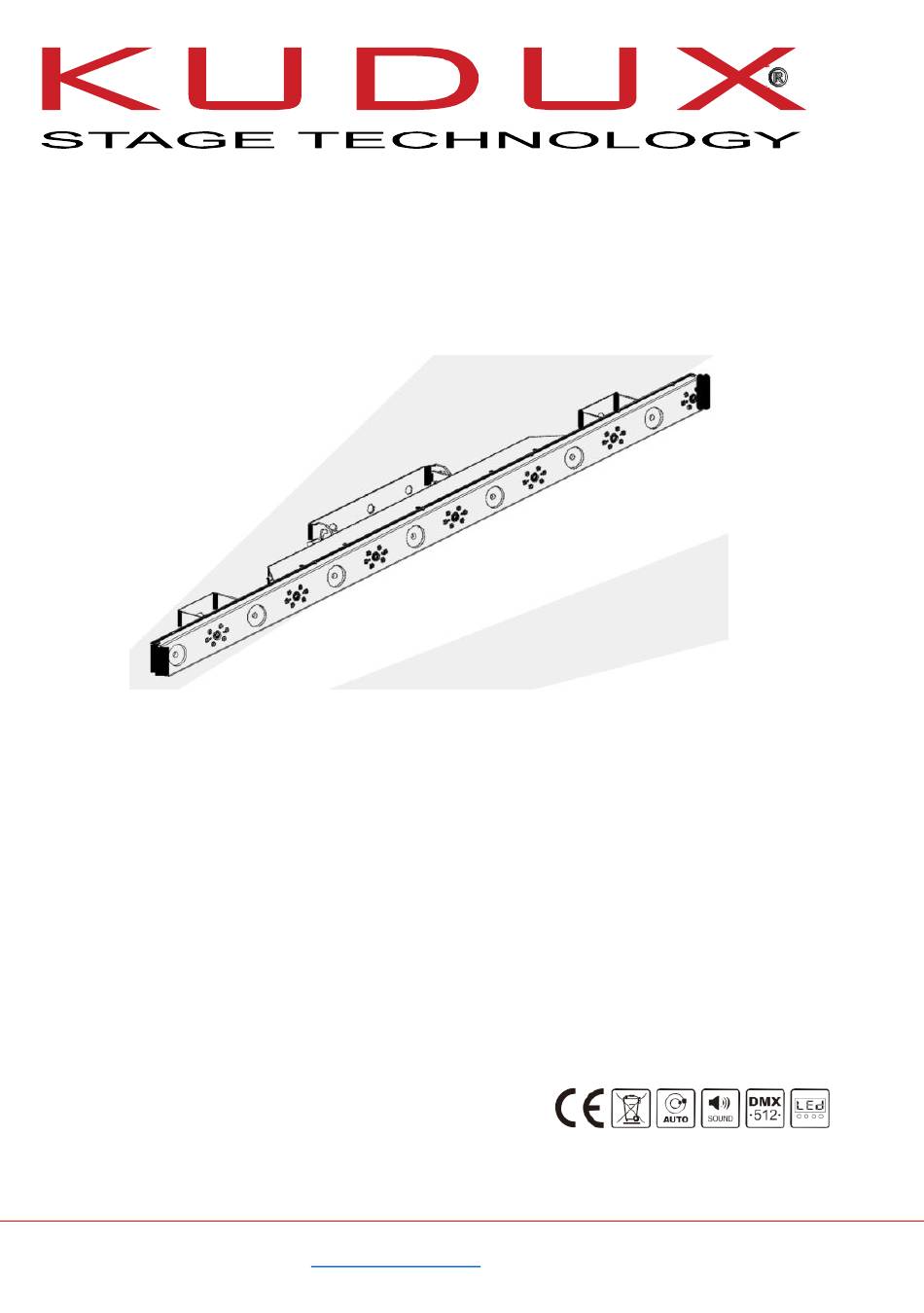

- Page 1 Laser and sunstrip bar LBS 7B500 W3 User manual Please read the manual before installing and using this lighting Keep it for future reference Version 2.0 WWW.KUDUX.COM...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. Kudux Team WWW.KUDUX.COM...
-
Page 3: Unpacking Instructions
Any wrong operation will make this unit out of warranty. Carefully moving after receiving it, checking whether there is any damage from shipping, and all the accessories in it. NAME LED system Power Cord User manual Packing Case WWW.KUDUX.COM... -
Page 4: Safety Instructions
Do not touch the product’s housing when operating because it may be very hot. Keep this User Manual for future use. If you sell the product to another user, be sure to give this document to the next owner. WWW.KUDUX.COM... -
Page 5: Overhead Rigging
Every device’s power should be connected separately, so that FUSE: 5×20mm L E N 250V 1.6A slow device can be controlled individually. Cable spec: Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Yellow/Green Earth WWW.KUDUX.COM... -
Page 6: Product Installation
Adjust screw 3 and screw 4 simultaneously, the beam will move up. Adjust screw 5 alone, the beam will fine-tune to right. Warning! The polarization adjustment can only be adjusted by qualified professionals, operation, and to ensure strict accord ance with the procedures described in this manual. WWW.KUDUX.COM... - Page 7 White neutrik power output socket,connect to next fixtrue For setting model LED Display For hang and angle adjustment Hanging bracket Key switch Make sure the professional person use Urgent and safe switch Switch off the laser manualy if error occcurs WWW.KUDUX.COM...
- Page 8 LED monitor at next power. Mode selection or back to the last function. MODE Confirm, enter into the deeper menu. Press it to save the chosen model or ENTER DMX initial add. For changing DMX initial add or function value DOWN WWW.KUDUX.COM...
-
Page 9: Initial Setting
19CH( d001-d494) Press ENTER to Save Set starting address dXXX d001-dxxx Press ENTER to Save S. 001 to S. 255 Press ENTER to Save SLAV Press ENTER to Save M-EN nable/disable master REST Restore default settings Press ENTER to Save WWW.KUDUX.COM... - Page 10 LASER Auto#6 000-039 LED Shows#1 040-079 LED Shows#2 080-119 LED Shows#3 LED AUTO 120-159 LED Shows#4 SHOWS 160-199 LED Shows#5 200-239 LED Shows#6 240-255 LED Shows#7 No used CH2 Auto shows Mix auto 0-255 CH3 Auto speed Auto speed WWW.KUDUX.COM...
- Page 11 1 Laser light brightness CH10 000-255 #2 Laser light brightness CH11 000-255 #3 Laser light brightness CH12 000-255 #4 Laser light brightness CH13 000-255 #5 Laser light brightness CH14 000-255 #6 Laser light brightness CH15 #7 Laser light brightness 000-255 WWW.KUDUX.COM...
- Page 12 128-249 strobe slow to fast 250-255 sound control strobe 000-009 010-039 040-069 070-099 100-129 CH17 The channel 1- 16 can’t 130-159 control 160-189 190-209 210-255 CH18 With reference to 3 channel model of channel 2 CH19 Program broadcast speed WWW.KUDUX.COM...
-
Page 13: Product Parameter
Product parameter Product parameter Model LBS 7B500 W3 (R:200/G:100/B:500)mW×7pcs Power Laser class 3B/4 3W Golden LED×7pcs Rate LED power 7° LED Beam angle Connectors 3 Pin XLR DMX in/out Power input 100-240V 50/60Hz 46W Power linking Neutrik PowerCon 1000×50×170mm Product Dimensions Weight 4.6Kg...
