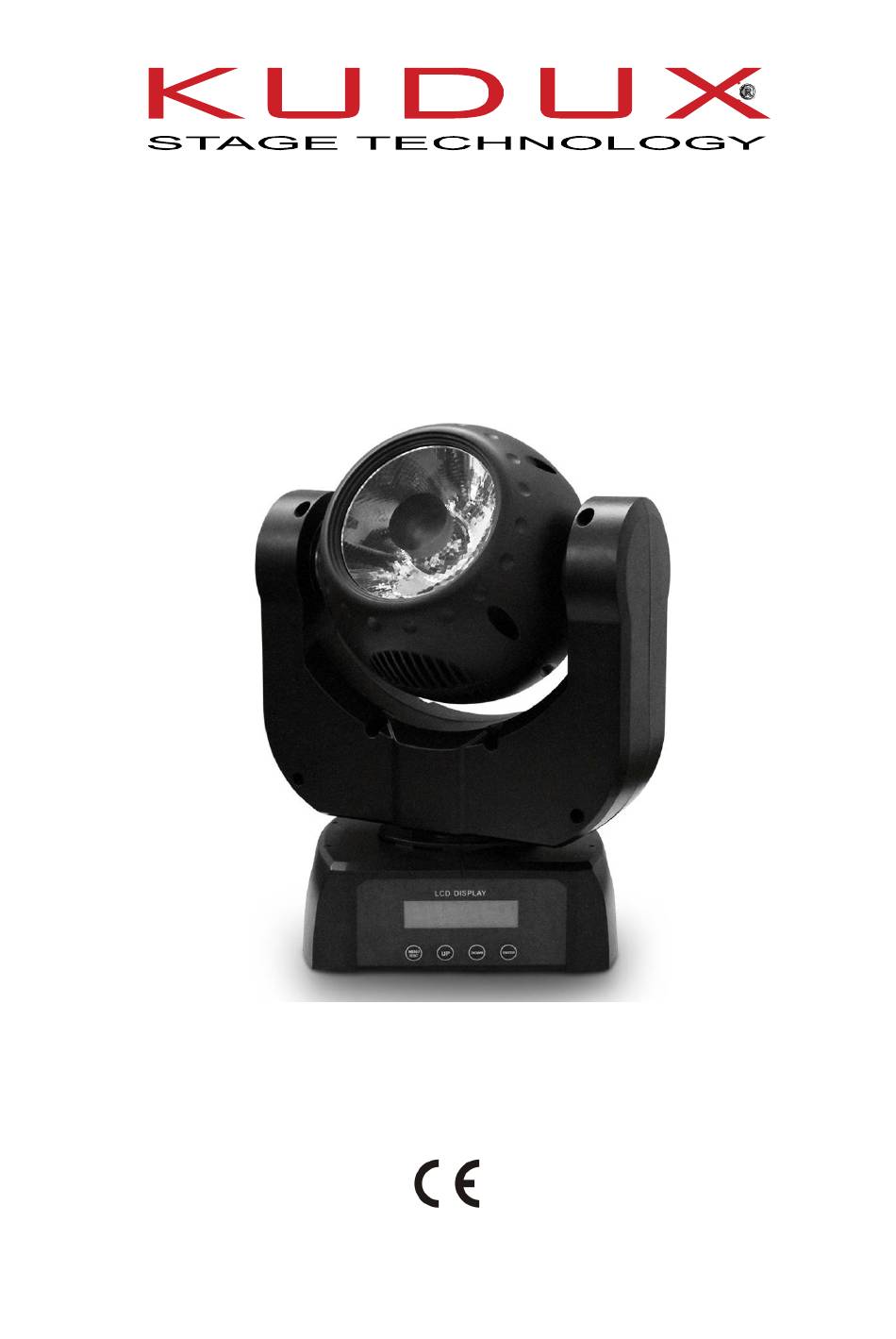

- Page 1 Moving Head Beam LED 360 User manual Please read the manual before installing and using this lighting...
- Page 2 If you have any remarks or comments, please share them with us. We will be grateful for any suggestions that will help us make products that are even better and devices that satisfy your needs. R&D Team WWW.KUDUX.COM...
-
Page 3: Table Of Contents
Table of contents Statement ..........................4 Product introduction ......................... 4 Size ............................. 4 Description ........................5 Safety information ......................6 Package ..........................7 Install standard ........................8 Power supply ........................9 Lamp ..........................9 DMX Channels ......................... 11 Contact: ........................... 13 WWW.KUDUX.COM... -
Page 4: Statement
Product introduction Thank you for choosing this BEAM LED 360 products, this model is the moving head light which is the latest development of the smart, efficient products, beautiful shape, smooth R & D, combined... -
Page 5: Description
2. Description 01 — lens 02 — body 03 — hand 04 — handle 05 — bottom 01 — display 02 — button 01 — power output 02 — power input 03 —3pin dmx input 04 —3pin dmx ouput WWW.KUDUX.COM... -
Page 6: Safety Information
Do not use the equipment without the lens screen and the lid; The lens and the light head covers should be timely replaced if any damage to rupture. 3.5. Prevention of electric shock The electrical connection must only be carried out with corresponding qualifications; WWW.KUDUX.COM... -
Page 7: Package
Handling at least allow the device to cool for 20 minutes. • Do not replace the non-original parts. Package 4.1. Attachment Beam LED 360 packed with fly-case of one in one, two in one, or carton box. Attach follow accessory. ACCESSORY CONTENT QUANTITY USER MANUAL 1 pc. -
Page 8: Install Standard
Install standard 5.1. Install lock Beam LED 360 can be placed on the stage, or mounted in an arbitrary direction of the truss. Two fast locks system could fix the item easily. 5.2. Equipment fixed • Before installation must verify the fast lock is keep in good state, and can withstand at least 10 times the weight of product. -
Page 9: Power Supply
LAMP MODEL POWER OF LAMP LIFE/HOUR COLOR TEMPERATURE OSRAM 60W 4in1 LED 20000 HOURS 8000K control panel Display Buttom screen Button 1： Menu Function ；Button 2： Downward The data of diminishing Button 3： Upward , Button 4： Enter Increasing data WWW.KUDUX.COM... - Page 10 Tilt Cal 0-255 Y 0 adjust Y reverse turn on PT Sett optocoupler adjustion off PT Opto optocoupler adjustion X reverse turn off Pan Rev X reverse turn on Tilt Rev Y reverse turn off Manual 0-255 Pan rotation WWW.KUDUX.COM...
-
Page 11: Dmx Channels
X rotation from fast to slow clockw 128-189 X infinite rotation 190-193 Stop X rotation from fast to slow 194-255 anticlockwise 0-127 128-189 Y rotation clockwise from fast to slow Y infinite rotation 190-193 Stop Y rotation anticlockwise from slow to 194-255 fast WWW.KUDUX.COM... - Page 12 45 -49 Cyan Color 50 -54 Salmon temperature 55 -59 Turquoise 60 -64 Light Green 65 -69 Steel Blue 70 -74 Orange 75 -79 Straw 80 -84 Pale Lavender 85 -89 Pink 90 -94 95 -99 Green 100-104 Blue WWW.KUDUX.COM...
-
Page 13: Contact
180-199 Built-in effect 5 200-219 Built-in effect 6 220-239 Built-in effect 7 240-255 Built-in effect 8 9. Contact: website Please check who is our dealer in your country at our www.kudux.com or write direct to us by email: office@kudux.com WWW.KUDUX.COM...
