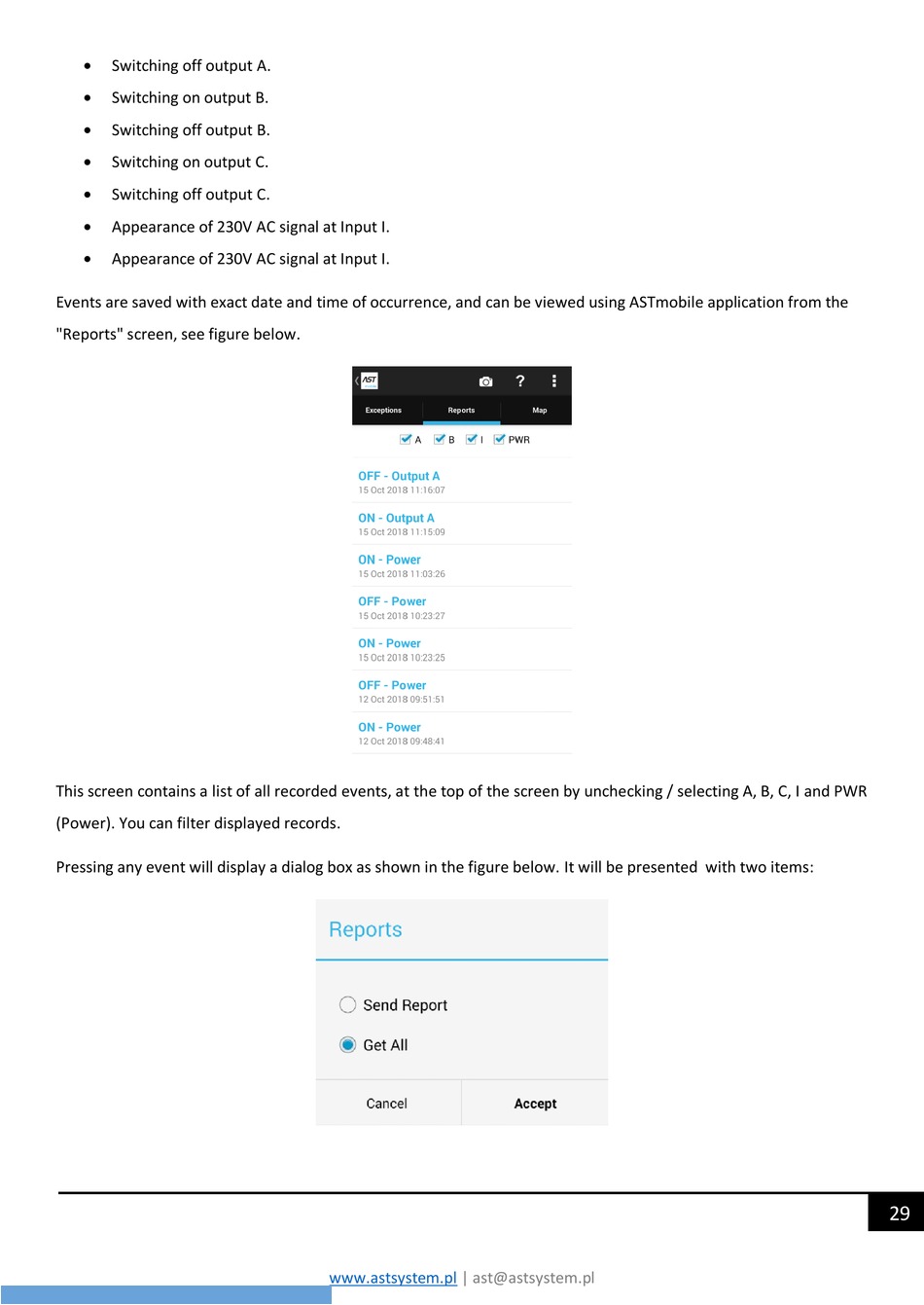

AST System ASTmidi User Manual page 29


Switching off output A.

Switching on output B.

Switching off output B.

Switching on output C.

Switching off output C.

Appearance of 230V AC signal at Input I.

Appearance of 230V AC signal at Input I.
Events are saved with exact date and time of occurrence, and can be viewed using ASTmobile application from the
"Reports" screen, see figure below.
This screen contains a list of all recorded events, at the top of the screen by unchecking / selecting A, B, C, I and PWR
(Power). You can filter displayed records.
Pressing any event will display a dialog box as shown in the figure below. It will be presented with two items:
