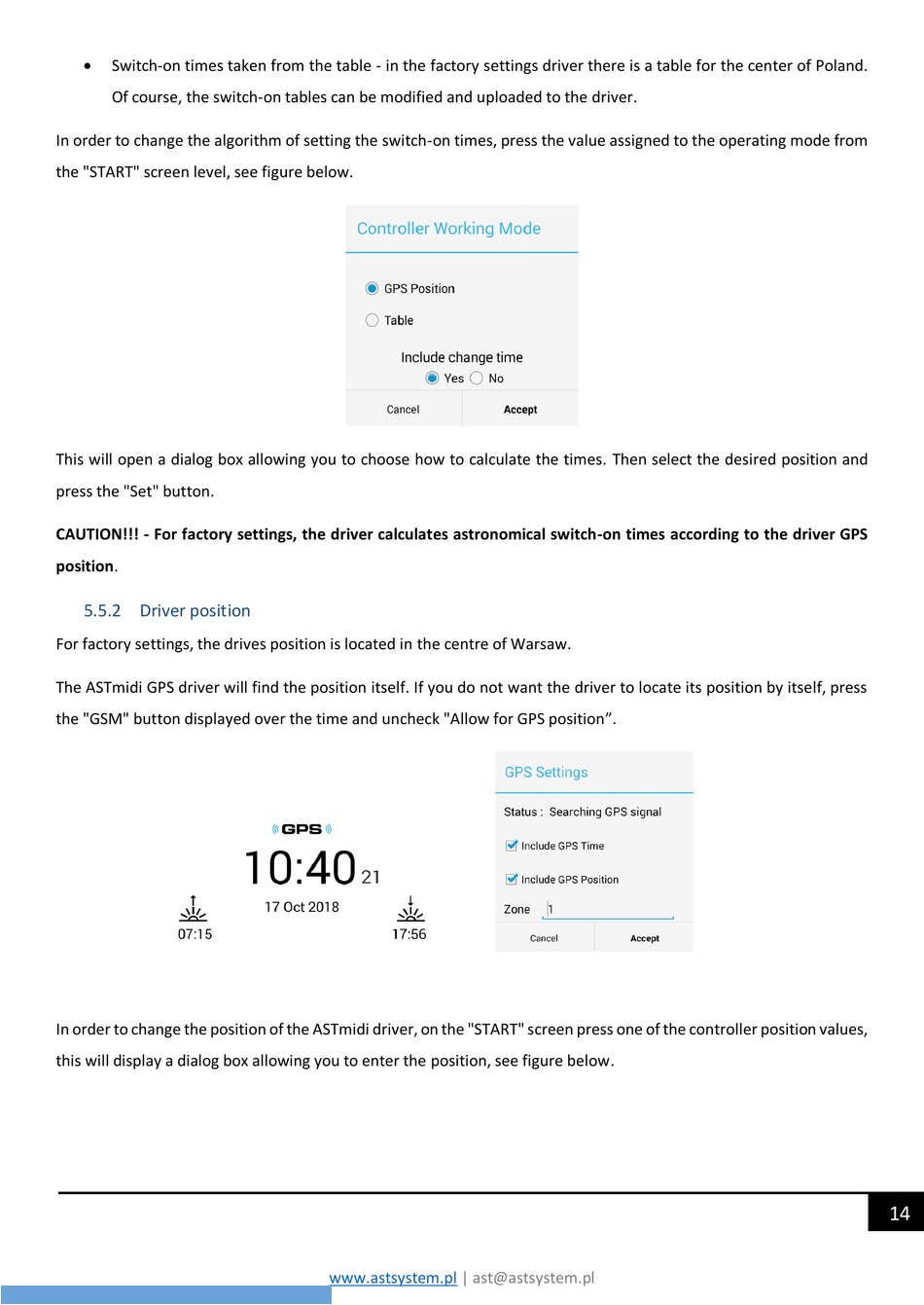

Driver Position - AST System ASTmidi User Manual


Switch-on times taken from the table - in the factory settings driver there is a table for the center of Poland.
Of course, the switch-on tables can be modified and uploaded to the driver.
In order to change the algorithm of setting the switch-on times, press the value assigned to the operating mode from
the "START" screen level, see figure below.
This will open a dialog box allowing you to choose how to calculate the times. Then select the desired position and
press the "Set" button.
CAUTION!!! - For factory settings, the driver calculates astronomical switch-on times according to the driver GPS
position.

5.5.2 Driver position

For factory settings, the drives position is located in the centre of Warsaw.
The ASTmidi GPS driver will find the position itself. If you do not want the driver to locate its position by itself, press
the "GSM" button displayed over the time and uncheck "Allow for GPS position".
In order to change the position of the ASTmidi driver, on the "START" screen press one of the controller position values,
this will display a dialog box allowing you to enter the position, see figure below.
www.astsystem.pl | ast@astsystem.pl
14
