After selecting a specific value, press the "Set" button to confirm the change.
For factory settings the driver operates in the "Summer-Winter" mode. Correction values for factory settings
independently of the mode are: correction of switching on +15 minutes, correction of switching off -15 minutes.

5.6.3 Switching intervals

The ASTmidi / ASTmidi GPS driver allows you to enter up to four switching intervals for each day week independently

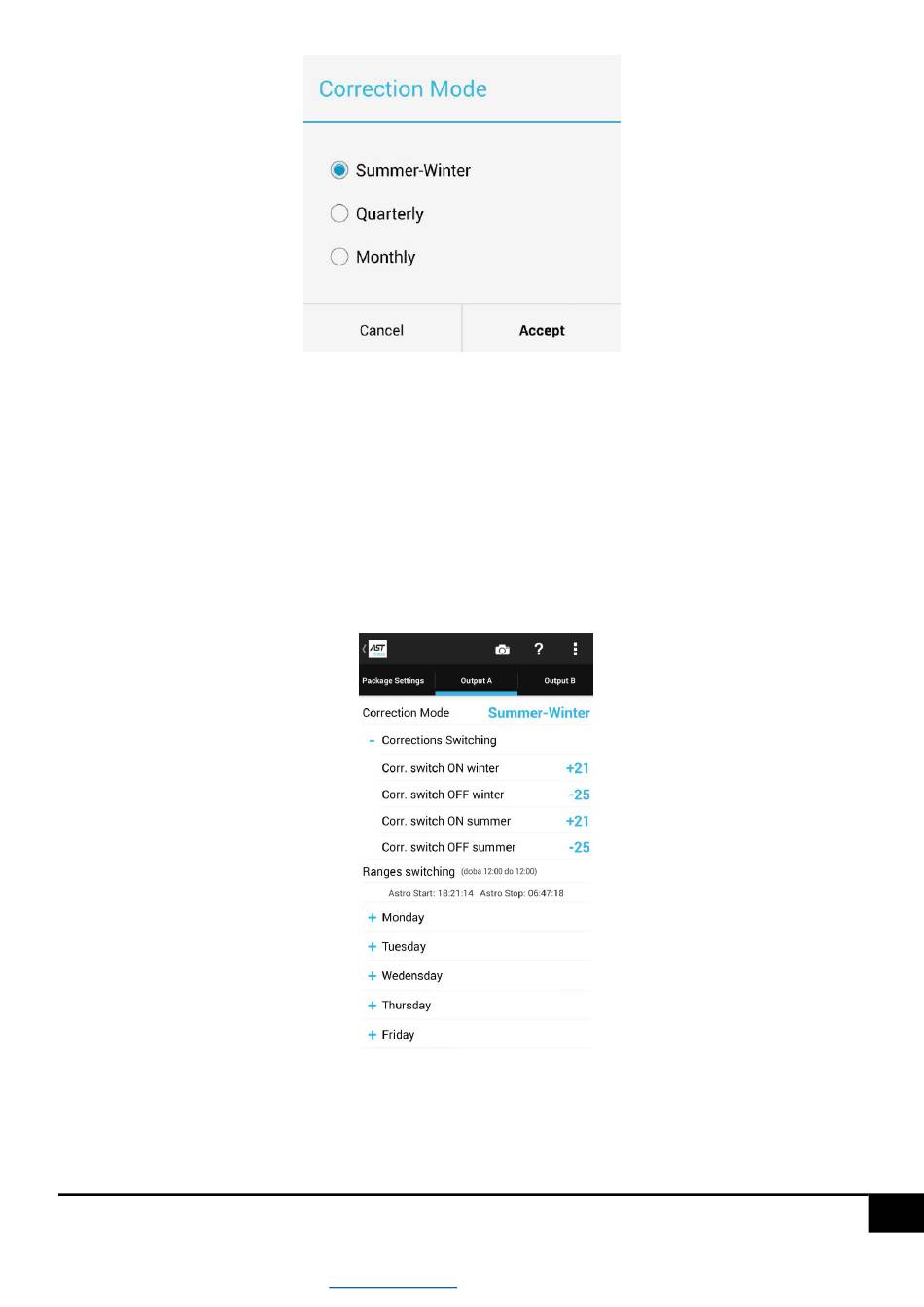

for outputs A, B and C. The switch-on periods can be configured from the "Input A, Output B and Output C" screens. A
view of the screen in the figure below.
On this screen you can change the correction mode, correction values and set the appropriate switch-on intervals for
each day of the week. In order to change the switching range, expand the selected day by pressing the "+" button. The
appearance of the expanded panel is shown in the figure below.
