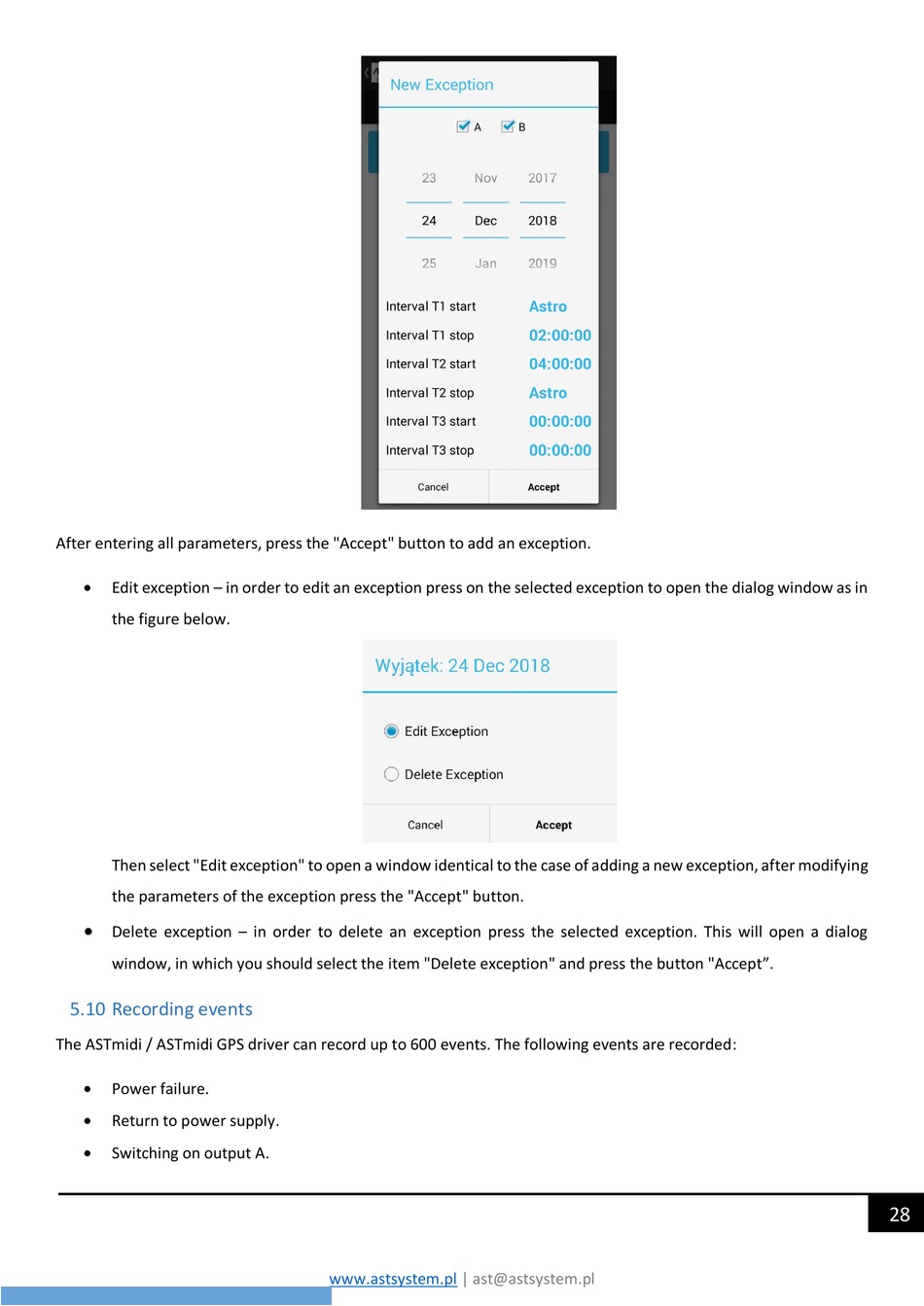

After entering all parameters, press the "Accept" button to add an exception.

Edit exception – in order to edit an exception press on the selected exception to open the dialog window as in
the figure below.
Then select "Edit exception" to open a window identical to the case of adding a new exception, after modifying
the parameters of the exception press the "Accept" button.

Delete exception – in order to delete an exception press the selected exception. This will open a dialog
window, in which you should select the item "Delete exception" and press the button "Accept".

5.10 Recording events

The ASTmidi / ASTmidi GPS driver can record up to 600 events. The following events are recorded:

Power failure.

Return to power supply.

Switching on output A.
