Summary of Contents for John Lewis JLUCFZS6008

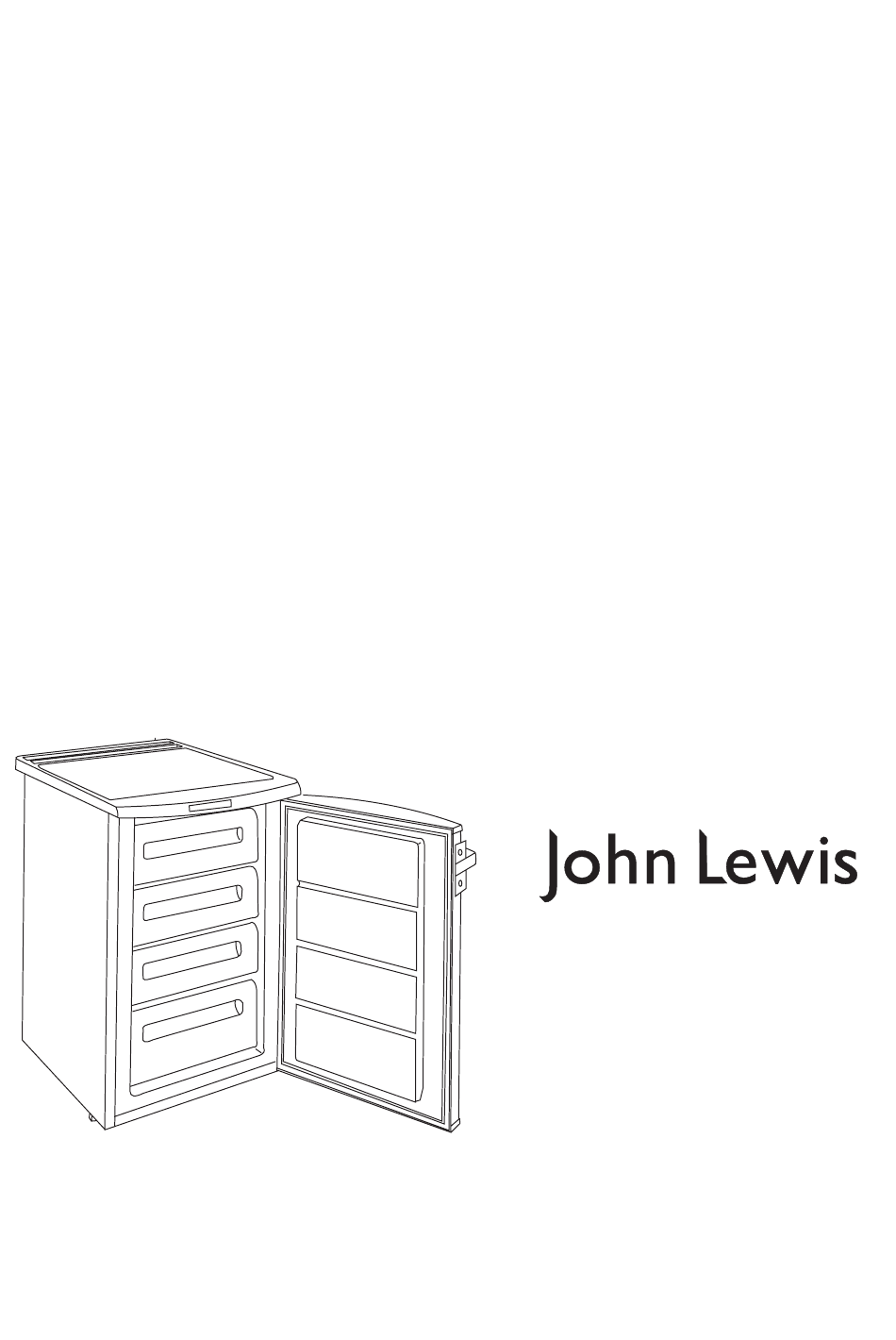

- Page 1 JLUCFZS6008 JLUCFZW6006 freezer Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of the these warnings contact the John Lewis branch from which you purchased the appliance. - Page 3 Service The symbol on the product or on its packaging indicates that this product may not be treated as This product should only be serviced by an authorised household waste. engineer and only genuine spare parts should be used. Instead it shall be handed over to the applicable collection Under no circumstances should you attempt to repair point for the recycling of electrical and electronic the appliance yourself.
-
Page 4: Table Of Contents
Contents For the User For the Installer Important safety information Installation Intallation Technical Specifications Description of the appliance Unpacking Cleaning Using the freezer Location Switch and indicators Climate Classification Basket storage Ventilation Requirements Operation and use Door Reserval Installation Electrical connection Adjusting the temperature When the freezer is first Freezing... -
Page 5: Description Of The Appliance
Description of the appliance 1. Storing compartment 6. Door sealing gasket 2. Freezer (baskets) 7. Ventilation grid 3. Data plate 8. Condenser 4. Switches and indicators 9. Airflow direction 5. Adjustable feet 10. Evaporator tray 11. Compressor... -
Page 6: Technical Specifications
Installation It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 7: Unpacking
If there is damage to the appliance you should may be reduced to 5 cm providing a clearance contact the John Lewis branch from which you space 2,5 cm is left on either side of the appliance. purchased it, should this occur make sure to. -
Page 8: Door Reserval
Door Reversal If required the door can be reversed, hinged from the left, opening from the right. To reverse the bottom hinge assembly proceed as follows: Disconnect the appliance from the electricity supply. Tilt the appliance backwards, resting the top edge of the appliance on a stool or something similar. -
Page 9: Electrical Connection
Electrical connection Any electrical work required to install this appliance should be carried out by a qualified electrician or competent WARNING: A cut off plug inserted into a person. 13 amp socket is a serious safety (shock) hazard. Ensure that the cut off plug is disposed of safely. -
Page 10: General Information
When the freezer is first installed General information This appliance is designed for the freezing and storage of frozen food in a domestic home. To ensure correct operation, the appliance should be located where the ambient temperature is between 16-32 °C. Using the Appliance Before Use The freezer must be thoroughly cleaned before use;... -
Page 11: Using The Freezer
Using the freezer Switches and indicators Press either "+" or "-" to switch the temperature display from CURRENT temperature (continuous lighting ) to the DESIRED temperature (flashing). A) On/off indicator green If neither button is pressed again, the temperature display will shortly (within approx. 5 seconds) B) On/off switch return to the CURRENT temperature. -
Page 12: Freezing
Note: Thawing The acoustic alarm will stop: Deep frozen or frozen food, prior to being used, can when the quick freeze function is switched on (by pressing the "Quick freeze on/off switch") be thawed in a fridge or at room temperature, depending on the time available. -
Page 13: Hints & Tips
Hints & Tips In this chapter practical hints and ideas are given about how to use the appliance to reach maximum energy saving and there is environmental information about the appliance as well. Normal Operating Sounds In the Event of a Power Failure You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing. -
Page 14: Storage Time Chart
Storage time chart Storage time of deep-frozen and frozen products Foods -18°C Vegetables: green beans, green peas, mixed vegetables, marrow, corn, etc. 12 months Ready-cooked foods: vegetable dish, trimmings, with meat, etc. 12 months Ready-cooked foods: sirloin steaks, 6 months Foods from potatoes, pasta: mashed potato, gnocchi, dumpling, filled pasta 12 months... -
Page 15: Maintenance And Cleaning
Maintenance and Cleaning Internal Cleaning Before any maintenance of cleaning work is carried out DISCONNECT the appliance from the Clean the inside and accessories with warm water and ELECTRICITY SUPPLY. bicarbonate of soda (5 ml to 0.5 litre of water). Rinse and dry thoroughly. -
Page 16: Something Not Working
Something Not Working If the refrigerator is not working correctly, please carry out the following checks before contacting your local Service Force agent. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 17: Repairs - After Sales Service
Contact your local John Lewis branch. 0844 871 7771 They will give you details for your local Service engineer. Before calling out an engineer, please ensure you have read the details under the heading "Something not working". - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 08/09 200382998...
