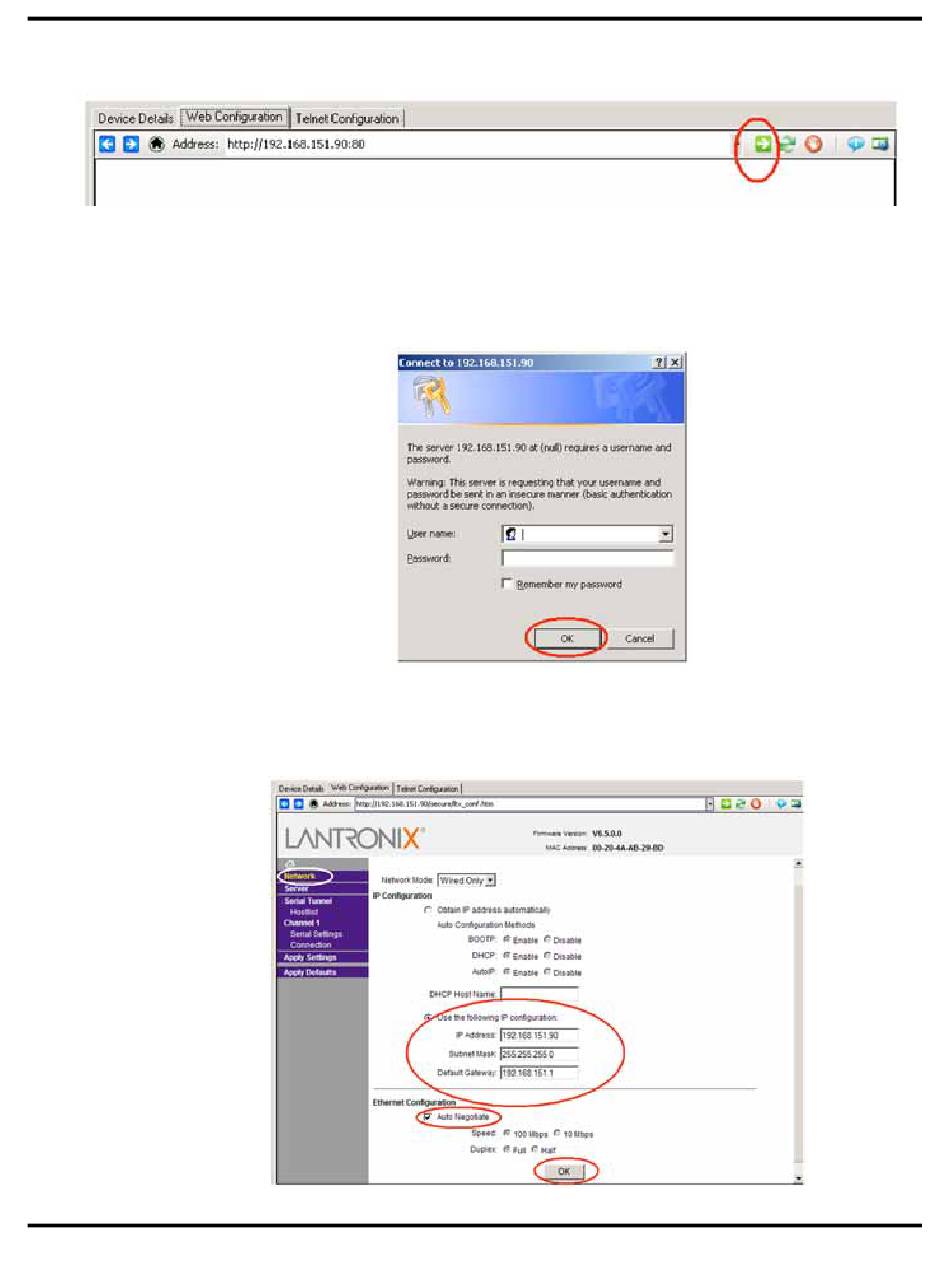

9. In the Web Configuration window, click on the "Navigate" button (the green arrow button) in
the upper right hand corner (Figure 15).
10.
Figure 15
10. This will open the User Name and Password window (Figure 16) for the UDS1100 device
to which you have just assigned an IP Address. There is no username or password
required. Click on the "OK" button to continue.
11. On the Lantronix screen that follows (Figure 17), click on Network and make sure "Use
the following IP Configuration" is selected and your IP information is correct. Make sure
"Auto Negotiate" is selected. Click the "OK" button when done.
D P G
EVICE ROGRAMMING UIDE
Figure 16
Figure 17
