Summary of Contents for Oase Floating Fountain with Lights 1/4 HP

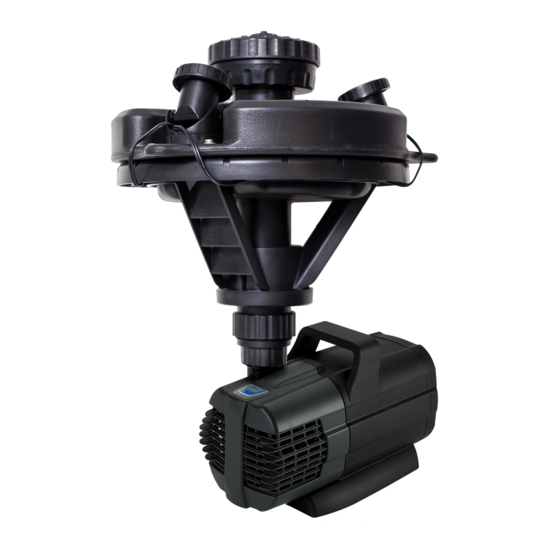

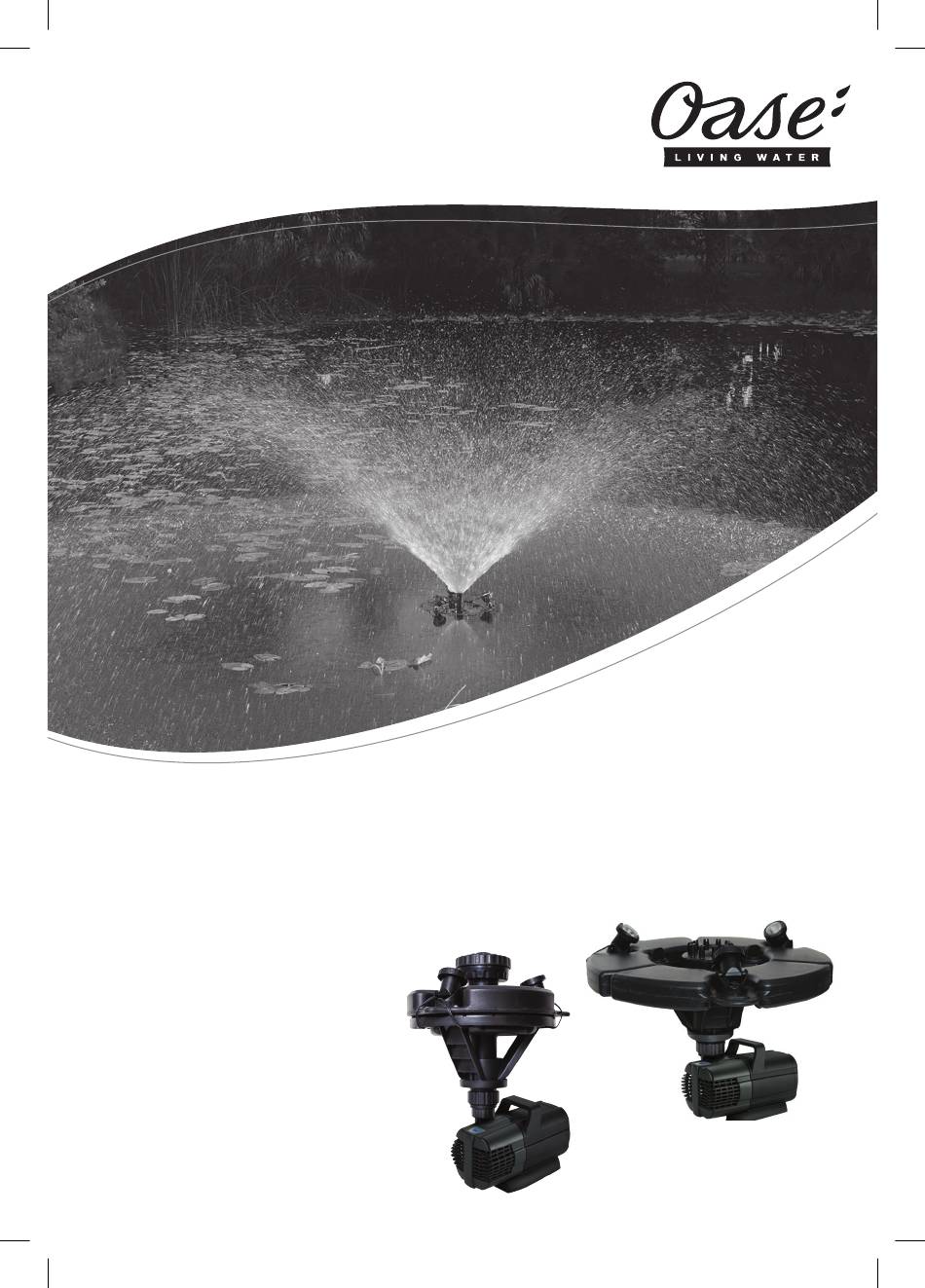

- Page 1 Floating Fountain with Lights 1/4 HP 1/2 HP Operating instructions Notice d’emploi Instrucciones de uso...
- Page 2 Information about these operating instructions Welcome to OASE Living Water. You made a great choice with the purchase of this product Floating Fountain with Lights 1/4 HP / 1/2 HP. Prior to operating the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.
-
Page 3: Symbols Used In These Instructions
Important information for trouble-free operation. Intended use Floating Fountain with Lights 1/4 HP / 1/2 HP, referred to in the following as “unit”, may only be used as specified in the following: • For creating a water fountain in lakes or large ponds with or without fish. -
Page 4: Installation
- English - Installation WARNING Risk of electric shock – This pump is supplied with a grounding conductor and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle. - Page 5 1. Switching on: Connect power plugs to the socket. 2. Switching off: Disconnect the power plugs. Questions, problems, missing parts? Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email us at customercare@oase-livingwater.com. Or visit our website at www.oase-livingwater.com...
-
Page 6: Maintenance And Cleaning
- English - Maintenance and cleaning Attention! Dangerous electrical voltage. Possible consequences: Death or serious injuries. Protective measures: • Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water: Isolate the units and installations (switch off and disconnect from the power supply) before reaching into the water. -
Page 7: Wear Parts
Check that the sensor faces up and is not covered by dirt or debris Questions, problems, missing parts? Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or email us at customercare@oase-livingwater.com. Or visit our website at www.oase-livingwater.com... - Page 8 - English - Model Rated Power Max. flow Max. head Model Dimensions Weight voltage consumption rate height 45383 130 W 2300 GPH 20 ft. 14.3 x 18.9 in. 14.96 lbs. 120V / 60 Hz 45393 230 W 5150 GPH 23 ft. 22.8 x 16.73 in.
- Page 9 Floating Fountain with Lights Pos. 1/4 HP Trumpet Nozzle Single Tier Nozzle 3 Tier Nozzle Nozzle adapter Coupler Transformer Sensor Pump with cord for LED light Tether Line Ground Anchor LED light set Light cord Extension Float Bolt Washer 1 Washer 2 Screw 1 Fountain Support...
- Page 10 Floating Fountain with Lights Pos. 1/2 HP Trumpet Nozzle Single Tier Nozzle 3 Tier Nozzle Transformer Sensor Pump with cord for LED light Tether Line Ground Anchor LED light set Light cord Extension Float Bolt Washer 1 Screw 1 Fountain Support Adapter Locking ring Screw 2...
- Page 11 OASE North America INC. · www.oase-livingwater.com...
