Product Parts and Installation

1) Parts and Accessories

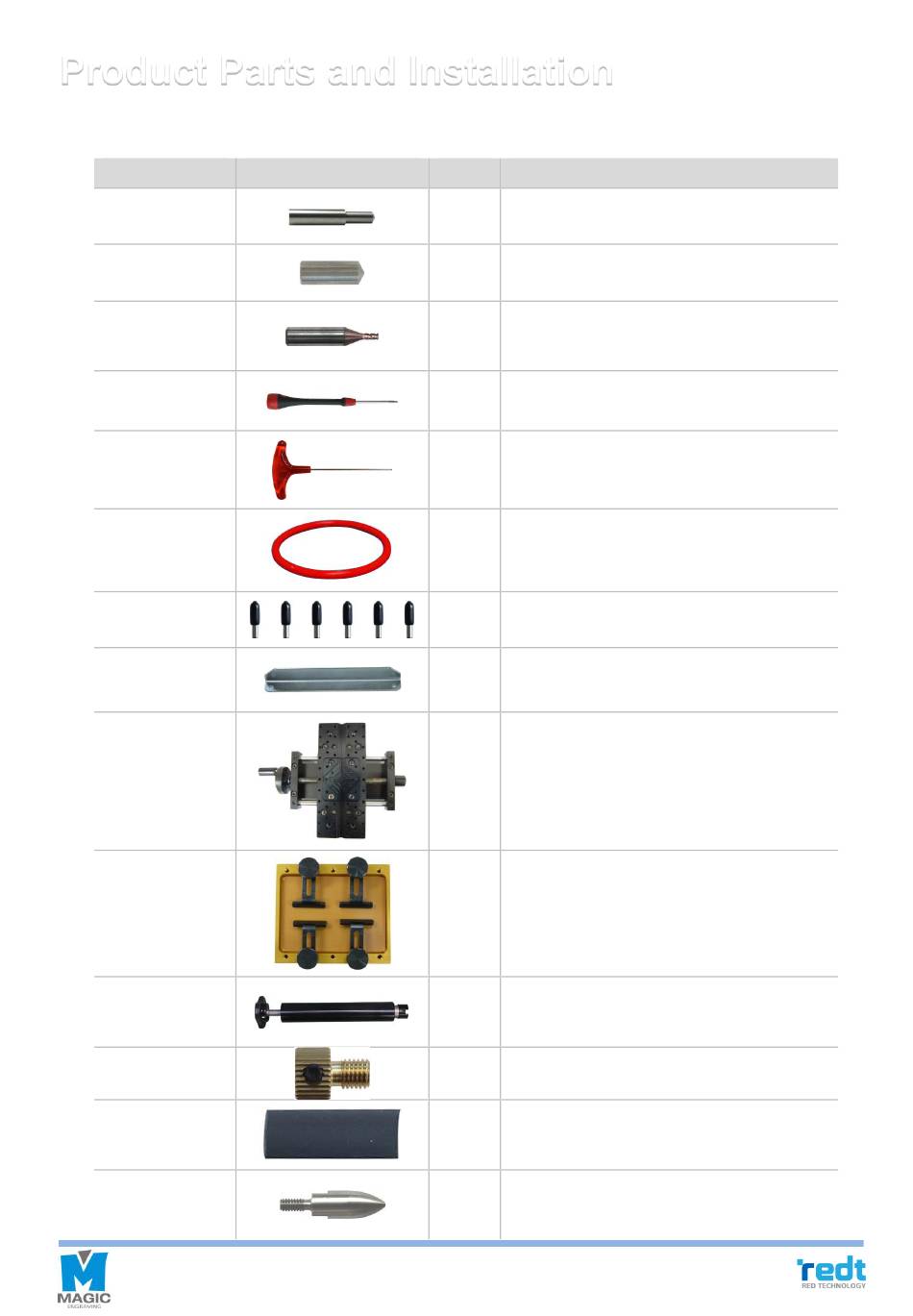

MAGIC-70 product box includes the engraver and following accessories.
Accessories
Diamond tip
(4Φ)
Diamond tip
(3.175Φ)
Endmill cutter
(4Φ 0.6)
1.5mm wrench
2mm T-wrench
Spindle belt
(60Φ)
Pin
Auxiliary jig
Multi-
performance
clamp
Cutting clamp
Pen clamp
Tool top loading
adapter
Finger skin
Pen finger
Photos Qty
1EA
1EA
2EA
1EA
1EA
3EA
6EA
1SET
1EA
1SET
1EA
2EA
1SET
3EA
5
Purpose
Tool for engraving. And ring outer diameter
engraving. (Spindle)
Tool for engraving. And ring inner diameter
engraving. (L-Tool)
Tool for cutting. (Spindle)
For changing tools.
For changing tools.
Silicon belt for transferring DC motor's
rotation power to spindle.
For holding of irregular shaped material.
For holding thick engraving materials
For holding materials in place.
For holding materials in place.
(Including Bakelite plate)
For holding pen.
For protect chuck fingers.
For holding pen.
