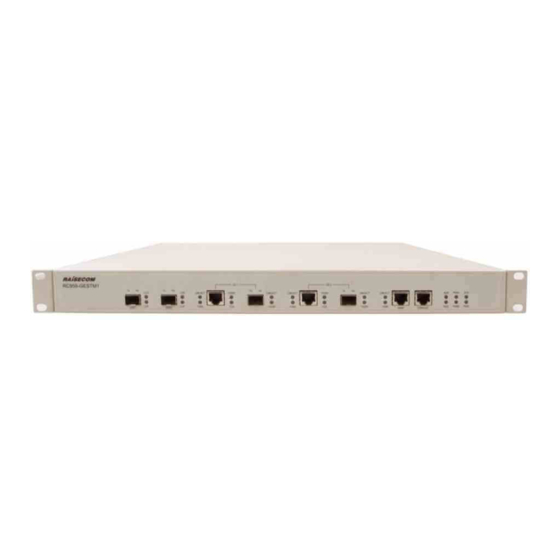

Raisecom RC953-GESTM1 Command Manual
  1. Manuals
  2. Brands
  3. Raisecom Manuals
  4. Gateway
  5. RC953-GESTM1
  6. Command manual

Raisecom RC953-GESTM1 Command Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.raisecom.com
RC953-GESTM1 Commands Notebook

Advertisement

Table of Contents
loading

Related Manuals for Raisecom RC953-GESTM1

Summary of Contents for Raisecom RC953-GESTM1

  • Page 1 RC953-GESTM1 Commands Notebook...
  • Page 2 Raisecom Technology Co., Ltd shall not be held liable for errors contained herein or direct, indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 Tel: +86-10-82883305 Fax: +86-10-82883056 World Wide Web You can access the most current Raisecom product information on the World Wide Web at the following URL: http://www.raisecom.com Feedback Comments and questions about how the RC953-GESTM1 device works are welcomed. Please review the FAQ in the related manual, and if your question is not covered, send email by using the following web page: http://www.raisecom.com/en/xcontactus/contactus.htm.

  • Page 4: Table Of Contents

    3.2 save user ---------------------------------------------------------------------------------------------------------------------- 33 3.3 show user --------------------------------------------------------------------------------------------------------------------- 33 3.4 user ----------------------------------------------------------------------------------------------------------------------------- 34 3.5 user privilege ----------------------------------------------------------------------------------------------------------------- 35 Chapter 4 Log management commands of RC953-GESTM1 -------------------- 37 4.1 log ------------------------------------------------------------------------------------------------------------------------------- 37 4.2 log clear ------------------------------------------------------------------------------------------------------------------------ 37 4.3 show log ----------------------------------------------------------------------------------------------------------------------- 38 Chapter 5 Network protocols configuration commands of RC953-GESTM140 5.1 arp add ------------------------------------------------------------------------------------------------------------------------- 40...
  • Page 5 7.3 alarm-trap-disable sdh --------------------------------------------------------------------------------------------------- 63 7.4 show current-alarm ------------------------------------------------------------------------------------------------------- 64 7.5 show history-alarm-------------------------------------------------------------------------------------------------------- 64 7.6 show alarm-index --------------------------------------------------------------------------------------------------------- 65 Chapter 8 Interface management command of RC953-GESTM1 SDH-------- 67 8.1 sdh description------------------------------------------------------------------------------------------------------------- 67 8.2 loopback --------------------------------------------------------------------------------------------------------------------- 67 8.3 sdh aps-restore-time ----------------------------------------------------------------------------------------------------- 68 8.4 sdh aupje-threshold------------------------------------------------------------------------------------------------------- 68...
  • Page 6 10.5 show virtual-channel ---------------------------------------------------------------------------------------------------- 91 10.6 show virtual-channel name ------------------------------------------------------------------------------------------- 92 10.7 virtual-channel index---------------------------------------------------------------------------------------------------- 92 10.8 virtual-channel------------------------------------------------------------------------------------------------------------ 93 Chapter 11 Interface management command of RC953-GESTM1 -------------- 94 Description ------------------------------------------------------------------------------------------------------------------------- 94 flow-control ------------------------------------------------------------------------------------------------------------------------- 94 11.3 no rate-limit ---------------------------------------------------------------------------------------------------------------- 95 11.4 rate-burst------------------------------------------------------------------------------------------------------------------- 95 11.5 rate-limit -------------------------------------------------------------------------------------------------------------------- 96...
  • Page 7 15.4 show interface ---------------------------------------------------------------------------------------------------------- 114 15.5 shutdown ---------------------------------------------------------------------------------------------------------------- 115 15.6 speed duplex ----------------------------------------------------------------------------------------------------------- 115 Chapter 16 Device management command of remote RC952-FXE1 ---------- 117 16.1 device-name ------------------------------------------------------------------------------------------------------------ 117 16.2 device-type -------------------------------------------------------------------------------------------------------------- 117 16.3 interface------------------------------------------------------------------------------------------------------------------ 118 16.4 reset----------------------------------------------------------------------------------------------------------------------- 118 16.5 show device------------------------------------------------------------------------------------------------------------- 119 Chapter 17 The configuraiton command under the e1Interface configuration mode of remote RC952-FXE1.
  • Page 8 24.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 141 24.3 interface e1-------------------------------------------------------------------------------------------------------------- 142 24.4 interface fx-eth --------------------------------------------------------------------------------------------------------- 142 24.5 show interface ---------------------------------------------------------------------------------------------------------- 142 Chapter 25 The configuration command under fxInterface configuration mode of remote RC953-FX8E1 --------------------------------------------------------------------- 144 25.1 flow-control -------------------------------------------------------------------------------------------------------------- 144 25.2 interface e1-------------------------------------------------------------------------------------------------------------- 144 25.3 show interface ---------------------------------------------------------------------------------------------------------- 145 Chapter 26 The device management command of remote RC953-FE4E1.
  • Page 9 32.3 err-auto-shutdown ----------------------------------------------------------------------------------------------------- 167 32.4 fault-pass ---------------------------------------------------------------------------------------------------------------- 167 32.5 interface e1-------------------------------------------------------------------------------------------------------------- 167 32.6 interface eth------------------------------------------------------------------------------------------------------------- 168 32.7 reset----------------------------------------------------------------------------------------------------------------------- 168 32.8 show device------------------------------------------------------------------------------------------------------------- 169 Chapter 33 The configuration command under e1Interface configuration mode of remote RC954-FE4E1. -------------------------------------------------------------------- 170 33.1 clock-mode -------------------------------------------------------------------------------------------------------------- 170 33.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 170 33.3 interface e1-------------------------------------------------------------------------------------------------------------- 171 33.4 interface eth------------------------------------------------------------------------------------------------------------- 171...
  • Page 10 Release Notes Date of Release Manual Version Software Version Revisions 20071210 20071109...
  • Page 11 Preface Why we write this manual The main aim of writing this user manual RC953-GESTM1 is to introduce the software Command line interface of RC953-GESTM1, it wholly introduces the Command line human interface that is setup by RC953-GESTM1, meanwhile it can finished the management according to the whole device...

  • Page 12: Chapter 1 How To Use The Command Line

    1.3 Command mode Mode Description Access function Mode symbol User EXEC Mode Under this mode, user can Sign up the device, enter the RC953-GESTM1> configuration the terminal basic ID No. and password. information or indicate the parameter.
  • Page 13 Under this mode, customers can Enter the enable and password RC953-GESTM1# mode configuration the basic under the common customer’s information of RC953-GESTM1 mode. device, for instance the system time, indicate the parameter information. It can’t configuration the working information of the device.

  • Page 14: Relationship Of Command Modes

    User Manual Remote Under this mode, costumers Enter remote rmc under RC953-GESTM1(co media can configuration the the Global configuration nfig)#remote rmc X converter working parameters of the mode. RC953-GESTM1 configuration remote media converter. (config-RC501/X)# mode. Remote Under this mode, costumers...
  • Page 15 User Manual English exit help history list no terminal line quit terminal history <1-20> terminal line <5-512> terminal time-out <0-65535> Privileged EXEC mode chinese clear config terminal config debug device unlock disable download (system-boot | startup-config) (tftp | ftp)
  • Page 16 User Manual show running-config show sdh aps show sdh aps timeslot [TSSTRING] show SNMP-server community show SNMP-server statistics show SNMP trap-server show sntp show startup-config show startup-config device <0-127> show terminal show user show version show virtual-channel [<1-63>] upload (system-boot | startup-config) (tftp|ftp)
  • Page 17 User Manual remote rmc <1-63> sdh aps-restore-time <1-12> sdh force-switch (work-line|protection-line|clear) timeslot [TSSTRING] show alarmindex [(sdh|innere1|system|rmc|ric|ge)] show arp show current-alarm show device show device clock show ip route help show ip route show log [key1 STRING] [key2 STRING] [key3 STRING] show loopbackdetection virtual-channel [{1-63}] show remote interface ric <1-63>...
  • Page 18 User Manual shutdown storm-rate-limit <0-1024000> storm-suppression (broadcast|multicast|dlfstorm|all) trunk vc12 add VC12STRING [vc12num <1-8>] virtual-channel add VCSTRING virtual-channel delete [VCSTRING] E1 interface configuration bert (enable|disable) mode chinese clear clock-mode (master|slave) crc-auto (enable|disable) english exit frame help history interface e1 <1-63>...
  • Page 19 User Manual chinese clear description STRING english exit help history ip address A.B.C.D A.B.C.D ip address A.B.C.D list no autonegotiate no shutdown quit show interface show interface snmp shutdown speed (10|100) duplex (full-duplex|half-duplex) Vcc interface mode chinese clear english...
  • Page 20 User Manual interface e1 interface (eth|fx-eth) list [ no] err-auto-shutdown quit reset show interface e1 show interface (eth|fx-eth) Remote interface converter chinese E1 interface configuration clear mode. clock-mode (master|slave) crc-auto (enable|disable) english exit help history interface e1 interface (eth|fx-eth)

  • Page 21: Chapter 2 System Management Commands

    User Manual Chapter 2 System Management Commands 2.1 chinese [Command Format] chinese [Parameter] [Default] [Command mode] User EXEC mode [Instructions] [Application Example] RC953-GESTM1# chinese Successfully setup [Relevant Commands] Command Description english Setup English assistance information 2.2 clear [Command Format] clear [Function] Clear the primary screen information.

  • Page 22: Config

    User Manual User EXEC mode [Instructions] [Command Execute Echo] [Application Example] clear the primary screen information RC953-GESTM1# clear [Relevant Commands] 2.3 config [Command Format] config [Function] Enter Global configuration mode [Parameter] terminal: optional parameters [Default] [Command mode] Privileged EXEC mode [Command Execute Echo] Configuration mode, one command input per times.

  • Page 23: Device Lock

    2.5 device lock [Command Format] device lock [Function] RC953-GESTM1 device lock, device can’t execute the other configuration besides the device unlock after it is locked. That is can’t enter the Global configuration mode, but can look over the related configuration. [Default]...

  • Page 24: Disable

    User Manual configurate RC953-GESTM1 device is master station or slave station. [Parameter] master: the configuration is master station. slave: the configuration is slave station. [Default] [Command mode] Global configuration mode [Command Execute Echo] Set successfully ! Information shown after the clock-mode setup successfully.

  • Page 25: Enable

    [Command Execute Echo] password: Indicate entering the password, this password is the same with the login password. [Application Example] Enter Privileged EXEC mode RC953-GESTM1> enable Password: <password> RC953-GESTM1# [Relevant Commands] Command Description...

  • Page 26: English

    [Parameter] [Default] [Command mode] User EXEC mode [Instructions] [Command Execute Echo] set successfully. ! [Application Example] Setup English assistance information. RC953-GESTM1# english set successfully. [Relevant Commands] Command Description chinese Setup Chinese assistance information. 2.10 end [Function] Return to the Privileged EXEC mode.

  • Page 27: Exit

    All the modes except for the user EXEC mode and the Privileged EXEC mode. [Instructions] [Command Execute Echo] [Application Example] Back to the Privileged EXEC mode. RC953-GESTM1(config)# end [Relevant Commands] Command Description Ctrl + Z Return to the Privileged EXEC mode 2.11 exit...

  • Page 28: Help

    User EXEC mode [Instructions] [Command Execute Echo] RC953-GESTM1 AGENT software provides advanced help feature. When you need help, anytime at the Command line please press '?'. If nothing matches, the help list will be empty and you must backup until entering a '?' shows the available options.

  • Page 29: Interface

    TYPE indicates the interface style. It supports 5 styles, e1/ge/sdh/snmp/vcc, X is port No. [Default] [Command mode] Global configuration mode [Application Example] Enter the local interface configuration mode. RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# 2.14 history [Command Format] history [Function] Indicate the latest Command list after login this time.

  • Page 30: Hostname

    HOSTNAME [Function] Revised the system name, use no command to revise the hostname. [Parameter] HOSTNAME: system name [Default] Hostname is RC953-GESTM1 [Command mode] Privileged EXEC mode [Instructions] Keep the revised system name and execute the Command write. [Command Execute Echo]...

  • Page 31: List

    List the Command list under this mode. [Parameter] [Default] [Command mode] User EXEC mode [Instructions] [Command Execute Echo] [Application Example] List the Command list under the Privileged EXEC mode. RC953-GESTM1# list [Relevant Commands] 2.17 logout [Command Format] logout [Function] Logout the current landing. [Parameter] [Default]...

  • Page 32: Quit

    User Manual RC953-GESTM1# logout Login: [Relevant Commands] Command Description exit Back to the previous mode from the current mode quit Logout from the current landing. 2.18 quit [Command Format] quit [Function] Logout from the current mode. [Parameter] [Default] [Command mode]...

  • Page 33: Reboot

    [Application Example] RC953-GESTM1# reboot [Relevant Commands] 2.20 settime [Command Format] settime DATE TIME [Function] Setup the system time. [Parameter] DATE format: <month/day/year> TIME format: <hour:minute:second> Application Example: 04/07/2003 15:14:51. [Default] [Command mode] Privileged EXEC mode [Application Example] RC953-GESTM1(config)# settime 04/07/2005 15:14:13...

  • Page 34: Show Clock

    Privileged EXEC mode [Instructions] [Command Execute Echo] Now the time is xx/xx/xxxx xx:xx:xx ! Indicate the information when the current time is correct. [Application Example] RC953-GESTM1# show clock [Relevant Commands] Command Description settime Indicate the system date and time. 2.22 show cpu-utilization-ratio...

  • Page 35: Show Device

    User Manual [Parameter] [Default] [Command mode] Privileged EXEC mode [Application Example] RC953-GESTM1# show cpu utilization-ratio cpu utilization-ratio is 50% 2.23 show device [Command Format] show device [Function] Show device and power information. [Parameter] [Default] [Command mode] Privileged EXEC mode, Global configuration mode...

  • Page 36: Show Device Clock

    [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Instructions] [Command Execute Echo] [Application Example] RC953-GESTM1(config)# show device clock Show the information below when the clock mode is slave mode: clock mode: slave clock status: normal current clock-source: sdh1 priority...

  • Page 37: Show Terminal

    User Manual [Parameter] [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Instructions] [Command Execute Echo] [Application Example] RC953-GESTM1# show sntp SNTP configuration information SNTP server address:1.1.1.2 SNTP server Stratum Version Last Receive ------------------------------------------------------------ 2.26 show terminal [Command Format]...

  • Page 38: Show Version

    [Command mode] Privileged EXEC mode [Application Example] RC953-GESTM1# show version RaiseCom Operating System Software Copyright(c) 2001-2003 by Raisecom Science & Technology CO., LTD. Product name: RC953-GESTM1 RaiseComOS Software Version 1.0(Compiled Nov 4 2005 14:42:14) Hardware Version A.0 FPGA Version 0.0...

  • Page 39: Terminal History

    [Default] [Command mode] Global configuration mode [Command Execute Echo] Set successfully ! Show the information when sntp setup is successfully. [Application Example] RC953-GESTM1(config)# sntp server 192.168.4.250 Set successfully [Relevant Commands] show sntp 2.29 terminal history [Command Format] terminal history <1-20>...

  • Page 40: Terminal Line

    Default terminal line indicates line 24. [Command mode] User EXEC mode [Instructions] [Command Execute Echo] [Application Example] Terminal line 10. RC953-GESTM1> terminal line 10 Set successfully [Relevant Commands] Command Description history Show the latest command list after currently logout. terminal time-out The maximum when the terminal has no time-out.

  • Page 41: Terminal Time-Out

    The command Default seconds are 600. [Command mode] User EXEC mode. [Command Execute Echo] Set successfully ! [Application Example] The time-out seconds are 100. RC953-GESTM1> terminal time-out 100 Set successfully [Relevant Commands] Command Description history Show the latest command list after the current login.
  • Page 42 User Manual [Command mode] Privileged EXEC mode [Instructions] [Command Execute Echo] [Application Example] Who is the current connecting users. RC953-GESTM1# who * vty[2] connected from 101.51.51.81. vty[3] connected from 101.51.51.82. [Relevant Commands] Command Description show terminal Show the terminal users information.

  • Page 43: Chapter 3 Rc953-Gestm1 User Management Commands

    User Manual Chapter 3 RC953-GESTM1 User Management Commands 3.1 password [Command Format] password PASSWORD [Function] Revised the current login password. [Parameter] PASSWORD: Password. [Default] [Command mode] Privileged EXEC mode [Instructions] [Command Execute Echo] set successfully! please execute "write" to save! Show the information when the current user password is successfully.

  • Page 44: Save User

    [Command Format] save user [Function] Save user information. [Parameter] [Default] [Command mode] Privileged EXEC mode [Application Example] RC953-GESTM1# save user Save user information successfully! 3.3 show user [Command Format] show user [Function] Show all the users ID NO. [Parameter] [Default]...

  • Page 45: User

    User Manual ------------------------------- RC953-GESTM1 admin raisecom admin [Relevant Commands] Command Description User Setup user information. Setup the privilege of the specific user. User privilege 3.4 user [Command Format] user USERNAME password {no-encryption|md5} PASSWORD [Function] Add the users and setup the passwords.

  • Page 46: User Privilege

    User Manual RC953-GESTM1# user abc password no-encrypt 123 Delete a user whose usename is abc. RC953-GESTM1# no user abc. [Relevant Commands] Command Description hostname Set the hostname name of the privileged user. user privilege Revised the privileged level of the user.
  • Page 47 User Manual RC953-GESTM1# user abc privilege normal Set successfully ! please execute "write" to save! [Relevant Commands] Command Description User Add a user and set the password. show user Show the user information.

  • Page 48: Chapter 4 Log Management Commands Of Rc953-Gestm1

    User Manual Chapter 4 Log management commands of RC953-GESTM1 4.1 log [Command Format] log (enable|disable|clear) [Function] Enable or disable log [Parameter] enable: enable the log disable: disable the log clear: clear the log [Default] Enable the log [Command mode]...

  • Page 49: Show Log

    [Function] Clear the log information [Parameter] [Default] [Command mode] Global configuration mode [Application Example] Clear the current log information RC953-GESTM1# log clear [Relevant Commands] Command Description Enable or disable the log show log Show the log information 4.3 show log...
  • Page 50 User Manual 01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 38 01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 23 01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 19 01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 12 01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 10...

  • Page 51: Chapter 5 Network Protocols Configuration Commands Of Rc953-Gestm140

    User Manual Chapter 5 Network protocols configuration commands of RC953-GESTM1 5.1 arp add [Command Format] arp add A.B.C.D MACADDRESS [Function] Configure a mapping from an IP address to a physical MAC address [Parameter] A.B.C.D: IP address of the interface MACADDRESS: <AA.BB.CC.DD.EE.FF>,physical MAC address that the interface has mapped.

  • Page 52: Ip Address

    User Manual [Command mode] Global configuration mode [Application Example] RC953-GESTM1(config)# arp delete 192.168.4.250 Successfully delete an entry from ARP table [Relevant Commands] Command Description arp add Configurate the mapping from a IP address to a physical MAC address. show arp Show the current ARP list.

  • Page 53: Ip Route

    Information showed when adding a route is successfully. Unsuccessfully add a route! Information showed when adding a route is unsuccessfully. [Application Example] Add a route. RC953-GESTM1(config)# ip route 192.168.6.0 255.255.255.0 192.168.4.250 Successfully add a route Delete a route. RC953-GESTM1(config)# no ip route 192.168.6.0 255.255.255.0...

  • Page 54: No Virtual-Channel

    Cancel the virtual-channel accordance with the vcc network channel. [Parameter] [Default] [Command mode] Global configuration mode, vcc interface configuration mode. [Application Example] RC953-GESTM1(config-vcc)# no virtual-channel clear vcc virtual channel success. 5.6 ping [Command Format] ping A.B.C.D [count <1-65535>] [size <12-4076>] [timeout <1-255>] [Function] Test whether the network is connectable.

  • Page 55: Show Arp

    Privileged EXEC mode [Instructions] [Command Execute Echo] [Application Example] Ping the destination host 192.168.1.119. RC953-GESTM1> ping 192.168.1.119 (Type CTRL+C break) PING 192.168.1.119: 56 data bytes 64 bytes from host (192.168.1.119): icmp_seq=0. time=0. ms 64 bytes from host (192.168.1.119): icmp_seq=1. time=0. ms 64 bytes from host (192.168.1.119): icmp_seq=2.

  • Page 56: Show Ip Route

    User Manual RC953-GESTM1(config)# show arp LINK LEVEL DYNAMIC ARP TABLE ipAddress macAddr flags Refcnt Use Interface -------------------------------------------------------------------------- 192.168.4.251 00:50:8d:46:fb:03 0xffff8405 1 motfec0 -------------------------------------------------------------------------- LINK LEVEL STATIC ARP TABLE ipAddress macAddr flags Refcnt Use Interface -------------------------------------------------------------------------- -------------------------------------------------------------------------- arp timeout is 1200(s)

  • Page 57: Show Snmp-Server Community

    [Function] Show SNMP community name list. [Parameter] [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Application Example] Show SNMP community name list. RC953-GESTM1(config)# show snmp-server community COMMUNITYNAME RIGHT --------------------------------- public private [Relevant Commands] Command Description Setup SNMP table and the privilege.

  • Page 58: Snmp-Server Community

    Show information of SNMP trap server. [Parameter] [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Instructions] [Command Execute Echo] [Application Example] Show information of SNMP trap-server. RC953-GESTM1# show snmp trap-server Trap server: ADDRESS PORT --------------------- 192.168.2.5 [Relevant Commands] Command Description Setup the host of the SNMP trap server.

  • Page 59: Snmp-Server Contact Syscontact

    Set snmp community name successfully! Show the information after adding the community name successfully. Set snmp community name failure! Show the information after adding the community name failed. [Application Example] RC953-GESTM1(config) snmp-server community raisecom rw Set successfully [Relevant Commands] Command Description show Snmp-server community Show SNMP community name list information.

  • Page 60: Snmp-Server Location Syslocation

    User Manual [Application Example] RC953-GESTM1(config)# snmp-server contact 123@raisecom.com Set Successfully. 5.13 snmp-server location SYSLOCATION [Origianl mode] snmp-server location SYSLOCATION [Function] Set the location of the host computer, it can’t exceed 256 alphabet. These parameters setup as the standard configuration in SNMP MIB.

  • Page 61: Snmp Trap-Server

    Set trap server successfully! Show the information when adding a new host successfully. trap server failed! Show the information when adding a new host failed. [Application Example] RC953-GESTM1(config)# snmp trap-server 192.168.4.250 Set successfully. [Relevant Commands] Command Description show snmp trap-server Show trap-server information.

  • Page 62: Show Snmp-Server Statistics

    [Function] show snmp server statistics. [Parameter] [Default] [Command mode] Privileged EXEC mode [Application Example] Show SNMP server statistics. RC953-GESTM1(config)# show snmp-server statistics SNMP Statistics: snmpInPkts: 0 snmpInBadVersions: 0 snmpInBadCommunityNames: 0 snmpInBadCommunityUses: 0 snmpInASNParseErrs: 0 snmpEnableAuthTraps: 0 snmpOutPkts: 0...

  • Page 63: Show Interface Snmp

    [Function] Show interface situation and detailed statistics. [Parameter] [Default] [Command mode] Privileged mode, snmp interface configuration mode. [Application Example] RC953-GESTM1# show interface snmp Interface : snmp Administration Status: up Operation Status : up Description : snmp Internet address : 192.168.2.99...

  • Page 64: Show Interface Vcc

    5.19 show interface vcc [Command Format] show interface vcc [Function] Show vcc network interface. [Parameter] [Default] [Command mode] Privileged mode, vcc interface configuration mode. [Application Example] RC953-GESTM1(config-vcc)# show interface vcc VccIndex IPAddress Netmask VirtualChannel 192.168.5.28 255.255.0.0 RC953-GESTM1(config-vcc)# 5.20 virtual-channel [Command Format] virtual-channel <1-63>...

  • Page 65: Chapter 6 Upgrade And Configuration File Management Commands Of Rc953-Gestm1

    User Manual Chapter 6 Upgrade and configuration file management commands of RC953-GESTM1 6.1 download [Command Format] download (system-boot | startup-config) (tftp | ftp) [Function] Download system-boot file or startup-config file from management server [Parameter] (system-boot|startup-config): choose the file needed to be downloaded..

  • Page 66: Erase Startup-Config

    Information showed when download the file successfully. Copy file fail ! Information showed when download file failed. [Application Example] Download RC953-GESTM1 image program from host server. RC953-GESTM1# download system-boot ftp Please input server IP Address : 1.0.0.1 Please input FTP User name : test...

  • Page 67: Show Running-Config

    Indicate if it erases successfully after erasion. [Command Execute Echo] Finished erasing! Information showed when finished erasing the start configuration. [Application Example] Erase the device configuration file startup-config. RC953-GESTM1# erase startup-config Are you sure[Y/N]:y Erase successfully [Relevant Commands] Command Description show running-config Show the current working configuration.

  • Page 68: Show Startup-Config Device <0-127

    No., 65-127 indicates media converter device No. [Default] [Command mode] Privileged EXEC mode [Application Example] RC953-GESTM1# show starup-config device 0 current start up configuration : snmp-server community private rw device clock-mode slave converged-port eth snmp trap-server 192.168.4.111 162...

  • Page 69: Show Startup-Config

    Show running-config Show present running configuration. write Save present configuration to initial file. 6.5 show startup-config [Command Format] show startup-config [Function] Show startup-config [Parameter] [Default] [Command mode] Privileged EXEC mode [Application Example] RC953-GESTM1# show starup-config current start up configuration :...

  • Page 70: Upload

    User Manual snmp-server community private rw device clock-mode slave converged-port eth snmp trap-server 192.168.4.111 162 alarm-trap-disable index 201 alarm-trap-disable index 205 alarm-trap-disable index 231 alarm-trap-disable index 233 sdh aps-restore-time 1 virtual-channel vc12 1 e1 1 name virtualchannel-1 virtual-channel vc12 2 e1 2 name virtualchannel-2...

  • Page 71: Write

    The length of the username and password of FTP can’t exceed 16 characters, the length of the file name can’t exceed 80 characters. [Application Example] RC953-GESTM1# upload system-boot ftp Please input server IP Address:192.168.4.250 Please input FTP User name:wrs Please input FTP Password:wrs Please input FTP Server File Name:aa.z...
  • Page 72 User Manual RC953-GESTM1# write Please wait..Copy OK: 16887 bytes copied Save current configuration successfully! [Relevant Commands] Command Description erase startup-config Erase device configuration startup-config Show running-config Show the present running-config write Save present configuration to initial configuration.

  • Page 73: Chapter 7 Alarming Management Command Of Rc953-Gestm1

    User Manual Chapter 7 Alarming management command of RC953-GESTM1 7.1 alarm-trap-disable [Command Format] alarm-trap-disable (ric|rmc|system|innere1|ge) no alarm-trap-disable (ric|rmc|system|innere1|ge) [Function] Config alarm-trap-disable, use no command to delete alarm-trap-disable. [Parameter] (ric|rmc|system|innere1|ge): Choose alarm-trap-disable mode. [Default] [Command mode] Global configuration mode [Command Execute Echo] Set successfully ! Information showed when alarm-trap-disable is set successfully.

  • Page 74: Alarm-Trap-Disable Sdh

    ALARMNO: [Default] [Command mode] Global configuration mode [Command Execute Echo] Set successfully ! Information showed when set the alarm-trap-disable successfully! [Application Example] RC953-GESTM1# alarm-trap-disable index 203 Set successfully [Relevant Commands] Command Description show alarmindex Show alarming index. 7.3 alarm-trap-disable sdh...

  • Page 75: Show Current-Alarm

    7.4 show current-alarm [Command Format] show current-alarm [Function] Show the current alarm. [Parameter] [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Application Example] RC953-GESTM1# show current-alarm Name var1 var2 var3 var4 ---------------------------------------------------------------- snmp_trap_coldStart snmp_trap_linkDown rcLocalInnerE1Ais rcLocalInnerE1Ais rcLocalInnerE1Ais rcLocalInnerE1Ais rcLocalInnerE1Ais...

  • Page 76: Show Alarm-Index

    7.6 show alarm-index [Command Format] Show alarm index (sdh|innere1|system|rmc|ric|ge) [Function] Show alarm-index. [Default] [Command mode] Global configuration mode, Privileged EXEC mode [Application Example] RC953-GESTM1(config)# show alarm index...
  • Page 77 User Manual RC953-GESTM1 Device Alarm-Enable is:enable index alarmName TrapEnable ------------------------------------------------------------ rcPowerNoExist enable rcPower5vAbnormal enable rcPower3vAbnormal enable rcCardError enable rcClockSrcSwitch enable rcClockSrcLost enable rcSdhLpPse enable rcLocalInnerE1Los enable rcLocalInnerE1Ais enable rcLocalInnerE1Lof enable rcLocalInnerE1Crc enable rcLocalInnerE1E3 enable rcLocalInnerE1E6 enable rcLocalFxGeSfpNoExist enable rcLocalFxGeSfpTxFailure...

  • Page 78: Chapter 8 Interface Management Command Of Rc953-Gestm1 Sdh

    User Manual Chapter 8 Interface management command of RC953-GESTM1 SDH 8.1 sdh description [Command Format] sdh Description STRING [Function] Interface description [Parameter] STRING: Interface description [Default] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1...

  • Page 79: Sdh Aps-Restore-Time

    User Manual [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# loopback remote Set successfully 8.3 sdh aps-restore-time [Command Format] sdh aps-restore-time <1-12> [Function] Configure aps-restore-time. [Parameter] <1-12>: Time, unite is minute. [Default] [Command mode] Global configuration mode [Application Example]...

  • Page 80: Sdh Force-Switch

    User Manual RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# sdh aupje -threshold positive 10000 Set successfully 8.5 sdh force-switch [Command Format] sdh force-switch (work-line|protection-line|clear) timeslot [TSSTRING] [Function] Configure force-switch. [Parameter] (work-line|protection-line|clear): {work-line|protection-line|clear} {timeslot TSSTRING|} TSSTRING: Switch to caracter line. [Default] [Command mode]...

  • Page 81: Sdh Es-Threshold

    [Default] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# # sdh exc-threshold line 4 Set successfully 8.7 sdh es-threshold [Command Format] sdh es-threshold {section|line|higher-path|lower-path} <1-900> [Function] Set threshold value of SDH bit error second...

  • Page 82: Sdh Overhead C2

    [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# sdh overhead c2 expected 0x13 transmit 0x13 Set sdh C2 expect byte successfully! Set sdh C2 transmit byte successfully! 8.9 sdh overhead j0 [Command Format] sdh overhead j0 expected MSG transmit MSG [Function] Set regenerator section trace J0, use no command to disable J0.

  • Page 83: Sdh Overhead J1

    MSG: exp-msg required message MSG: msg transmitting message [Default] Raisecom-Opcom [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# overhead expected RC953-GESTM1 transmit RC953-GESTM1 sdh overhead expect j1 set successfully sdh overhead transmit j1 set successfully 8.11 sdh overhead j2...

  • Page 84: Sdh Overhead S1

    [Default] Default is 0x0, quality unclear. [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# sdh overhead s1 0xf Set successfully 8.13 sdh sd-threshold [Command Format] sdh sd-threshold {section|line|high-path} <6-8> [Function] Set sdh sd-threshold. [Parameter] {line|high-path}: set the segment of threshold.

  • Page 85: Sdh Ses-Threshold

    [Default] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# sdh sd-threshold line 6 Set successfully 8.14 sdh ses-threshold [Command Format] sdh ses-threshold {section|line|high-path|lower-path} <1-900> [Function] Set the SDH threshold value of serious bit error second [Parameter] {section|line|high-path|lower-path}: Choose the serious bit error second segment.

  • Page 86: Show Sdh Aps

    [Parameter] [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Application Example] RC953-GESTM1# show sdh aps sdh protect switch is :enable. sdh protect switch type is :path. sdh protect switch mode is :1+1. sdh aps restore waittime is:10 minutes...

  • Page 87: Sdh Tuais-Insert

    [Function] Configure if inset the AIS alarming when there is the alarm. [Parameter] (sectiontim|linesd|pathsd|pathplm|pathtim): alarming style. (enable|disable): enable or disable. [Default] disable. [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface sdh 1 RC953-GESTM1(config-sdh/1)# sdh tuais-insert sectiontim enable...

  • Page 88: Show Interface Sdh

    Show SDH interface situation and configuration information. [Parameter] [Default] [Command mode] Privileged mode, interface configuration mode. [Application Example] RC953-GESTM1# show interface sdh 1 interface:sdh1 status :down Description: sdh-1 line code is: NRZ line type is: SDH LongSingeMode Optical Module type is: S1-TYPE loopback: none...
  • Page 89 User Manual show interface sdh <1-2> timeslot [<1-63>] [Function] Show SDH interface timeslot information. [Parameter] [Default] [Command mode] Privileged mode, interface configuration mode. [Application Example] RC953-GESTM1 show interface sdh 1 timeslot sdh-port timeslot state ----------------------------------------- Occupied Occupied Occupied Occupied Occupied...

  • Page 90: Chapter 9 Management Command Of Rc953-Gestm1 E1

    User Manual Chapter 9 Management Command of RC953-GESTM1 E1 9.1 batch-e1 [Command Format] batch-e1 [{1-63}] (frame|unframe) [Function] E1 framed mode set the batch. [Parameter] [Default] [Command mode] Global configuration mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config) batch-e1 1-63 frame 9.2 batch loopback-detection...

  • Page 91: Bert

    [Command mode] Interface configuration mode. [Instructions] Need to set the remote E1 loopback firstly. [Command Execute Echo] [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface e1 1 RC953-GESTM1(config-e1/1)# bert enable Set successfully 9.4 clock-mode [Command Format] clock-mode {master|slave} [Function] Set the E1 clock mode.

  • Page 92: Crc-Auto

    User Manual RC953-GESTM1# config RC953-GESTM1(config)# interface e1 1 RC953-GESTM1(config-e1/1)# clock-mode slave Set successfully 9.5 crc-auto [Command Format] crc-auto {enable|disable} [Function] CRC is enable or disable of the framed E1. [Default] disable [Command mode] Interface configuration mode. [Instructions] Useless under clarity mode.

  • Page 93: Interface E1

    User Manual [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface e1 1 RC953-GESTM1(config-e1/1)# frame Set successfully 9.7 interface e1 [Command Format] interface e1 <1-32> [Function] Enter a E1 interface. [Parameter] <1-32>: E1 index. [Default] [Command mode] Interface configuration mode., Global configuration mode...

  • Page 94: Inter-Connection

    User Manual E1Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface e1 1 RC953-GESTM1(config-e1/1)# loopback-detection enable RC953-GESTM1(config-e1/2)# Set successfully 9.9 inter-connection [Command Format] inter-connection (enable|disable) [Function] Set the E1 interface interconnection mode. [Parameter] [Default] Inter connection mode is enable or disable.

  • Page 95: Reset-Statistics

    User Manual [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface e1 1 RC953-GESTM1(config-e1/1)# remote-e1-loopback Set successfully 9.11 reset-statistics [Command Format] reset-statistics [Function] Clear the e1 interface statistics. [Parameter] [Default] [Command mode] Interface configuration mode. [Application Example]...
  • Page 96 User Manual [Command mode] Privileged mode,Interface configuration mode. [Application Example] RC953-GESTM1(config-e1/1) show interface e1 occupy status e1Index occupy-status corresponding-vc12 occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied notoccupied notoccupied notoccupied notoccupied...
  • Page 97 User Manual occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied occupied [Relevant Commands] Command Description show interface e1...

  • Page 98: Show Interface E1

    E1 interface number: it will indicate all the condition and information of e1 interface. [Default] [Command mode] Privileged mode, Interface configuration mode. [Application Example] RC953-GESTM1 show interface e1 1 Description:e1port-1 send code:NRZ remote deviceID:1 remote E1ID:1 e1 Loopback: none corresponding timeslot: 1-1...

  • Page 99: Unframe

    User Manual [Default] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface e1 1 RC953-GESTM1(config-e1/1)# timeslot 1-30 Set successfully 9.15 unframe [Command Format] unframe [Function] Set the E1 unframed mode. [Parameter] [Default] [Command mode] Interface configuration mode.

  • Page 100: Chapter 10 Virtual-Channel Command Of Rc953-Gestm1

    :indicating each virtual channel includes vc 12, the Default is 1 [Default] [Command mode] Global configuration mode [Application Example] RC953-GESTM1(config)#batch virtual-channel vc12 1-8 e1 1-8 e1num 4 Configure the virtual channel successfully. 10.2 err-auto-shutdown [Command Format] no err-auto-shutdown virtual-channel {1-63} [Function] virtual channel err-auto-shutdown.

  • Page 101: No Virtual-Channel Index

    The virtual channel name must be the same as to the parameter. The virtual channel name can be repeated, in that case delete all the virtual channel that the name and parameter character is completely same. [Application Example] RC953-GESTM1(config)# no virtual channel name virtualchannel-1...

  • Page 102: Show Virtual-Channel

    Appointed one or some virtual channel index, It will indicates all the existing virtual channel if no entering. [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Application Example] show virtual-channel 1-3 RC953-GESTM1(config)# virtualchannel-1 Index : 1 Err-AutoShutdown : disable vc12 e1 remoteE1 NotLinkWhy 9<-> 1 ---n/a e1lof 10<->...

  • Page 103: Show Virtual-Channel Name

    Appinted one or some virtual names, they need to matching to the virtual channel name exactly. [Default] [Command mode] Privileged EXEC mode, Global configuration mode [Application Example] RC953-GESTM1(config)# show virtual-channel name vchannel vchannel Index : 2 Err-AutoShutdown : disable vc12 e1 remoteE1 NotLinkWhy 1<->...

  • Page 104: Virtual-Channel

    [Default] [Command mode] Global configuration mode [Application Example] RC953-GESTM1(config) virtual-channel index 3 name raisecom Set successfully 10.8 virtual-channel [Command Format] virtual-channel vc12 TSSTRING e1 E1STRING [index <1-63>][name STRING] [Function] Set up a virtual channel.

  • Page 105: Chapter 11 Interface Management Command Of Rc953-Gestm1

    User Manual Chapter 11 Interface management command of RC953-GESTM1 Description [Command Format] description STRING [Function] Interface description [Parameter] STRING: Interface description [Default] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface ge 2 RC953-GESTM1(config-ge/2)# description RC953-GESTM1-GE Set successfully...

  • Page 106: No Rate-Limit

    User Manual RC953-GESTM1# config RC953-GESTM1(config)# interface ge 2 RC953-GESTM1(config-ge/2)# flow-control on Set successfully 11.3 no rate-limit [Command Format] no rate-limit (ingress-rate|engress-rate) [Function] Cancel the entrance and exit rate limit. [Parameter] ingress-rate|engress-rate: Entrance or exit. [Command mode] Interface configuration mode.

  • Page 107: Rate-Limit

    User Manual [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) interface ge 2 RC953-GESTM1(config-ge/2) rate-burst ingress 18kb Set successfully [Relevant Commands] Command Description no rate-limit Cancel the rate-limit of the ingress and engress. rate-limite Set the rate-limit and rate-burst of the ingress and engress.

  • Page 108: Re-Autoneg

    [Command Format] re-autoneg [Function] Re-set the auto negotiation [Parameter] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface ge 1 RC953-GESTM1(config-ge/1)# re-autoneg Set successfully 11.7 reset-statistics [Command Format] reset-statistics [Function] Clear the Eth interface statistics. [Parameter] [Command mode] Interface configuration mode.

  • Page 109: Sfp-Switch

    [Function] Show the GE interface configuration information. [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# interface ge 2 RC953-GESTM1(config-ge/2)# show interface ge 2 Interface : eth-2 Description : eth-2 Administration Status : up Operation Status : down Autonegotiation...

  • Page 110: Shutdown

    11.10 shutdown [Command Format] shutdown no shutdown [Function] Shut down the Ethernet interface., use no command to open the Ethernet interface. [Parameter] [Default] [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config) interface ge 2 RC953-GESTM1(config-ge/2)# shutdown Set successfully...

  • Page 111: Storm-Rate-Limit

    Set the storm –rate-limit. [Parameter] <0-1024000>: Set the bandwidth volume. [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# interface ge 2 RC953-GESTM1(config-ge/2)# storm-rate-limit 100 Set successfully [Relevant Commands] Command Description rate-burst Set the burst speed of the ingress and engress.

  • Page 112: Vc12 Add

    User Manual RC953-GESTM1# config RC953-GESTM1(config)# interface ge 2 RC953-GESTM1(config-ge/2)# storm-suppression broadcast Set successfully 11.13 vc12 add [Command Format] vc12 add VCSTRING [vc12num <1-8>] [Function] Add VC12 to virtual channel, and aggregate the virtual channel to eth. [Parameter] VCSTRING: timelots string.

  • Page 113: Virtual-Channel Delete

    [Instructions] The whole capacity of RC953-GESTM1 is 63 E1 and these 63 E1 are divided to 4 groups, each group has 16 E1. The aggregation rule is that all the E1 in one group can not be aggregated to different GE port.

  • Page 114: Trunk

    User Manual Delete the virtual channel that the ethernet include and aggregate appointed vc12. vc12 delete virtual-channel add Add the mapping from ge to virtual channel. vc12 add Add the vc12 to virtual channel, and aggregate the virtualchannel to eth.

  • Page 115: Chapter 12 Remote Device Management Command Of Rc953-Gestm1

    User Manual Chapter 12 Remote device management command of RC953-GESTM1 12.1 remote ric [Command Format] remote ric <1-63> [Function] Enter the remote interface device mode. [Parameter] Remote interface device ID. [Default] [Command mode] Global configuration mode [Application Example] RC953-GESTM1(config)

  • Page 116: Show Remote Interface Ric <1-63> E1

    <1-8>: choose the e1 interface number, no entering indicates all the e1 interface of the remote device. [Default] [Command mode] Global configuration mode, Privileged EXEC mode [Application Example] Show the remote interface device of the index number is 1, interface 4 information. RC953-GESTM1# show remote interface ric 1 e1 4 E1 4 config current clock-mode master...
  • Page 117 [Default] [Command mode] Global configuration mode, Privileged EXEC mode [Application Example] Show the remote interface device Ethernet optical interface information of the index number is 50. RC953-GESTM1# show remote interface ric 1 fx FX 1 config current optical module type...

  • Page 118: Chapter 13 Device Management Command Of Remote Rc952-Fee1

    NAMESTRING [Function] Configurate remote interface device name. [Parameter] [Default] [Command mode] Remote interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 50 RC953-GESTM1(config-RC952FEE1/50)# device-name ric50 Set successfully. 13.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1 |rc953fe8e1bl|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1) [Function] Configurate remote interface device style.

  • Page 119: Fault-Pass

    [Function] Fault pass management. [Parameter] {enable|disable} [Command mode] Remote interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 50 RC953-GESTM1(config-RC952FEE1/50)# fault-pass enable Set successfully. 13.4 interface [Command Format] interface TYPE [Function] Enter nterface configuration mode. [Parameter] TYPE :indicates the interface style, support e1/eth.

  • Page 120: Show Device

    User Manual [Function] Reset remote interface device. [Default] [Command mode] Remote interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 50 RC953-GESTM1(config-RC952FEE1/50)# reset Do you reset the device?(Y/N)y Set successfully. 13.6 show device [Command Format] show devcie [Function] Show remote interface device information.

  • Page 121: Chapter 14 The Configuration Command Under The E1 Interface Configuration Mode Of Remote Rc952-Fee1

    {master|slave} [Function] Set E1 clock mode. [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 50 RC953-GESTM1(config-RC952FEE1/50)# interface e1 RC953-GESTM1(config-RC952FEE1/50-e1/1) clock-mode slave Set successfully. 14.2 crc-auto [Origianl mode] crc-auto {enable|disable} [Function] The crc is enable/disable of framed e1.

  • Page 122: Interface

    User Manual RC953-GESTM1# config RC953-GESTM1(config)# remote ric 50 RC953-GESTM1(config-RC952FEE1/50)# interface e1 RC953-GESTM1(config-RC952FEE1/50-e1/1)# crc-auto enable Set successfully. 14.3 interface [Command Format] interface eth [Function] Enter the interface configuration mode. [Default] [Command mode] Remote interface configuration mode, remote interface e1 interface mode.
  • Page 123 User Manual crc enable disable Port status normal tx packets rx packets rx error packets...

  • Page 124: Chapter 15 The Configuration Command Under The E1 Interface Configuration Mode Of Remote Rc952-Fee1

    [Function] Set the auto negotiate, use no cmnnand to delete the auto negotiate. [Parameter] [Default] Auto negotiate. [Command mode] Remote interface Eth Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config) remote ric 50 RC953-GESTM1(config-RC952FEE1/1) interface eth RC953-GESTM1(config-RC952FEE1/1-eth/1) autonegotiate Set successfully.

  • Page 125: Interface

    User Manual Remote protocol Eth Interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 50 RC953-GESTM1(config-RC952FEE1/50) interface eth RC953-GESTM1(config-RC952FEE1/50-eth/1)# flow-control on Set successfully. 15.3 interface [Command Format] interface e1 [Function] Enter the Interface configuration mode. [Default] [Command mode] Remote ptorocal configuration mode, remote protocal eth interface mode.

  • Page 126: Shutdown

    Shut down the Ethernet interface, use no command to open the Ethernet interface. [Parameter] [Default] [Command mode] Remote protocol EthInterface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 50 RC953-GESTM1(config-RC952FEE1/50) interface eth RC953-GESTM1(config-RC952FEE1/50-eth/1)# shutdown Set successfully 15.6 speed duplex [Command Format] speed {10|100} duplex {full-duplex|half-duplex} [Function]...
  • Page 127 {full-duplex|half-duplex}: Set the interface working mode is fullduplex or half duplex. [Default] [Command mode] Remote protocol EthInterface configuration mode. [Instructions] Set the interface speed and duplex mode only under the un-auto negotiate condition. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 33 RC953-GESTM1(config-RC952FEE1/33) interface eth 1 RC953-GESTM1(config-RC952FEE1/33-eth/1) speed 100 duplex half-duplex Set successfully.

  • Page 128: Chapter 16 Device Management Command Of Remote Rc952-Fxe1

    16.1 device-name [Command Format] device-name NAMESTRING [Function] Configure the remote protocol device name. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config) remote ric 50 RC953-GESTM1(config-RC952FXE1/50) device-name ric 50 Set successfully. 16.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1...

  • Page 129: Interface

    Enter the local interface configuration mode. RC953-GESTM1(config-RC952FXE1/33)# interface e1 RC953-GESTM1(config-RC952FXE1/33-e1/1)# 16.4 reset [Command Format] reset [Function] Reset the remote protocol device. [Default] [Command mode] Remote protocol congiguration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 33 RC953-GESTM1(config-RC952FXE1/33) reset Do you reset the device?(Y/N)y Set successfully.

  • Page 130: Show Device

    Show the remote protocol device information. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 33 RC953-GESTM1(config-RC952FXE1/33) show device Device type: rc952fxe1 [0x30] Device name: remoteRic33 Device work mode: slave Device software version: 1.3 Device hardware version: A.3...

  • Page 131: Chapter 17 The Configuraiton Command Under The E1Interface Configuration Mode Of Remote Rc952-Fxe1

    [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 33 RC953-GESTM1(config- RC952FXE1/33) interface e1 RC953-GESTM1(config- RC952FXE1/33-e1/1) clock-mode slave Set successfully. 17.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Crc is enable or disable of framed e1.

  • Page 132: Interface

    User Manual RC953-GESTM1(config)# remote ric 33 RC953-GESTM1(config-RC952FXE1/33) interface e1 RC953-GESTM1(config-RC952FXE1/33-e1/1) crc-auto enable Set successfully. 17.3 interface [Command Format] interface fx-eth [Function] Enter the interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocol e1 interface mode. [Application Example] Enter the local interface configuration mode.
  • Page 133 User Manual frame-mode unframe crc enable disable Port status normal tx packets rx packets rx error packets...

  • Page 134: Chapter 18 The Configuration Mode Under The Fxinterface Configuration Mode Of Remote Rc952-Fxe1

    {on|off} [Function] The flow-contoal is on or off. [Parameter] [Default] The flow-control is off. [Command mode] Remote protocol fx-ethInterface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 33 RC953-GESTM1(config-RC952FXE1/33) interface fx-eth RC953-GESTM1(config-RC952FXE1/33-fx-eth/1) flow-control on Set successfully. 18.2 interface...

  • Page 135: Show Interface

    [Default] [Command mode] Remote device configuration mode, remote device fx-ethInterface configuration mode. [Application Example] Show the remote protocol deivice eth interface configuration mode that the index number is 33. RC953-GESTM1(config- RC952FXE1/33-fxeth/1)# show interface FX 1 config current port enable enable...

  • Page 136: Chapter 19 Device Management Command Of Remote Rc951-Fee1

    User Manual Chapter 19 Device management command of remote RC951-FEE1 Same as the commands for RC952-FEE1 device.

  • Page 137: Chapter 20 Device Management Command Of Remote Rc953-Fe8E1

    20.1 device-name [Command Format] device-name NAMESTRING [Function] Configure the remote protocol device name. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE8E1/1) device-name ric1 Set successfully. 20.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1 |rc953fe8e1bl|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1) [Function] Configure the remote protocol device style.

  • Page 138: Err-Auto-Shutdown

    20.4 fault-pass [Command Format] fault-pass (enable|disable) [Function] Set the fault-pass. [Parameter] {enable|disable} [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FE8E1/1)# fault-pass enable Set successfully. 20.5 interface e1 [Command Format] interface e1 <1-8> [Function]...

  • Page 139: Interface Eth

    User Manual Enter the interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocol e1 or eth interface mode. [Application Example] RC953-GESTM1(config-RC953FE8E1/1) interface e1 1 RC953-GESTM1(config-RC953FE8E1/1-e1/1 20.6 interface eth [Command Format] interface eth [Function] Enter interface configuration mode.

  • Page 140: Show Device

    User Manual RC953-GESTM1(config-RC953FE8E1/1) reset Do you reset the device?(Y/N)y Set successfully 20.8 show device [Command Format] show devcie [Function] Show the remote protocol device information. [Default] [Command mode] Remote interface converter modethe [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1...

  • Page 141: Chapter 21 The Configuration Mode Under The E1Interface Configuration Mode Of Remote Rc953-Fe8E1

    [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FE8E1/1)# interface e1 1 RC953-GESTM1(config-RC953FE8E1/1-e1/1) clock-mode slave Set successfully. 21.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Cec is enable or disable of framed e1. [Default]...

  • Page 142: Interface E1

    User Manual RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE8E1/1)# interface e1 1 RC953-GESTM1(config-RC953FE8E1/1-e1/1)# crc-auto enable Set successfully. 21.3 interface e1 [Command Format] interface e1 <1-8> [Function] Interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocol e1 or eth interface mode.
  • Page 143 [Default] [Command mode] Remote device configuration mode, remote device of E1Interface configuration mode. [Application Example] Show the e1 interface configuration information of remote protocol device that the index number is 1. RC953-GESTM1(config-RC953FE8E1/1-e1/1)# show interface E1 1 config current clock-mode master...

  • Page 144: Chapter 22 The Configuration Command Under Ethinterface Configuration Mode Of Remote Rc953-Fe8E1

    Set the auto negotiate, use no command to cancel the auto negotiate. [Parameter] [Default] Auto negotiate. [Command mode] Remote protocol EthInterface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE8E1/1)# interface eth RC953-GESTM1(config-RC953FE8E1/1-eth/1)# autonegotiate Set successfully. 22.2 flow-control [Command Format] flow-control {on|off} [Function] If the flow control is on or off.

  • Page 145: Interface E1

    [Function] Enter the interface configuration mode. [Default] [Command mode] Remote ptotocal configuration mode, remote procotal e1 or eth interface mode. [Application Example] RC953-GESTM1(config-RC953FE8E1/1-eth/1)# interface e1 4 RC953-GESTM1(config-RC953FE8E1/1-e1/4)# 22.4 show interface [Command Format] show interface [Function] Show the remote protocol device eth interface configuration information.

  • Page 146: Shutdown

    [Default] [Command mode] Remote protocol EthInterface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FE8E1/1)# interface eth RC953-GESTM1(config-RC953FE8E1/1-eth/1) shutdown Set successfully 22.6 speed duplex [Origianl mode] speed {10|100} duplex {full-duplex|half-duplex} [Function] Set the speed and duolex mode of the physical interface.
  • Page 147 {full-duplex|half-duplex}: Set the interface working mode is full duplex or half duplex. [Default] [Command mode] Remote protocalEthInterface configuration mode. [Instructions] Set the speed and duplex mode only under the un-auto negotiate condition. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FE8E1/1) interface eth 1 RC953-GESTM1(config-RC953FE8E1/1-eth/1)# speed 100 duplex half-duplex Set successfully.

  • Page 148: Chapter 23 The Device Management Command Of Remote Rc953-Fx8E1

    [Command Format] device-name NAMESTRING [Function] Configure Remote protocol device name. [Default] [Command mode] Remote protocalConfiguration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX8E1/1) device-name ric1 Set successfully. 23.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1 |rc953fe8e1bl|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1) [Function] Configure the remote protocol device style.

  • Page 149: Err-Auto-Shutdown

    <1-8> [Function] Enter the interface configuration mode. [Default] [Command mode] Remote protocol cnfiguraiton mode,remote protocalE1 or fx-eth interface mode. [Application Example] RC953-GESTM1(config-RC953FX8E1/1)# interface e1 1 RC953-GESTM1(config-RC953FX8E1/1-e1/1)# 23.5 interface fx-eth [Command Format] interface fx-eth [Function] Enter Interface configuration mode.

  • Page 150: Reset

    [Function] Reset the remote protocol device. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX8E1/1)# reset Do you reset the device?(Y/N)y Set successfully. 23.7 show device [Command Format] show devcie [Function] Show remote protocol device information.
  • Page 151 User Manual RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FX8E1/1) show device Device type: RC953FX8E1 [0x5e] Device name: ric1 Device work mode: slave Device software version: 1.0 Device hardware version: A.1 Device FPGA version: 1.0 Power type: AC220V Error auto shutdown: enable...

  • Page 152: Chapter 24 The Configuration Command Under E1Interface Configuration Mode Of Remote Rc953-Fx8E1

    [Function] Set E1 clock mode. [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX8E1/1)# interface e1 RC953-GESTM1(config-RC953FX8E1/1-e1/1)# clock-mode slave Set successfully. 24.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Crc is enable of disable of framed e1.

  • Page 153: Interface E1

    User Manual RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FX8E1/1) interface e1 RC953-GESTM1(config-RC953FX8E1/1-e1/1) crc-auto enable Set successfully. 24.3 interface e1 [Command Format] interface e1 <1-8> [Function] Enter the interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or Eth interface mode.
  • Page 154 Show remote protocol device E1 interface configuration information. [Default] [Command mode] Remote device configuration mode, remote device E1Interface configuration mode. [Application Example] Show the e1 interface configuration information of remote protocol that the index number is 1. RC953-GESTM1( -e1/1)# show interface config-RC953FX8E1/1 E1 1 config current...

  • Page 155: Chapter 25 The Configuration Command Under Fxinterface Configuration Mode Of Remote Rc953-Fx8E1

    [Parameter] [Default] The flow control is off. [Command mode] Eth Interface configuration mode of remote interface converter [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX8E1/1) interface fx-eth RC953-GESTM1(config-RC953FX8E1/1-fxeth/1)# flow-control on Set successfully. 25.2 interface e1 [Command Format] interface e1 <1-8>...

  • Page 156: Show Interface

    Show remote protocol device Eth interface configuration information. [Default] [Command mode] Remote device configuration mode remote device EthInterface configuration mode. [Application Example] Show eth interface configuration information of remote protocol that index number 33. RC953-GESTM1(config-RC953FX8E1/1-fxeth/1)# show interface FX 1 config current port enable enable...

  • Page 157: Chapter 26 The Device Management Command Of Remote Rc953-Fe4E1

    1 RC953-GESTM1(config-RC953FE4E1/1)# device-name ric1 Set successfully. 26.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1 |rc953fe8e1bl|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1) [Function] Configure the remote protocol device style. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE4E1/1)# device-type rc953fe4e1 Set successfully.

  • Page 158: Err-Auto-Shutdown

    Set successfully. 26.4 fault-pass [Command Format] fault-pass (enable|disable) [Function] Set the fault-pass. [Parameter] {enable|disable} [Command mode] Remote protocalConfiguration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE4E1/1)# fault-pass enable Set successfully. 26.5 interface e1 [Command Format] interface e1 <1-4> [Function]...

  • Page 159: Interface Eth

    User Manual Enter the interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or Eth interface mode. [Application Example] RC953-GESTM1(config-RC953FE4E1/1)# interface e1 1 RC953-GESTM1(config-RC953FE4E1/1-e1/1)# 26.6 interface eth [Command Format] interface eth [Function] Enter the interface configuration mode.

  • Page 160: Show Device

    User Manual RC953-GESTM1(config-RC953FE4E1/1) reset Do you reset the device?(Y/N)y Set successfully. 26.8 show device [Command Format] show devcie [Function] Show the remote protocol device information. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1...

  • Page 161: Chapter 27 The Configuration Command Under E1Interface Configuration Mode Of Remote Rc953-Fe4E1

    1 RC953-GESTM1(config-RC953FE4E1/1-e1/1) clock-mode slave Set successfully. 27.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Crc is enable or diable of framed e1. [Default] disable [Command mode] Interface configuration mode. [Instructions] It is disable under clarity mode. [Application Example] RC953-GESTM1# config...

  • Page 162: Interface E1

    User Manual RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE4E1/1)# interface e1 1 RC953-GESTM1(config-RC953FE4E1/1-e1/1)# crc-auto enable Set successfully. 27.3 interface e1 [Command Format] interface e1 <1-4> [Function] Enter the interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or Eth interface mode.
  • Page 163 Show remote protocol device e1 configuration information. [Default] [Command mode] Remote device congifurtaion mode, remote device E1Interface configuration mode. [Application Example] Show e1 interface configuration information of remote protocol under index number 1. RC953-GESTM1(config-RC953FE4E1/1-e1/1)# show interface E1 1 config current clock-mode master...

  • Page 164: Chapter 28 The Configuration Command Under Ethinterface Configuration Mode Of Remote Rc953-Fe4E1

    [Function] Set the auto negotiate, use no command to cancel the auto negotiate. [Parameter] [Default] Auto negotiate. [Command mode] Remote protocalEthInterface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FE4E1/1) interface eth RC953-GESTM1(config-RC953FE4E1/1-eth/1)# autonegotiate Set successfully. 28.2 flow-control...

  • Page 165: Interface E1

    [Function] Enter interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or Eth interface mode. [Application Example] RC953-GESTM1(config-RC953FE4E1/1-eth/1)# interface e1 4 RC953-GESTM1(config-RC953FE4E1/1-e1/4)# 28.4 show interface [Command Format] show interface [Function] Show remote protocol device eth interface configuration information.

  • Page 166: Shutdown

    [Function] Shutdown the Ethernet interface , use no command to open the Ethernet interface. [Parameter] [Default] [Command mode] Remote protocalEthInterface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC953FE4E1/1) interface eth RC953-GESTM1(config-RC953FE4E1/1-eth/1) shutdown Set successfully 28.6 speed duplex...
  • Page 167 {full-duplex|half-duplex}: Set the interface working mode is full duplex or half duplex. [Default] [Command mode] Remote protocalEthInterface configuration mode. [Instructions] Set the interface speed and duplex mode only under the un-auto negotiate condition. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FE4E1/1)# interface eth RC953-GESTM1(config-RC953FE4E1/1-eth/1)# speed 100 duplex half-duplex Set successfully.

  • Page 168: Chapter 29 The Device Management Command Of Remote Rc953-Fx4E1

    [Command Format] device-name NAMESTRING [Function] Configure the remote protocol device name. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX4E1/1)# device-name ric1 Set successfully. 29.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1 |rc953fe8e1bl|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1) [Function] Configure the remote protocol device style.

  • Page 169: Err-Auto-Shutdown

    User Manual RC953-GESTM1(config-RC953FX4E1/1) device-type rc953fx4e1 Set successfully. 29.3 err-auto-shutdown [Command Format] err-auto-shutdown no err-auto-shutdown [Function] Set the remote device err-auto-shutdown. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1(config-RC953FX4E1/1) err-auto-shutdown Set successfully. 29.4 interface e1 [Command Format] interface e1 <1-4>...

  • Page 170: Reset

    [Function] Reset remote protocol device. [Default] [Command mode] Remote protocol configuration. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX4E1/1)# reset Do you reset the device?(Y/N)y Set successfully. 29.7 show device [Command Format] show devcie [Function] Show remote protocol device information.
  • Page 171 User Manual [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX4E1/1) show device Device type: RC953FX4E1 [0x67] Device name: ric1 Device work mode: slave Device software version: 1.0 Device hardware version: A.1 Device FPGA version: 1.0 Power type: AC220V...

  • Page 172: Chapter 30 The Comfiguration Command Under E1Interface Configuration Mode Of Remote Rc953-Fx4E1

    [Function] Set E1 clock mode. [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX4E1/1) interface e1 1 RC953-GESTM1(config-RC953FX4E1/1-e1/1)# clock-mode slave Set successfully. 30.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Crc is enable or disable of framed e1.

  • Page 173: Interface E1

    RC953-GESTM1(config-RC953FX4E1/1-e1/1) interface e1 4 RC953-GESTM1(config-RC953FX4E1/1-e1/4)# 30.4 interface fx-eth [Command Format] interface fx-eth [Function] Enter interface configuration mode. [Default] [Command mode] Remote protocol configuration mode,remote protocalE1 interface mode. [Application Example] RC953-GESTM1(config-RC953FX4E1/1-e1/1)# interface fx-eth RC953-GESTM1(config-RC953FX4E1/1-fxeth/1)# 30.5 show interface [Command Format] show interface...
  • Page 174 Show remote protocol device e1 interface configuration mode. [Default] [Command mode] Remote interface converter configuration mode [Application Example] Show the e1 interface configuration information of remote protocol under index unmber 1. RC953-GESTM1(config-RC953FX4E1/1-e1/1)# show interface E1 1 config current clock-mode master...

  • Page 175: Chapter 31 The Configuration Command Under Fxinterface Configuration Mode Of Remote Rc953-Fx4E1

    [Parameter] [Default] The flow control is off. [Command mode] Interface Eth mode of remote interface converter [Application Example] RC953-GESTM1 config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC953FX4E1/1) interface fx-eth RC953-GESTM1(config-RC953FX4E1/1-fxeth/1) flow-control on Set successfully. 31.2 interface e1 [Command Format] interface e1 <1-4>...

  • Page 176: Show Interface

    Show remote protocol device fx-eth interface configuration mode. [Default] [Command mode] Interface Eth mode of remote interface converter [Application Example] Show the eth interface configuration information of remote protocol under index number us 33. RC953-GESTM1(config-RC953FX4E1/1-fxeth/1)# show interface FX 1 config current port enable enable...

  • Page 177: Chapter 32 The Device Management Command Of Remote Rc954-Fe4E1

    1 RC953-GESTM1(config-RC954FE4E1/1)# device-name ric1 Set successfully. 32.2 device-type [Command Format] devcie-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1 |rc953fe8e1bl|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1) [Function] Configure the remote protocol device style. [Parameter] rc954fe4e1 [Default] [Command mode] Remote interface converter configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1...

  • Page 178: Err-Auto-Shutdown

    RC953-GESTM1(config-RC954FE4E1/1) err-auto-shutdown Set successfully. 32.4 fault-pass [Command Format] fault-pass (enable|disable) [Function] Set the fault-pass. [Parameter] {enable|disable} [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC954FE4E1/1) fault-pass enable Set successfully. 32.5 interface e1 [Command Format]...

  • Page 179: Interface Eth

    <1-4> [Function] Enter interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or Eth interface mode. [Application Example] RC953-GESTM1(config-RC954FE4E1/1) interface e1 1 RC953-GESTM1(config-RC954FE4E1/1-e1/1)# 32.6 interface eth [Command Format] interface eth [Function] Enter interface configuration mode.

  • Page 180: Show Device

    User Manual RC953-GESTM1 config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC954FE4E1/1) reset Do you reset the device?(Y/N)y Set successfully. 32.8 show device [Command Format] show devcie [Function] Show the remote protocol device information. [Default] [Command mode] Remote interface converter mode [Application Example]...

  • Page 181: Chapter 33 The Configuration Command Under E1Interface Configuration Mode Of Remote Rc954-Fe4E1

    {master|slave} [Function] Set the E1 clock mode. [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC954FE4E1/1)# interface e1 1 RC953-GESTM1(config-RC954FE4E1/1-e1/1) clock-mode slave Set successfully. 33.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Crc is enable or disable of framed e1.

  • Page 182: Interface E1

    <1-4> [Function] Enter interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or Eth interface mode. [Application Example] RC953-GESTM1(config-RC954FE4E1/1-e1/1)# interface e1 4 RC953-GESTM1(config-RC954FE4E1/1-e1/4)# 33.4 interface eth [Command Format] interface eth [Function] Enter interface configuration mode.
  • Page 183 Show remote protocol device e1 configuration information. [Default] [Command mode] Remote device configuration mode, remote device E1Interface configuration mode. [Application Example] Show e1 configuration information of remote protocol under index number 1 RC953-GESTM1(config-RC954FE4E1/1-e1/1)# show interface E1 1 config current clock-mode master...

  • Page 184: Chapter 34 The Configuration Command Under Ethinterface Configuration Mode Of Remote Rc954-Fe4E1

    Set auto-negotiate, use no command to cancel the auto negotiate. [Parameter] [Default] Auto negotiate. [Command mode] Eth configuration mode of remote interface converter [Application Example] RC953-GESTM1# config RC953-GESTM1(config)# remote ric 1 RC953-GESTM1(config-RC954FE4E1/1)# interface eth RC953-GESTM1(config-RC954FE4E1/1-eth/1)# autonegotiate Set successfully. 34.2 flow-control [Command Format] flow-control {on|off} [Function] The flow control is on or off.

  • Page 185: Interface E1

    <1-4> [Function] Interface configuration mode. [Default] [Command mode] E1 configuration mode of remote interface converter [Application Example] RC953-GESTM1(config-RC954FE4E1/1-eth/1)# interface e1 4 RC953-GESTM1(config-RC954FE4E1/1-e1/4)# 34.4 show interface [Command Format] show interface [Function] Show remote protocol device eth interface configuration information.

  • Page 186: Shutdown

    Eth configuration mode of remote interface converter [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC954FE4E1/1) interface eth RC953-GESTM1(config-RC954FE4E1/1-eth/1)# shutdown Set successfully 34.6 speed duplex [Command Format] speed {10|100} duplex {full-duplex|half-duplex} [Function] set the speed and duplex mode of physical interface.
  • Page 187 {full-duplex|half-duplex}: Set the interface working mode is full duplex or half duplex. [Default] [Command mode] Eth configuration mode of remote interface converter [Instructions] Set the interface speed and duplex mode only under the un-auto negotiate condition. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC954FE4E1/1) interface eth 1 RC953-GESTM1(config-RC954FE4E1/1-eth/1) speed 100 duplex half-duplex Set successfully.

  • Page 188: Chapter 35 The Device Management Command Of Remote Rc954-Fx4E1

    Chapter 35 The device management command of remote RC954-FX4E1. 35.1 device-name [Command Format] device-name NAMESTRING [Function] Configure remote protocol device name. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC954FX4E1/1) device-name ric1 Set successfully. 35.2 device-type [Command Format] devcie-type...

  • Page 189: Err-Auto-Shutdown

    User Manual RC953-GESTM1(config-RC954FX4E1/1)# device-type rc954fx4e1 Set successfully. 35.3 err-auto-shutdown [Command Format] err-auto-shutdown no err-auto-shutdown [Function] Set the remote err-auto-shutdown. [Default] [Command mode] Remote interface converter mode [Application Example] RC953-GESTM1(config-RC954FX4E1/1) err-auto-shutdown Set successfully. 35.4 interface e1 [Command Format] interface e1 <1-4>...

  • Page 190: Reset

    User Manual [Function] Eth Interface configuration mode of remote interface converter [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 interface mode. [Application Example] RC953-GESTM1(config-RC954FX4E1/1) interface fx-eth RC953-GESTM1(config-RC954FX4E1/1-fxeth/1)# 35.6 reset [Command Format] reset [Function] Reset the remote protocol device.
  • Page 191 User Manual Remote interface converter mode [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC954FX4E1/1) show device Device type: RC954FX4E1 [0x7f] Device name: ric1 Device work mode: slave Device software version: 1.0 Device hardware version: A.1 Device FPGA version: 1.0...

  • Page 192: Chapter 36 The Configuration Command Under E1Interface Configuration Mode Of Remote Rc954-Fx4E1

    36.1 clock-mode [Command Format] clock-mode {master|slave} [Function] Set E1 clock mode. [Default] master [Command mode] Interface configuration mode. [Application Example] RC953-GESTM1# config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC954FX4E1/1) interface e1 1 RC953-GESTM1(config-RC954FX4E1/1-e1/1) clock-mode slave Set successfully. 36.2 crc-auto [Command Format] crc-auto {enable|disable} [Function] Crc is enable or disable of framed e1.

  • Page 193: Interface E1

    <1-4> [Function] Enter interface configuration mode. [Default] [Command mode] Remote protocol configuration mode, remote protocalE1 or fx-eth interface mode. [Application Example] RC953-GESTM1(config-RC954FX4E1/1-e1/1)# interface e1 4 RC953-GESTM1(config-RC954FX4E1/1-e1/4)# 36.4 interface fx-eth [Command Format] interface fx-eth [Function] Enter interface configuration mode.
  • Page 194 Show remote protocol device e1 interface configuration information. [Default] [Command mode] Remote device configuration mode, remote device E1Interface configuration mode. [Application Example] Show the e1 interface configuration information of remote protocol that the index number is 1. RC953-GESTM1( -e1/1)# show interface config-RC954FX4E1/1 E1 1 config current...

  • Page 195: Chapter 37 The Configuration Command Under Fxinterface Configuration Mode Of Remote Rc954-Fx4E1

    {on|off} [Function] The flow control is on or off. [Parameter] [Default] The flow control is off. [Command mode] Remote protocalEthInterface configuration mode. [Application Example] RC953-GESTM1 config RC953-GESTM1(config) remote ric 1 RC953-GESTM1(config-RC954FX4E1/1) interface fx-eth RC953-GESTM1(config-RC954FX4E1/1-fxeth/1) flow-control on Set successfully. 37.2 interface e1 [Command Format] interface e1 <1-4>...

  • Page 196: Show Interface

    User Manual RC953-GESTM1(config-RC954FX4E1/1-e1/4)# 37.3 show interface [Command Format] show interface [Function] Show the remote protocol device eth interface configuration information. [Default] [Command mode] Remote device configuration mode, remote device EthInterface configuration mode. [Application Example] Show the eth interface configuration information of remote protocol under index 1.
