4.0 INSTALLATION

4.1 GSL

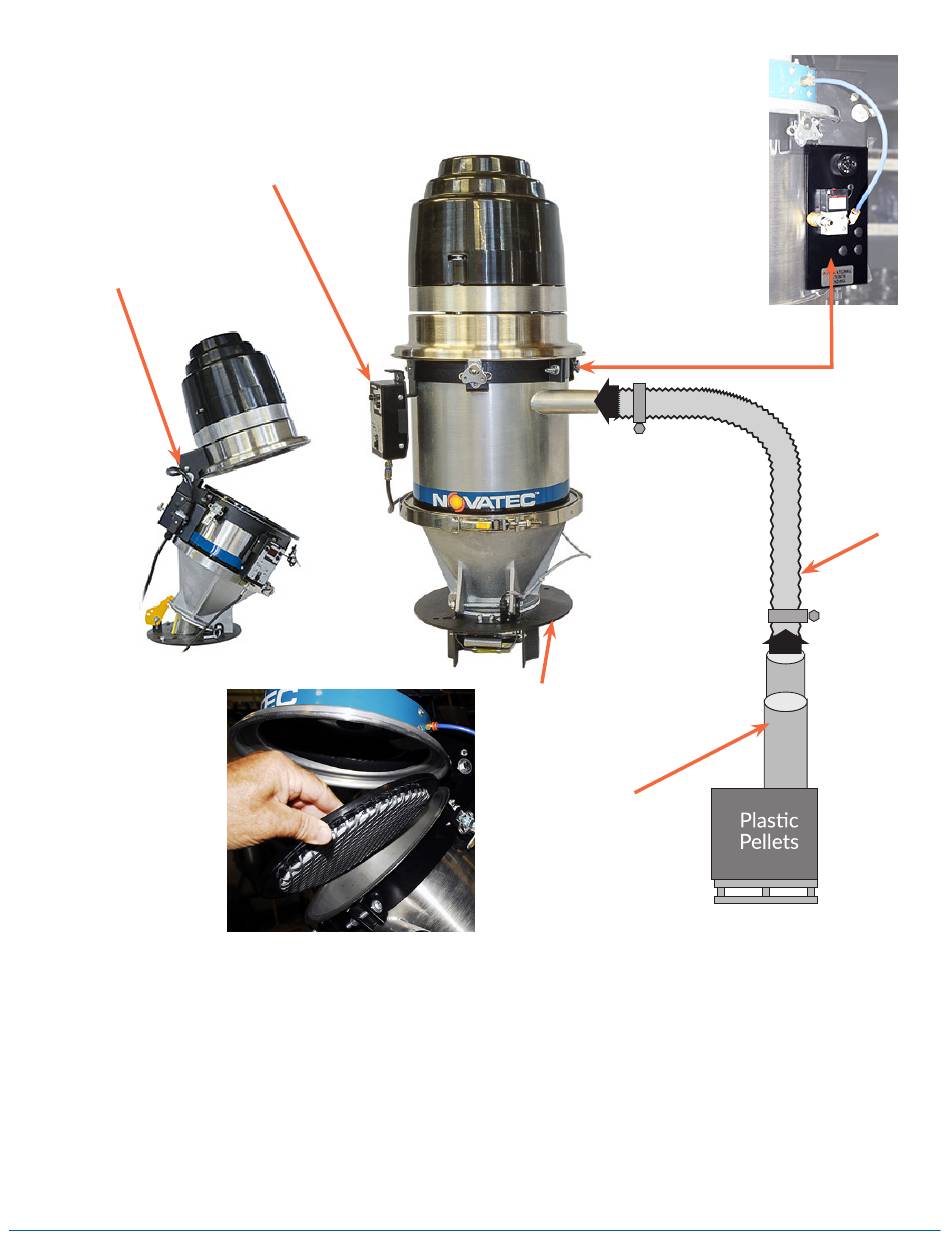

Locate HINGE away from
operator for easy cleaning
2.
115 VAC
Power Cord
Domed filter
stays in place
when tilted.
1.
Install flexible hose, secured with hose clamps at both
ends, from feed tube to material inlet tube of loader. A
Proportioning Valve, if included (see separate instruc-
tions) is installed on the material inlet tube with a com-
pression style coupling.
2.
Plug power cord into 115 VAC power source. Note
amperage listing on loader for correct voltage and capac-
ity.
Control Pendant
(see page 6)
3.
Connect Fitting on
Solenoid Valve to
Compressed Air
(Pilot for Blowback)
(Not visible)
GSL Mounting Plate
(see page 6)
Feed Tube Inserted
into material
3.
Install flexible compressed air line to the solenoid
valve fitting (below lid hinge). Source should provide
clean, dry compressed air supply 80 -100 psi. Use only
full-flow quick disconnect fitting for best blowback per-
formance. CAUTION: Use a second wrench to hold the
fitting on the GSL securely while tightening the hose fit-
ting. DO NOT apply direct pressure, or damage the GSL
fitting or an air leak could result. A compressed air filter
(sold separately) is recommended for protection of pneu-
matic components.
5
1.
Material Line
Connection
