NovaTec GSL Series User Manual page 10

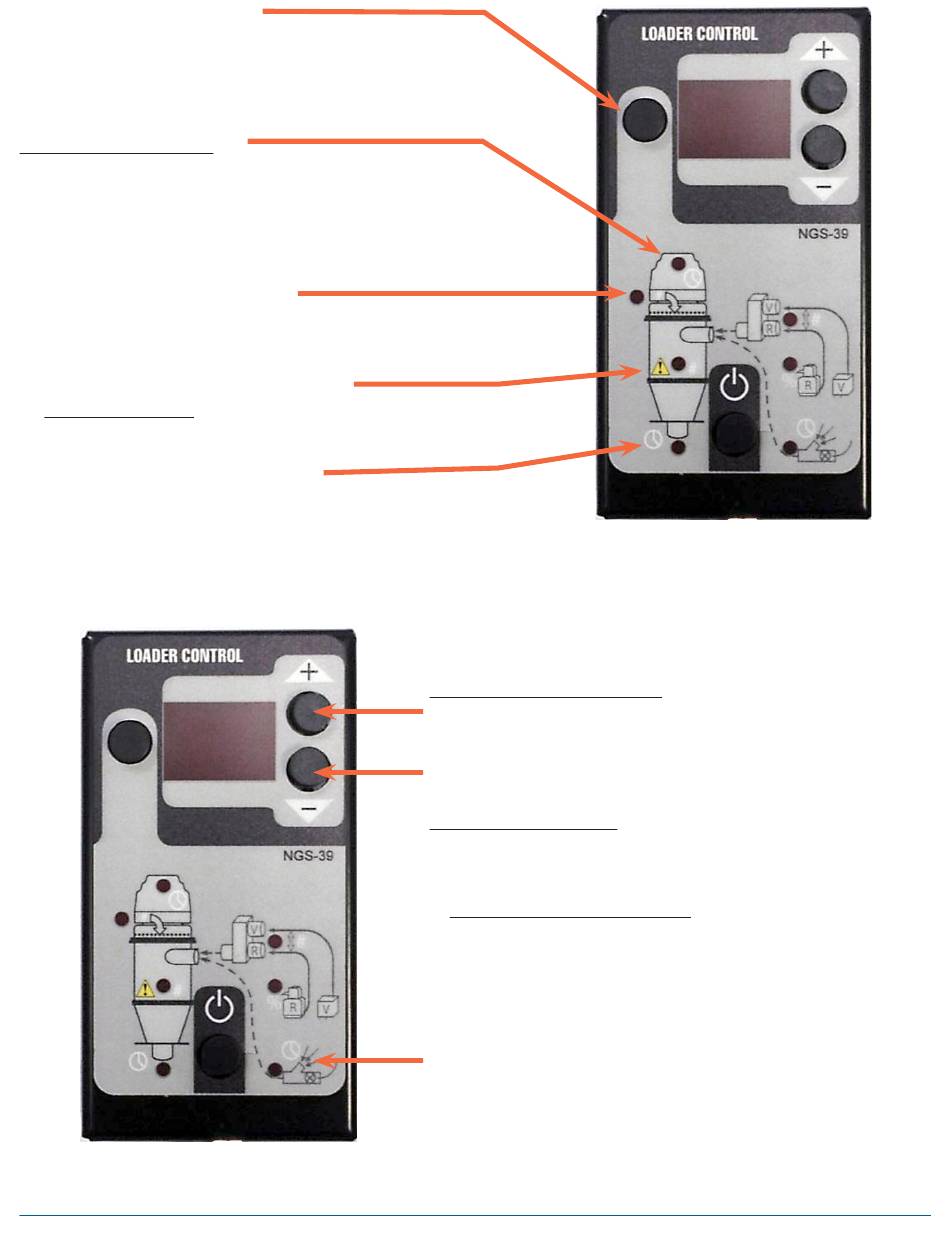

SELECT FUNCTION BUTTON
● Button selects functions for
viewing and/or changing.
● Selected function lights up, below.
● Silences Alarm (does not reset alarm)
STANDARD FUNCTIONS
● MOTOR ON: Seconds per load
Default = 15s (suggested Max = 20s)
Do not exceed 30s / Do not overfill
Damage may result
● BLOWBACK FILTER CLEAN: "XY"
X=loads between clean cycles
Y=air charge (Y*0.4s)
See Blowback Function description (p. 12)
● ALARM: 'No Load' cycles to create alarm
"0" = Alarm disabled.
See Alarm Function description (p.12)
● DUMP TIME: Seconds or minutes (M)
(Forced pause between Load Cycles)
VIEW and CHANGE SETTINGS
● Selected setting appears in window
● Increase (+) or decrease (-) values
● Display defaults to show "ON"
● Display shows "AL" for alarm condition
OPTIONAL FUNCTIONS
PROPORTIONING: Requires optional Valve.
● LAYERS: # of alternating VIR/REG cycles per load.
'A' = Automatic control calculated Layers.
TOTAL CONVEY TIME per Load
Regrind = (Motor On – Purge) * REG %
Virgin = (Motor On – Purge – Regrind)
NOTE: Divide these times by LAYERS value for
individual layer cycles times.
REGRIND: % of Convey Time for regrind
● PURGE: Uses specified time to empty the
material line. Inserted as final interval of
total MOTOR ON time (does not extend
MOTOR ON time). Requires optional Valve.
10
