Objecto F3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Objecto F3

Summary of Contents for Objecto F3

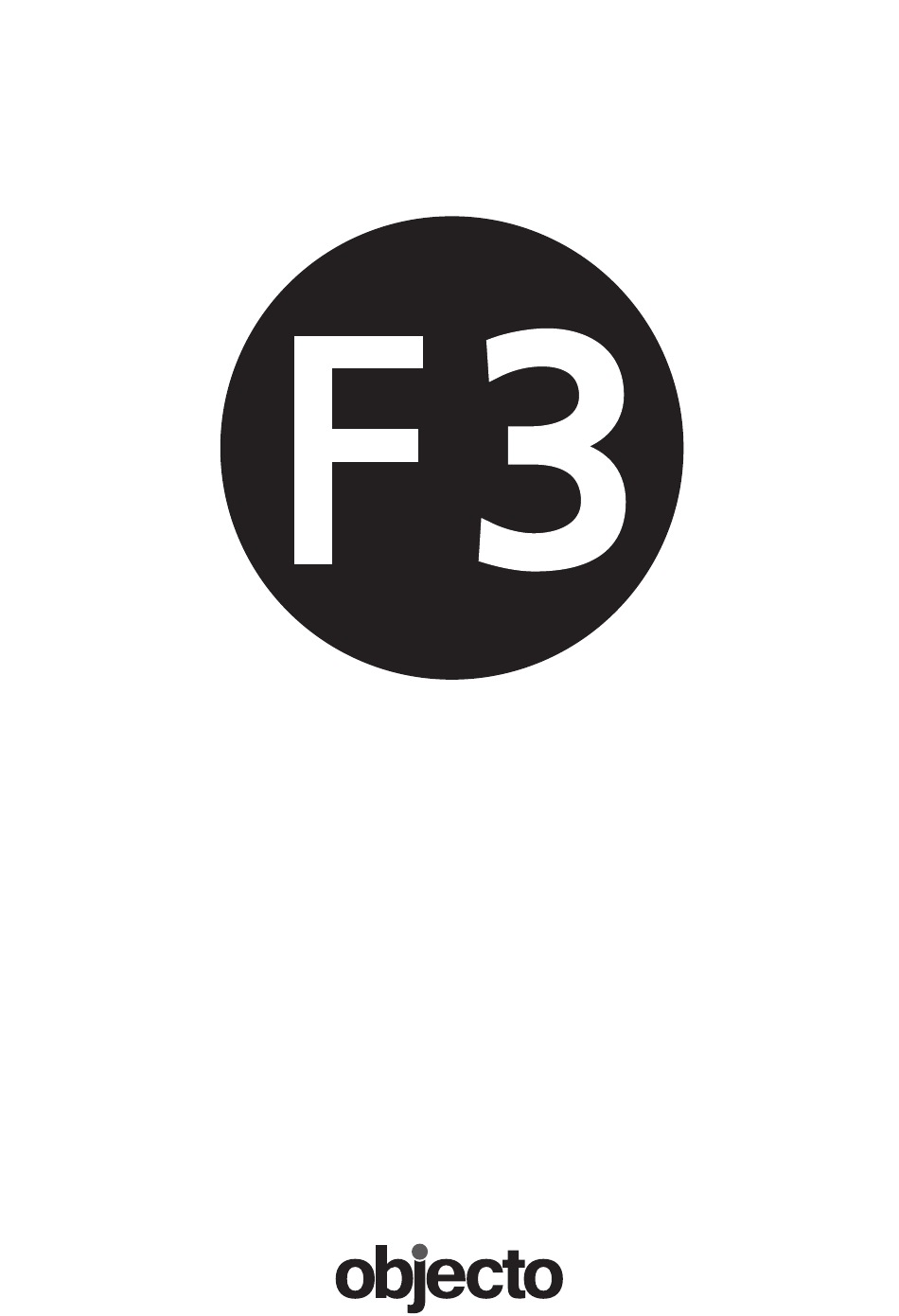

  • Page 1 USER MANUAL...

  • Page 2: Safety Information

    English Safety Information Before use, be sure to carefully read this manual on safety to ensure that you use this product correctly. Always follow these instructions when using the product. WARNING In order to avoid any electrical shock, short-circuit, burns, or cause a fire: •...
  • Page 3 English For remote control batteries, do not use any other than specified. Do not leave the battery of the remote control in a hot location or in direct sunlight. When unplugging the power cord, always unplug by grasping the power plug, not by pulling on the power cord.

  • Page 4: Names Of Parts And Their Functions

    English Names of Parts and Their Functions Front Front grille Center mark shell (aroma circle disk) Fan main unit Blade Remote receiver Power button Operation part of main unit Remote control storage position Base part Rear Handle Rear grille Telescopic button Moves the fan of the main unit up or down.
  • Page 5 English AC adapter DC plug Connect to DC plug AC adapter Accessories included in box Main unit .....................1 Coin lithium battery (CR250) ..............1 AC adapter ..................1 Replacement felt (1 in aroma circle disk; installed) ........4 Remote control ..................1 Manual (including Warranty Card) ............1 Keep the packaging box to store the product after use.
  • Page 6 English Correct Use of the Fan Preparation Before Use Put the main unit on a stable level place • Hold the handle to pick up and move the main unit. • Make sure that there is no foreign object in the place where the main unit base is located. Install adapter Install the battery into the remote control Remote control (rear side)

  • Page 7: Start/Stop Operation

    English Start/stop operation Start operation Simply press the power button on the main unit or remote control to start the operation. • In normal use, the air volume and swing angle will default to the setting when it was turned off last time because of the memory function. When the AC adapter is removed from the plug, the device will automatically restore the initial settings.
  • Page 8 English Start natural /sleep wind function Press the natural/sleep wind button on the main unit or the remote control during operation to switch functions. The set natural sleep wind, indicator will turn on. Start/stop swing The left/right swing angle of the fan can be set to 30°, 60° or 90°. •...

  • Page 9: Height Setting

    English The direction can be changed manually The range of the angle is about 100° vertically (90° upwards (30° × 3) 10° downwards) and 60° horizontally. Attention • To switch the direction manually, first turn off the power by pressing the button.

  • Page 10: Auto-Off Function

    English Set / cancel light off mode Auto-dimmer function The brightness will automatically be reduced (by about 20%) one minute after the last operation on the main unit or the remote control. You can also shut off the light by pressing and holding the Natural air/sleep wind button for at least 3 seconds.
  • Page 11 English Timer Setting - Off Timer Setting When off timer is set, the fan will automatically stop running after reaching the set time. Press the timer button when fan is on to set the off timer When you press the timer button on the main unit or the remote control when fan is on, the 1H timer indicator will turn on, and the schedule off mode is enabled.

  • Page 12: Timer Display

    English Timer display The timer display will switch in the following order when you press the timer button on the main unit or remote control. (1 hour) (2 hour) (4 hour) (Timer disabled) When the on/off timer has been set, the timer display changes with time, indicating the remaining time before the timer function is started.
  • Page 13 English Use of Aroma Oil Remove the center mark shell (aroma circle disk) mounted on the front grille You can simply rotate the center mark shell (aroma circle disk) to the left to remove Remove the felt cover and pour some aroma oil onto the felt placed in the aroma circle disk Rotate the felt cover to the left to remove it from the center mark shell (aroma circle disk) and confi...
  • Page 14 English Felt cover Used felt To prevent the felt from exposing/overfl owing from the felt storage area in the center mark shell (aroma circle disk ), place the felt under the buckle when installing. Felt tab Buckle Start operation Follow “Start/stop operation” on page 7 and you can enjoy the cool breeze with aromatherapy.
  • Page 15 English Aroma oil/natural essential Oil • Keep it away from flames. • Keep it out of reach of children. • If some oil spilled on your clothing, rinse with plenty of water and let it dry naturally. Do not use a dryer. •...

  • Page 16: Cleaning And Storage

    English Cleaning and Storage WARNING Always disconnect the AC adapter from the outlet during maintenance. Attention • Never use household cleaner, thinner, gasoline, alcohol, or abrasive powder. • Do not flush the main unit or AC adapter with water. (It may cause electric shock and device failure.) Maintenance When the main unit is dirty, soak a soft cloth in warm water or neutral...
  • Page 17 English Removal Method of Blades and Front Grille Rear grille Motor concentric shaft Blade Front grille Knob for blade mounting 1 to the left as a whole. Rotate the front grille Attention Do not apply excessive force to rotate the front grille. Pull out the front grille completely to the point where it cannot continue to rotate 2.
  • Page 18 English Assembly Method of Blades and Front Grille Align the pin of the motor concentric shaft and install the blade Position the pins of the blade pin fi xing part and the motor shaft base and install them. Fixing part of pin Motor center shaft Blade (reverse) When installing the blade, align the pin fi...

  • Page 19: Storage Method

    English Align the groove of the front grille with the mark of the rear grille and press the entire front grille into it 3. Align the groove of the front grille with the U-shaped recess mark on the rear grille and press it in 4 to the right.
  • Page 20 English Before Requesting Repair or Service WARNING Only qualified technicians should disassemble or repair the fan. Problem Cause Solution No power. DC plug or AC adapter Insert the DC plug of AC adapter not connected properly. into the DC jack. Insert the AC adapter into the outlet.
  • Page 21 • Power cord or AC adapter heats Please turn off the power, unplug up abnormally. the AC adapter and contact • The power turns on and off the dealer or customer service repeatedly. department of OBJECTO • Burning smell.

  • Page 22: Specifications

    English Specifications Product name Model FN-63 Power supply 110 V, 50/60 Hz Power consumption 15 W AC adapter cord length Approx. 70 inches Size Width 11 in × Length 10 in × Height 29 in (L), 36 in (H) Weight Approx.

  • Page 23: Limited Warranty Policy

    Should service be necessary for any reason due to manufacturing defect or malfunction during the 90 days period, OBJECTO will provide repair service at our FACTORY SERVICE CENTER at no charge, and for the duration of the extended 9 months parts warranty period will replace the defective part only, not including labor, provided the defect or malfunction is verifi...
