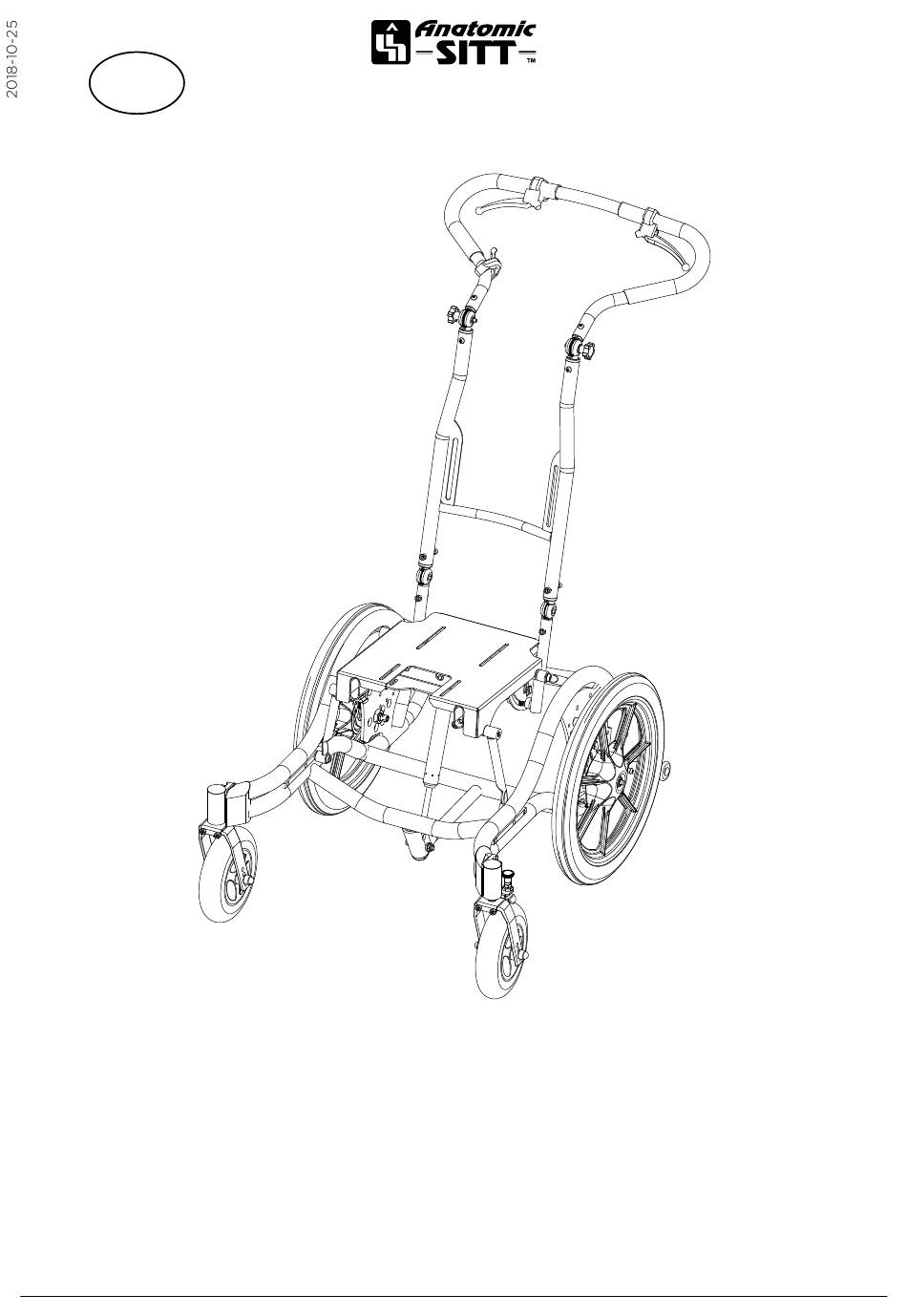

  • Page 1 User Manual Seabass Pro...
  • Page 2 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 3: Safety Precautions

    Safety precautions Introduction In order to use the Zitzi Seabass PRO in its full extent, it is important that you read this manual. This applies to everyone close to the user. Adaptation/fitting the Zitzi Seabass Pro must be done by a medically qualified person.

  • Page 4: Table Of Contents

    Adjusting the height .............36 Height adjustment of driving handles ....18 Adjusting the width ............36 Depth adjustment of driving handles ....18 Angle adjustment of driving handles ....18 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 5 Service and maintenance ��������������������48 Service intervals ..............48 Cleaning and washing instructions .......48 Gas piston ................48 Battery care ..............48 Warranty ................49 Combinations ..............49 Spare parts ................49 Marking ................49 Recycling ................49 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 6: Seat Part

    TIP! The picture only shows mounting instructions for one type of mounting plate. For further information about other mounting plates, see user manuals for the selected seating system. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 7 Seat depth adjustment (from behind) Allen screw M6x20 Washer Locker nut Countersunk (D) M6/16x1 mm 4 pcs 4 pcs 4 pcs User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 8: Tilting The Seat

    (som på bild nedan) erhålls tilt på 0-35 . Om kolven fästs in i hålet ovanför erhålls en tilt på -7-28 Negative tilt Standard tilt User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 9 Note! When tilting the seat, the center of gravity is shifted down- wards / forward, which means reduced tipping danger. Note! Be careful to avoid risk of pinching User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 10: Armrests From Seat

    Tighten the hand lever (G). Angle adjustment laterally To adjust the armrest plate sideways and in angle, loosen the screws (H) and move then armrest to desired position. Tighten the screws (H). User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 11 Armrest plate (from below) User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 12: Armrest From Back Pipes

    Tighten the screws (E). Note! Ensure you hear a click sound when folding back the armrest. It indicates that the locking mechanism has become locked. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 13 1 : 3 Three-holes position For angleadjusting the armrests 1 : 2 Armrest plate (from below) User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 14: Driving Bow

    Angle adjustment of bow handle To angle adjusting the bow handle loosen the knobs (G) and adjust to desired angle. Tighten the knobs (G). User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 15 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 16: Foldable Driving Bow

    The knobs can be replaced by cam levers, you order the cam levers separately and install them by unscrew the knobs and replace them with the cam levers. Be careful, so you don’t tighten the handle too hard for operate. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 17 DETAIL SCALE 2 : 5 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 18: Driving Handles

    To angle adjust the driving handle loosen the levers (F) and adjust the handles to desired angle. Tighten both lever handles (F). Note! The driving bow should always rest against the back of the seat system during transportation in a vehicle. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 19 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 20: Wheels

    To adjust the axle, you adjust the nut (C) in or out on the axle. It shall be adjusted so the two locking balls (D) is located exactly outside the sleeve. Make sure it is locked by checking that the locking pin (E) is recessed. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 21 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 22: Wheel Positions

    Note! When changing the drive wheel position, it may also be necessary to adjust the parking brake slightly. See pages 30-31 for further information about the parking brake. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 23 Driving wheel positions 24’’ Driving wheel positions 22’’ Driving wheel positions 20’’ Driving wheel positions 16’’ Driving wheel positions 12’’ E-drive 20’’ E-drive 16’’ User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 24: Caster

    You kan adjust the castors in four (4) different height positions. This allows you to adjust the castor height after positioning the driving wheels. Note! Secure that the screws is properly tighten after the adjustment. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 25 Loosen and rotate the eccentric nuts (C) on the caster attachment (B) until the correct angle is obtained. Tighten the screws properly after adjusting the caster fork. Note! Make sure the screws are properly tightened after the adjustment. 90° Ground User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 26: Brakes

    Squeeze the brake by lifting the drum brake arm (E) and move the nut (D) further up the wire. Tighten the nut (D) and adjust the tension with the screw (C). User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 27 Detailed view of drum brake User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 28: Installation Of Drum Brake

    12/16 ”and diagonally forward/upwards for 20-24”. Note! For more information about using quick-release, see page 20-21. Note! The mounting principle of drum brake is the same regardless of wheel size. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 29 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 30: Parking Brakes

    (F) is 20 mm when the parking brake is in idle mode. Pull the parking brake lever back to release the parking brake. Parking brakes position on side frame 12-16’’ User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 31: Mounting Parking Brake For 20-24'' Wheel

    Note! When using a transport bracket with parking brake, no washers are used. See page 47 of this manual for further information. Parking brakes position on side frame 20-24’’ User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 32: Footrest

    Loosen the levers (D) slightly and adjust the footrest to the desired angle. Tighten the levers. Adjusting the height of the footrest Release the levers (E) slightly and adjust the footrest to the desired height. Tighten the levers. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 33 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 34: Footrest Brackets

    To use the ball joint function, first loosen the screws (B) and (C) and adjusts to the desired position. Tighten the screws (B) and safety lock the position with screw (C). User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 35 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 36: Calf Support

    To adjust the width of the calf support, loosen the screws (A) slightly and adjust to desired width. Tighten the screws (A). Note! Do not forget to attach the footrest and the end caps when afterwards mounting the calf support. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 37 Sargsprint, olika storlekar Justeringsnyckel M6 Countersunk (A) Spacer (B) Rail pin (C) Track nut (D) M6 Screw (E) 4 pcs 4 pcs 2 pcs 4 pcs 4 pcs Ryggbricka User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 38: Anti-Tip Device

    Note! When using a tipping guard together with a step bar, the tipping guard is mounted on the left side as standard. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 39 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 40: Step Bar

    Note! When using the Step bar, it is important that you hold the driving bow or the push handle properly. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 41: Transportation Kit

    Mount the rear transportation bracket (F) on the inside of the frame according to the picture, using screws (G), washers (H) and nuts (I). Tighten the nuts and put on nut caps (J). User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 42 Crashtested and approved! Seabass Pro is crashtested and approved according to 7176-19 for 135 kg and Hi tested according to ISO 10542. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 43: Direction Lock

    Ensure that the direction is locked. Releasing direction lock Pull the locking pin (H) straight up from the moving part and then rotate 90° and release the pin gently. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 44: Mudguards

    You can adjust the mudguars in height by loosen the screws (E). Adjust to required height and then tighten the screws (E). Tip! You just need to loosen the screws (E) slightly. Inside view of the mudguards User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 45: E-Drive

    For more detailed information about e-drive, refer to separate “E-drive for Seabass Pro MED3058” installation instructions. Using E-drive E-drive makes Seabass Pro an attendent operated electrical wheelchair and controlled by a hand control. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 46: Transportation In A Vehicle

    Seabass Pro is crashtested and approved according to 7176-19 for 135 kg and HI-tested according to ISO 10542. Note! The crash approval applies to load weights up to 135 kg. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 47 Markings for transportation brackets Wheelchair from above with driving wheels down. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 48: Service And Maintenance

    Follow the directions on the respective laundry label. The same washing rules applies to positioning harnesses and hip belts from Anatomic SITT AB. Check the condition regularly and perform maintenance when necessary�...

  • Page 49: Warranty

    51 of this manual. Combinations Zitzi Seabass Pro and its accessories are CE marked products that can be combined with all the accessories described in this manual. Zitzi Seabass Pro can be combined with seating systems like Zitzi Delfi Pro and Anatomic Sits.

  • Page 50: Reconditioning

    Work should always be done by professional and qualified staff. If you need support, you are always welcome to contact Anatomic SITT AB. The need of reconditioning varies and must be judged case by case. Go through all checkpoints at least once per year or as needed.

  • Page 51: Stability

    Function control Function control means that you go through wheels, stability, brakes, push handle and push bar. Note! Always check that the device is not customized when reconditioning, User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 52: Adaptation And Customization

    Adaptation and customization Guidelines and recommendations Every time the Zitzi Seabass Pro is altered in some way, an assessment has to be made to determine if it is an adaptation or a customization. An adaptation is any change made in comprehension of the CE mark. All other changes are customizations.

  • Page 53: Terms Of Sale

    40% of the invoice value For products returned more than 360 days from delivery no refund is made for the products Customized products cannot be returned User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...

  • Page 54: Technical Data

    All dimensions are taken with the respective size in the standard format. Standard frame and 16’’ wheels. User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00 Anatomic SITT AB • Phone +46 11-16 18 00 • Email info@anatomicsitt.com • Web www.anatomicsitt.com...
  • Page 55 User manual Zitzi Seabass Pro www.anatomicsitt.com | +46 11 16 18 00...
  • Page 56 Anatomic SITT AB (manufacturer) Box 6137, SE-600 06 Norrköping, Sweden Tel +46 11 16 18 00 Fax +46 11 16 20 05 Support +46 11 16 18 05 Visiting address Terminalgatan 1, SE-602 29 Norrköping, Sweden Anatomic SITT A/S Viengevej 4, 8240 Risskov, Denmark...
