Page 1: User Manual

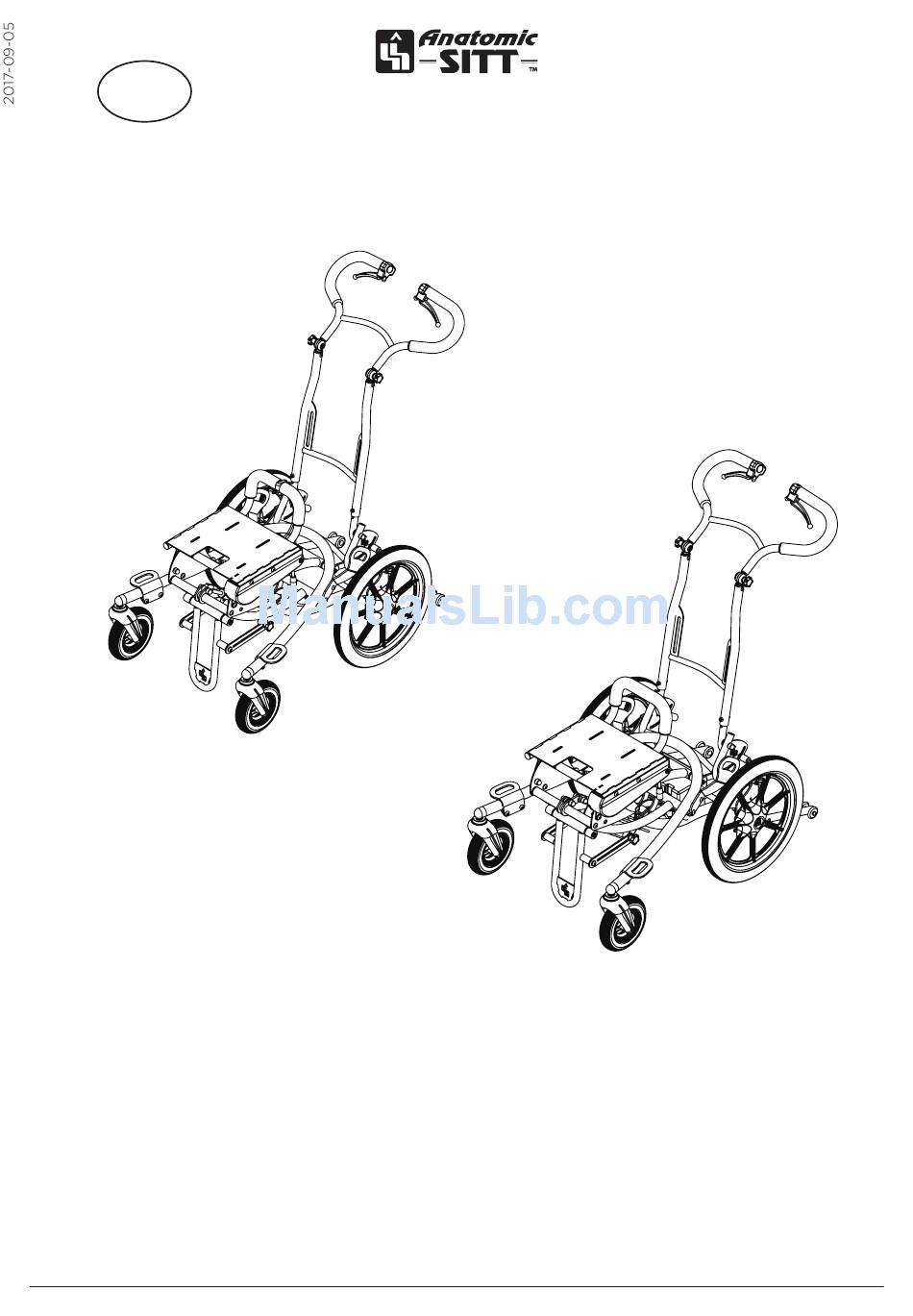

Gas piston Electric User Manual Zitzi Flipper Pro Flex... -
Page 2: Table Of Contents
Mounting of anti-tippers & step bar .. 11 Disassembly & Dismantlement ..22 Transportation kit ........12 Warranty ..........22 Transportation in vehicles ....13 Technical data ........23 Footrest ........... 14 Calf support ..........15 User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 3: Safety Precautions
Safety precautions Introduction In order to use the Zitzi Flipper Pro Flex in its full extent, it is important that you read this manual. This applies to everyone close to the user. The product is intended for users with seating problems and fits many different kinds of diagnoses. -
Page 4: Adjustable Seat Height - Gas Piston
• Adjust the seat height to desired position. • Let go of the handle grip when you achieved the desired height. The height is now locked Note! Be careful to avoid risk of pinching User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 5: Adjustable Seat Height - Electric
Note! Be careful to avoid risk of pinching • Up arrow raises the seat plate • Down arrow lowers the seat plate • Contact for charging User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 6: Charging The Battery
The actuator for the tiltfunction then should be connected to the box input marked 2. HAND CONTROL ACTUATOR (TILT) opyion ACTUATOR (LIFT) User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 7: Tilt Function
Lock the knob (A) to ensure that tilt position is locked. Note! It is very important that the knob (A) is released before using the electric tilt function. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 8: Driving Bow
Note! All knobs, levers and screws should always be locked after adjustment.. Note! The driving dow must rest against the back of the seat system when transporting a vehicle. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 9: Parking Brake
Then release the brake handle. A Brake lever B Locking device Note! Always lock the parking brake when the chassi is standing on a sloping surface. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 10: Mounting Of Rear Wheels
Quick-release A For 12” wheels B For 16” wheels C Anti-tipper and Step bar Note! Ensure that the the wheel is in the locked position! User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 11: Mounting Of Anti-Tippers & Step Bar
Opposite the anti-tipper folds out until a click is heard. Note! Zitzi Flipper Pro Flex should always be equipped with anti-tip device given its high potential for height adjustment Step bar - Quick guide... -
Page 12: Transportation Kit
Mounting of the transportation kit (front and rear) Mounted with screws, washers and nuts as shown. Note that the loop of the back bracket is pointing backwards. Front transportation Rear transportation User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 13: Transportation In Vehicles
Important! Only tighten the straps, do not strain! If the straps are strained too much, the chassis may be deformed. Note! The crash approval applies to load weights up to 75 kg. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 14: Footrest
Tighten when desired positions is reached. Height adjustment, foot plate - C Loosen the screws (E) and adjust to desired position. Tighten when desired positions is reached. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 15: Calf Support
Tighten the screws when the desired setting is reached. Release screws B to adjust the width of calf support. Tighten the screws when the desired setting is reached. = Adjustment bolts User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 16: Footrest High Edge, Single Stay
The plastic stay (H) may after adjustment of desired height be cut or heated in under the footrest plate according to personal preference. Drillhole markings can also be found under the foot plate. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 17: From Single Stay To Double Stay
990041 / 990046 140 mm 130 mm 990042 / 990047 170 mm 160 mm 990043 / 990048 205 mm 190 mm 990044 / 990049 235 mm 240 mm User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 18: Drilling Instr. Whole Footrest Plate
Size 4 Delfi Pro & Anatomic Sits single stay Anatomic Sits Anatomic Sits Seabass Pro Anatomic Sits & Clozitt single stay double stay double stay double stay User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 19: Drilling Instr. Divided Footrest Plate
Anatomic Sits & Sharky Pro double stay Size 3 Size 4 Delfi Pro & Anatomic Sits Seabass Pro, Clozitt single stay & Anatomic Sits double stay Anatomic Sits double stay User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... -
Page 20: Mounting Of A Seat System
Mounting of a seat system A seating system can easily be mounted on Zitzi Flipper Pro Flex with a mounting plate. The mounting plate is equipped with 4 bolts that makes the seating system stays in place. The knob beneath the mounting plate makes sure that the seating system do not lose its position. -
Page 21: Maintenance Instructions
If not, the gas piston seal might break and the piston lose its function. Spare parts Zitzi Flipper Pro Flex may only be provided with spare parts delivered by Anatomic SITT AB. User manual Zitzi Flipper Pro Flex... -
Page 22: Comb. & Suitable Seating System
Combinations & suitable seating system The product fits the seating systems Zitzi Delfi, Zitzi Delfi Pro, Zitzi Sharky & Anato- mic SITS. For other combinations, please contact Anatomic SITT AB. Markning The frame is marked with a unique serial number that shall be quoted in all correspondence regarding the product. -
Page 23: Technical Data
Note! The product is only intended for use as a chassis together with seat systems manufactured by Anatomic SITT AB. If you wish for any other use, please contact Anatomic SITT AB. User manual Zitzi Flipper Pro Flex www.anatomicsitt.com | +46 11 16 18 00... - Page 24 Anatomic SITT AB (manufacturer) Box 6137, SE-600 06 Norrköping, Sweden Phone +46 11 16 18 00 Fax +46 11 16 20 05 Support +46 11 16 18 05 Street address Terminalgatan 1, SE-602 29 Norrköping, Sweden Anatomic SITT A/S Viengevej 4, 8240 Risskov, Denmark...
