LG 32LX330C Series Owner's Manual

Hide thumbs Also See for 32LX330C Series:
Table of Contents

Advertisement

Quick Links

Download this manual
LED TV
32LX330C
42LX330C
50LX330C
55LX330C
a
b
X 4
X 4
X 2
(M4 X L14)
(M4 X L20)
32LX330C
42/50/55LX330C
42LX330C
www.lg.com
P/NO : MFL68925962(1503-REV01)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32LX330C Series and is the answer not in the manual?

Questions and answers

Related Manuals for LG 32LX330C Series

Summary of Contents for LG 32LX330C Series

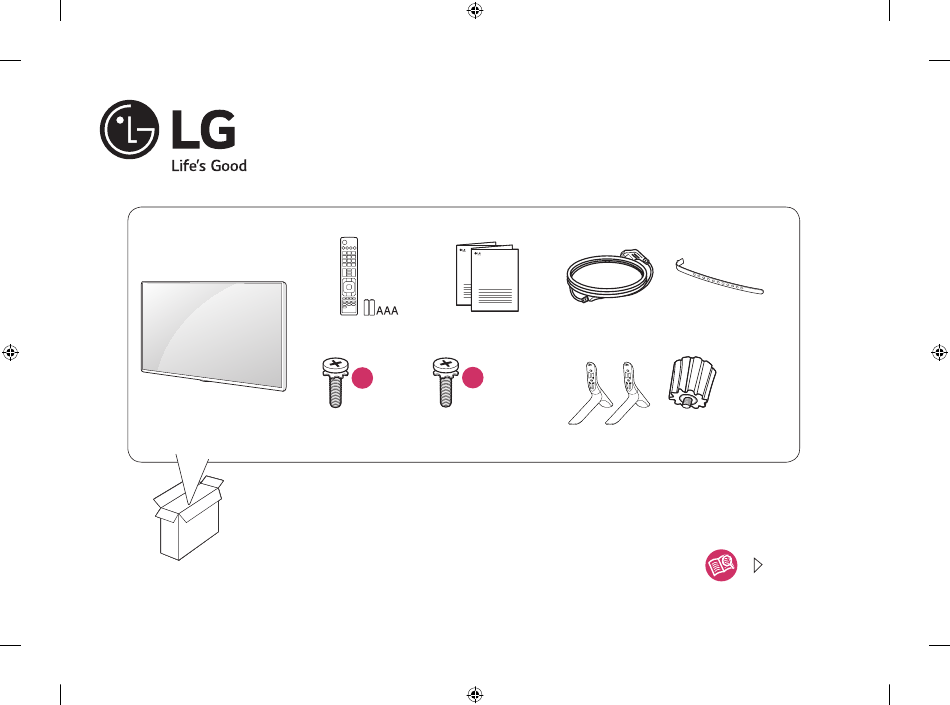

  • Page 1 LED TV 32LX330C 42LX330C 50LX330C 55LX330C (M4 X L14) (M4 X L20) 32LX330C 42/50/55LX330C 42LX330C www.lg.com P/NO : MFL68925962(1503-REV01)
  • Page 2 ENGLISH Read Safety and Reference. 粵語 請閱讀安全及參考.
  • Page 3 LEFT RIGHT OPTICAL DIGITAL EXTERNAL AUDIO OUT SPEAKER OUT LEFT RIGHT RGB IN (PC) RS-232C IN (CONTROL & SERVICE) ANTENNA/ CABLE IN VIDEO/ AUDIO L/MONO COMPONENT IN / AV IN AUDIO VIDEO/ AUDIO VIDEO/ AUDIO L/MONO L/MONO COMPONENT IN / AV IN COMPONENT IN / AV IN VIDEO L(MONO)
  • Page 4 AUDIO OUT HDMI DVI OUT OPTICAL LEFT DIGITAL EXTERNAL AUDIO OUT SPEAKER OUT RIGHT AUDIO OUT HDMI DVI OUT LEFT RGB IN (PC) RS-232C IN (CONTROL & SERVICE) RIGHT ANTENNA/ CABLE IN ENNA/ LE IN VIDEO/ AUDIO OPTICAL L/MONO AUX LAN DIGITAL AUDIO OUT COMPONENT IN / AV IN...
  • Page 7 32LX330C-CA 42LX330C-CA 含底座 (毫米) 732 x 481 x 207 961 x 612 x 218 With stand (mm) 尺寸 (寬 x 高 x 深) Dimensions (W x H x D) 不含底座 (毫米) 732 x 437 x 55.5 961 x 567 x 55.5 Without stand (mm) 含底座...
  • Page 9 OWNER’S MANUAL Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...

  • Page 10: Safety Instructions

    Safety instructions Please read these safety precautions carefully before using the product. Insert power cable plug completely into wall socket. If not secured completely into socket, fire may break out. WARNING Ensure the power cord does not come into contact with hot objects such as a heater.
  • Page 11 swallowed by mistake, force the patient to vomit and visit the nearest Do not allow any impact, shock or any objects to fall into the unit, hospital. Additionally, vinyl packing can cause suffocation. Keep it out and do not drop anything onto the screen. You may be injured or the of the reach of children.
  • Page 12 Install the product where no radio wave occurs. Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, There should be enough distance between an outside antenna and malfunction, or product deformation.
  • Page 13 We recommend that you maintain a distance of at least 2 to 7 times Do not turn the product On/Off by plugging-in or unplugging the power the diagonal screen size when watching TV. If you watch TV for a long plug to the wall outlet.
  • Page 14 Do not press strongly upon the panel with a hand or sharp object such When moving or unpacking the product, work in pairs because the as nail, pencil or pen, or make a scratch on it, as it may cause damage product is heavy.
  • Page 15 •  The available menus and options may differ from the input source or product model that you are using. * LG LED TVs are LCD TVs with LED backlighting. •  New features may be added to this TV in the future.

  • Page 16: Maintenance

    Maintenance Lifting and moving the TV Please note the following advice to prevent the TV from being scratched Cleaning your TV or damaged and for safe transportation regardless of its type and size. •  It is recommended to move the TV in the box or packing material Clean your TV regularly to keep the best performance and to extend the that the TV originally came in.

  • Page 17: Using The Joystick Button

    Using the joystick button Mounting on a table (Image shown may differ from your TV.) (Image shown may differ from your TV.) You can simply operate the TV functions, pressing or moving the joystick 1 Lift and tilt the TV into its upright position on a table. button up, down, left or right.

  • Page 18: Mounting On A Wall

    We recommend the •  Use the screws that are listed on the VESA standard screw use of LG’s wall mount bracket. The LG wall mount is easy to adjust or specifications. to connect the cables. When you do not use LG’s wall mount bracket, • ...

  • Page 19: Connections (Notifications)

    •  Use a signal splitter to use more than 2 TVs. Provided Item •  If the image quality is poor, install a signal amplifier properly to improve the image quality. •  If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
  • Page 20 Changes the input source. Selects Radio, TV, and DTV programme. Licenses Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Number buttons Enters numbers. Accesses the saved channel list. Tunes to the last channel viewed. Manufactured under license from Dolby Laboratories.

  • Page 21: Open Source Software Notice Information

    • File Type : AAC LG Electronics will also provide open source code to you on CD-ROM [Bit rate] Free Format for a charge covering the cost of performing such distribution (such [Sample freq.] 8 kHz ~ 48 kHz...

  • Page 22: Troubleshooting

    The software may be updated for improvement in performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG Electronics.

  • Page 23: Specifications

    Specifications Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % Digital TV Analogue TV Television System DTMB PAL D/K/B/G/I, NTSC-M PAL D/K : VHF/UHF 1 ~ 69, CATV 1~47 Programme Coverage DTMB : 21 ~ 69 PAL B/G/I : VHF/UHF 1 ~ 69, CATV 1 ~ 47...
  • Page 24 External Control Device Setup Key Codes • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR +, R/C Button LIST R/C Button CH -, PR -, R/C Button EXIT R/C Button Volume +, R/C Button PIP(AD)
  • Page 25 Λ (Arrow Key / Cursor Up) R/C Button Soccer R/C Button V (Arrow Key / Cursor R/C Button (REC) R/C Button Down) My Apps R/C Button R/C Button Menu / Settings, R/C Button AutoConfig R/C Button HOME OK / Enter R/C Button App / * R/C Button...
  • Page 26 USB to Serial converter with USB Cable USB Type (TV) (PC) •  LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter which  RS-232C IN is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) •  It can be purchased from computer stores that carry accessories for IT support professionals. RS-232C With RS232C Cable (TV) (PC) DE9 (D-Sub 9-pin) Type •  You need to purchase the RS-232C (DE9, D-Sub 9-pin female-to-female type) to RS-232C cable required for  the connection between the PC and the TV, which is specified in the manual. (PC) (TV) RS-232C IN (CONTROL & SERVICE) (TV)
  • Page 27 Customer Computer RS-232C configurations 3-Wire Configurations (Not standard) RS-232C (Serial port) D-Sub 9 Phone Set ID For Set ID number, see Real Data Mapping. 1.  Press SETTINGS to access the main menus. Press the navigation buttons to scroll to (*General → About this TV or OPTION) and press OK. 2.  3.  Press the navigation buttons to scroll to SET ID and press OK. 4.  Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99. 5.  When you are finished, press EXIT.  * (Depending upon model) Communication Parameters • ...
  • Page 28 Command reference list (Depending upon model) DATA DATA COMMAND1 COMMAND2 COMMAND1 COMMAND2 (Hexadecimal) (Hexadecimal) 01. Power* 00 to 01 15. Balance 00 to 64 16. Color  02. Aspect  (p.22) (Colour) 00 to 64 Ratio Temperature 17. ISM  03. Screen  (p.23) Method (Only  (p.24) Mute Plasma TV) 04. Volume  00 to 01 18. Equalizer (p.24) Mute 05. Volume  19. Energy  00 to 64 00 to 05 Control Saving...
  • Page 29 Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1]    First command to control the TV. (j, k, m or x) [Command 2]    Second command to control the TV. [Set ID]      Y ou can adjust the [Set ID] to choose desired monitor ID number in option menu.   Adjustment range in TV is 1 to 99.  If [Set ID] value is selected to ‘0’ ,  every connected set  can be controlled.       *    [ Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0 x 00 to 0 x 63)  on transmission/receiving protocol. [DATA]     To transmit command data (hexadecimal).  Transmit ‘FF’ data to read status of command. [Cr]     Carriage Return - ASCII code ‘0 x 0D’ [   ]     Space – ASCII code ‘0 x 20’ Ok Acknowledgement [Command2][ ][Set ID][ ][OK][Data][x] * ...
  • Page 30 00 : Step 0 32 : Step 50 (Set ID 50)    FE : Step 254 01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51)    FF : Step 255 0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256 0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998 10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999 * Commands may work differently Depending upon model and signal. 01.  Power (Command: k a) 02.  Aspect Ratio (Command: k c)  (Main Picture Size) ▶ To control Power *On or Off of the set.   ▶ To adjust the screen format. (Main picture    Transmission[k][a][  ][Set ID][  ][Data][Cr] format)  You can also adjust the screen format using the  Data 00 : Power Off  01 : *Power On Aspect Ratio in the Q.MENU. or PICTURE menu. Ack [a][ ][Set ID][ ][OK/NG][Data][x] Transmission [k][c][ ][Set ID][ ][Data][Cr] ▶ To Show TV is Power On or *Off   07 : 14:9 Data 01 :  ...
  • Page 31 *  In DTV/HDMI/Component mode (high-definition),  07.  Brightness (Command: k h) Just Scan is available. ▶ To adjust screen brightness.    *  Full wide mode may work differently based on  You can also adjust brightness in the PICTURE  model and is supported for DTV fully, and ATV, AV  menu. partially. Transmission [k][h][ ][Set ID][ ][Data][Cr] Data Min :   0 0 to Max : 64 03.  Screen Mute (Command: k d) Ack [h][ ][Set ID][ ][OK/NG][Data][x] ▶ To select screen mute on/off.   Transmission [k][d][ ][Set ID][ ][Data][Cr] Data  00 :   S creen mute off (Picture on)  08.  Color/Colour (Command: k i) Video mute off ▶ To adjust the screen Color (Colour).      01 :   S creen mute on (Picture off ) You can also adjust colour in the PICTURE menu.
  • Page 32 12.  Remote control lock mode (Command: k m) Data Min :   0 0 to Max : 64 ▶ To lock the front panel controls on the monitor    Ack [u][ ][Set ID][ ][OK/NG][Data][x] and remote control. Transmission [k][m][ ][Set ID][ ][Data][Cr] 17.  ISM Method (Command: j p) (Only Plasma TV) Data 00 : Lock off 01 : Lock on ▶ To control the ISM method. You can also adjust    Ack [m][ ][Set ID][ ][OK/NG][Data][x] ISM Method in OPTION menu. Transmission [j][p][ ][Set ID][ ][Data][Cr] *  If you are not using the remote control, use this  mode.  Data Min :   0 2: Orbiter  When main power is off and on (plug-off and  08: Normal  plug-in, after 20 - 30 seconds), external control  20: Color (Colour) Wash lock is released. Ack [p][ ][Set ID][ ][OK/NG][Data][x] *  In the standby mode (DC off by off timer or ka, mc  command), and if key lock is on, TV will not turn  on by power on key of IR & Local Key.  18.  Equalizer (Command : j v) 13.   Treble (Command: k r) ▶...
  • Page 33 20.  Tune Command (Command: m a) Ack [a][ ][Set ID][ ][OK][Data 00][Data 01] *  This command may work differently depending  [Data 02][x][a][ ][Set ID][ ][NG][Data 00][x] upon model and signal. •  For South Korea, North/Latin America except  •  For Europe, Mid-East, Colombia, Asia except South  Colombia Model Korea and Japan Model ▶ To tune channel to following physical/major/   ▶ Select channel to following physical number.   minor number. Transmission [m][a][ ][Set ID][ ][Data 00][ ] Transmission [m][a][ ][0][ ][Data00][ ][Data01] [Data 01][ ][Data 02][Cr] [ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr] *  Analog Antenna/Cable Digital channels have a Physical, Major, and Minor  channel number. The Physical number is the actual  [Data 00][Data 01] Channel Data digital channel number, the Major is the number that  Data  00  :  High byte channel data the channel should be mapped to, and the Minor is  Data  01  :  Low byte channel data the sub-channel. Since the ATSC tuner automatically   ...
  • Page 34 Two bytes are available for each major and minor  Data 01 & 02 = Major is 17 = 00 11  channel data, but usually the low byte is used alone  Data 03 & 04 = Minor/Branch is 1 = 00 01  (high byte is 0).  Data 05 = Digital Antenna TV = 02  ma 00 00 00 11 00 01 02 Total =  *  Tune Command Examples: 1.    T une to the Analog cable (NTSC) channel 35.  2.  Tune to the BS (ISDB-BS) channel 30.  Set ID = All = 00  Set ID = All = 00  Data 00 = Channel Data is 35 = 23  Data 00 = Don’t know Physical = 00  Data 01 & 02 = No Major = 00 00  Data 01 & 02 = Major is 30 = 00 1E  Data 03 & 04 = No Minor = 00 00  Data 03 & 04 = Don’t Care = 00 00  Data 05 = Analog Cable TV = 01  Data 05 = Digital BS TV = 07  ma 00 23 00 00 00 00 01 Total = ...
  • Page 35     Control Panel Light (Command: m g) 03 : Frame Sequential  04 : Column interleaving  05 : Row interleaving •  For Plasma TV ▶ To control the panel light. [Data 02]    0 0 : Right to Left    01 : Left to Right Transmission [m][g][ ][Set ID][ ][Data][Cr] [Data 03]    3 D Effect(3D Depth): Min : 00 -  Max : 14  Data Min : 00 to Max : 64 (*transmit by Hexadecimal code) *  [Data 02], [Data 03] functions depend on model  Ack [g][ ][Set ID][ ][OK/NG][Data][x] and signal.  *  If [Data 00] is 00 (3D On), [Data 03] has no  meaning. 24.  Input select (Command: x b)  (Main Picture Input) *  If [Data 00] is 01 (3D off ) or 02 (3D to 2D), [Data  ▶ To select input source for main picture. 01], [Data 02] and [Data 03] have no meaning.   *  If [Data 00] is 03 (2D to 3D), [Data 01] and   Transmission [x][b][ ][Set ID][ ][Data][Cr] [Data 02] have no meaning.
  • Page 36 26. Extended 3D(Command: x v) (only 3D models) 27. Auto Configure (Command: j u) (Depending upon model) (Depending upon model) ▶ To change 3D option for TV. ▶ To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) Transmission [x][v][ ][Set ID][ ][Data 00][ ] mode.
  • Page 38 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
