Summary of Contents for PCE Instruments Laserliner DampMaster

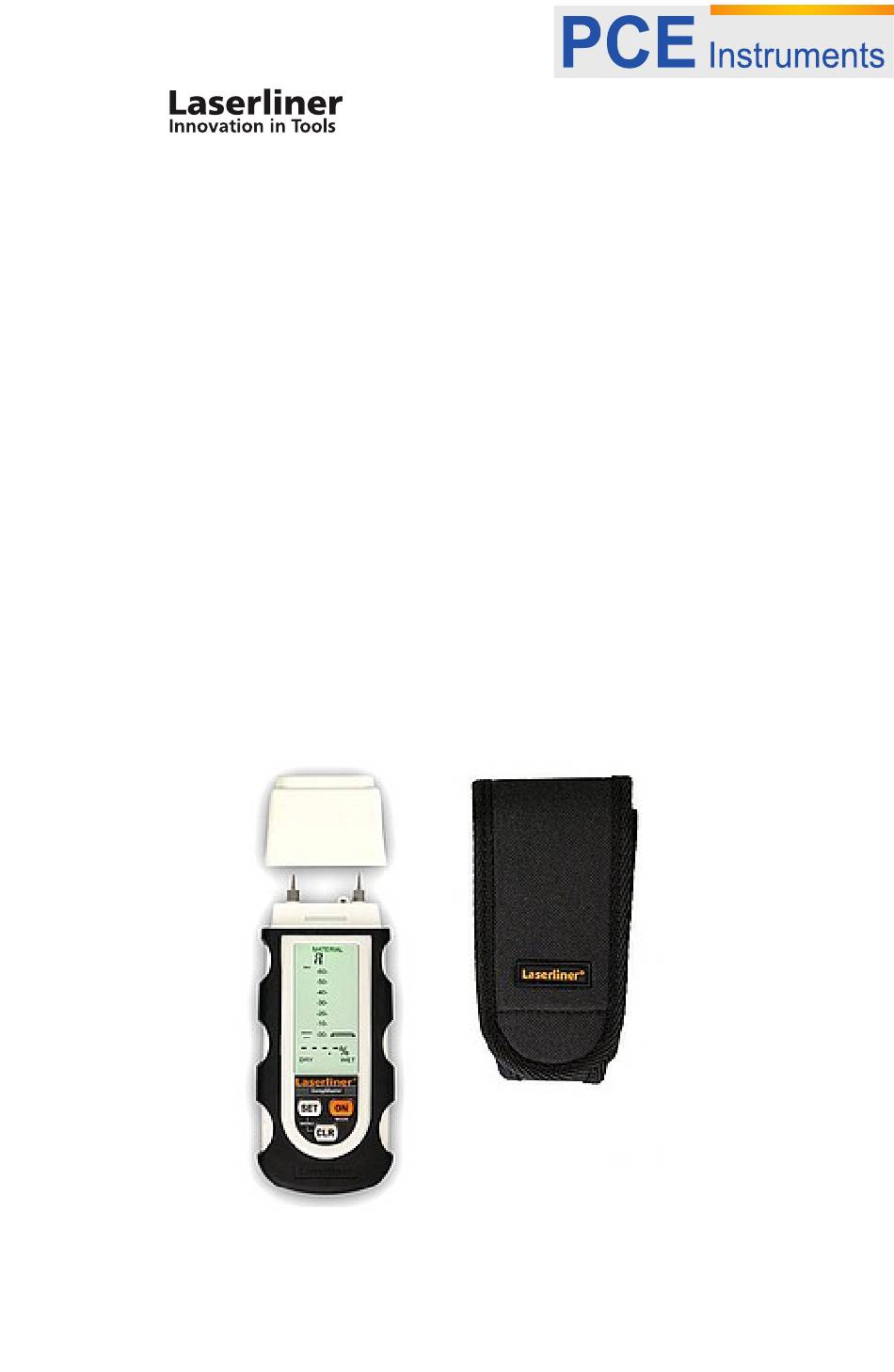

Page 1
PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
Page 3
Art.-Nr. 082.020.1 Lithium Batterie CR2032 3 sec 3 sec 3 sec MODE MENU When the device is turned on, the display will show the ambient Auto switch-off after 3 minutes. temperature for 3 seconds. Low battery charge Measurement scale; bar-graph display of measured value Temperature units of measure setting Wet/dry indicator (programmable) Numeric measurement value in %...
Page 4
DampMaster / DampMaster Plus Function/application: This material moisture device detects and evaluates the material moisture content of wood and building materials by way of electric resistance measurement. The displayed value is material moisture in % with respect to dry mass. Example: 100 % material moisture for 1 kg of wet wood = 500 g water.
Page 5
Select building material (01, 02, 03, 04) MODE Just which building materials are grouped under 01 to 04 can be found in the table in Section 11. Measuring material moisture Be sure neither supply lines (electric lines, water pipes, etc) nor a metal subsurface is present at the location to be measured.
DampMaster / DampMaster Plus Material characteristics The material characteristics available for selection in the measuring device are listed in the tables below. The different types of wood are divided into Groups A ... C. Please set the measuring device for the respective group in which the type of wood to be measured is found (see Step 5).
Page 7
Wet/dry indicator In addition to the measured value, a moisture evaluation will be displayed by the wet/dry indicator in the display. This indicator is tuned by the mate- rial characteristics (A, B, C; 01, 02, 03, 04) stored in the measuring device. This evaluation is subdivided into 5 steps and it makes an evaluation of the measured material easier.
Page 8
DampMaster / DampMaster Plus Index mode conversion table ardurapid cement anhydrite screed B25 cement B35 cement Elastizel screed screed DIN magnesium oxy- gypsum screed wood cement screed lime mortar expanded polystyrene chloride flooring softboard (wood) cement bonded cement screed with cement screed with cement mortar with bitumen...
Page 9
Material temperature compensation Relative material moisture is dependent on the temperature of the material. The device automati- cally compensates different material temperatures in that it measures ambient temperature and uses this 1 sec measurement for its internal calculation. However, the measuring device also offers an option –...
Page 10
DampMaster / DampMaster Plus Self-test function 3 sec MODE MENU Mode MODE MENU Connecting the external hand-held electrode (Art. No. 082.024) The external hand-held electrode is suitable for all types of wood and soft building materials. The self-test function can also be performed with the external hand-held electrode (see Step 17).
Page 11
Connecting deep electrodes (Art.-No. 082.023) with connecting cable (Art.-No. 082.022) Use of deep electrodes 1. Round deep-insertion electrode (non-insulated, ø 2 mm) for moisture measurements in building and insulating materials or between joints or joint intersections. 2. Round deep-insertion electrode (insulated, ø 4 mm) for moisture measurement in the concealed structure levels of multi-layer wall or ceiling structures.
DampMaster / DampMaster Plus Technical data Technical revisions reserved. 04/09 Measurement principle Resistive material moisture measurement by way of integrated electrodes Modes 3 wood groups 4 building materials Index mode for 15 additional building materials, Test mode Measurement range / accuracy wood: 0…30 % / ±...
