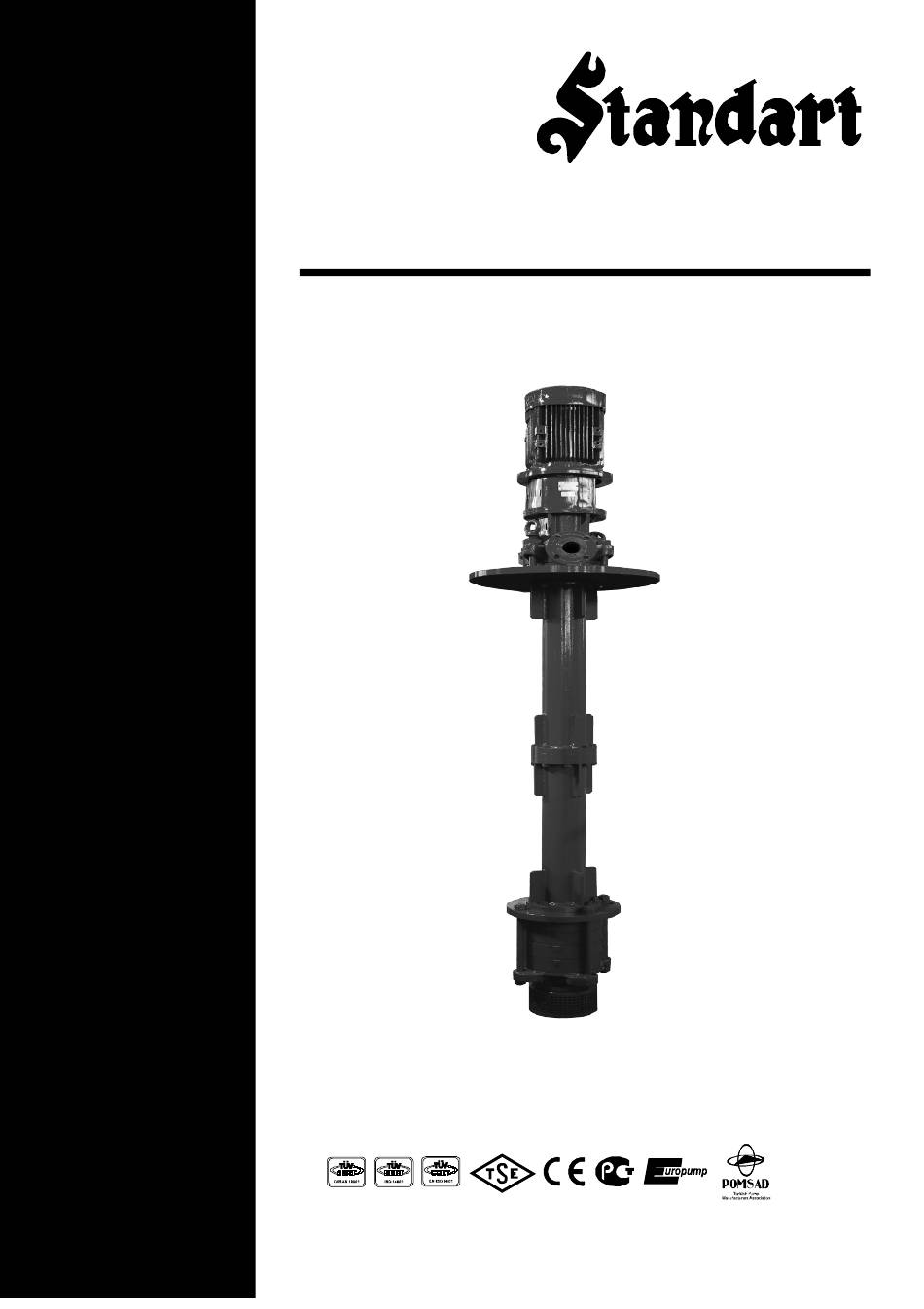

- Page 1 SKM-EVK MULTIST AGE CENTRIFUGAL SUMP PUMPS INSTRUCTION for INSTALLATION, OPERATION & MAINTENANCE...
- Page 2 Instructions for Installation, Operation and Maintenance Standart Pompa ve Makina San. Tic. A.Ş. All rights reserved. Can not be copied or reproduced for any purpose without permission. Subject in the manual can be changed without any prior notice.
-
Page 3: Table Of Contents
Contents CONTENTS IDENTIFICATION OF SAFETY AND WARNING SYMBOLS GENERAL INSTRUCTIONS SAFETY INSTRUCTIONS GENERAL A1- Pump Description A2- Applications A3- Pump Designation A4- Pump Nameplate A5- Technical Data UNCRATING, TRANSPORT AND STORAGE B1- Uncrating B2- Transport B2.1- General recommendations B2.2- Lifting B3- Storage INSTALLATION ON SITE C1- Bare Shaft Pump... - Page 4 LUBRICATION DISASSEMBLY, REPAIR AND REASSEMBLY F1- Disassembly F2- Reassembly F3- Shaft Seal F3.1- Pump with soft packing gland F3.2- Pump with mechanical seal SPARE PARTS FAULTS, CAUSES AND REMEDIES TIGHTENING TORQUES EXPECTED NOISE VALUES PERMISSIBLE FORCES AND MOMENTS AT THE PUMP FLANGES SECTIONAL DRAWINGS (SKM-E 40a...65) SECTIONAL DRAWINGS (SKM-E 80...150) SECTIONAL DRAWINGS (MECHANICAL SEAL APPLICATION)
-
Page 5: Identification Of Safety And Warning Symbols
The user is responsible for the verification of the ambient conditions where the pump will be stored or installed. - STANDART POMPA does not guarantee repairs or alterations done by user or other unauthorized personnel. The use of original spare parts and accessories authorized by manufacturer will ensure safety. -
Page 7: A- General
•SKM-EVK series pumps are vertical multistage centrifugal sump pumps with closed impellers and diffusers. A2- Applications SKM-EVK series pumps are suitable for clean or slightly contaminated (max. 20 mg/dm³) liquids with low viscosities and temperatures up to 90ºC. The main application areas, among others, are: •... -
Page 8: B- Uncrating, Transport And Storage
Carefully remove the packaging material and check that pump and accessories (if any) are free from any markings, stretches and damages, which may have occurred during transportation. In the event of damage report this immediately to STANDART POMPA’s service department and to the transport company. -
Page 9: B3- Storage
B3- Storage If the pump is not to be installed and operated soon after arrival, store the pump in a clean, dry and frost- free place with moderate changes in ambient temperature. If the pump has regreaseable bearings, pump extra grease on bearings to prevent moisture from entering around the shaft. -
Page 10: C5.4- Auxiliary Pipe Connections And Accessories
C4- Connecting The Piping C4.1- General Never use the pump as an anchorage point or as a carrier for the piping. ATTENTION The pipes should be supported very near the pump (Fig. 5). It must be checked that any weight, stress or strains on the piping system should not be transmitted to the pump. -
Page 11: C5.5- Minimum Flow
C5.5- Minimum flow If there is a possibility of the pump having to operate at zero flow (against a closed discharge valve) or near the closed valve with almost no flow, then a minimum flow valve (or a by-pass check valve) must be installed on the discharge nozzle or on the discharge piping right after the pump but before the flow regulating valve. -
Page 12: C5.7- Final Check
Table 1 Motor Power Motor Power 4 kW > 4 kW Type of switch power supply power supply 3 ~ 400 V 3 ~ 400 V Y – connection (9b) direct – connection(9a) Remove connecting Y / - start Impossible bridges (9c) Fig. -
Page 13: D1.3- Venting And Priming
D1.3- Venting and priming Make sure that the pump and suction pipes are completely filled up with water. There is no problem for the pumps which have positive suction head. If there is a valve on suction line, it must be opened and air taps are loosened to enable the water replaces air in the pump, until it is completely full with water. -
Page 14: E- Lubrication
If the pump has soft packing type stuffing boxes, these should drip during operation. The gland nuts should only be lightly tightened. In case of excessive leakage from the stuffing box tighten the gland nuts slowly and evenly until the leakage is reduced to the dripping state. Check the stuffing box for overheating by hand. If the gland nuts can not be tightened any further remove the old packing rings and clean the packing chamber and insert the new packing rings. -
Page 15: F- Disassembly, Repair And Reassembly
F- DISASEMBLY, REPAIR AND REASSEMBLY Before starting work on the pumpset, make sure it is disconnected from the mains and can not be switched on accidentally. Follow the safety precaution measures outlined in “safety instructions”. F1- Disassembly Close all valves in the suctions and discharge lines, and drain the pump by opening the drain plugs (230). Detach pump suction and discharge flanges and all auxiliary supply lines, disconnect the pump from the piping system. -
Page 16: F3- Shaft Seal
F3- Shaft Seal F3.1- Pump with soft packing gland While starting to change soft packing thoroughly clean the stuffing box and shaft sleeve. Cut enough number of pieces at the suitable length diagonally from suitable size of soft packing. Roll it up over the shaft sleeve and see the ends are in full contact. -
Page 17: G- Spare Parts
G- SPARE PARTS STANDART POMPA guarantees to supply the spare parts for SKM-EVK type pumps for 10 years. You can provide any spare parts easily. Lets us know the following details on the name-plate, when you order spare parts. - Page 18 Table 7 REMEDIES POSSIBLE CAUSES Fill pump and suction pipe completely with liquid and repeat the priming There may be air existing in pump or procedure. suction pipe Check for leaks in suction pipe joints and fittings. Check shaft seal if Ingress of air through shaft seal, necessary increase the pressure of sealing liquid.
-
Page 19: I- Tightening Torques
I- TIGHTENING TORQUES Tightening Torques Tightening Torque max (N.m) Thread Diameter Property Classes 10.9 1050 1550 1100 2100 1450 2770 1970 3560 2530 J- EXPECTED NOISE VALUES Sound pressure level (dB Power of Motor (Pump with motor) (kW) 1450 rpm 2900 rpm <... -
Page 20: K- Permissible Forces And Moments At The Pump Flanges
K- PERMISSIBLE FORCES AND MOMENTS AT THE PUMP FLANGES Discharge Side Suction Side F b M b DN F b Mz M b My Mz 1200 1500 1200 2000 1100 1100 1000 1300 1500 2500 1100 1400 1300 1600 1300 1000 1300 2000... - Page 21 L1- SECTIONAL DRAWING Suction Casing Discharge Casing Stage Casing Motor Pedestal Bearing Housing Column Pipe (Bottom) Column Pipe (Top) Diffuser Support Plate Inter Bearing Housing Filter Casing Flange Wear Ring (Suction casing) Wear Ring (Diffuser) Wear Ring (Stage casing) Bearing Housing Cover Gland Lantern Ring Impeller...
- Page 22 L2- SECTIONAL DRAWING O-Ring Mechanical Seal Stud Mechanical Seal Sleeve Mechanical Seal Cover...
-
Page 23: M- Safety Guard
M- SAFETY GUARD Safety guard Note: All guards are conforming to EN 294. - Page 24 EC DECLARATION OF CONFORMITY Products: Pumps of type SKM-EVK with motor and baseplate Manufacturer: Standart Pompa ve Makina San. Tic. A.Ş. Organize San. Bölgesi 2. Cad. No:9 34775 Esenkent / Ümraniye / İSTANBUL / TURKEY t: +90 216 466 89 00 f: +90 216 499 05 59 www.standartpompa.com / info@standartpompa.com...
- Page 25 Factory - Center Service and Spare Parts Organize Sanayi Bölgesi Organize Sanayi Bölgesi 2.Cad. No:9 34775 2.Cad. No:9 34775 İstanbul - TÜRKİYE İstanbul - TÜRKİYE Pbx: +90 216 466 89 00 Pbx: +90 216 466 89 00 Fax: +90 216 415 88 60 Fax: +90 216 466 89 13 Right reserved to change without notice.
