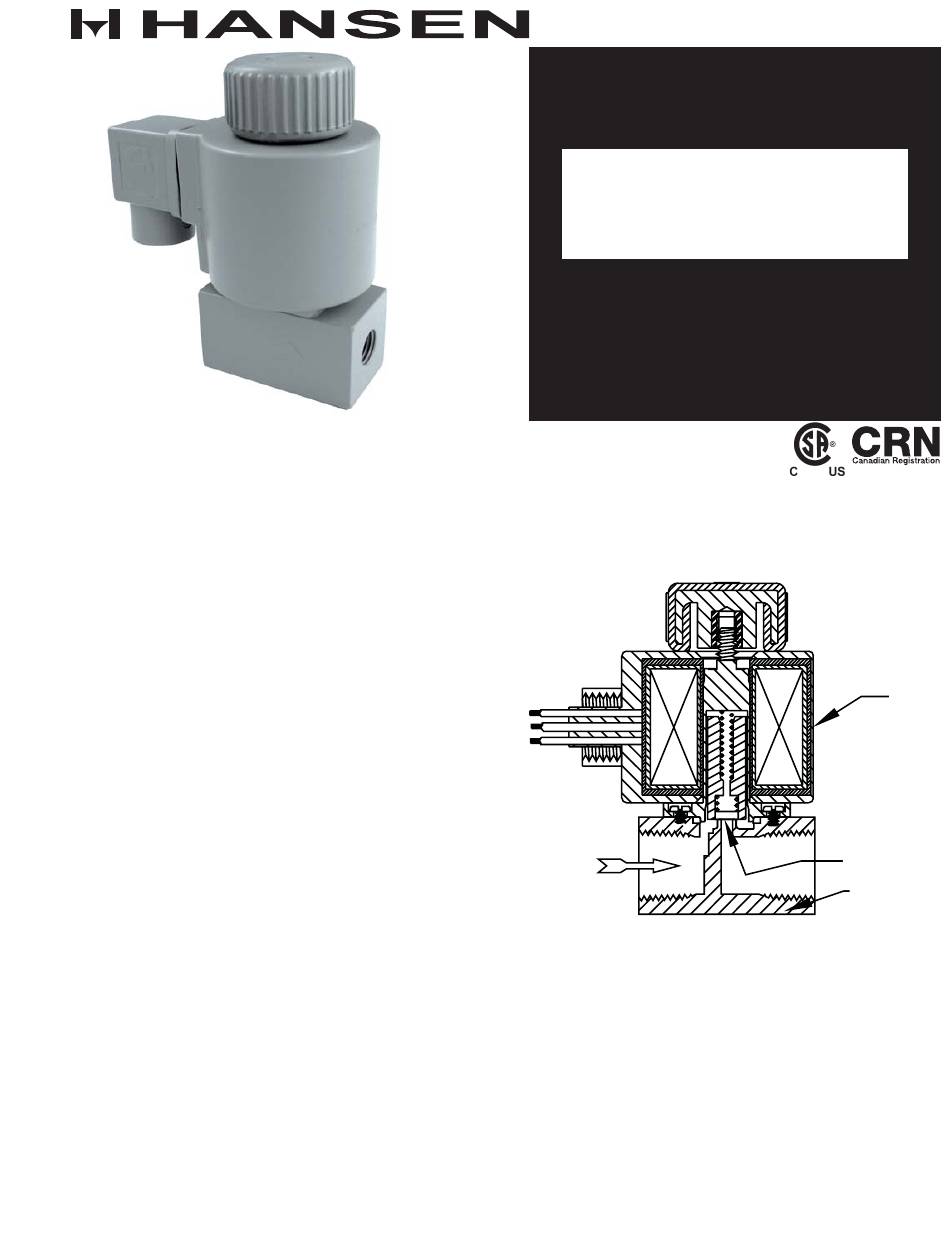

Hansen HS2 Specifications, Applications, Service Instructions & Parts

HS2 Solenoid Valve
INTRODUCTION
This threaded end industrial refrigeration dut y
solenoid valve is ver y simple and compact but
rugged in construction. Body is plated steel alloy.
The direct lifting stainless steel plunger contains a
Teflon seat which closes on a stainless steel orifice.
When electrically energized, valve opens wide; when
de-energized, flow stops in the direction of the arrow
on the valve body.
APPLICATIONS
This small, direct lifting valve is used primarily as a
pilot for various larger gas-powered or liquid powered
main valves, as a remote pilot for back pressure
regulators or other devices, or as a liquid stop valve
for expansion valves, float valves, or as a general
purpose pilot line for ammonia, R22, R134a, CO2 and
other approved refrigerants or oil.
ADDITIONAL FEATURES
Compact, low cost
Low wattage, Hansen standard coil
300 psi (20 bar) MOPD
Stainless steel seat orifice
Removable solenoid tube
Heavy-duty, direct lift
CSA Certified
Non-asbestos gaskets
Specifications, Applications,
Service Instructions & Parts
SOLENOID VALVE
5/32" (4 mm) PORT
Threaded End
1/4" thru 1/2" FPT
(7 mm thru 15 mm)
1/4" thru 3/4" Flanged
(7 mm thru 20 mm)
for refrigerants
KEY FEATURES
Bulletin S114c
SEP 2005
HS2
WATERTIGHT
ENCAPSULATED
TEFLON DISC
STEEL BODY
COIL
