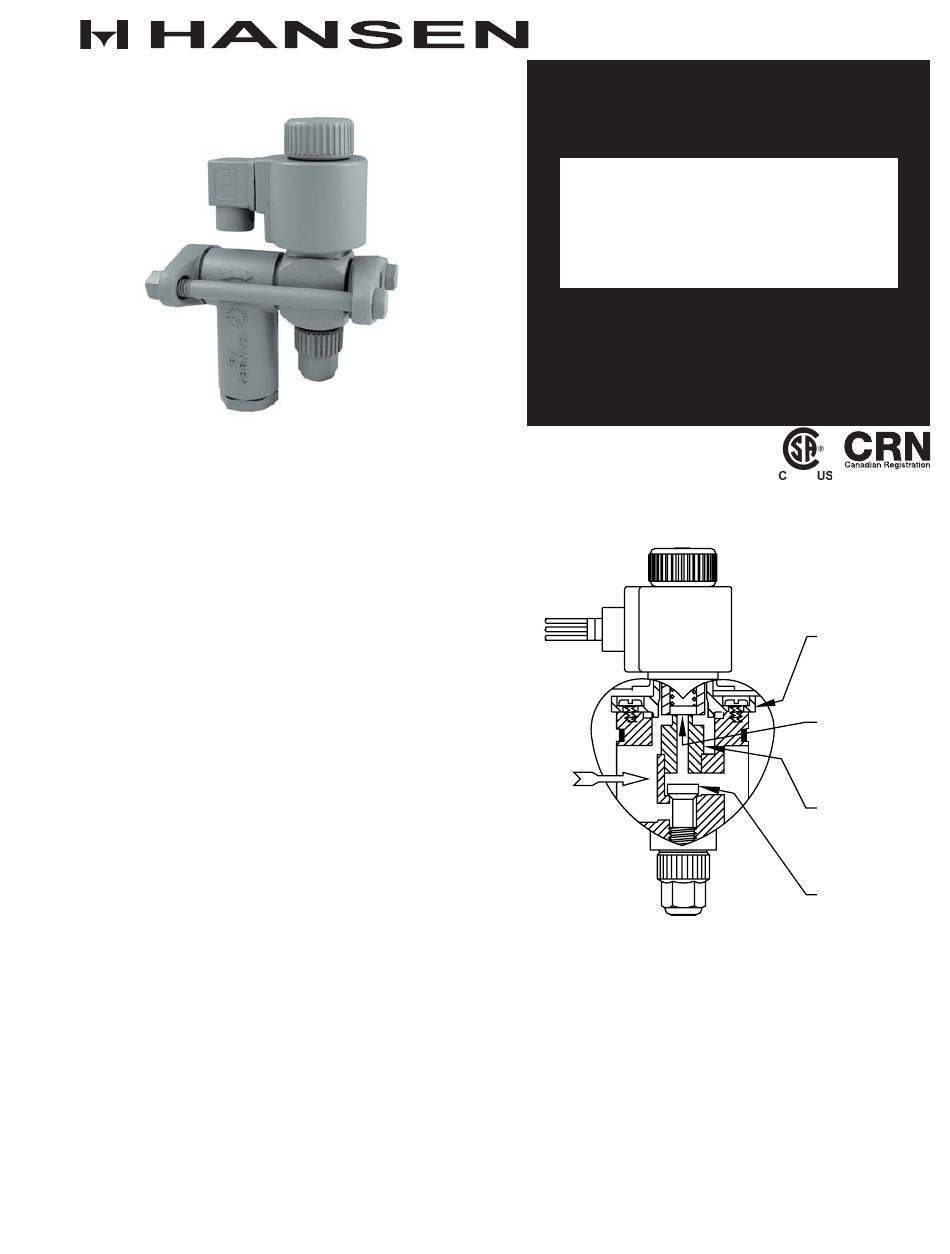

Hansen HS6 Specifications, Applications, Service Instructions & Parts

HS6 Solenoid Valve
with Close-Coupled ST050 Strainer
INTRODUCTION
This flanged, industrial refrigeration duty solenoid
valve is very simple and compact but rugged in
construction. Body is plated steel alloy with a
direct lifting stainless steel plunger that contains
a teflon seat that closes on a stainless steel
orifice. When electrically energized, seat opens
wide; when de-energized, it closes to stop flow
in the arrow direction on the valve body.
APPLICATIONS
This small, direct lifting valve is used primarily
as a pilot for various larger gas-powered or
liquid powered main valves, as a remote pilot
for back pressure regulators or other devices,
or as a liquid stop valve for expansion valves,
float valves, or as a general purpose pilot line for
ammonia, R22, R134a, CO2 and other approved
refrigerants or oil.
MAXIMUM RATINGS, AMMONIA
Liquid, Receiver Pressure: 15 Tons (52 kW)
Flow Factor: Cv=0.41 (Kv=0.35)
ADDITIONAL FEATURES
Encapsulated Hansen standard coil
300 psi (20 bar) MOPD
Available close-coupled strainer
Heavy-duty, direct lift
CSA Certified Status
Non-asbestos gaskets
Specifications, Applications,
Service Instructions & Parts
HS6
SOLENOID VALVE
5/32" (4 mm) PORT
Flanged
1/4" thru 3/4"
(7 mm thru 20 mm)
for refrigerants
KEY FEATURES
MATERIAL SPECIFICATIONS
Body: Steel, plated
Solenoid Tube: Stainless steel
Plunger: Stainless steel
Seat Orifice: Stainless steel
Seat: Teflon
Safe Working Pressure: 400 psig (27 bar),
600 psig (40 bar) available for CO2
Operating Temperature: -60ºF to 240ºF
Bulletin S117c
MAR 2006
REMOVABLE
SOLENOID TUBE
TEFLON DISC
STAINLESS STEEL
SEAT
MANUAL OPENING
STEM
(-50ºC to 115ºC)
