Nevco MPCX2 Operator Instructions Manual

Scoreboard, baseball control
Hide thumbs Also See for MPCX2:
Table of Contents

Advertisement

Quick Links

See also: Operator's Instruction Manual
Scoreboard Operator's Instructions
MPCX2 Baseball Control
Since 1934
Retain this manual in your permanent files
Rev. 8/27/2015
135-0254

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPCX2 and is the answer not in the manual?

Questions and answers

Related Manuals for Nevco MPCX2

Summary of Contents for Nevco MPCX2

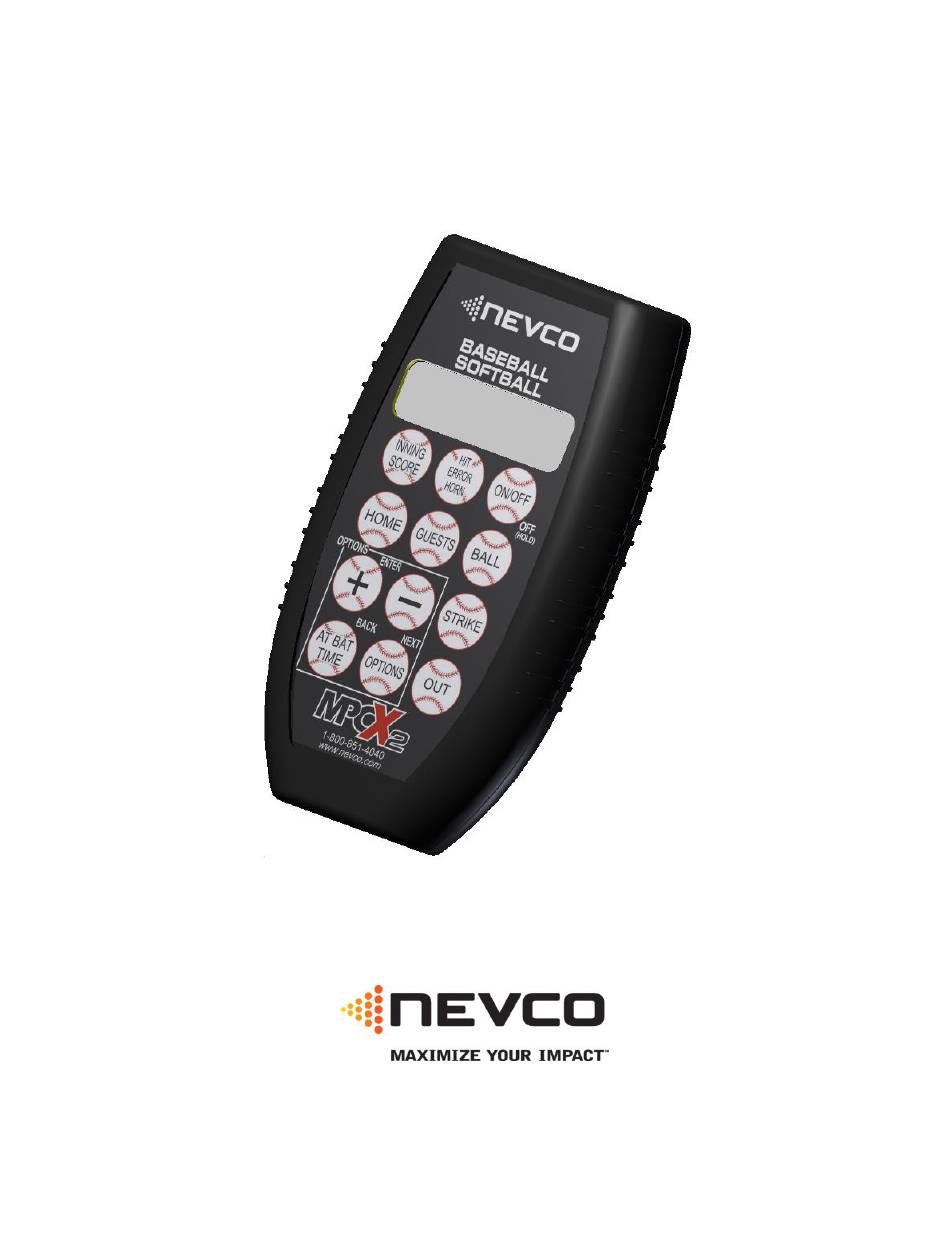

  • Page 1 Scoreboard Operator’s Instructions MPCX2 Baseball Control Since 1934 Retain this manual in your permanent files Rev. 8/27/2015 135-0254...
  • Page 2 *Not compatible with certain older scoreboards 1650 Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.

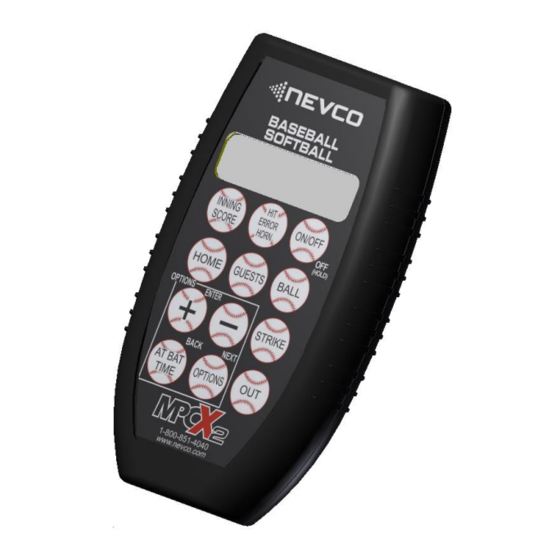

  • Page 3 Edit Electronic Team Names Set Brightness of Scoreboard Check Battery Level Check Signal Strength Link Control to Receiver Network Select Scoreboard Model Type MPCX2 BASEBALL CONTROL (front view) Belt Clip Battery Compartment Cover (2 x AA) MPCX2 CONTROL (rear view)
  • Page 4 MPCX2 Receiver for use with outdoor x6xx and indoor x7xx scoreboards. MPCX2 Receiver for use with scoreboards that pre-date x6xx outdoor and x7xx indoor scoreboards. (Boards that have coax input only) NOTE: This version can also be used in addition (but...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS QUICK START GUIDE ........................ 1 KEYBOARD FUNCTIONS ......................4 GREETING ........................4 SCREEN MAIN ..........................5 SCREEN BALL, STRIKE OUT ....................6 SCREEN HIT / ERROR / HORN ....................7 SCREEN AT BAT ......................... 8 SCREEN TIME ..........................

  • Page 6: Quick Start Guide

    Both functions are explained in the setup guide that comes with a new control. (See the MPCX2 Control / Receiver setup procedure below for more information). It is assumed that the receiver is powered ON.
  • Page 7 To add a run to the score Press then then Inn: 1 INNING HOME GUESTS Home: 1 Guest: 0 SCORE Strikes:0 To increment Balls, Strikes and Outs The BALL, STRIKE and OUT keys are all additive (adds one with each press of the key). Press and hold the BALL or STRIKE key to reset the Balls and Strikes.
  • Page 8 To Set the Time (for scoreboards that support a Clock) Note: To display Time on scoreboard models 1520, 1020, or 1620 (Inning and Time are displayed in the same digits), set the Inning to Zero. Otherwise it will display the inning. Press AT BAT Timer...

  • Page 9: Keyboard Functions

    KEYBOARD FUNCTIONS GREETING screen Accessed GREETING MPCX2 v01.00 When the control is Powered ON, the greeting showing the pressing 2.4 GHz type of control and the sport is displayed. This greeting continues to be displayed while the control establishes communications with its receiver(s). (May take up to 20...

  • Page 10: Main Screen

    MAIN screen Inn: 1 Time: OFF Accessed MAIN Home: 0 Guest: 0 The main screen shows the Inning, the Timer Status (for pressing boards with timers), and the Scores. You must use this screen if you want to change the Inning or Scores. Press INNING / Inn: 1 SCORE any time to return to this screen.

  • Page 11: Ball, Strike Out Screen

    BALL, STRIKE OUT screen Accessed BALL, STRIKE, OUT Balls: 1 Outs: 0 This screen shows the Balls, Strikes, and Outs. It appears pressing Strikes: 0 when a BALL, STRIKE, or OUT key is pressed. Press and release one of these keys to add one to its count. If you press and hold BALL or STRIKE, the Balls and Strikes will be reset BALL (cleared).

  • Page 12: Hit / Error / Horn Screen

    HIT / ERROR / HORN screen Accessed HIT / ERROR / HORN Hits These screens provide access to the Hits and Errors functions pressing Home: _ Guest: as well as the Horn. The cursor indicates the currently selected team. Use the HOME or GUESTS keys to select the team, then, use the “+”key to turn ON the Hit or Error indicator on the ERROR scoreboard.

  • Page 13: At Bat Screen

    AT BAT TIME Note: Some models of scoreboards have digits for both At Bat and Time. However, the MPCX2 only supports either one depending on the controller Scoreboard Model configuration. At Bat: 45 Allows you to enter the At Bat information.

  • Page 14: Time Screen

    Inning to Zero. Otherwise it will display the inning. Note: Some models of scoreboards have digits for both At Bat and Time. However, the MPCX2 only supports either one depending on the controller Scoreboard Model configuration.

  • Page 15: Options Menu

    Options Menu Several option settings are available to fine tune the scoreboard system to your needs. These settings are saved in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates.
  • Page 16 Time Up/Down Allows you to set the direction the timer will count. (+)Up (-)Down Note: In baseball the Time Up/Down control is in the At Bat / Time button. Allows you to select the Brightness Level of the Brightness scoreboard. (High or Low) (+)HIGH (-)LOW Allows you to enable or disable the automatic horn.
  • Page 17 This menu option allows you to access settings that affect how the control Enter Code to operates. Generally, these settings need not be changed and should only be Change Settings changed by an experienced operator or under direction from the Nevco Service Department. Press the following key sequence: HOME...
  • Page 18 MPCX2 Control / Receiver setup procedure Before using the MPCX2 control it must be mated to the receiver(s) and set for the model of scoreboard that you wish to operate. Mating a New Control to Receiver(s) Record the receiver(s) ID’s located on the receiver box before Step 1.
  • Page 19 Setting the Control for Your Model of Scoreboard This procedure is not necessary if you have one of the following models: 1500, 1510, 1530, 1535, 1550, 1600, 1610, 1630, 1635, 1650, 1000, 1010, 1030, 1035, 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9505, 9715, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425, 3434, 9405, 9550, SCD-5, SCD-7, S60-LED, S60, SCD-4.
  • Page 20 MPCX2 Scoreboard Model Screen to Select Control 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9715, 9505, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425, Type A (+) 3434, 9405 7504, 7505, 7516, 7520, 7524, 7525, 7530, 9505, 9515, 7404, 7405,...
  • Page 21 MPCX2 Scoreboard Model Screen to Select Control 1000, 1010, 1030, 1035, 1500, 1510, 1530, 1535, 1550 Standard (+) 1003, 1006, 1503, 1506, 1508, 1540, 1603, 1604, 1606, 1608, 1609 Score by Inn (+) Baseball 1020, 1025, 1515, 1520, 1525, 9505, 9515, 9605, 9715...

  • Page 22: Troubleshooting Chart

    Scoreboard connected to MPCX2 is Control is not configured for correct Reconfigure the control (see options displaying data in the wrong places, scoreboard model series menu) incorrect data, or horn constantly sounds. If the problem persists please contact the Nevco Service Department. 800-851-4040...
  • Page 23 If the receiver is intended for the network and it is flashing slowly but never (approximately once a second) connects then verify that the receiver list in the MPCX2 control is correct. Solid Off The receiver is not powered on. It is also possible that the receiver is powered on but for some reason the LED has been turned off.
  • Page 24 —Consult the dealer or an experienced radio/ TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of Nevco could void the user’s authority to operate this equipment. This class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations.
