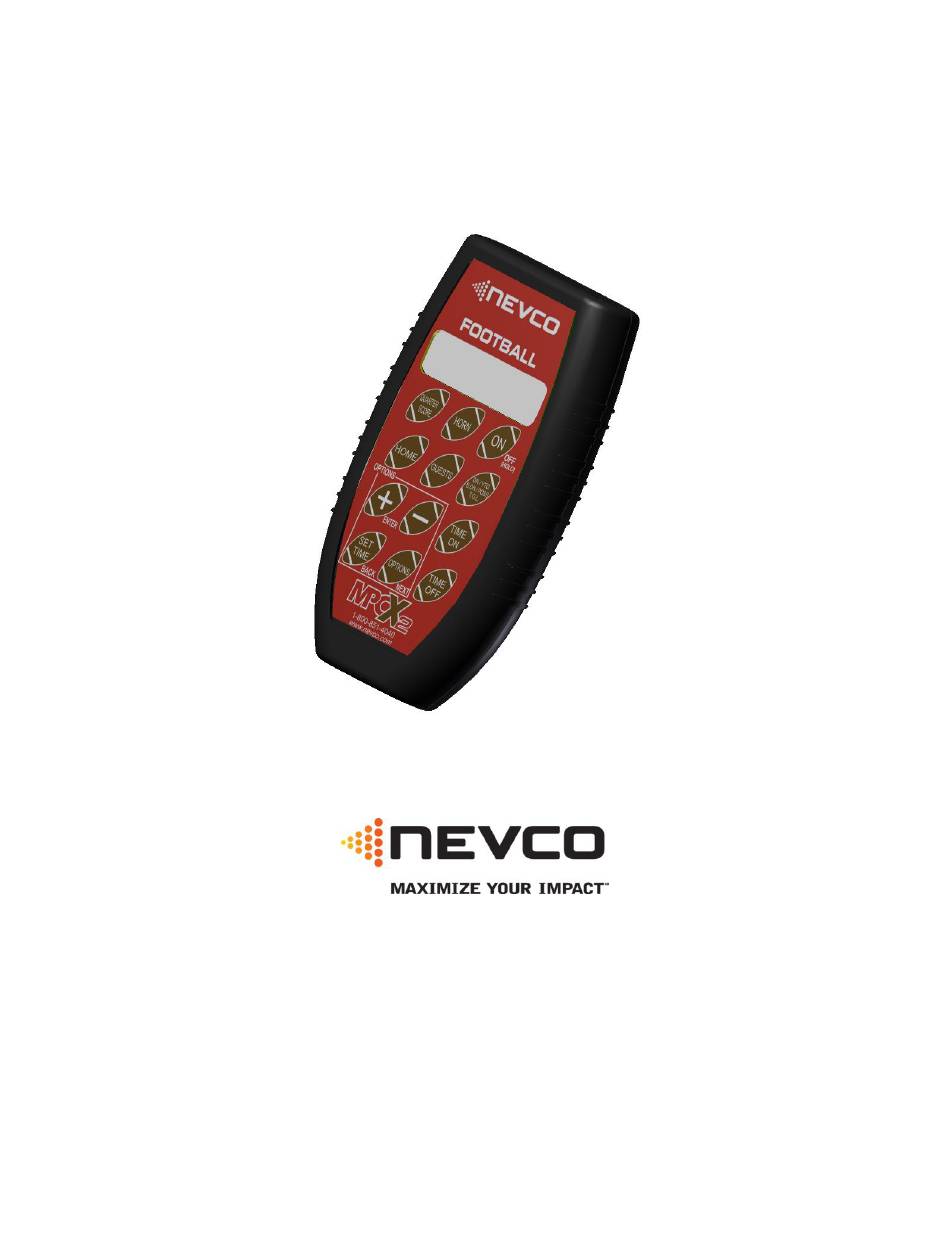

- Page 1 Scoreboard Operator’s Instructions MPCX2 Football Control Since 1934 Retain this manual in your permanent files Rev. 8/27/2015 135-0252...
- Page 2 May not be compatible with certain older scoreboards Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.
- Page 3 Enable / Disable Auto Horn Check Battery Level Check Signal Strength Toggle TOL Possession Indicator Link Control to Receiver Network Select Scoreboard Model Type MPCX2 FOOTBALL CONTROL (front view) Belt Clip Battery Compartment Cover (2 x AA) MPCX2 CONTROL (rear view)
- Page 4 MPCX2 Receiver for use with outdoor x6xx and indoor x7xx scoreboards. MPCX2 Receiver for use with scoreboards that pre-date x6xx outdoor and x7xx indoor scoreboards. (Boards that have coax input only) NOTE: This version can also be used in addition (but not simultaneous operation) to a W6 system for dual operation by connecting the W6 receiver or wired coax of the MPC-5/6 connection to the...
-
Page 5: Table Of Contents
TABLE OF CONTENTS STARTUP GUIDE ......................... 1 To Start a New Game ......................1 To Set the Time ........................1 To Start the Timer ........................2 To Stop the Timer ........................2 To Add to the Score ........................ 2 KEYBOARD FUNCTIONS ......................3 GREETING ........................ -
Page 6: Startup Guide
STARTUP GUIDE Note: It is assumed here that the control has been configured for the correct scoreboard type and the control has been linked to the desired receiver(s). Both functions are explained in the setup guide that comes with a new control. -
Page 7: To Start The Timer
To Start the Timer Press The control will display TIME Q: 1 12:00 ON Home: 0 Guest: 0 Strikes:0 To Stop the Timer Press The control will display Q: 1 11:51 OFF TIME Home: 0 Guest: 0 Strikes:0 To Add to the Score Press then then... -
Page 8: Keyboard Functions
KEYBOARD FUNCTIONS GREETING screen MPCX2 v01.00 Accessed GREETING 2.4 GHz When the control is Powered ON, the greeting showing the pressing type of control, the software version, and the frequency it is broadcasting. It will then display scanning for the remaining time until the control establishes communications with its Scanning ON/OFF... -
Page 9: Main Screen
MAIN screen Accessed MAIN The main screen shows the Quarter, the Timer Status, and the pressing Home: 0 Guest: 0 Scores. You must use this screen if you want to change the Quarter or Scores. Press QUARTER / SCORE any time to QUARTER return to this screen. - Page 10 8:15 Turns the time ON. TIME Home: 0 Guest: 1 Turns the time OFF. TIME 8:10 OFF Home: 0 Guest: 1 Sounds the horn. (Approximately 2 seconds) HORN Note: Does not change the control display. Note: Hold key down to extend duration.
-
Page 11: Multi-Function Screen
MULTI-FUNCTION screen Accessed MULTI-FUNCTION This Multi-function screen provides access to the Downs, Yards pressing To Go, and Ball On as well as Ball Possession and Timeouts Left. Use the Multi-function key to step thru functions and DN/YTG screens. The cursor will indicate the selected function. Use the B. -
Page 12: Set Time Screen
SET TIME screen SET TIME Accessed Set Time: This screen is for setting the time. (Timer must be stopped). pressing 00:00.0 The cursor indicates the Minutes, Seconds, or Tenths of Strikes:0 Seconds as being selected. Use the SET TIME key to step to the desired element of time, then, use the “+”... -
Page 13: Options Menu
Options Menu Several option settings are available to fine tune the scoreboard system to your needs. These settings are saved in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates. - Page 14 Time Up/Down Allows you to set the direction the timer will count. (+)Up (-)Down Allows you to select the Brightness Level of the Brightness scoreboard. (High or Low) (+)HIGH (-)LOW Allows you to enable or disable the automatic horn. (Sounds for about 4 Auto Horn seconds when time has expired).
-
Page 15: Advanced Options
This menu option allows you to access settings that affect how the control Enter Code to operates. Generally, these settings need not be changed and should only be Change Settings changed by an experienced operator or under direction from the Nevco Service Department. Press the following key sequence: HOME... - Page 16 Football Specific Options Two options that are only found in football MPCX2 controllers are listed below. The options key can be used to access the following features. Each press of the options key moves you to the next option screen. Note: In this illustration the cursor indicates the default factory settings.
-
Page 17: Mpcx2 Control / Receiver Setup Procedure
MPCX2 Control / Receiver setup procedure Before using the MPCX2 control it must be mated to the receiver(s) and set for the model of scoreboard that you wish to operate. Mating a New Control to Receiver(s) Record the receiver(s) ID’s located on the receiver box before Step 1. - Page 18 Setting the Control for Your Model of Scoreboard This procedure is not necessary if you have one of the following models: 1500, 1510, 1530, 1535, 1550, 1600, 1610, 1630, 1635, 1650, 1000, 1010, 1030, 1035, 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9505, 9715, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425, 3434, 9405, 9550, SCD-5, SCD-7, S60-LED, S60, SCD-4.
- Page 19 MPCX2 Scoreboard Model Screen to Select Control 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9715, 9505, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425, Type A (+) 3434, 9405 7504, 7505, 7516, 7520, 7524, 7525, 7530, 9505, 9515, 7404, 7405, 7416, 7424, 7425, 7430, 9405, 3600, 3602, 3604, 3614, 3615, 3616, Type B (+) Football...
- Page 20 MPCX2 Scoreboard Model Screen to Select Control 1000, 1010, 1030, 1035, 1500, 1510, 1530, 1535, 1550 Standard (+) 1003, 1006, 1503, 1506, 1508, 1540, 1603, 1604, 1606, 1608, 1609 Score by Inn (+) Baseball 1020, 1025, 1515, 1520, 1525, 9505, 9515, 9605, 9715 With Timer (+) 1615, 1620, 1625, 1632, 3656, 3680, 3685, 3688, 7616, 7680, 7685, X6XX Timer (+)
-
Page 21: Troubleshooting Chart
Scoreboard connected to MPCX2 is Control is not configured for correct Reconfigure the control (see options displaying data in the wrong places, scoreboard model series menu) incorrect data, or horn constantly sounds. If the problem persists please contact the Nevco Service Department. 800-851-4040... - Page 22 LED STATUS The receiver has a red status LED next to the RJ12 and Ethernet jack. It can be used to diagnose the status of the MPCX2 receiver. LED Status MPCX2 Connection Status The receiver is powered on, but a connection attempt has not yet been made, or a connection Solid On attempt was unsuccessful.
- Page 23 —Consult the dealer or an experienced radio/ TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of Nevco could void the user’s authority to operate this equipment. This class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations.
