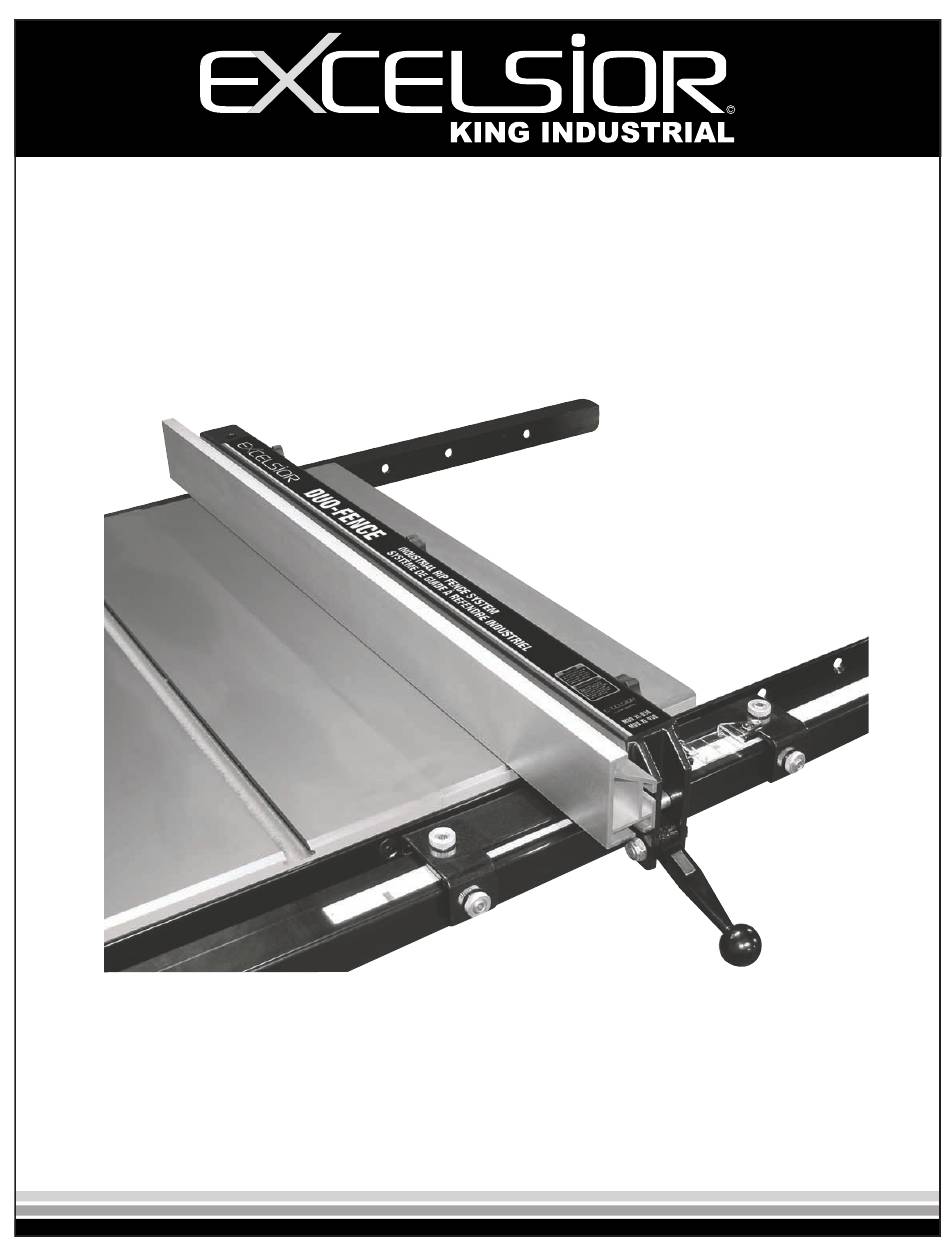

BY/PAR:
DUO-FENCE
INDUSTRIAL RIP FENCE SYSTEMS
07/2017
MODELS:
XL-U30
INSTRUCTION MANUAL
XL-U50
COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Excelsior Duo-Fence XL-U30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for King Industrial Excelsior Duo-Fence XL-U30

  • Page 1 BY/PAR: DUO-FENCE INDUSTRIAL RIP FENCE SYSTEMS 07/2017 MODELS: XL-U30 INSTRUCTION MANUAL XL-U50 COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
  • Page 2: Warranty Information

    WARRANTY INFORMATION 2-YEAR kING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS RIP FENCE SYSTEM FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards.
  • Page 3: General Safety Instructions For Power Tools

    GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. kNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to the Always wear safety glasses (ANSI Z87.1). Everyday eyeglasses only have impact resistant lenses, thet are NOT safety glasses. tool.
  • Page 4: Assembly And Adjustments

    ASSEMbLY AND ADJUSTMENTS INSTALLING FRONT RAIL AND TUbE ASSEMbLY Place and align the mounting holes of the front rail and tube assem- bly (A) Fig.1 with the holes in the front lip of the table (C) and exten- sion wings (D & E). Install the front rail and tube assembly to the table and extension wings using 4 countersunk head bolts, 4 wash- ers, 4 spring washers and 4 hex.
  • Page 5 ASSEMbLY, ADJUSTMENTS & OPERATION INSTALLING MEASURING TAPE ON GUIDE TUbE Caution! Only proceed with the following step once the rip fence system has been adjusted and that the fence is set perfectly parallel with the saw blade. See “Adjusting Rip Fence” section on the previous page for instructions. Slide the fence against the saw blade.
  • Page 6 ADJUSTMENTS & PARTS DIAGRAM USING ALUMINUM GUIDE AS A STOP FOR REPETITIVE CUTS The aluminum guide (A) Fig.9 can be used as a stop when setting up and cutting repetitive cuts. 1) Loosen the 3 lock knobs which lock the aluminum guide to the rip fence (B-Fig.6). 2) Slide the aluminum guide (A) Fig.9 towards you.

This manual is also suitable for:

Excelsior duo-fence xl-u50
