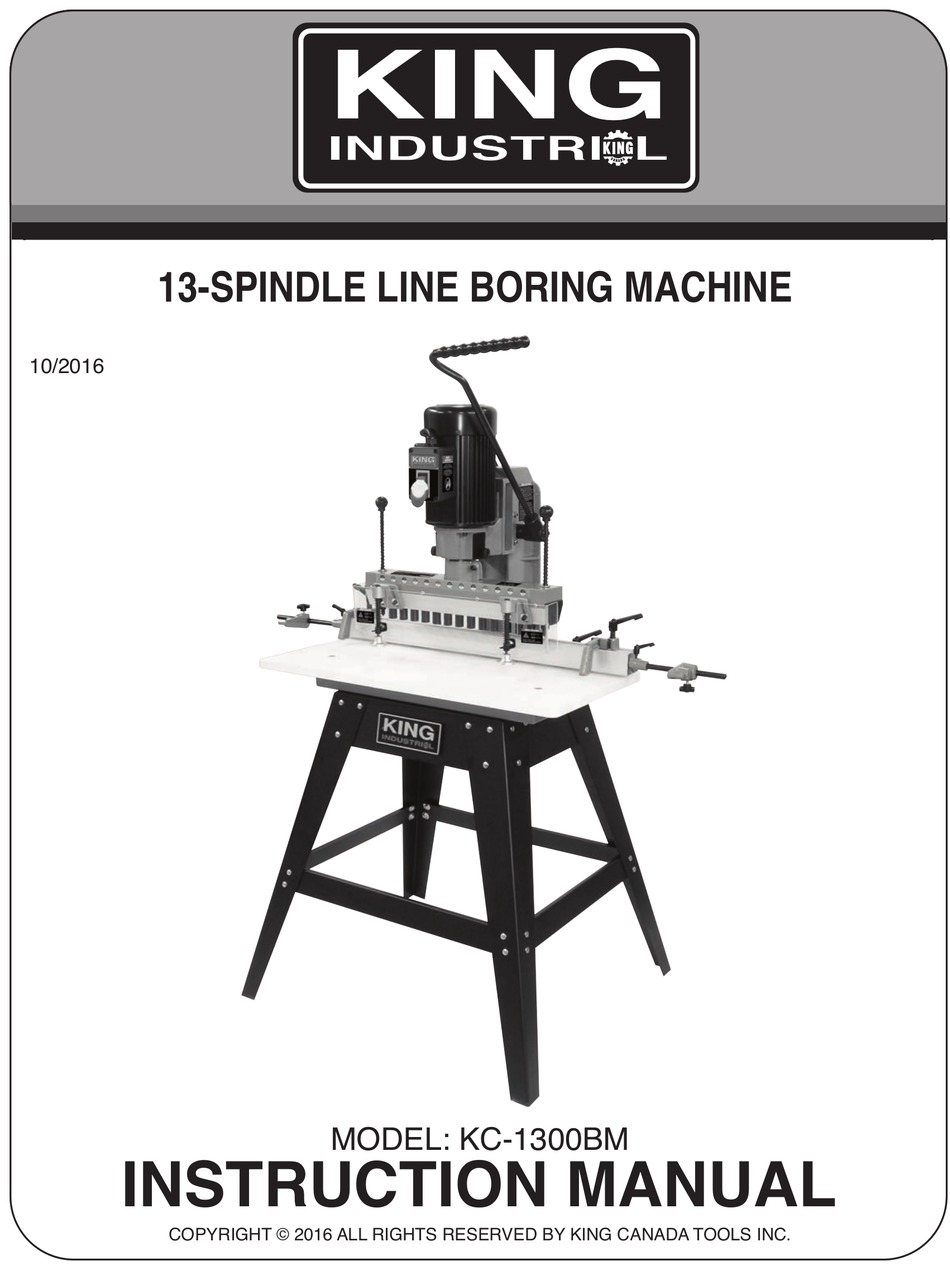

- Page 1 13-SPINDLE LINE BORING MACHINE 10/2016 INSTRUCTION MANUAL MODEL: KC-1300BM COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR kING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS LINE BORING MACHINE FOR NON-COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. kNOW YOUR TOOL footwear is recommended. Wear protective hair covering to con- tain long hair. Roll up long sleeves above the elbows. Read and understand the owners manual and labels affixed to the 12. -
Page 4: Electrical Information
ELECTRICAL INFORMATION WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY (Off position). - Page 5 18. Depth stop- depth adjustment knob 19. Fence lock handle 20. Fence adjustment bracket with ruler FIGURE 4 SPECIFICATIONS MODEL ....................................KC-1300BM NUMBER OF SPINDLES ..................................13 COLLET SIZE ..................................3/8” (10MM) SPINDLE CENTRES...............................1-1/4” (32MM) SPINDLE SPEED ..................................3500 RPM TABLE SIZE .................................. 31-1/2” x 15-3/4”...
- Page 6 ASSEMBLY UNPACkING & CLEANING NOTE: Do not attempt to operate the Line Boring Machine unless all the parts are accounted for and in working order. Some parts of the Line Boring Machine may be coated with an oil that prevents them from rusting. To remove this coating, use a cloth soaked in kerosene.
-
Page 7: Assembly And Adjustments
ASSEMBLY & ADJUSTMENTS INSTALLATION & ALIGNMENT OF OPTIONAL BORING BITS Boring Bit Information This Line Boring Machine requires 6 left (RED) and 7 right (BLACK) 10mm shank boring bits (optional, not included). Most common boring bit sizes are 5mm or 7mm. The front of the machine head is identified with colored circles which in- dicate the corresponding boring bit to install, all spindles identified with a red circle will rotate counterclockwise, all spindles identified with a black... - Page 8 ADJUSTMENTS BORING DEPTH STOP & HEAD HEIGHT ADJUSTMENT The boring depth scale (A) Fig.12 on the side of the machine displays the boring depth in Imperial and Metric measurements. 1. Move the boring head down as close to the workpiece as possible with- out making contact, and tighten the top depth stop lock knob (B) Fig.12, this adjustment sets the maximum height the head will travel upwards between each operation.
-
Page 9: Adjustments & Maintenance
ADJUSTMENTS & MAINTENANCE ADJUSTING SAFETY GUARD AND HOLD-DOWNS This machine is equipped with a transparent safety guard (A) Fig.15 which protects the user from chips created during operation. It also keeps the operator from coming in contact with the boring bits when changing the workpiece.
