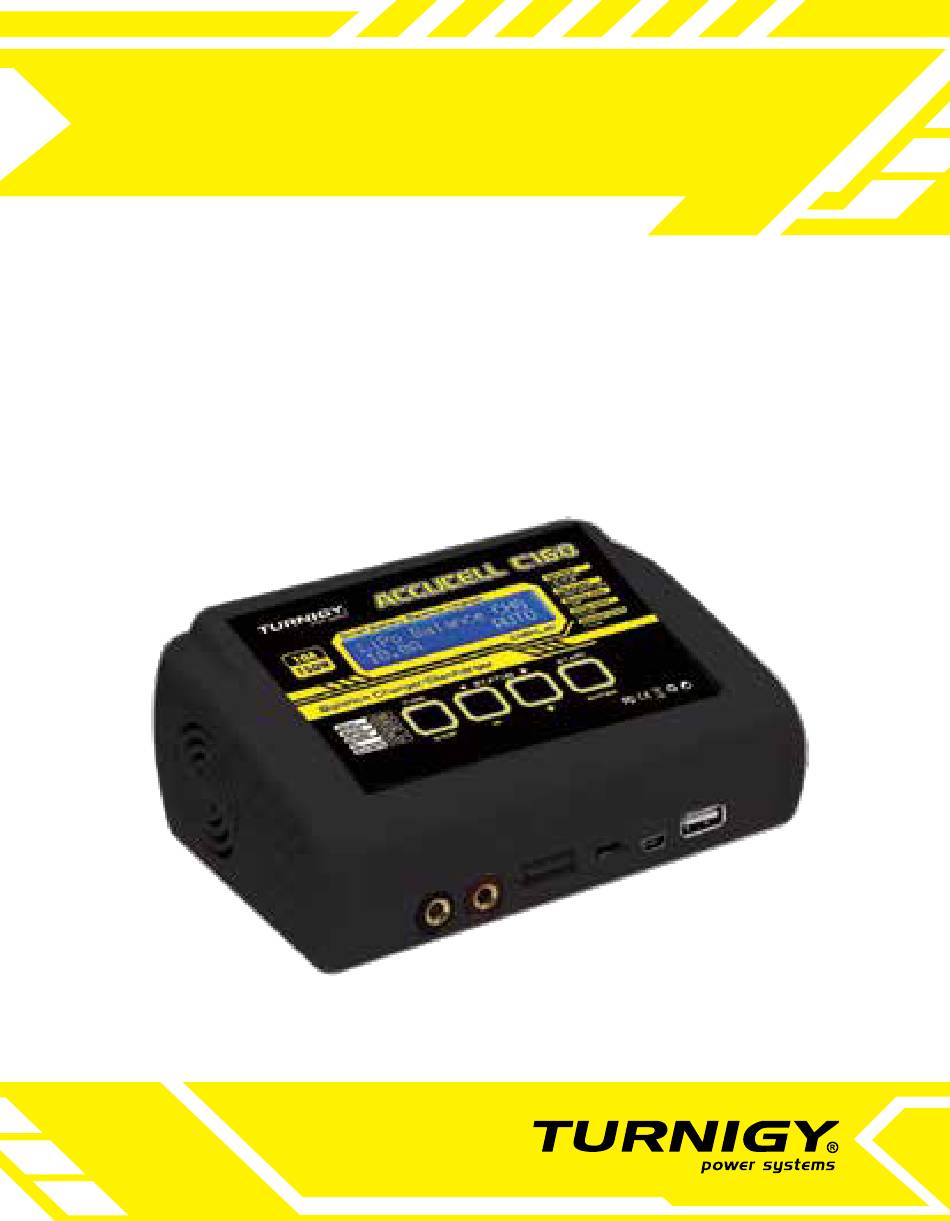

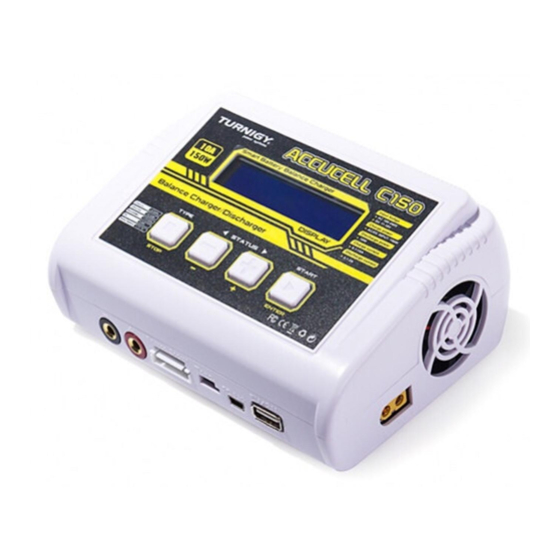

  • Page 1 C 150 Accucel C 150 Accucel 150W 10A Smart Battery Balance Charger Instruction Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SPECIFICATION CAUTION and NOTES BATTERIES INFO and MAX CHARGE CURRENT PROGRAM OF LiIon/LiPo/Lilo/LiFe/LiHV WORKING INTERFACE PROGRAM OF NiMH/NiCd WORKING INTERFACE PROGRAM of PB(lead-Acid) WORKING INTERFACE 13-14 PROGRAM OF USER SETTINGS PROGRAM OF EXTRA FUNCTION PROGRAM OF LOAD MEMORY ERROR INFORMATION SUPPORT AND SERVICES...
  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the Accucel 150W 10A Touch charger. Designed for both rookies and professionals, this system is extremely versatile for the safety and the best use of your system, please read this manual carefully. Dec/inc To select sub program To alter the value 1602 LCD...
  • Page 4: Specification

    SPECIFICATION Accucel 150W 10A Product Model: Accessories Smart Battery Balance Charger AC Input Voltage 100-240V DC Input Voltage 11-18V Charge power 150W Adapter Board 1 set Charge current 0.1-10A Discharge current 0.1-2A 1-6cells LiIon/LiPo/Lilo/LiFe/LiHV Extra Cable x1 pc 1-15cells NiCd/NiMH 2-20V Smart Battery I/II/III...
  • Page 5: Caution And Notes

    CAUTION AND NOTES This charger is ONLY suitable for charge rechargeable LiPo, LiFe, LiHV, NiCd, NiMH, Smart and Pb batteries. Do not attempt to charge dry cells, charge other types of batteries may cause fire or explosion. Set up the Input Power Limit/Low Input VOLT Cutoff correctly in the USER SETTING of the DC power supply.
  • Page 6: Batteries Info And Max Charge Current

    BATTERIES INFO and MAX CHARGE CURRENT Battery Type Charger Current (A) No. of Cells Rated Voltage (V) 0.1 - 10.0A 0.1 - 10.0A LiHV 11.4 0.1 - 10.0A 15.2 0.1 - 10.0A 19.0 0.1 - 10.0A 22.8 0.1 - 10.0A 0.1 - 10.0A 0.1 - 10.0A LiPo...
  • Page 7 Battery Type Charger Current (A) No. of Cells Rated Voltage (V) 10.8 0.1 - 10.0A 0.1 - 10.0A 13.2 0.1 - 10.0A NiMH / NiCd 14.4 0.1 - 10.0A 15.6 0.1 - 10.0A 16.8 0.1 - 10.0A 0.1 - 10.0A 0.1 - 10.0A 0.1 - 10.0A 0.1 - 10.0A...
  • Page 8: Program Of Liion/Lipo/Lilo/Life/Lihv

    PROGRAM OF LiIon/LiPo/Lilo/LiFe/LiHV Press +/- to shift the work modes between the battery and the charger. Press ENTER to select Press STOP to quit BALANCE CHARGE: With this mode, the charger will charge the battery to the termination voltage and balance each cell of the battery pack. Balance port of the battery must be connected.
  • Page 9: Working Interface

    WORKING INTERFACE...
  • Page 10: Program Of Nimh/Nicd

    PROGRAM OF NiMH/NiCd CHARGE: With this mode, the charger will automtically detect the cell count of the battery and charge the battery to the termination voltage. DISCHARGE: With this mode, the charger will discharge the battery to the termination voltage. CYCLE: With this mode, the charger will charge and discharge the battery by the user’s setting.
  • Page 11: Working Interface

    WORKING INTERFACE...
  • Page 12: Program Of Pb(Lead-Acid)

    PROGRAM OF PB(Lead-Acid)
  • Page 13: Working Interface

    WORKING INTERFACE...
  • Page 14: Program Of User Settings

    PROGRAM OF USER SETTINGS...
  • Page 15 PROGRAM OF USER SETTINGS 4150-4250 4300-4400 4350 3100-3950 3300 Default...
  • Page 16: Program Of Extra Function

    PROGRAM OF EXTRA FUNCTION...
  • Page 17: Program Of Load Memory

    PROGRAM OF LOAD MEMORY...
  • Page 18: Error Information

    ERROR INFORMATION...
  • Page 19: Support And Services

    SUPPORT AND SERVICES WARRANTY Hobbyking provide a period of one year product warranty from the date of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. During that period we will repair or replace free of service, charge for products deemed defective due to those causes.
