INSTALLATION GUIDE
GB
SEALED PELLET STOVE

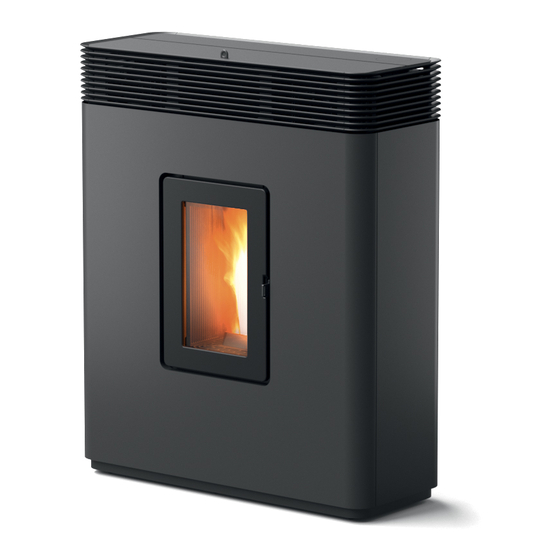

PHILO COMFORT AIR 14 M1
PHILO COMFORT AIR 14 UP! M1
PART 1 - REGULATIONS AND ASSEMBLY
Instructions in English

Advertisement

Table of Contents
loading

Related Manuals for MCZ PHILO COMFORT AIR 14 M1

Summary of Contents for MCZ PHILO COMFORT AIR 14 M1

  • Page 1 INSTALLATION GUIDE SEALED PELLET STOVE PHILO COMFORT AIR 14 M1 PHILO COMFORT AIR 14 UP! M1 PART 1 - REGULATIONS AND ASSEMBLY Instructions in English...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-INSTALLATION ......................8 3-DRAWINGS AND TECHNICAL FEATURES ..............17 4-UNPACKING ......................20 5-CONNECTION OF THE TOP SMOKE OUTLET PIPE ............23 6-CONNECTION OF THE REAR SMOKE OUTLET PIPE ............24 7-COMFORT AIR ......................25 8-CLADDING ASSEMBLY .....................30 9-OPENING THE DOORS .....................37...

  • Page 3: Introduction

    No part of this manual may be translated into other languages, adapted and/or reproduced, even in part in other mechanical and/or electronic form or media, for photocopies, recordings or other, without the prior written authorisation from MCZ Group Spa. The company reserves the right to make changes to the product at any time without prior notice. The proprietary company reserves its rights according to law.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY WARNINGS • Installation, electrical connection, operating check and maintenance must only be carried out by authorised and qualified personnel. • Install the product in accordance with all local and national legislation and regulations in force in the region or state. • Only use the fuel recommended by the manufacturer.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS • Do not dry linen on the product. Any drying racks or the like must be kept at a safe distance from the product. Fire hazard. • All liability for improper use of the product is entirely borne by the user and relieves the manufacturer of any civil and criminal liability.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS • It is recommended not to remove the feet that support the product in order to ensure adequate insulation, especially if the flooring is made of flammable materials. • In the event of a malfunction of the ignition system, do not force it on by using flammable materials.
  • Page 7 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: Please contact the retailer or qualified personnel authorised by the company to resolve a problem. • Only use the fuel specified by the manufacturer. • When the product is switched on for the first time, it is normal for it to emit smoke due to the paint heating for the first time. Therefore make sure the room in which it is installed is well ventilated.
  • Page 8 1-WARNINGS AND WARRANTY CONDITIONS Replacement of the entire system or repair of one of its components does not extend the warranty period, and the original expiry date remains unchanged. The warranty covers the replacement or free repair of parts recognised as being faulty at source due to manufacturing defects. In the event of a fault, to benefit from the warranty, the customer must keep the warranty certificate and provide it along with the document given at the time of purchase to the Technical Service Centre.
  • Page 9 1-WARNINGS AND WARRANTY CONDITIONS SPARE PARTS In the event of a malfunction, consult the retailer who shall forward the call to the Technical Assistance Department. Only use original spare parts. The retailer or service centre can provide all necessary information regarding spare parts. We do not recommend waiting for the parts to get worn out before having them replaced.

  • Page 10: 2-Installation

    2-INSTALLATION The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS Wood pellets are manufactured by extruding sawdust which is produced during the processing of natural dried wood (without paint). The compactness of the material is guaranteed by the lignin contained in the wood itself and allows the pellets to be produced without glue or binders.
  • Page 11 If the floor is made of wood, it is recommended to fit a floor protection sheet in compliance with the standards in force in the country of installation. Non-flammable walls Flammable walls PHILO COMFORT AIR 14 M1 PHILO COMFORT AIR 14 UP! M1 A = 2 cm A = 2 cm...
  • Page 12 2-INSTALLATION FOREWORD The Flue chapter has been drawn up with reference to the provisions of European Standards (EN13384 - EN1443 - EN1856 - EN1457). The chapter provides indications for installing an efficient and correct flue but is under no circumstances to substitute the regulations in force, which the qualified manufacturer must be in possession of.
  • Page 13 2-INSTALLATION TECHNICAL SPECIFICATIONS Have the efficiency of the flue checked by an authorised technician. The flue must be sealed against flue gases, in a vertical direction without narrowing, be made with materials impermeable to smoke, condensation, thermally insulated and suitable to resist normal mechanical stress over time (we recommend fireplaces made of A/316 or refractory material with insulated round section double chamber).
  • Page 14 2-INSTALLATION ROOF AT 60° ROOF AT 45° 45° 60° A = MIN. 2.60 metres A = MIN. 2.00 metres FIGURE 5 FIGURE 6 B = DISTANCE > 1.20 metres B = DISTANCE > 1.30 metres C = DISTANCE < 1.20 metres C = DISTANCE <...
  • Page 15 2-INSTALLATION MAINTENANCE The flue must be kept clean, since the deposit of soot or unburnt oils reduces the cross-section, blocking the draught and thus compromising the efficient operation of the stove and, if large build-ups accumulate, can catch fire. The flue and chimneypot must be cleaned and checked by a qualified chimney sweep at least once a year.
  • Page 16 2-INSTALLATION EXTERNAL AIR INLET It is mandatory to provide an adequate external air inlet that supplies the combustion air required for the product to work properly. The flow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room (preferable solution see Figure 9 a), or indirect, via air intake from adjoining rooms and connecting permanently with the installation room (see Figure 9 b).
  • Page 17 2-INSTALLATION DISTANCE (metres) The air inlet must be at a distance of: 1.5 m BELOW Doors, windows, smoke outlets, cavities, ..1.5 m HORIZONTALLY Doors, windows, smoke outlets, cavities, ..0.3 m ABOVE Doors, windows, smoke outlets, cavities, ..1.5 m AT A DISTANCE from smoke outlet CONNECTION TO THE FLUE...
  • Page 18 2-INSTALLATION EXAMPLES OF CORRECT INSTALLATION 1. Installation of Ø120mm flue with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by plate data) if next to flammable parts such as wood etc.

  • Page 19: 3-Drawings And Technical Features

    3-DRAWINGS AND TECHNICAL FEATURES DRAWINGS AND CHARACTERISTICS PHILO COMFORT AIR 14 M1 STOVE DIMENSIONS Ø60 Ø60 Ø80 Ø50 Ø80 1005 Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 20 3-DRAWINGS AND TECHNICAL FEATURES PHILO COMFORT AIR 14 UP! STOVE DIMENSIONS M1 Ø60 Ø60 Ø50 Ø80 1005...
  • Page 21 3-DRAWINGS AND TECHNICAL FEATURES TECHNICAL SPECIFICATIONS PHILO COMFORT AIR 14 M1 / PHILO COMFORT AIR 14 UP! M1 Energy Efficiency Class Nominal output power 13.8 kW (11868 kcal/h) Minimum output power 3.4 kW (2924 kcal/h) Efficiency at Max 90.5% Efficiency at Min 93.2%...

  • Page 22: 4-Unpacking

    4-UNPACKING PREPARATION AND UNPACKING The packaging consists of a recyclable cardboard box in line with RESY standards and a wooden pallet. All packaging materials can be reused for similar use or disposed of as urban solid waste, in accordance with current regulations. After having removed the packaging make sure the product is intact.
  • Page 23 4-UNPACKING REMOVING THE FASTENING BRACKETS To remove the stove from the pallet, you must remove the two screws “u” and plate “s” from the stove’s foot. There are four brackets “s”. Moreover, at the back of the stove, remove bracket “t” by taking out the two screws “v” and the two screws “z”. Technical Dept.
  • Page 24 4-UNPACKING Position the stove and connect it to the flue. Use the 4 adjustable feet (J) to get the stove correctly levelled so that the smoke outlet is lined up with the connecting pipe. If the stove needs to be connected to an outlet pipe which goes through the rear wall (to connect to the flue), take utmost care to make sure that the joint is not forced.

  • Page 25: 5-Connection Of The Top Smoke Outlet Pipe

    5-CONNECTION OF THE TOP SMOKE OUTLET PIPE TOP OUTLET (PHILO COMFORT AIR 14 UP! M1 STOVE) The UP! version stove (top outlet) already has the pipe that comes out of the upper top; proceed with the connections to the smoke duct. Technical Dept.

  • Page 26: 6-Connection Of The Rear Smoke Outlet Pipe

    6-CONNECTION OF THE REAR SMOKE OUTLET PIPE TOP OUTLET (PHILO COMFORT AIR 8 M1 STOVE) The stove with rear outlet will already have the bend installed as shown in the image, so the external smoke pipe can be connected to the stove...

  • Page 27: 7-Comfort Air

    7-COMFORT AIR Comfort Air ducting Comfort Air stoves can channel the air into other rooms through the connection with the accessory pipes. Two outlets can be ducted. The stove is delivered with the hot air outlet facing the front of the stove at the grid. If you wish to duct the air, turn the knobs under the front cover of the stove for the rear outlet.
  • Page 28 7-COMFORT AIR Proceed as follows to turn handle “m”: • lift the front cover of the stove • take out the two screws “x” and remove plate “t”...
  • Page 29 7-COMFORT AIR • remove the two screws “y” • knob “m” can now be removed with the plate Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 30 7-COMFORT AIR • under knob “m” remove screw “j” and plate “k” which blocks it • put the plate back on the knob • put back the plate ”t” Attention! Either both of the outlets or just one of them can be ducted and the air can be directed towards the front of the stove at any time.
  • Page 31 7-COMFORT AIR The output air pipe can reach very high temperatures, even around 150°C: therefore, it must be adequately insulated with suitable material, especially points that could come in contact with flammable surfaces or parts that are affected by heat (e.g. change in shades, wiring ducts, plasterboard, etc.). Moreover, persons and animals must be protected from accidental or intentional contact.

  • Page 32: 8-Cladding Assembly

    8-CLADDING ASSEMBLY The stove is delivered without the metal cladding in both stove versions, whether it has a top outlet (UP!) or a rear outlet. The following are indications for installing the cladding and removing some parts of the stove for technical interventions, parts replacement and/or cleaning.
  • Page 33 8-CLADDING ASSEMBLY STOVE CLADDING Attention! The decorative parts are delicate, therefore handle with care. POS. DESCRIPTION FRONT PANEL LEFT SIDE PANEL RIGHT SIDE PANEL M5X10 HEX HEAD SCREW M5X20 SCREW Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 34 8-CLADDING ASSEMBLY INSTALLING THE FRONT PANEL Take front panel “R” from the package and assemble it: • insert the holes “s” of the panel “R” on hooks “v” on the structure of the stove...
  • Page 35 8-CLADDING ASSEMBLY • once panel “R” is fitted onto the bottom hooks, sit it tightly on magnets “m”. Adjust magnets “m” by the screw to align front panel “R” correctly with side panels “V” and “T”. Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 36 8-CLADDING ASSEMBLY • Secure panel “R” to the structure by central screw “x”. To tighten the screw you need to open the firebox door.
  • Page 37 8-CLADDING ASSEMBLY SIDE PANEL ASSEMBLY Take right panel “V” and proceed as follows: • insert the holes “s” of the panel “V” on hooks “u” on the structure of the stove Technical Dept. - All rights reserved - Reproduction prohibited...
  • Page 38 8-CLADDING ASSEMBLY • on the top part lift the front cover of the stove • unscrew the two screws “k” on the stove structure and fasten side panel “V” to the structure Proceed in the same way with left side panel “T”.
  • Page 39 8-CLADDING ASSEMBLY ADJUSTING ALIGNMENT OF SIDE PANEL AND FRONT PANEL To adjust alignment of side panel “V” with front panel “R”, turn the two feet “y” inside the structure. Technical Dept. - All rights reserved - Reproduction prohibited...

  • Page 40: 9-Opening The Doors

    9-OPENING THE DOORS To open the firebox door “Q” insert the cold handle “Z” into the slot and pull it towards you. Attention! Only open the doors when the stove is switched off and cold.

  • Page 41: 10-Connections To Additional Devices

    10-CONNECTIONS TO ADDITIONAL DEVICES ELECTRICAL CONNECTION First connect the power cable to the back of the stove and then to a wall socket. The main switch must only be activated to switch the stove on; otherwise, it is advisable to keep it switched off. It is recommended to disconnect the power cable when the stove is not used.

  • Page 42: 11-Loading The Pellets

    11-LOADING THE PELLETS LOADING THE PELLETS Fuel is loaded from the upper part of the stove. Open door “A” and pellet door “B”. Pour the pellets in slowly so that they are deposited at the bottom of the hopper. If loading pellets when the stove is running, open the door of the hopper using the cold handle supplied. When loading, do not let the pellet bag come into contact with hot surfaces.
  • Page 44 MCZ GROUP S.p.A. Via La Croce n°8 33074 Vigonovo di Fontanafredda (PN) – ITALY Telephone: 0434/599599 a.s. Fax: 0434/599598 Internet: www.mcz.it e-mail: mcz@mcz.it 8901849400 REV.2 03/10/2018...
