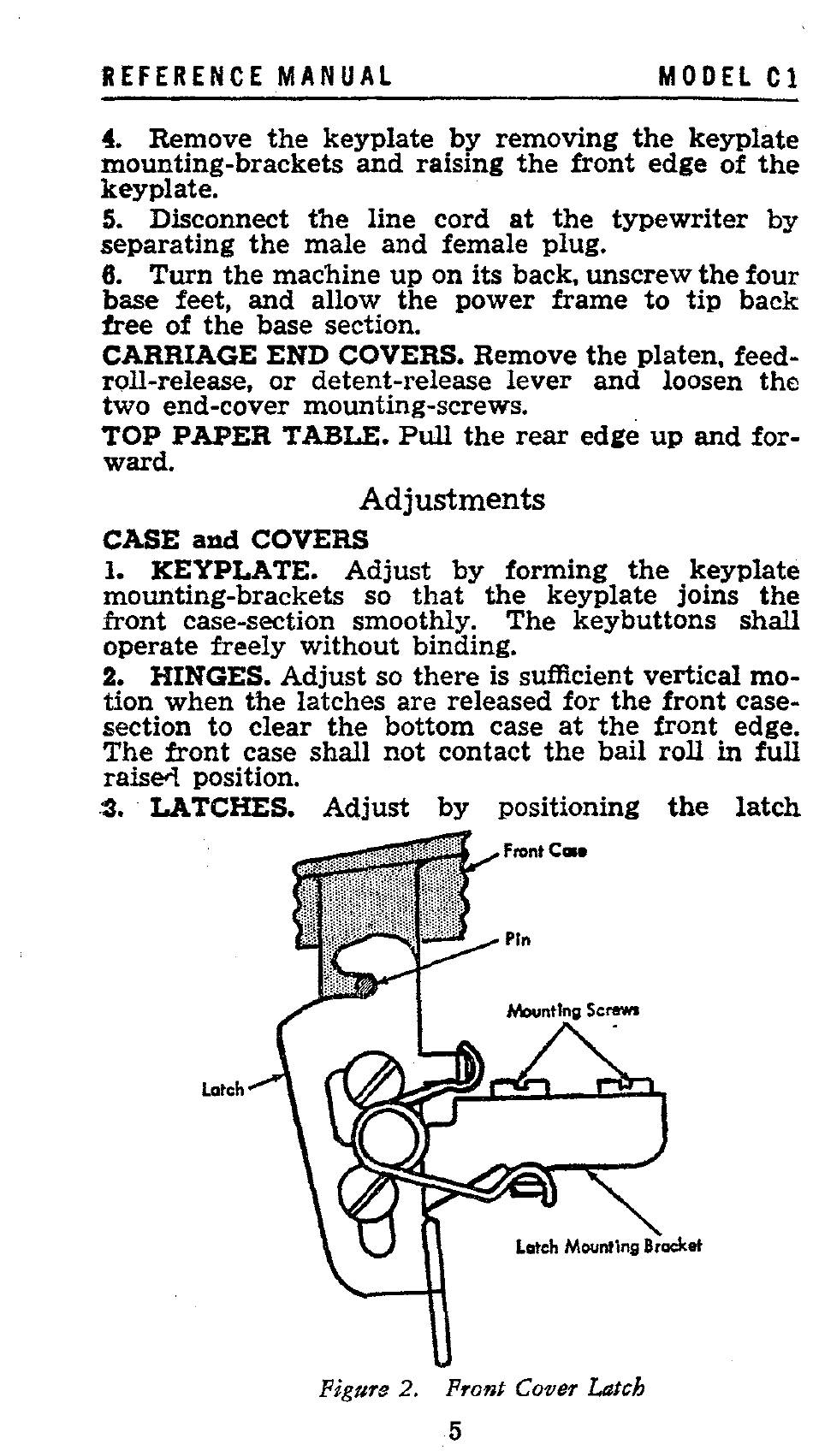

REFERENCE MANUAL
MODEl Cl
4. Remove the keyplate by removing the keyplate
mounting-brackets and raising the front edge of the
keyplate.
5. Disconnect the line cord at the typewriter by
separating the male and female plug.
6. Turn the machine up on its back. unscrew the four
base feet, and allow the power frame to tip back
free of the base section.
CARRIAGE END COVERS. Remove the platen. feed-
roll-release, or detent-release lever and loosen the
two end-cover mounting-screws.
TOP PAPER TABLE. Pull the rear edie up and for-
ward.
Adjustments
CASE and COVERS
1. KEYPLATE. Adjust by forming the keyplate
mounting-brackets so that the keyplate joins the
front case-section smoothly. The keybuttons shall
operate freely without binding.
2. HINGES. Adjust so there is sufficient vertical mo-
tion when the latches are released for the front case-
section to clear the bottom case at the front edge.
The front case shall not contact the bail roll in full
raiserl position .
.3.
LATCHES. Adjust by positioning the latch
Latch
Figure 2.
Front Cover Latch
5
