side frames set into the bottom case. Base feet pass
through the bottom case and screw into the rubber
mcunts. This gives the typewriter a resilient mount-
ing when in its case and provides protection to the
desk and typewriter when it is removed for servic-
ing.
A locking bar inside the bottom case-section an-
chors the typewriter to two desk mounts, secured to
the desk. By sliding the locking bar laterally the
machine may be quickly and easily attached
to
or
removed from the desk.
A removable bottom panel slides into the bottom-
case section and serves to protect the typewriter.
This panel can be easily removed to make adjuat-
ments and may also be used to protect the desk whell
working on the machine.
r~
I .. '

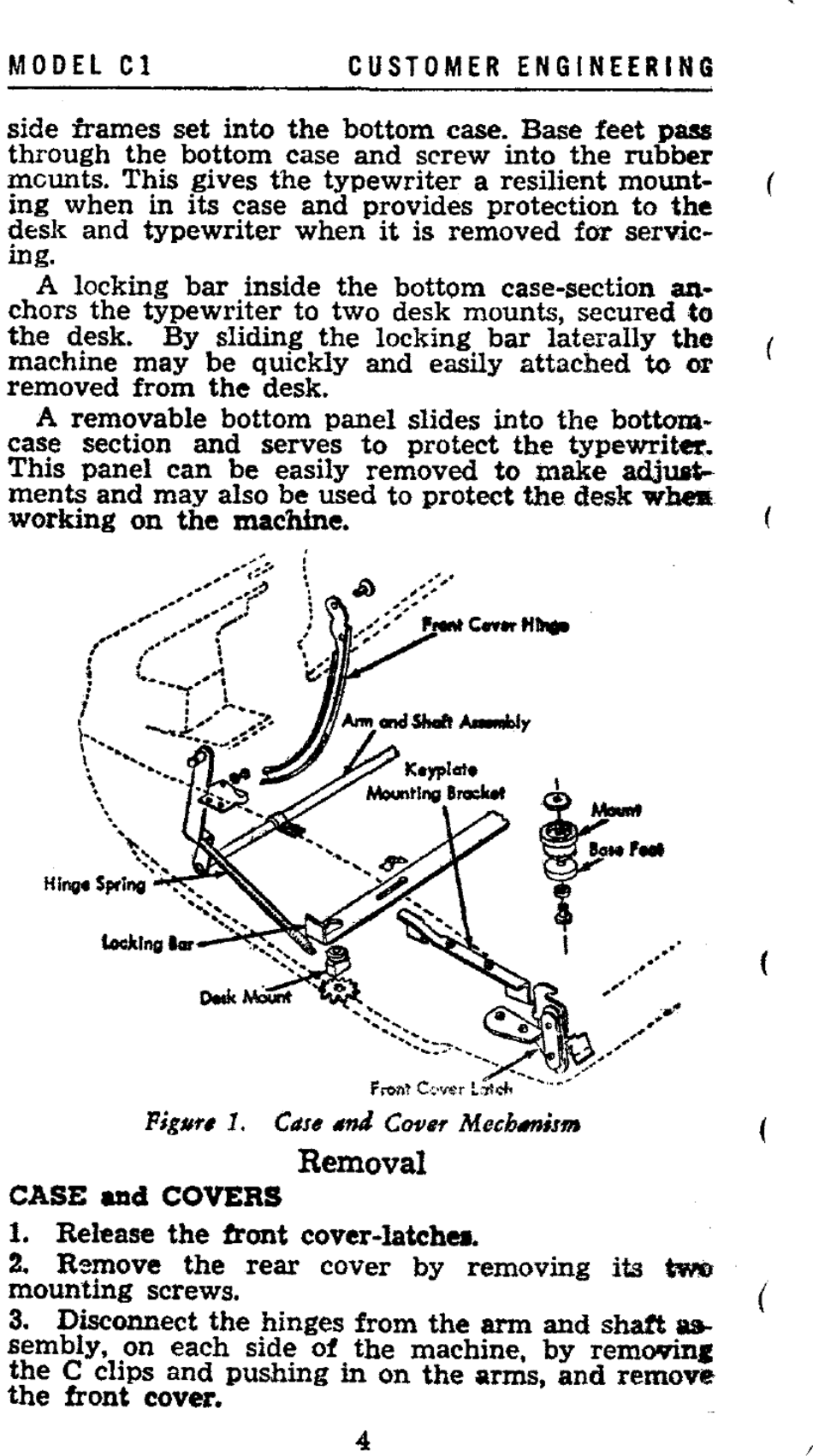

Figll" 1. CdS'
"nil
COfl81'
Meeh""isfIJ
Removal
CASE aDeI COVERS
1. Release the front cover-latch ••
.'
...
---
2. Remove the rear cover by removing
its
w..
mounting screws. (
3. Disconnect the hinges from the ann and shatt u-
sembly, on each side of the machine, by remcwinl
the C clips and pushing in on the arms, and remove
the front cover.
