nuVita 5076 Instruction Manual

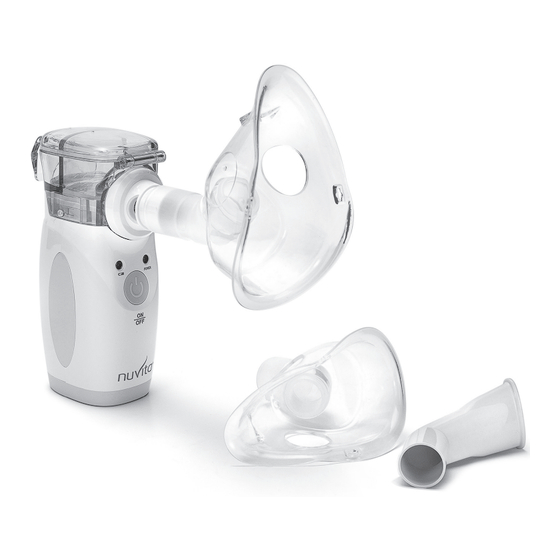

Portable nebuliser with mesh technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Portable nebuliser with
EN
MESH technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5076 and is the answer not in the manual?

Questions and answers

Related Manuals for nuVita 5076

Summary of Contents for nuVita 5076

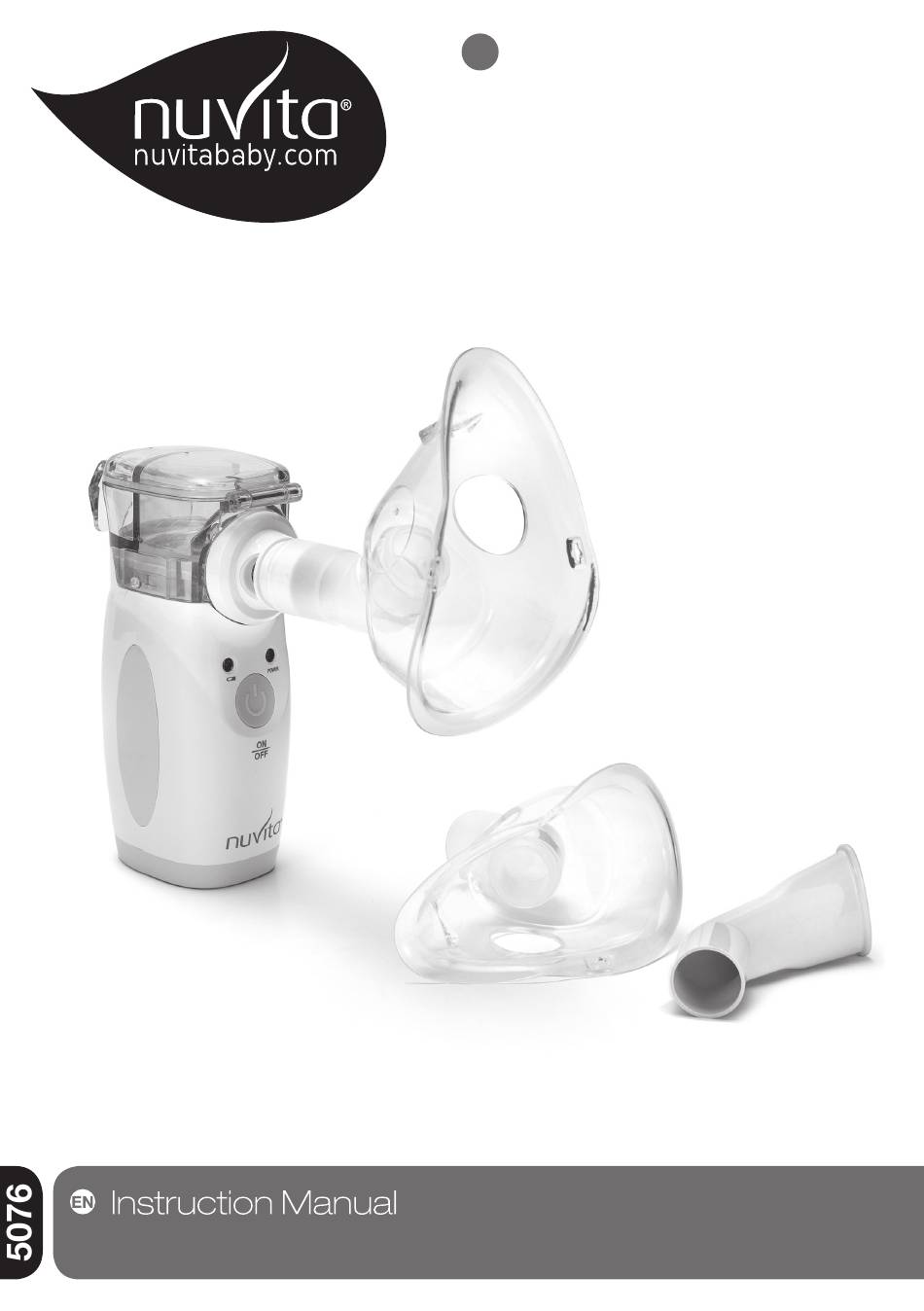

  • Page 1 Portable nebuliser with MESH technology...
  • Page 2 INTRODUCTION Thank you for purchasing the Nuvita 5076 portable nebuliser with MESH technology. This product is intended for the treatment of respiratory diseases such as asthma, allergies, etc. ALL IMAGES SHOWN ON THE PACKAGE ARE JUST FOR ILLUSTRATIVE PURPOSE. THE PRODUCT CAN BE SUBJECT TO SMALL AESTHETIC MODIFICATIONS.

  • Page 3: Safety Information

    SAFETY INFORMATION Caution: Never use this device when ambient temperature is over 40°C. For more operating • environment requirements, please refer to the section - Specifications. Do not shake the nebulizer during operation. • Avoiding any strong shock on the main unit and its components, e.g., falling on the •...

  • Page 4: Parts And Components

    PARTS AND COMPONENTS Nebulizer Low battery indicate LED Adult Mask Cover ON/OFF Switch Child Mask Lock Battery Cover Adapter (Optional) Nebulizer head Power Plug Adapter Plughole (metal mesh) Adapter Connector Outer Cover Electrode Storage bag Connector Main Unit Mouthpiece Power LED PREPARATION BEFORE USE 1.

  • Page 5: Assembling The Device

    Use the Adapter • The output port (adapter connector) is connected to the adapter plugholes under the back side of the main unit (see Fig. 2). Connect its input port (Power Plug) to main supply. Input voltage: AC 220V, 50Hz Output voltage: DC 3V, 1A 2.

  • Page 6: Using The Device

    USING THE DEVICE 1. Remove the outer cover Remove it as per a sequence reverse to installation order (see Fig. 2. Open the nebulizer Hold the main unit with your left hand, pinch the nebulizer lock with the thumb and forefinger of your right hand and snap it upward to open the nebulizer as in Fig.
  • Page 7 6. Install mouthpiece or mask: The enclosed parts include a mouthpiece, which is intended for medication through • throat. Install the mouthpiece: connect the • mouthpiece to the outlet of outer cover along the direction of arrow (see Fig. 9). Use the mouthpiece: bring the •...
  • Page 8 suggested to put a pillow beneath your back so that you can keep your back straight. Uncomfortable posture and unsteady breathing may lead to blockage of the respiratory tract. Please sit correctly with proper posture before starting-up the device. Take long breaths steadily and slowly so that the nebulised liquid may be inhaled deeply into the respiratory tract.

  • Page 9: Cleaning And Disinfecting

    CLEANING AND DISINFECTING Cleaning Remove all accessories (including nebuliser, mask, mouthpiece, connector, outer cover) from the device after each use. Open the cover of nebuliser and remove the residual liquid. You are advised, after each use, to allow the device running with clean water instead of liquid for 1-2 minutes in order to clean the nebulising head.

  • Page 10: Troubleshooting

    Always contact your supplier or the nearest local distributor if repair is necessary. • Always use or store the device in an environment with temperature and humidity • in compliance with the requirements as specified in the section – Specifications, otherwise the device could not function well.
  • Page 11 FAULT POSSIBBLE CAUSES SOLUTIONS Battery’s polarity has been Reinstall batteries correctly reversed Low battery voltage Replace all batteries Power LED does not light Power adapter is not correctly Reconnect it to power socket or up and the connected to the main unit jack re-plug it into the jack device does or the power socket...

  • Page 12: Specifications

    SPECIFICATIONS Name of Product Portable nebuliser with MESH technology Model 5076 Power supply 2×AA batteries or Adapter (AC-DC 3V1A) Rated power Ultrasonic frequency Approximately 140kHz Safety level Type BF, Class II Nebulising Rate ≥0.2ml / min Maximum / Minimum 8ml / 0.5ml...

  • Page 13: Warranty Terms And Conditions

    WARRANTY - TERMS AND CONDITIONS This product benefits of a warranty of 24 months on material and manufacturing defects, starting from the date of purchase (see sales slip). The warranty of 24 months does not include damages caused by the usual use of parties identified as “consumable”...
