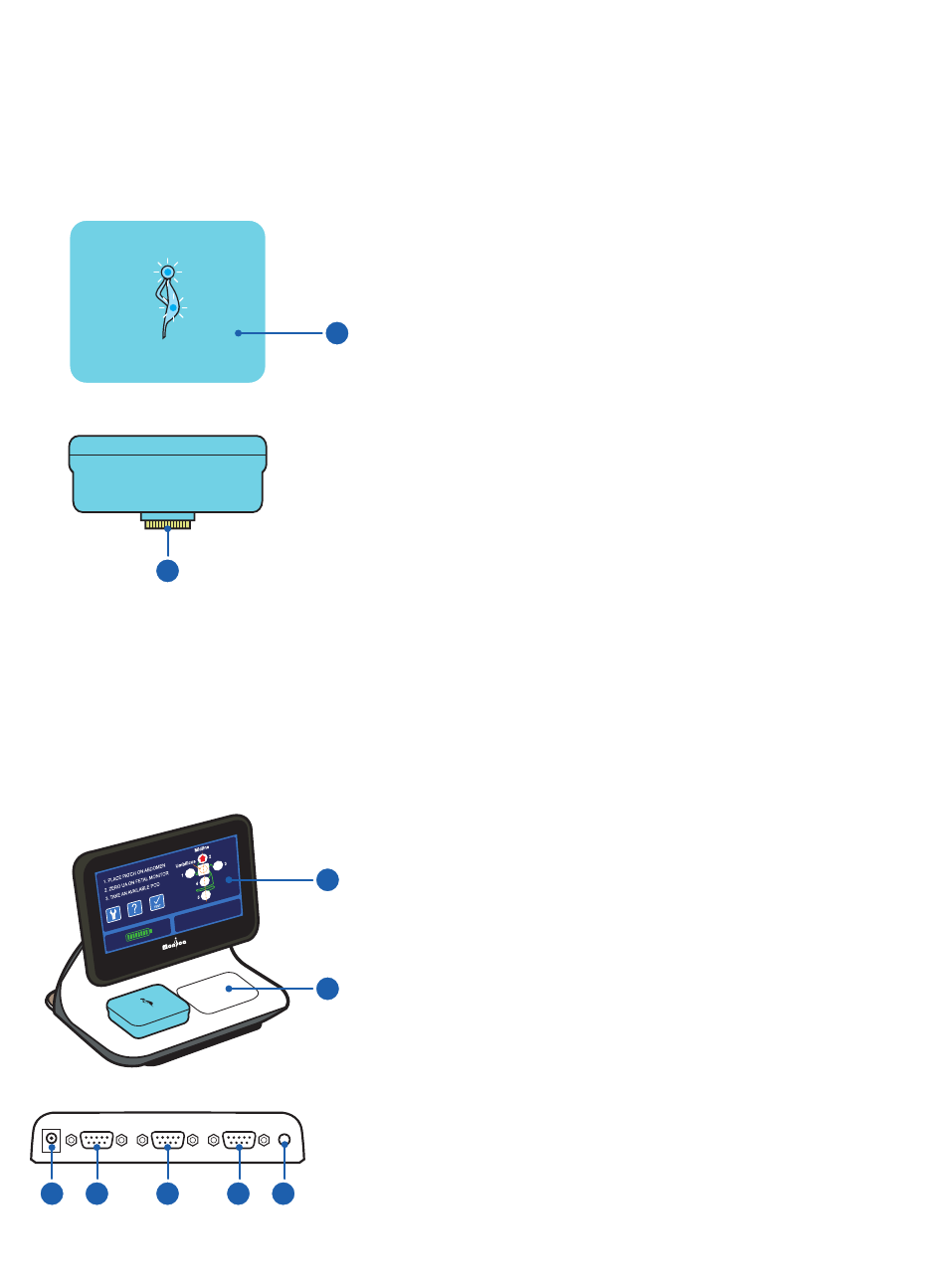

Novii Pod

Side view
2

Novii Interface

Rear panel view
PSU UA/TOCO MECG
3 4 5
5
Novii Device Components
The Novii Pod
communicates via Bluetooth with the Novii Interface.
Novii Pod Features
• Up to 11 hours battery life*
• 2 Hour charge time
1
• Monitors FHR, MHR & UA
• Communicates signals to Novii Interface via Bluetooth
• Bluetooth wireless range 100 ft / 30 m
• Attached by magnets to Novii Interface charging bay or Patch**
while in use
• Waterproof only when Pod is attached to Patch
1. Two blue LED lights located on the Novii Pod indicate:
• Charging: Single LED flashes slowly
• Fully Charged: Single LED on constant, then turns off in
stand-by mode
• Pod On/Active: Both LEDs flash, alternately
• Connected to Patch: Both LEDs on constant
• Monitoring: Both LEDs flash slowly in unison
2. Connection pins (avoid contact to prevent damage or debris)
The Novii Interface
a means of interfacing the wireless output of the Novii Pod to the
transducer inputs of a compatible Maternal/Fetal Monitor. The Novii
Interface enables signals collected and processed by the Novii Pod to be
printed and displayed on a compatible Maternal/Fetal Monitor and sent
on to a central network, if connected.
1
Interface Features
1. Touch Screen Display
2. Wireless Charging Bays (x2)
2
3. Power Supply Connection
4. UA/TOCO Cable Connection
5. mECG Cable Connection
6. fECG Cable Connection
7. COM Port [Service Use Only]
FECG COM
6 7
*Varies per use depending on Bluetooth range
** Disclaimer: Novii works well in shower with splashing, but Bluetooth signal cannot transmit and all signals will be lost if
Pod is submerged under water in a tub.
