Summary of Contents for Festo Chameleon Tongue

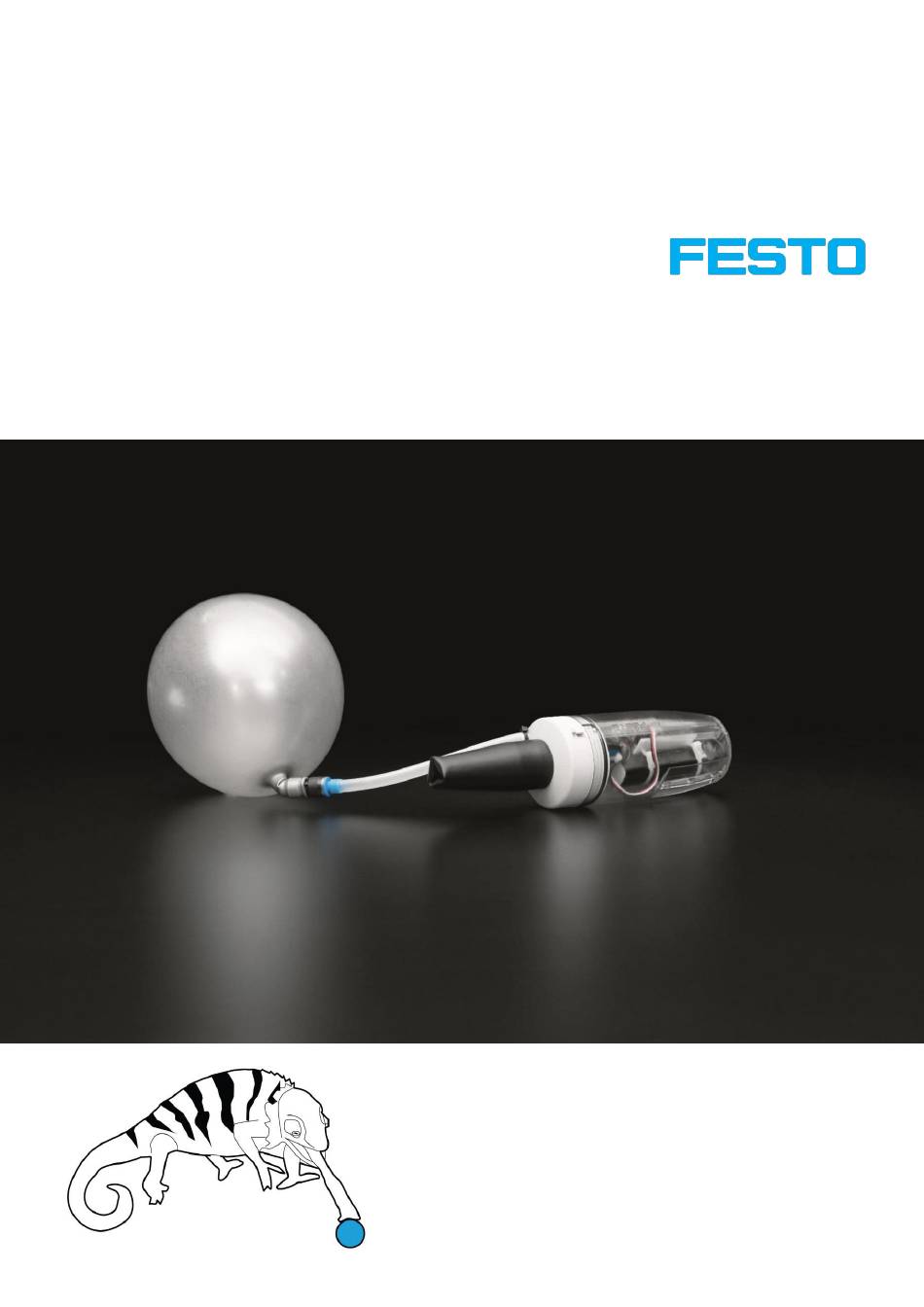

- Page 1 Chameleon Tongue Assembly Instructions...
- Page 2 Connecting element Silicone cap Cable ties Sealing rings – 2 Tube (clear) Small tube (black) Connecting element for silicone cap 10. Electronic board with microcontroller 11. Material for body (plastic poster board) 12. balloon Festo AG & KG Festo Didactic SE...
- Page 3 Equipment and Supplies, continued Additionally required: 4-AA batteries Scissors Festo AG & KG Festo Didactic SE...
- Page 4 Open the silicone cap and pass a long cable tie through the hole in the holder until the cable tie's head is inside the holder. Then invert the silicone cap back into its original shape. Festo AG & KG Festo Didactic SE...
- Page 5 Pass the other end of the cable tie through the hole in the middle of the connecting element and place the silicone cap over the provided attachment. Required items: 2 sealing rings, connecting element Place the two sealing rings on each end of the connecting element. Festo AG & KG Festo Didactic SE...
- Page 6 Shorten the cable tie, if necessary. Required items: connecting element, connecting element for silicone cap Attach the connecting element for the silicone cap to the other connecting element. Festo AG & KG Festo Didactic SE...
- Page 7 Pass the cable tie of the silicone cap through one side of the rudder horn and fasten it with another cable tie end. Shorten the cable ties. Required items: electronic board with microcontroller, 4 batteries Insert 4 batteries, 2 on each side of the electronic board with microcontroller. Festo AG & KG Festo Didactic SE...
- Page 8 Insert the assembled electronic board with microcontroller into the body and slide it into the rail provided for this purpose. Make sure that the switch is still on and all connections are secure. Festo AG & KG Festo Didactic SE...
- Page 9 Place one end of the black tube inside one end of the clear tube. Put the opening of the balloon over the other end of the black tube. Then inflate the balloon with the help of the clear tube. Festo AG & KG Festo Didactic SE...
- Page 10 Print the silhouette template (available in the Downloads section on the bionics4education website) and draw any shape for your chameleon or use the body template already created. Attach the body to your robot using cable ties. Festo AG & KG Festo Didactic SE...
- Page 11 Congratulations! Your Bionic Chameleon is ready. Continue with the next steps in the Getting Started section on the bionics4education website to learn how to control your bionic robot. Festo AG & KG Festo Didactic SE...
