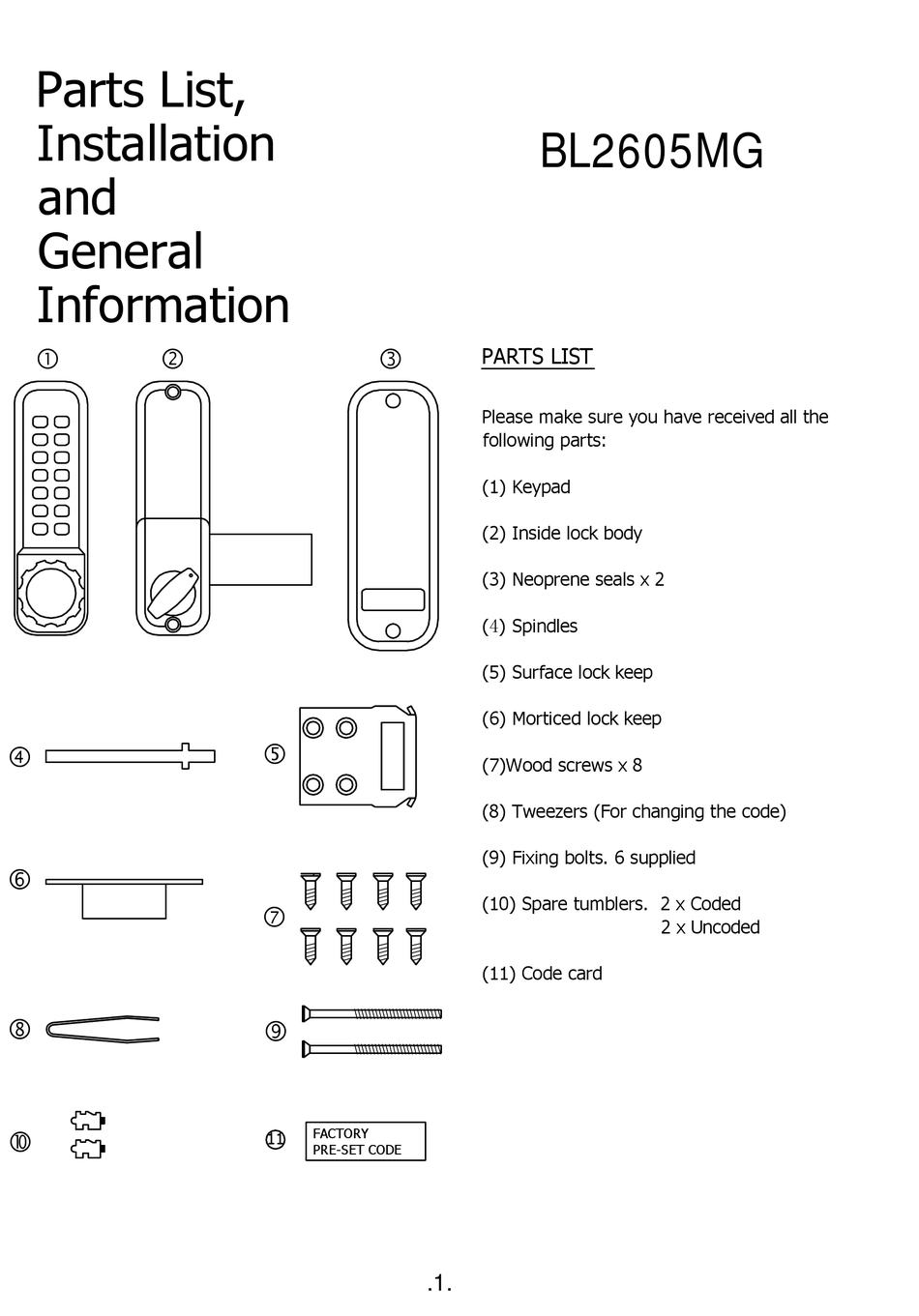

Parts List,
Installation
and
General
Information
‚
„
†
ˆ
Š
ƒ
...
‡
‰
FACTORY
11
PRE-SET CODE
.1.
BL2605MG
PARTS LIST
Please make sure you have received all the
following parts:
(1) Keypad
(2) Inside lock body
(3) Neoprene seals x 2
( 4 ) Spindles
(5) Surface lock keep
(6) Morticed lock keep
(7)Wood screws x 8
(8) Tweezers (For changing the code)
(9) Fixing bolts. 6 supplied
(10) Spare tumblers. 2 x Coded
(11) Code card
2 x Uncoded
Advertisement
Table of Contents
Related Manuals for Borglocks BL2605MG
Summary of Contents for Borglocks BL2605MG
- Page 1 Parts List, BL2605MG Installation General Information ‚ ƒ PARTS LIST Please make sure you have received all the following parts: (1) Keypad (2) Inside lock body (3) Neoprene seals x 2 ( 4 ) Spindles (5) Surface lock keep (6) Morticed lock keep …...
- Page 2 SPECLAL NOTES HOW TO CHANGE YOUR CODE NUMBER Before commencing installation check that all 1) Remove the lock from the door . parts are working correctly: Press the code 2) Remove the 2 retaining screws from the back according to the code card and then the knob of the keypad.
- Page 3 Assembling and Fitting Keypad · · Inside lock body Surface lock keep · · Surface lock keep · Morticed lock keep Unscrew the four screws and remove the plate Right Left Dead bolt Dead bolt Plate to be removed...
- Page 4 MAINTENANCE INSTRUCTIONS WEEKLY CLEAN THE SURFACE OF THE LOCK WITH MARINE GRADE CHROME POLISHING LIQUID. SPRAY THE EXPOSED PARTS OF THE LATCH WITH WD40 OR EQUIVALENT. ANNUALLY 1. REMOVE THE LOCK FROM THE DOOR. 2. SPRAY THE INSIDE OF THE LOCK THOROUGHLY WITH WD40 OR EQUIVALENT, THROUGH THE TUMBLER HOLES AT THE BACK OF THE LOCK.
