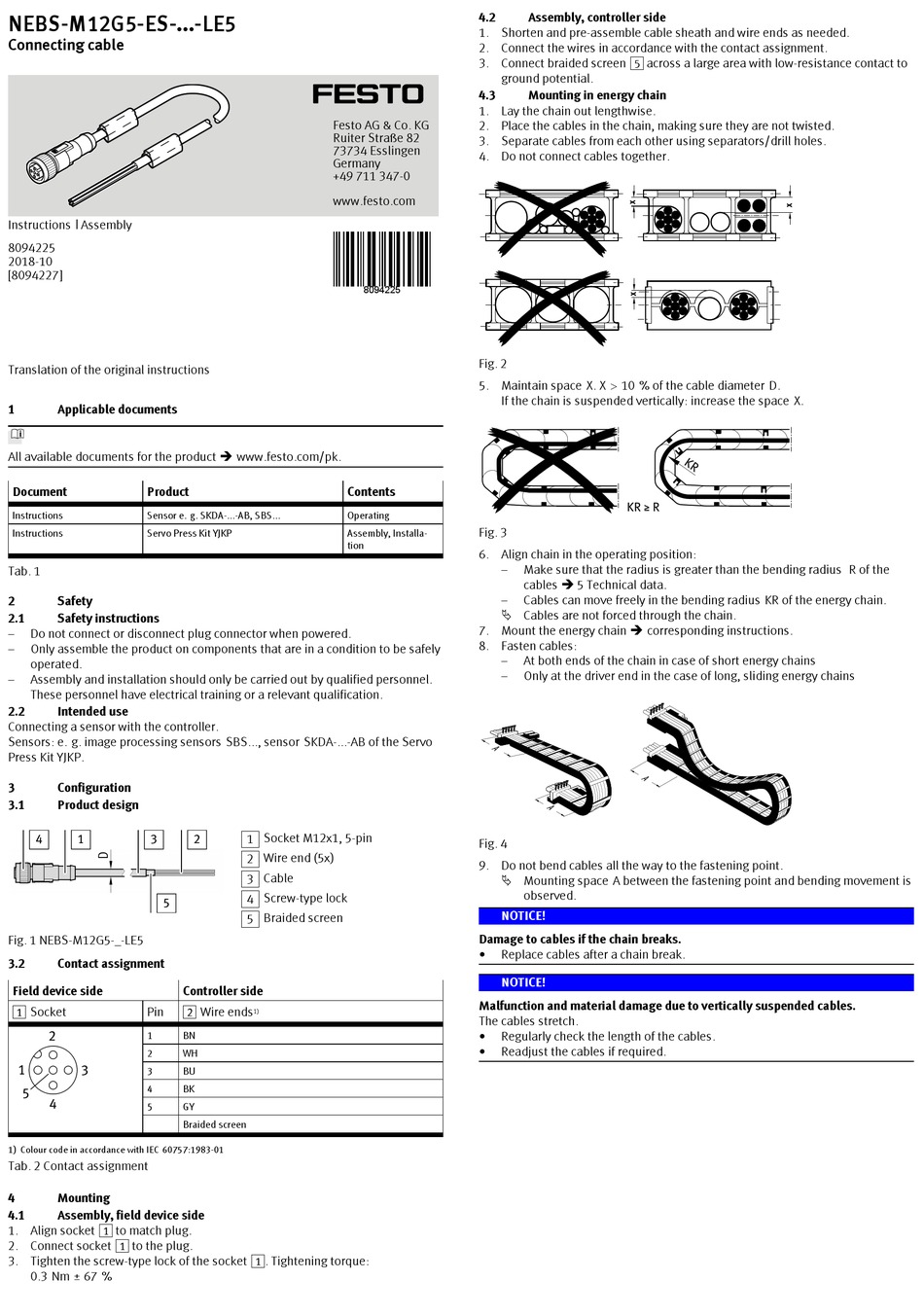

Festo NEBS-M12G5-ES LE5 Series Instructions

NEBS-M12G5-ES-...-LE5
Connecting cable
Instructions | Assembly
8094225
2018-10
[8094227]
Translation of the original instructions
1 Applicable documents
All available documents for the product è www.festo.com/pk.
Document Product
Instructions Sensor e. g. SKDA-...-AB, SBS...
Instructions Servo Press Kit YJKP
Tab. 1
2 Safety
2.1 Safety instructions
– Do not connect or disconnect plug connector when powered.
– Only assemble the product on components that are in a condition to be safely
operated.
– Assembly and installation should only be carried out by qualified personnel.
These personnel have electrical training or a relevant qualification.
2.2 Intended use
Connecting a sensor with the controller.
Sensors: e. g. image processing sensors SBS..., sensor SKDA-...-AB of the Servo
Press Kit YJKP.
3 Configuration
3.1 Product design
Fig. 1 NEBS-M12G5-_-LE5
3.2 Contact assignment
Field device side
1 Socket Pin
1
2
3
4
5
1) Colour code in accordance with IEC 60757:1983-01
Tab. 2 Contact assignment
4 Mounting
4.1 Assembly, field device side
1. Align socket 1 to match plug.
2. Connect socket 1 to the plug.
3. Tighten the screw-type lock of the socket 1. Tightening torque:
0.3 Nm ± 67 %
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
Contents
Operating
Assembly, Installa-
tion
1 Socket M12x1, 5-pin
2 Wire end (5x)
3 Cable
4 Screw-type lock
5 Braided screen
Controller side
2 Wire ends
1)
BN
WH
BU
BK
GY
Braided screen
4.2 Assembly, controller side
1. Shorten and pre-assemble cable sheath and wire ends as needed.
2. Connect the wires in accordance with the contact assignment.
3. Connect braided screen 5 across a large area with low-resistance contact to
ground potential.
4.3 Mounting in energy chain
1. Lay the chain out lengthwise.
2. Place the cables in the chain, making sure they are not twisted.
3. Separate cables from each other using separators/drill holes.
4. Do not connect cables together.
8094225
Fig. 2
5. Maintain space X. X > 10 % of the cable diameter D.
If the chain is suspended vertically: increase the space X.
Fig. 3
6. Align chain in the operating position:
– Make sure that the radius is greater than the bending radius R of the
cables è 5 Technical data.
– Cables can move freely in the bending radius KR of the energy chain.
Ä Cables are not forced through the chain.
7. Mount the energy chain è corresponding instructions.
8. Fasten cables:
– At both ends of the chain in case of short energy chains
– Only at the driver end in the case of long, sliding energy chains
Fig. 4
9. Do not bend cables all the way to the fastening point.
Ä Mounting space A between the fastening point and bending movement is
observed.
NOTICE!
Damage to cables if the chain breaks.
• Replace cables after a chain break.
NOTICE!
Malfunction and material damage due to vertically suspended cables.
The cables stretch.
• Regularly check the length of the cables.
• Readjust the cables if required.
