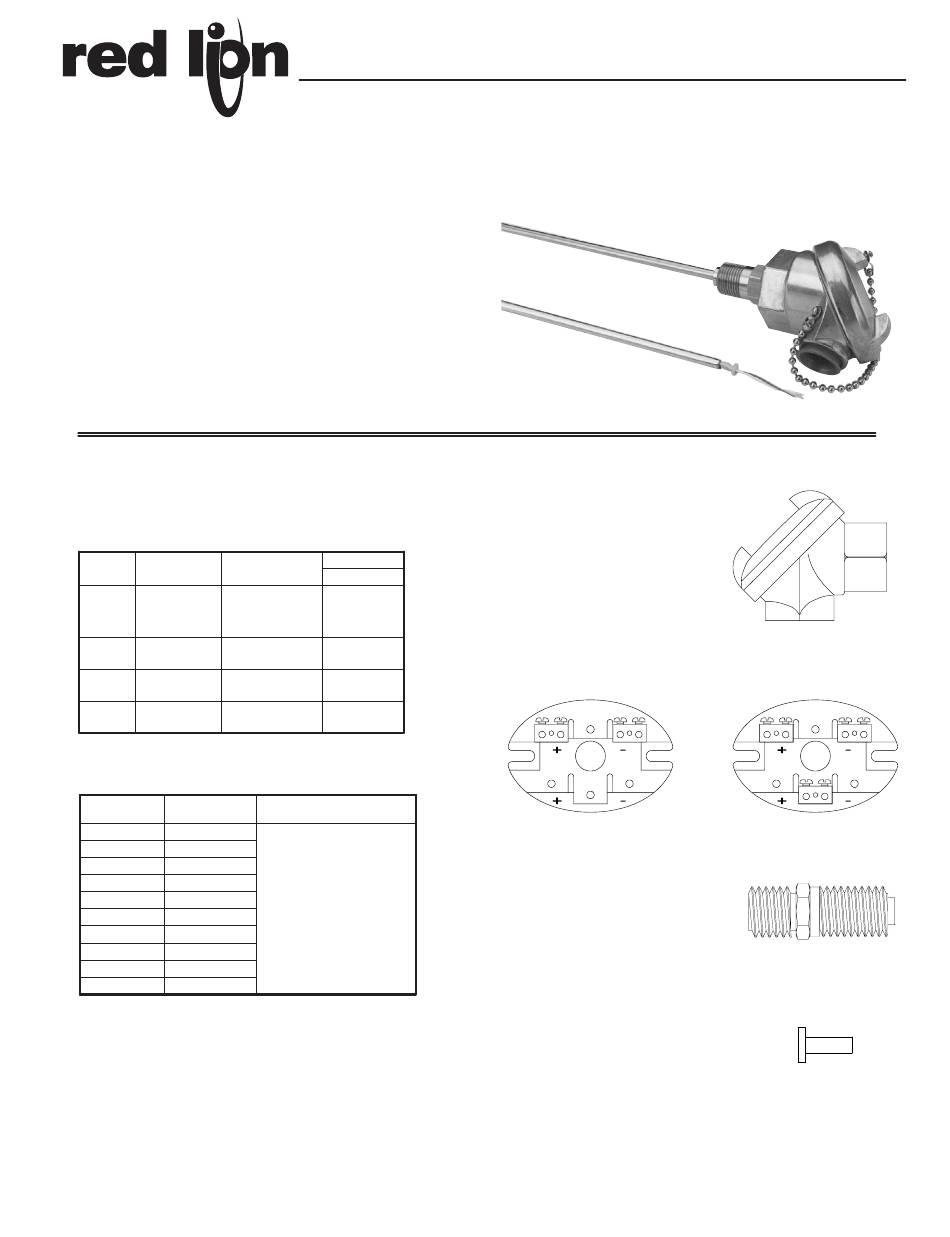

MODEL TMP - FIELD CUTTABLE TEMPERATURE SENSOR PROBES
AND ACCESSORIES

GENERAL DESCRIPTION

Model TMP Thermocouple and RTD Temperature Probes are field cuttable
to the desired length. The probes can be trimmed to within 3.5" (88.9 mm) of
the probe tip allowing for greater application flexibility. Accessory hardware is
available to wire and mount the probes in the user's existing thermowell.
Optional spring loaded fittings (sold separately) slide along the probe sheath
to proper immersion depth as determined by the user. These fittings allow for
strong contact between the probe and the thermowell to improve response. The
spring loaded fittings are adjustable and reusable.

SPECIFICATIONS

1. TYPES:
Thermocouple: J, K, T, E
RTD: Platinum, 100 Ω @ 0°C, alpha = 0.00385 (DIN = 43760)
2. RANGE AND ACCURACY:
Thermocouple
TC TYPE RANGE
-200 to 0°C ±1.0°C or ±1.5%
-328 to 32°F ±1.8°F or ±1.5%
T
0 to 350°C ±1.0°C or ±0.75%
32 to 682°F ±1.8°F or ±0.75%
0 to 900°C ±1.7°C or ±0.5%
E
32 to 1682°F ±3.0°F or ±0.5%
0 to 750°C ±2.2°C or ±0.75%
J
32 to 1382°F ±4.0°F or ±0.75%
0 to 1250°C ±2.2°C or ±0.75%
K
32 to 2282°F ±4.0°F or ±0.75%
Note: Where the error is given in percent, the percentage applies to the
temperature being measured, not the range. Select whichever is greater.
RTD
TEMP ACCURACY
°C ±°C
-200 .42
-100 .25
0 .26
100 .44
200 .65
300 .86
400 1.09
500 1.34
600 1.60
650 1.74
3. SHEATH: Constructed of 304 stainless steel with an outside diameter of
0.25" (6.35 mm)
4. THERMOCOUPLE MEASURING JUNCTION:
Ungrounded thermocouple junction
5. PROBE LENGTH: 2 ft. (0.6 M). Min. length after cutting is 3.5" (88.9 mm).
6. LEAD LENGTH: 6" (152.4 mm) beyond the end of the uncut tube
7. LEAD WIRE INSULATION: Available in Teflon (400°F), Fiberglass
(900°F), or High Temperature Fiberglass (1300°F) (Thermocouple only)
For Sales and Support, Contact Walker EMD • Toll-free: (800) 876-4444 • Tel: (203) 426-7700 • Fax: (203) 426-7800 • www.walkeremd.com
WIRE COLOR
ACCURACY
ANSI
blue (+)
red (-)
violet (+)
red (-)
white (+)
red (-)
yellow (+)
red (-)
WIRE COLOR
There are no standard wire
colors for RTD probes. When
connecting the RTD wiring,
two wires are the same color
and one is a different color.
The two wires of the same
color connect to signal (+)
and excitation (+). These two
wires are interchangeable.
The other wire connects to
signal common.
ACCESSORIES (sold separately)
Weatherproof Heads:
Meets NEMA 4/IP65 requirements
Cast Aluminum
Protects against dust, rain, splashing,
and hose directed water
Weatherproof gasket
Stainless steel chain
Terminal Blocks
2 Terminal Simplex for use with TCs
TMPACC04
Spring Loaded Fittings: Connects
probe to thermowell and attaches
to weatherhead 1/2" NPT X1/2"
NPT Stainless Steel.
Tube Sleeve
Tube sleeve to protect probe leads
from burrs after cutting probe.
Bulletin No. TMP-D
Drawing No. LP0353
Released 8/05
TMPACC02
3 Terminal for use with RTDs
TMPACC05
TMPACC01
TMPACC03
