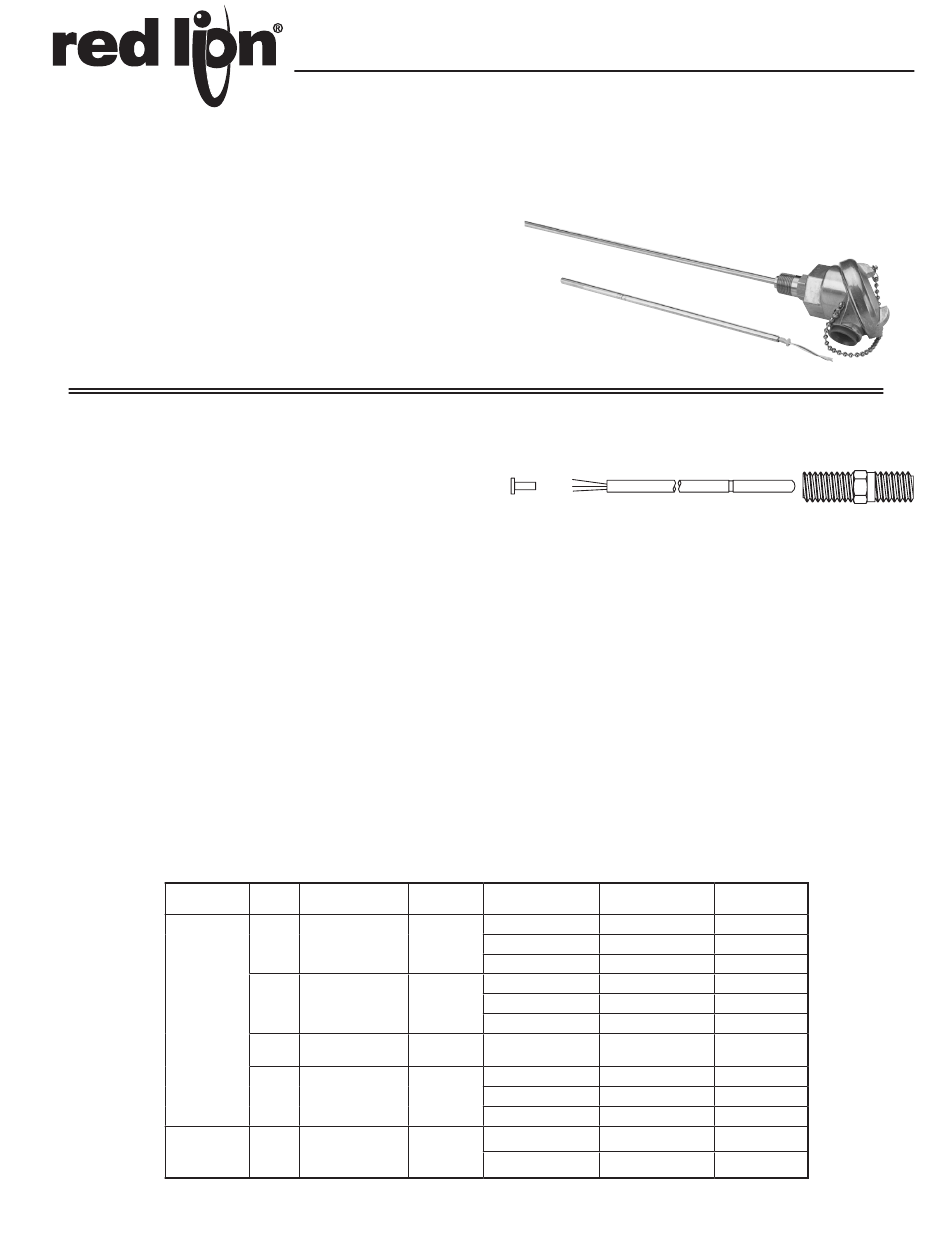

MODEL TMP - FIELD CUTTABLE TEMPERATURE SENSOR PROBES
AND ACCESSORIES
THERMOCOUPLE OR RTD

24" PROBE CUTTABLE TO 3" (76 mm)

MEASURE TEMPERATURES UP TO 1000 °F (538 °C)

MOUNTING AND WIRING ACCESSORIES

GENERAL DESCRIPTION
Model TMP Thermocouple and RTD Temperature Probes are field cuttable to
the desired length. The probes can be trimmed to within 3" (76 mm) of the probe
tip allowing for greater application flexibility. Accessory hardware is available
to wire and mount the probes in the user's existing thermowell.
Optional spring loaded fittings (sold separately) slide along the probe sheath
to proper immersion depth as determined by the user. These fittings allow for
strong contact between the probe and the thermowell to improve response.
SPECIFICATIONS
1. THERMOCOUPLE: Ungrounded J, K, T and E calibration available.
2. RTD: 3 Wire, 100Ω, Class "B" DIN Platinum (Type 385)
3. PROBE SHEATH: 0.25" (6.35 mm)
4. PROBE LENGTH: 24" (0.6 M) as supplied, can be field cut down to 3"
(76.2 mm).
5. WIRE LENGTH: 40" (1 M) thermocouple, 24" (0.6 M) RTD
6. WIRE INSULATION: PFA, Fiberglass or High Temperature Glass. As
specified by part number.
CUTTING THE TUBING
The thermocouple and RTD probes have a crimp mark located 3" (76.2 mm)
from the tip. This indicates the end of the internal seal. Damage to the probe will
occur if trimmed less than 3" from the tip.
1. Determine the desired probe length and mark it with a pen or marker. Secure
the probe within a tube vice being careful not to deform or flatten the probe.
2. Use a tubing cutter to cut the sheath at the marked location. Be careful not to
cut or damage the sensor wires.
ORDERING INFORMATION
DESCRIPTION
TC Probe
RTD Probe
MEASUREMENT WIRE
TYPE
RANGE COLOR
32 to +1382°F White (+)
J
0 to +750°C Red (-)
-328 to +2282°F Yellow (+)
K
-200 to +1250°C Red (-)
-328 to +662°F Blue (+)
T
-200 to +350°C Red (-)
-328 to +1652°F Violet (+)
E
-200 to +900°C Red (-)
White (-)
-328 to +1562°F
385 Red (+)
-200 to +850°C
Red (Exc)
3. Remove the excess tubing and trim the wires to the desired length.
4. Install the tube sleeve in the open end of the tube to protect the wires from
any sharp edges on the inside of the tube.
TMPACC03 * TMPXXXXX
(* One tube sleeve is included with each probe.)
INSTALLATION
1. Orient the probe and the spring loaded fitting as shown above.
2. Screw the spring loaded fitting one complete turn into the thermowell (not
included).
3. Push the probe into the fitting until it touches the bottom of the thermowell.
4. Hold the probe to the bottom of the thermowell and tighten the fitting. This
ensures good contact between the probe and the bottom of the thermowell.
5. Completely tighten the fitting into the thermowell.
Note: The probe must be inserted only as shown above to prevent damage to
the fitting.
If it becomes necessary to separate the probe and the fitting, first disconnect
the wires and then unscrew the fitting completely from the thermowell. Pull the
probe through the fitting from the end that was screwed into the thermowell. The
fitting will present resistance to the probe removal if you attempt to remove it
from the wrong direction.
WIRE INSULATION MAX PROBE TEMP.
PFA 260 °C / 500 °F
Fiberglass 482 °C / 900 °F
High Temp Glass 538 °C / 1000 °F
PFA 260 °C / 500 °F
Fiberglass 482 °C / 900 °F
High Temp Glass 538 °C / 1000 °F
PFA 260 °C / 500 °F
PFA 260 °C / 500 °F
Fiberglass 482 °C / 900 °F
High Temp Glass 538 °C / 1000 °F
PFA 260 °C / 500 °F
Fiberglass 482 °C / 900 °F
1
Bulletin No. TMP-G
Drawing No. LP0353
Released 05/14
TMPACC01
PART
NUMBER
TMPJ2SU1
TMPJ2SU2
TMPJ2SU3
TMPK2SU1
TMPK2SU2
TMPK2SU3
TMPT2SU1
TMPE2SU1
TMPE2SU2
TMPE2SU3
TMPA2S01
TMPA2S02
