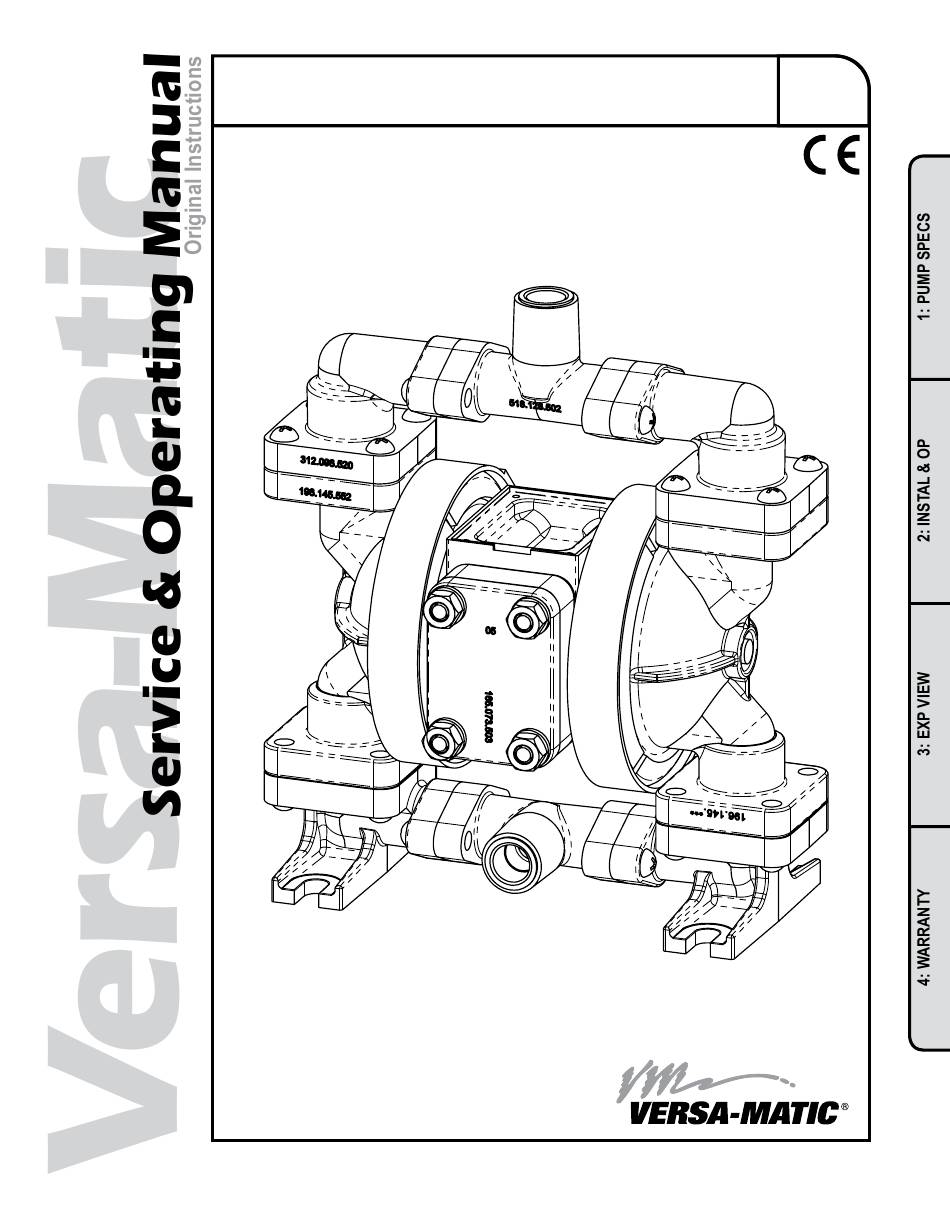

1/4" Elima-Matic Bolted Plastic
with Non-Metallic Center Sections
E6 Plastic Pump
• Polypropylene
• PVDF
4
REVISION
3
VERSA-MATIC
CHG
DATE
APP
DATE
800 North Main Street, Mansfield, OH 44902 USA • Phone: (419) 526-7296 • www.versamatic.com
PART NUMBER
MATERIAL
PUMP REFERENCE
®
• Warren Rupp, Inc. • A Unit of IDEX Corporation
ECN
© Copyright 2017 Warren Rupp, Inc. All rights reserved
E6
2
MADE FROM
UNLESS OTHERWISE
SPECIFIED
TOLERANCES
.XX
.XXX
ANGULAR
SURFACE FINSH
ASS'Y REFERENCE
DO NOT SCALE DRAWING
DIMENSIONS ARE INCHES
WAR
THIS IS A PROPR
WITHOUT THE E
.010
.005
DESCRIPTION
1/2
63
DRAWING NUMB
Advertisement
Related Manuals for Versa-Matic E6
Summary of Contents for Versa-Matic E6
- Page 1 1/4" Elima-Matic Bolted Plastic with Non-Metallic Center Sections E6 Plastic Pump • Polypropylene • PVDF PART NUMBER MADE FROM UNLESS OTHERWISE SPECIFIED TOLERANCES MATERIAL THIS IS A PROPR WITHOUT THE E .010 .XXX .005 DESCRIPTION ANGULAR SURFACE FINSH DRAWING NUMB...
-
Page 2: Safety Information
Safety Information IMPORTANT WARNING When used for toxic or aggressive fluids, the pump should Read the safety warnings and instructions in this manual always be flushed clean prior to disassembly. before pump installation and start-up. Failure to comply with the recommendations stated in this manual could damage the pump and void factory warranty. - Page 3 Table of Contents SECTION 1: PUMP SPECIFICATIONS ....1 • Nomenclature • Performance • Materials • Dimensional Drawings SECTION 2: INSTALLATION & OPERATION ..5 • Principle of Pump Operation • Typical Installation Guide • Troubleshooting SECTION 3: EXPLODED VIEW ......8 • Composite Drawings •...
- Page 4 C Carbon Steel w/ PTFE O-Rings OB Oil Bottle H Alloy C w/ PTFE O-Rings T PTFE Encapsulated Silicone O-Rings Y FDA Santoprene *More than one option may be specified for a particular pump model. versamatic • Model E6 Non-Metallic Bolted e6nmdlCsm-rev0317...
- Page 5 -20 c to +100 C for model rated as category 2 equipment In addition, the ambient temperature range and the process temperature range do not exceed the operating temperature range of the applied non-metallic parts as listed in the manuals of the pumps. Model E6 Non-Metallic Bolted • versamatic...
- Page 6 Capacity in Liters Per Minute NOTE: Performance based on the following: Elastomeric fitted pump, flooded suction, water at ambient conditions. The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%. versamatic • Model E6 Non-Metallic Bolted e6nmdlCsm-rev0317...
- Page 7 The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed. Dimension Standard 7" 3 1/8" 5 1/2" Pulse Output Kit 7" 3 1/8" 5 1/2" Model E6 Non-Metallic Bolted • versamatic e6nmdlCsm-rev0317...
- Page 8 E6 Non-Metallic Bolted Dimensions in inches (mm dimensions in brackets). The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed. Dimension Standard Pulse Output Kit versamatic • Model E6 Non-Metallic Bolted e6nmdlCsm-rev0317...
- Page 9 (flooded suction condition), pipe the exhaust higher than the product source to prevent siphoning spills. 1" DIAMETER AIR EXHAUST PIPING LIQUID LEVEL SUCTION LINE Model E6 Non-Metallic Bolted • versamatic e6nmdlCsm-rev0317...
-
Page 10: Available Accessories
To start the pump, slightly open the air shut-off valve. After the pump primes, the air valve can be opened to increase air flow as desired. If opening the valve increases cycling rate, but does not increase the rate of flow, cavitation has occurred. The valve should be closed slightly to obtain the most efficient air flow to pump flow ratio. versamatic • Model E6 Non-Metallic Bolted e6nmdlCsm-rev0317... -
Page 11: Troubleshooting Guide
Inspect check valves and seats for wear and proper setting. Replace if necessary. Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs. For additional troubleshooting tips contact After Sales Support at service.warrenrupp@idexcorp.com or 419-524-8388 Model E6 Non-Metallic Bolted • versamatic e6nmdlCsm-rev0317... - Page 12 476.117.356 Wetted End Kit Hytrel Diaphragms & Balls 476-117-600 Wetted End Kit PTFE Diaphragms & Balls 476-117-644 Wetted End Kit Santoprene Diaphragms & Balls 476-129-000 Air End Kit 520-361-000 Page Model E6 Non-Metallic versamatic • Model E6 Non-Metallic Bolted e6nmdlCsm-rev0317...
- Page 13 Elbow, Discharge 312-096-552 Seal, Manifold 520-033-600 Manifold, Horizontal (Optional Discharge) 518-127-520 Manifold, Horizontal (Optional Discharge) 518-127-552 Manifold, Vertical 518-128-520 Manifold, Vertical 518-128-552 Gasket, Sealing 360-086-360 Screw, Machine 10-32 UNF x .88 Long 706-023-115 Model E6 Non-Metallic Bolted • versamatic e6nmdlCsm-rev0317...
- Page 14 893-096-004 Solenoid Valve, NEMA 7/9, 240VAC 1 893-096-004 Solenoid Valve, NEMA 7/9, 240VAC 1 893-096-003 Solenoid Valve, NEMA 7/9, 120VAC 1 893-096-004 Solenoid Valve, NEMA 7/9, 240VAC 1 520-361-000 Page Model E6 Non-Metallic versamatic • Model E6 Non-Metallic Bolted e6nmdlCsm-rev0317...
- Page 15 OPERATION (pumping rate). The Solenoid Shifted Versa-Matic pump has a solenoid operated, air distribution valve in place of the standard Versa-Matic’s pilot operated, OPERATION air distribution valve. Where a pilot valve is normally utilized to cycle The Solenoid Shifted Versa-Matic pump has a solenoid operated, air the pump’s air distribution valve, an electric solenoid is utilized.
- Page 16 Versa-Matic warrants to the original end-use purchaser that no product sold by Versa-Matic that bears a Versa-Matic brand shall fail under normal use and service due to a defect in material or workmanship within five years from the date of shipment from Versa-Matic’s factory.
