- Page 1 PROGUARD Coffee Reverse Osmosis (RO) and Mineralisation System Handbuch deutsch Manual english français Handboek nederlands italiano español polski dansk 04/2019...
- Page 2 English Page 42 – 79 1 Introduction 2 Operating and Safety Instructions 3 General Product Information 4 Installation Requirements 5 Installation 6 Maintenance 7 Long Term System Shutdowns 8 Disassembly 9 Troubleshooting 10 Technical Data 11 Information For The End-user...
-
Page 3: List Of Abbreviations

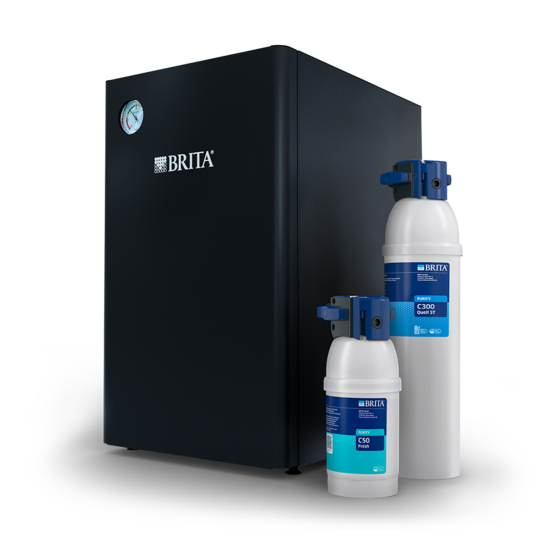

1 Introduction 1.1 Function and Application Area PROGUARD Coffee is a non-electric system that combines several water treatment technologies. It is designed for the desalination of potable water and its subsequent mineralisation for the production of water of high sensory quality. The water thus produced is intended to be used as feed water for coffee, espresso and hot drinks machines only. -
Page 4: Disposal And Recycling
For a period of TWO YEARS the entire system and replaceable components (excluding • PROGUARD Coffee system has a limited life-time of FIVE years and must be replaced after this period. • be replaced after this period at the latest. -
Page 5: Operating And Safety Instructions
MUST be carried out by specialist staff with an understanding of local and regional regulations/ codes that may affect the installation requirements. • To reduce the risk of physical injury: Depressurise PROGUARD Coffee as well as the PURITY when maintaining or disassembling the unit as described in chapter 5: Installation and chapter 8: Disassembly. -
Page 6: General Product Information
3 General Product Information 3.1 How Reverse Osmosis Works in PROGUARD Coffee PROGUARD Coffee uses the mains water pressure to force water molecules through a semi-permeable membrane. The concentrate of PROGUARD Coffee with its concentrated amount of scale, gypsum, sodium chloride and sodium sulphate will be released to the drain. The permeate however is nearly free of ions and molecules other than water and carbon dioxide. - Page 7 Pump (non-electric) be installed. output of PROGUARD Coffee. The maximum inlet pressure must not exceed 8.6 bar. The maximum pressure the RO can be operated with is 6 bar. A pre-installed pressure reducer reduces the inlet pressure to the maximum permissible operating pressure of 6 bar.
-
Page 8: Installation Requirements
4.2 Required Tools and Accessories The tools and accessories listed below are required for the successful installation of PROGUARD Coffee and are not included in the scope of delivery. To link the mains water supply (the thread size depends on the local conditions) -
Page 9: Installation
5.1 App (BRITA Professional Filter Service) The App is a tool that can be downloaded free of charge from App stores (Android, iOS) and from https://www.brita.net. The App is required for the installation and maintenance process. It is the only Output values... - Page 10 • Make sure all installation requirements are met (see chapter 4: Installation Requirements) • Use the App to determine the suitable type and size of the • Use the App to determine the recommended bypass setting Make sure to have for PROGUARD Coffee and...
- Page 11 Step Preparation and positioning • Unpack PROGUARD Coffee and all supplied components • Double check the parts and quantities provided # Name 1 Housing 2 PURITY C150 PROGUARD 3 PURITY C500 MinUp or C50 Fresh mounting bracket) 6 Manual Flushing head...
- Page 12 Preparation and positioning • Remove the metal cover at the front • Place PROGUARD Coffee in front of its intended place of operation Required accessories that are not included in the scope of delivery: • To link the mains water supply (the thread size depends on the local conditions) to the •...
- Page 13 Step Connection of PROGUARD Coffee Removal of blind plugs How to remove the blind plugs at the indicated spots: • • • Keep the locking clips and the blind plugs well for later use • Plug the two threaded inserts into the water inlet connection and the connection •...
- Page 14 • Do not yet connect the • Make sure the is closed the grey slider is pushed inwards • Use the hose (outlet) with the threaded insert that is plugged into the water inlet connection of PROGUARD Coffee (step 2.2)
- Page 15 Step Connection of PROGUARD Coffee • Make sure the locking handle of is open. Open the locking handle by bringing its two blue handles in an inclined position • Make sure the bleed valve is closed • Make sure the sampling valve is closed •...
- Page 16 • Flushing of the mineralisation cartridge PURITY C500 MinUp Step • Flushing of the mineralisation cartridge: • Open the mains water supply valve • Open the shutoff valve • Flush the mineralisation cartridge: Open the of the by pushing the grey slider outwards. (1 bed volume equals 5.4 litres).
- Page 17 • Flushing of the mineralisation cartridge PURITY C500 MinUp Step • • close the of the by pushing the grey slider inwards • Open the locking handle of the by bringing its two blue handles in an inclined position. Do not close the shutoff valve! •...
- Page 18 Step • • • Insert the • Close locking handle by bringing its two blue handles in a horizontal position • Make sure that the is set to 0% (Allen key size 4mm) • Place a bucket close to the cartridge (~10 litres) and hang hose into the bucket •...
- Page 19 30 min. ting that is plugged into the waste water outlet of PROGUARD Coffee: • Hang the waste water tube deeply into the drain to prevent noise resulting from the out coming water streams •...
- Page 20 *** Make sure the imprinted arrow on the FlowMeter points away from the 90° angle • Use the separately supplied FlowMeter manual to start programming the FlowMeter • Put the FlowMeter on the top of the housing of PROGUARD Coffee. Do not yet attach the FlowMeter with the velcro fastener Use the other of the two self-selected hoses (step 1.5) to connect the FlowMeter...
- Page 21 This can take up to 5 minutes 5 min. pull the Pull the the membrane cartridge and store it on the bottom of the housing of PROGUARD Coffee for the next servicing job. Do not store head in a plastic bag!
- Page 22 This blind plug only needs to be removed in case an electric booster pump needs to be installed (see chapter 9: Troubleshooting) Step Flushing of the PROGUARD Coffee system • Put PROGUARD Coffee to its intended place of operation • Attach the velcro fastener of the FlowMeter to a suitable spot...
- Page 23 • As a result, a regular click-sound made by the non-electric pump should be noticeable. PROGUARD Coffee is now put into operation • Within the next minutes, the pressure indicating needle of the manometer should gradually move upwards into the green range...
- Page 24 Step Flushing of the PROGUARD Coffee system Bleeding of PROGUARD Coffee: • Wait until the pressure needle of the manometer shows a value of at least • Insert the black tube into the bleed valve • Place a bucket under the tube and open the bleed valve until the...
- Page 25 • Open the sampling valve and wait until all storage water has been released from the tank • Close the sampling valve and discard the collected tank water into the drain Step Taking of a water sample and testing the water parameters Let PROGUARD Coffee run for 5 minutes 5 min.
- Page 26 Step Taking of a water sample and testing the water parameters Open the sampling valve, close the sampling valve and into the drain Open the sampling valve again, sampling valve • Use a carbonate hardness test kit to check carbonate hardness level lies within the desired range •...
- Page 27 Step Finalisation of the Installation Process Reinstallation of the blind plugs at the front side of PROGUARD Coffee: • Plug the blind plugs that have been kept since step 2.1 back into their original position • Attach locking clips •...
-
Page 28: Maintenance
Step Finalisation of the Installation Process Hook the metal cover at the front Congratulations! You have successfully completed the installation process 6 Maintenance regular maintenance. In order to ensure the reliable function of the RO as well as the operated down- stream device (coffee machine) and to prevent potential damage, it is important to adhere to the maintenance cycle outlined below. - Page 29 (preferably after the End-user At least 1x month 7 Long Term System Shutdowns BRITA recommends not to decommission PROGUARD Coffee components for long periods. During Installa- tion and Putting The System Into Operation). Flushing volume after 4 Filter cartridge...
- Page 30 8 Disassembly To change the place of operation or to disassemble and store PROGUARD Coffee, carry out the steps described below. PROGUARD Coffee must be reinstalled within the next 72 hours after disassembly. Steps Instructions • Close the mains water supply valve •...
-
Page 31: Troubleshooting
9 Troubleshooting 9.1 Errors, Root Causes and Measures For The Service-technician the respective problem. The problem solving measures may only be carried out by a service technician. Error Root cause Measures service technician Water supply turned off Ensure water supply No water Open shutoff valve (“M”) and/or valve turned off... - Page 32 Error Root cause Measures service technician • Measure the line pressure • If the line pressure is <3 bar, install a booster pump Regular supply of bypass water • Even at a line pressure of 3–5 during peak demand bar, an installation is possible to Dissatisfaction with coffee taste per hour...
- Page 33 Complaint process via your local types on site BRITA sales partner 9.2 Troubleshooting Instructions For Service-technicians The instructions below describe the steps the service-technician has to undertake in order to correctly carry out the proposed measures provided in chapter 9.1.
- Page 34 Instructions Note: Flushing of a new PURITY C150 PROGUARD cartridge has no impact on the water supply that is being delivered by PROGUARD Coffee to the coffee machine during this process should have been stored at the bottom of the housing of PROGUARD Coffee) position 30 minutes.
- Page 35 • Product Specification Electric Booster Pump essary for the smooth operation of PROGUARD Coffee, refer to chapter 3.2: Role and Functionality of The Main Components of PROGUARD Coffee >> Pump (non-electric). the technical requirements to help PROGUARD Coffee operate successfully.
-
Page 36: Technical Data
Unused 25 kg (PROGUARD Coffee housing, without cartridges, empty tank) (dry) Weight In opera- 45 kg (PROGUARD Coffee housing, with wet membrane and mineralisation tion (wet) 10 l/h at 3 bar mains water pressure supply, l/h Storage tank volume ~6 litres... -
Page 37: Information For The End-User
(e.g., non-electric pump) is in accordance with the local regulations. 11.3 Warranty Provisions PROGUARD Coffee is subject to the statutory warranty to the original end user. The warranty period commences on the date of purchase and is administered as follows: •... - Page 38 PROGUARD Coffee system has a limited life-time of FIVE years and must be replaced after this period. • after this period at the latest. • The tank has a limited life-time of TWO years maximum and must be replaced after this period at the latest.
- Page 39 At least 1x month 11.7 Long Term System Shutdowns BRITA recommends not to decommission PROGUARD Coffee components for long periods (see chap- ter 7: Long Term System Shutdowns). In case of extended periods of non-use, call a service technician. 11.8 Troubleshooting of the detected or perceived fault, check if the issue is listed in the error directory of chapter 9.1: Errors,...
- Page 40 +31 (0) 40 281 84 36 OR VISIT info@brita.nl tel +45 70 27 32 66 https://professional.brita.net/app www.brita.nl britanordic@brita.net www.brita.be www.brita.dk For product-specific certifications, see product label Information in the instruction for use subject to change BRITA ® is a registerd trademark of BRITA GmbH, Germany.
