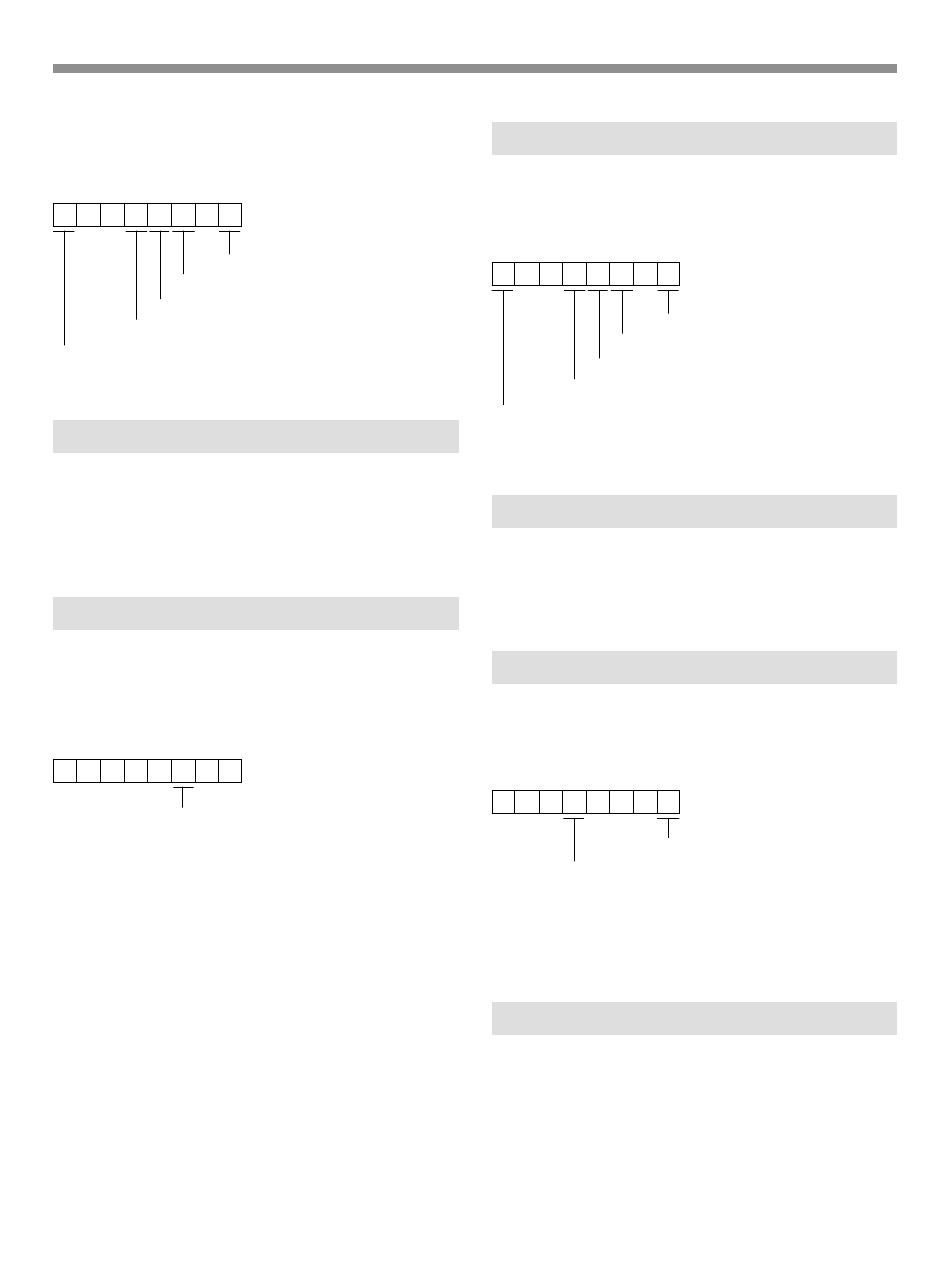

Command Description
3rd byte
This byte specifies which sub control data items,
specified in the first byte, are to be reset.
CHROMA
BRIGHTNESS
APERTURE
CONTRAST
VOLUME
Set 1 in the bit for the item to be reset.

Input Config Sense (60H)

This command requests the current status of the input
signals of the monitor.
The monitor returns the Input Config Replay (70H) to
the computer.

White Balance Sense (61H)

This command requests the white balance data stored
in RAM in the monitor.
Set 1 in the white balance data request bit. Bits other
than that are undefined bits and their values are always
ignored.
White balance data request
The monitor returns the response with the White
Balance Replay (71H) command.
10

Sub Control Sense (6BH)

This command requests sub control data from the
monitor.
The bit assignment is as follows.
CHROMA
BRIGHTNESS
APERTURE
CONTRAST
VOLUME
Set 1 in the bit for the item requested.

Landing Sense (6CH)

This monitor requests the landing data.
The monitor returns the landing data response with the
Landing Replay (7CH) command.

Status Sense (6DH)

This command requests the status of the monitor's
current operation.
The bit assignment is as follows.
DISPLAY
RGB MODE
Set 1 in the item which should be in the response.
The monitor returns the response with the Status
Replay (7DH) command.

Status Remote (6EH)

This command requests the current status of the
monitor's remote control function.
The monitor returns the response with the Status
Remote Reply (7EH) command.
