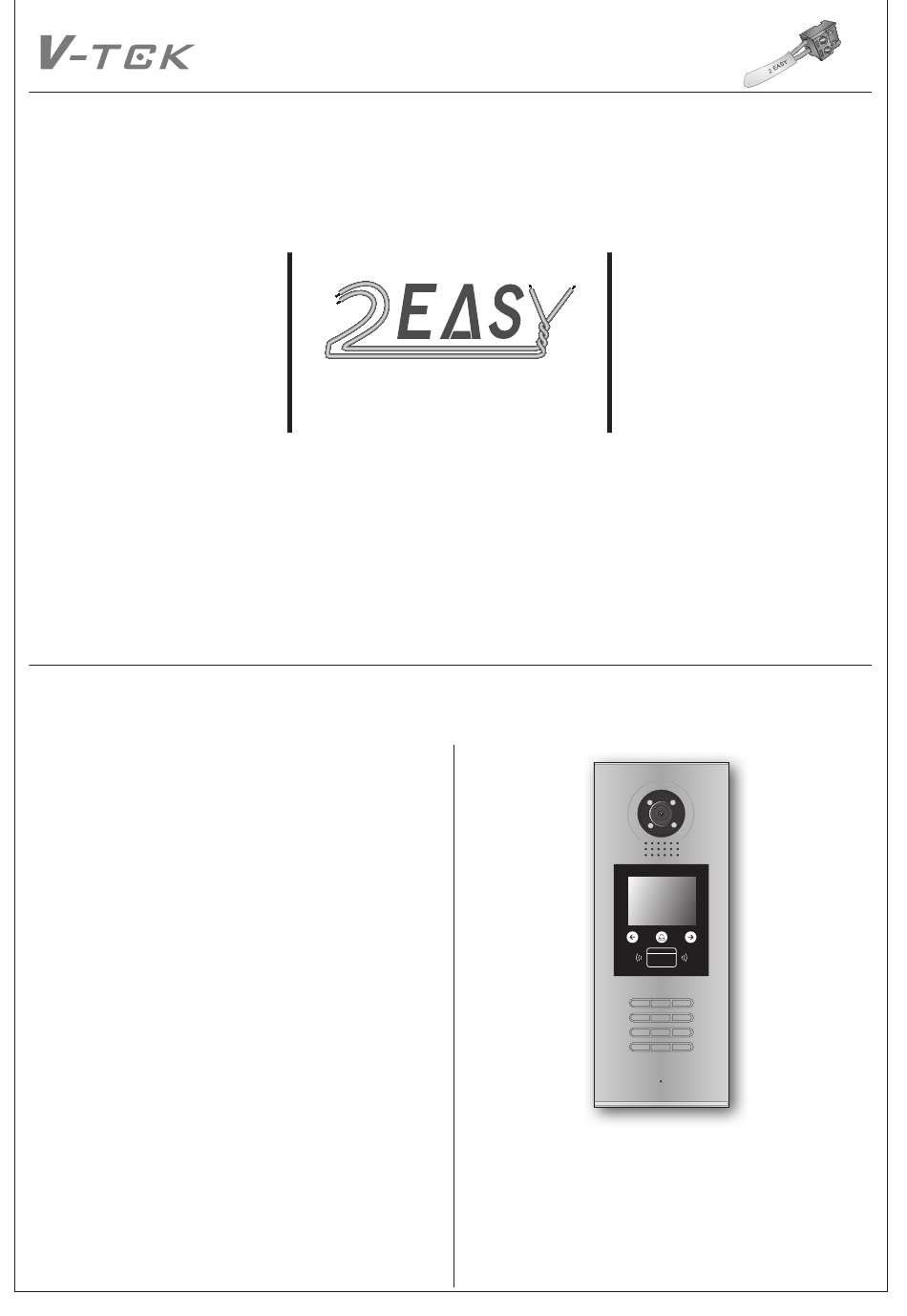

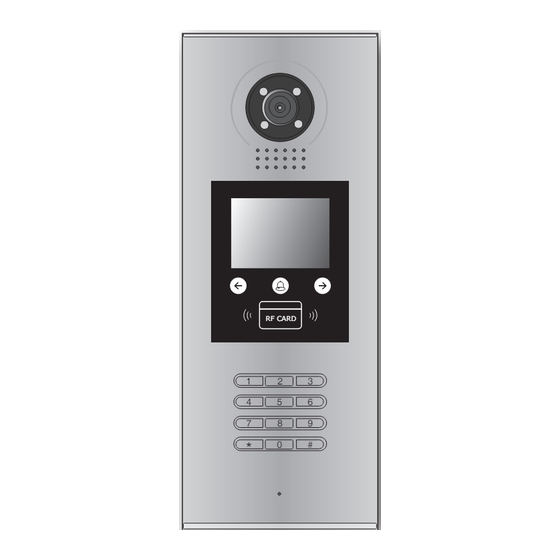

DMR18S TECHNICAL MANUAL
Apartment Intercom System
2-wire series
DigiOpen
CONTENTS
RF CARD
1
2
3
4
5
6
7
8
9
*
0
#

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiOpen 2Easy DMR18S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-TEK DigiOpen 2Easy DMR18S

Summary of Contents for V-TEK DigiOpen 2Easy DMR18S

  • Page 1: Table Of Contents

    DMR18S TECHNICAL MANUAL Apartment Intercom System 2-wire series DigiOpen CONTENTS INTRODUCTION................2 Installation Guide...............2 CONFIGURATION................4 Debug Mode................4 Work Mode.................8 Software Update................10 Ringtone Update...............10 RF CARD UI Update...................11 Namelist Update.................12 by SD Card................12 by DT-Config................13...

  • Page 2: Introduction

    INTRODUCTION Installation Guide DESCRIPTION MOUNTING Surface mounting An upgrade of DMR18, DMR18S is more stable and has a few new functions such as touch sensitive icons, easy upload via SD card of namelist, voice prompt, etc. , which brings clients fresh and modernized experience.
  • Page 3 INTRODUCTION Installation Guide SYSTEM CONNECTION ELECTRIC LOCK CONNECTION 1) Door Lock Controlled with Internal Power 1. The lock is limited to 12Vdc, and holding current must be less than 250mA when using internal power supply mode Code=3 3 Code=3 1 Impedance OFF ON switch...

  • Page 4: Configuration

    CONFIGURATION Debug State Description: DEBUG MODE 1.ID Code: If more than one door station in one system, they need to be assigned unique ID Code. Type-in 1 to enter ID Code setting. You The Debug Mode is your starting point for using all the applications can set ID of Door Staion here: 0~3 to set as Door Station 1 ~ Door on DMR18S Station 4...
  • Page 5 CONFIGURATION Debug Mode 9.Default: Type-in 9 to enter Default setting. Type-in the Admin password to restore to a factory default 5. Doorplate Mode 5. Doorplate Mode [11] [ - ] [ : : : : : : : : ] Input 0 0: * 1: 123...
  • Page 6 CONFIGURATIONS Debug Mode 4.Unlock Code: Type-in 4 to enter Unlock Code setting. 8.About: Type-in 8 to enter About page. The information includes Default unlocking code is 1111. Type-in 4 digit numbers to set a Hardware version, Software Version etc. new code (Exception numbers: 8001~8019 and 9008) Hardware Version DMR18S-CT a1.1 4.
  • Page 7 CONFIGURATION Debug Mode 2.Delete Card: ONLINE MONITORS • Press 2 to enter Delete By Card To search the Gateway and Online Monitors,input the monitor code number to search 2. Delete By Card 2. Delete By Card > > D e b u g S t a t e < < Updated 4.

  • Page 8: Work Mode

    CONFIGURATION Work Mode DEFINITION DT-DJ MODE FOR AUDIO ONLY MONITORS Total four different work modes are available for DMR18S to Work Mode set to 1: accommodate different situations. In standby mode, input #8002 Up to 128 Audio Only Monitors can be connected. The DT-DJ + 66666666 and press 5 to enter Work Mode setting page Mode can assign the address from 001 to 128 without need of BDU 1.
  • Page 9 CONFIGURATION Work Mode DT-BDU ROUTER MODE DT-BDU GATEWAY MODE The Router Mode is used for system up to 256 apartments connected The Gateway Mode is used for the community network system, the with up to 8 x BDUs. The namelist can be updated by SD Card or common door station is connected in the system which can call all the DT-Config (More details refer to Update Namelist Section).

  • Page 10: Software Update

    CONFIGURATION System Update 5. Insert the SD card to slot, the information of “Download...” will be DESCRIPTIONS showed when the updated is in progress. After 3 seconds, a long sound “BP+” will be heard to start the updated. This section is used for the software version V000101 of DMR18S. (After 2015.07.10);...

  • Page 11: Ui Update

    CONFIGURATION System Update • If other languages are needed for you, please record the audio file 7. Check the Tone which language you want. 1. Language 2. Tone Select [01] 2. Tone Select [01] 3. Tone Volume • Then provide the audio file to our company, a Ring.bin file will be Setup Mute 4.

  • Page 12: Namelist Update

    CONFIGURATION System Update 3. Copy the Update UI file to SD card by computer. 6. When update is finished, it will return to Standby Mode interface. And show the new UI. NAMELIST UPDATE 4. Select 3 to enter UI update,the information of “update ready” will be showed 1) Namelist update by SD card 1.

  • Page 13: By Dt-Config

    CONFIGURATION System Update 3. Copy the Namelist file to SD card by computer. 2) Namelist update by DT-Config DMR18S-Config software is for parameters setting, namelist setting etc. It is great convenience to installation. The DMR18S-Config software operation is as follows: 1.
  • Page 14 CONFIGURATION System Update • Check Name List on DMR18S Set the DMR18S Work Mode as 0 (more details refer to Work Mode setting section). • Press touch button to enter Name List page. See the following picture shows. 4. Edit Namelist 4.1 Apartments •...
  • Page 15 CONFIGURATION System Update • Check Name List on DMR18S • Check Name List on DMR18S Set the DMR18S Work Mode as 2 (more details refer to Work Mode Set the DMR18S Work Mode as3 (more details refer to Work Mode setting section).
