Page 1: User Manual

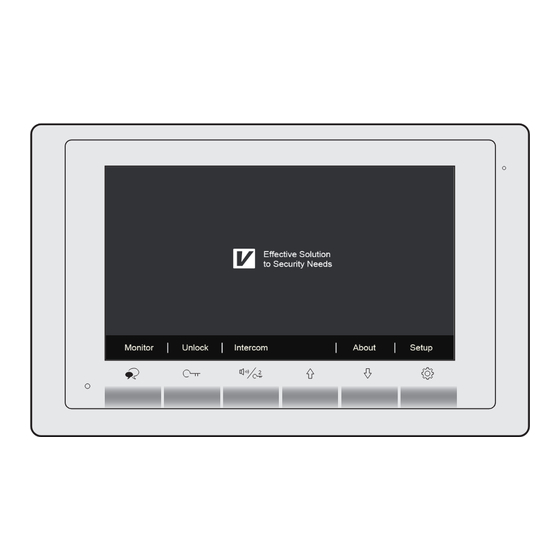

ENGLISH 2 WIRE INTERCOM SYSTEM USER MANUAL Please read this manual carefully before using the product, and keep it well. DT-ENG-17/TD7-V1... -
Page 2: Table Of Contents
Contents 1.Parts and Functions ............1 2.Monitor Mounting .............. 2 3.Main Menu ................. 2 4.Basic Door Release Operation ........... 2 5.Intercom Function .............. 3 6.Basic Setup Instructions ............. 3 7.Monitor Parameter Setting ..........5 8.Basic Connection ..............8 9.Specification ............... 8 10.Precautions ............... -
Page 3: Parts And Functions
1. Parts and Functions Microphone LCD Screen Speaker Talk/Mon Button Setup Button Unlock Button Down/Decrease Button Call Button/ Up/Increase Button Unlock 2nd Button Mounting Hook Connection Port 1 2 3 4 5 6 Mounting Hook Key functions Microphone Receive voice from the user. LCD screen Display the visitors' image. -
Page 4: Monitor Mounting
2. Monitor Mounting 1. Use the screws to fix the Mounting Bracket on the mounting box.(fitting accesories includes a Bracket (Two pieces of 4X25 screws are needed for fastening the Mounting Bracket), Special 2 wire connectors to connect with Monitor) 2. -
Page 5: Intercom Function
UNLOCK Button to open the door for the visitor.(if 1. During talking state, Press two locks are connected to door camera, press unlock 2nd Button to release the second lock ) 2. When the monitor is in standby mode, press TALK/MON Button, or press Monitor button on main menu, the screen can display the view of outside. -
Page 6: Restore To Default
Tone volume setting Press Next buttton to select the fourth item on setup page. And then use button to increase/decrease the tone volume you want. Door Next Next Restore to Default Press Next buttton to select the fifth item on setup page. And then use button to restore to default. -
Page 7: Monitor Parameter Setting
7. Monitor Parameter Setting How to enter the installation setting page 00.00 00.01.00 [ 0000 ] AUTO Exit Exit Next 1.Press About button 2 . P r e s s a n d h o l d 3.Use button to UNLOCK button for 3s. - Page 8 How to set date and time format The system offers two methods of date and time. The code number of 8008 is used to set the date format as month/date/year The code number of 8009 is used to set the date format as date/month/year The code number of 8012 is used to set the time format as 12 hour system The code number of 8013 is used to set the time format as 24 hour system How to set the monitor panel on...
- Page 9 How to set the user code for the monitor In the DT system,every apartment must have a unique identification called User Code. The DIP swiches are used to configure the User Code for each Monitor. Bit-1 to Bit-5 are used to User Code setting. The value is from 1 to 32, which have 32 •...
-
Page 10: Basic Connection
8. Basic Connection door station BUS(IM) BUS(DS) Doorbell Button 1 2 3 4 5 6 Switch 9. Specification ● Power supply for indoor monitor: DC 20~28V ● Power consumption: Standby 6.6mA; Working 240mA ● Monitor screen: 7 Inch digital color LCD ●... -
Page 11: Precautions
10. Precautions 1) All components should be protected from violence vibration. And not allow to be impacted, knocked and dropped. 2) Please do the cleanness with soft cotton cloth, please do not use the organic impregnant or chemical clean agent. If necessary, please use a little pure water or dilute soap water to clean the dust. - Page 12 DT-ENG-17/TD7-V1 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
