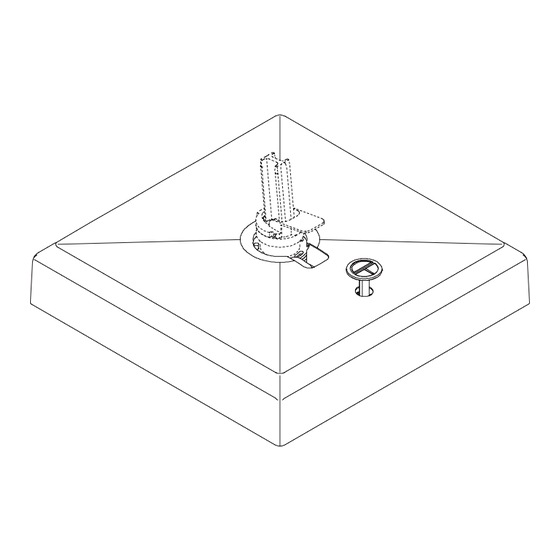

- Page 1 BASE-13R Up to 400 lbs. Cantilever Rolling Base Assembly and Operation Guide...
- Page 2 Thank you for purchasing Treasure Garden’s Cantilever Rolling Base. Please remove all contents from the package, inspect and review parts list. CAUTION: To reduce personal injury and damage to your base or umbrella, read and follow this instruction manual. We recommend a two-person team for assembly and disassembly.
- Page 3 S T E P 1 Base Assembly Select area to assemble base. Using a two-person team, lift base from carton and place base in desired location (Fig. 1). CAUTION: Avoid fingers getting caught under base! Press the spring loaded lock located under foot pedal to remove pedal and set aside (Fig. 2). Remove base lid from base frame and set aside (Fig.
- Page 4 Remove rotating hub from the main frame (sold separately) by removing the (2) bolts and (2) washers (Fig. 5) from lower backside of umbrella. Set aside bolts and washers for later use. Now, place rotating hub onto base frame and secure with supplied (5) hub bolts and washers included with umbrella (Fig.
- Page 5 Carefully place base lid onto base frame (Fig. 10). Re-attach foot pedal (Fig. 11). Your base is now ready for umbrella installation. Please refer to umbrella manual for installation instructions. NOTE: You may roll assembled base to desired location prior to installing umbrella onto base.
- Page 6 S T E P 2 Operating Rolling Base To move your base/umbrella to a new desired location, firmly step down on the base foot pedal to unlock base wheels (Fig. 12). Roll base to new location (Fig. 13). Firmly step down on foot pedal again to lock wheels and position in place (Fig.
- Page 7 This warranty gives you specific legal appears during the warranty period; rights, and you may have other rights Treasure Garden will (at its option) repair which vary from state to state. or replace the product without charge. RUST: Rust is a natural part of the...
- Page 8 ©2018 Treasure Garden, Inc. - All Rights Reserved. 12/18...
