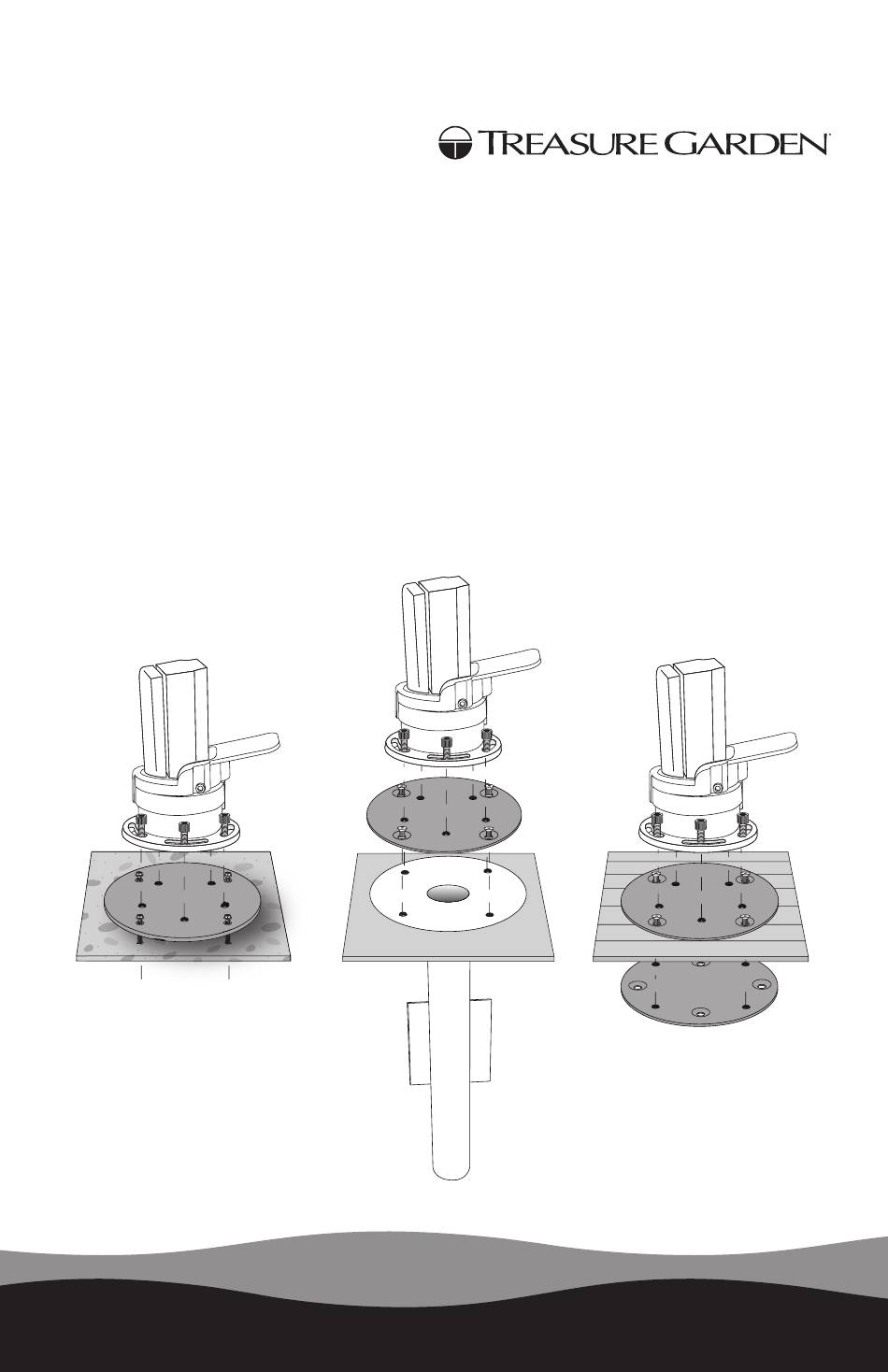

- Page 1 AMK-C AMK-G AMK-W Mount Kits Assembly and Operation Guide...
- Page 2 Thank you for purchasing Treasure Garden’s AMK Mount Kit. Please remove all contents from the package, inspect and review checklist. AMK MOUNT KIT CHECK LIST Concrete Mount Kit check list: Adapter Plate (8.5” diameter) Screw Anchors 3/8” x 3” (4) In-Ground Fitting Kit check list: Adapter Plate (8.5”...
- Page 3 CONCRETE MOUNT KIT Concrete Mount Kit includes: Adapter Plate (8.5” diameter) Screw Anchors 3/8” x 3” (4) Hub Bolts AKZP/AKZ/AG25T & Washers Rotating Hub (included with (included with umbrella) umbrella) Adapter Plate Screw Anchors At least 6” thick S T E P 1 Bolt Adapter Plate Final installation hardware should be determined by and professionally installed by a license contractor.
- Page 4 IN-GROUND MOUNT KIT In-Ground Fitting Kit includes: Adapter Plate (8.5” diameter) In-Ground Fitting Stem Bolts (4) Hex Wrench Hub Bolts AKZP/AKZ/AG25T & Washers Rotating Hub (included with (included with umbrella) umbrella) Stem Bolts Adapter Plate Hole Diameter Ground 90 cm / 3ft” Level S T E P 1 Preparation Final installation should be determined...
- Page 5 WOODEN DECK MOUNT KIT Wooden Deck Mount Kit includes: Adapter Plate Base Plate Countersunk Bolts (4) Hex Wrench Hub Bolts AKZP/AKZ/AG25T & Washers Rotating Hub (included with (included with umbrella) umbrella) Adapter Plate Countersunk Bolts Base Plate S T E P 1 Adapter Plate Final installation should be determined by and professionally installed by a license contractor.
- Page 6 RESPONSIBILITY FOR INJURIES OR DAMAGES ARISING FROM OR RELATED TO THE FAILURE OF BUYER TO HAVE THE AMK MOUNTING KIT INSTALLED BY A LICENSED PROFESSIONAL CONTRACTOR. TREASURE GARDEN MAKES NO WARRANTY EXCEPT AS EXPRESSLY STATED HEREIN, AND NO WARRANTY EXCEPT TITLE TO MATERIALS FURNISHED SHALL BE IMPLIED WITH RESPECT TO THIS ORDER.
- Page 7 This warranty gives you specific legal Treasure Garden will (at its option) repair rights, and you may have other rights or replace the product without charge. which vary from state to state.
- Page 8 ©2019 Treasure Garden, Inc. - All Rights Reserved. Rev. 11/19...
