Summary of Contents for Treasure Garden AMK-C22

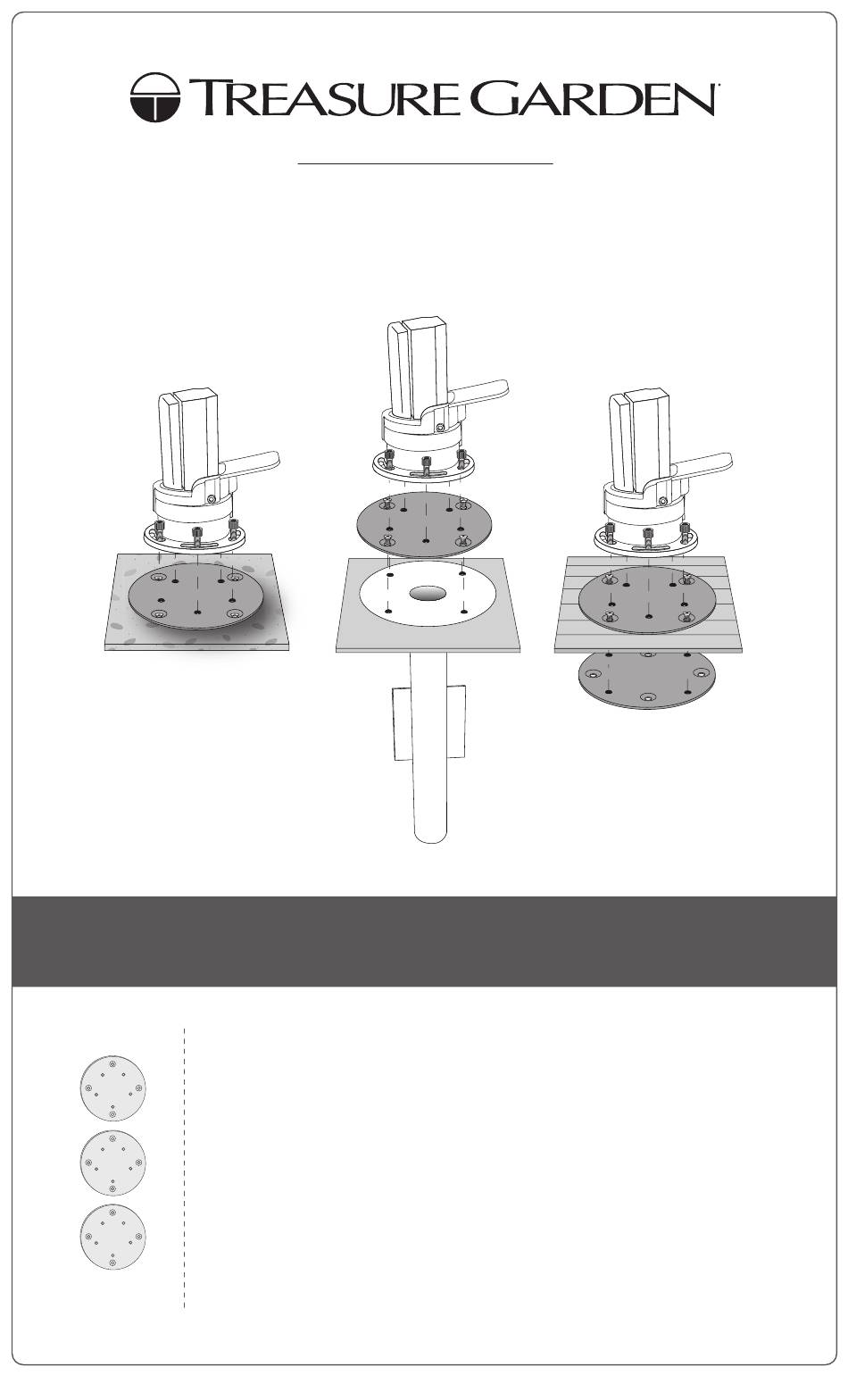

- Page 1 Assembly Guide MOUNT KIT AMK-C22 Concrete Mount Kit AMK-G In-Ground Mount Kit AMK-W Wood Mount Kit...
- Page 2 Thank you for purchasing Treasure Garden’s Mount Kit. Please remove all contents from the package, inspect and review checklist. CHECKLIST AMK-C22 Concrete Mount Kit - Page 2 Checklist: A - (1) Adapter Plate (8.5” diameter) B - (4) Expansion Bolts...
- Page 3 AMK-C22 CONCRETE MOUNT KIT AMK-C22 Concrete Mount Kit includes: A - (1) Adapter Plate (8.5” diameter) B - (4) Expansion Bolts C - (1) Hexagon Wrench Final installation hardware should be determined by and professionally installed by a license contractor.
- Page 4 STEP BOLT ADAPTER PLATE • Make sure all adapter plate holes align with drilled holes in concrete. • Insert (4) expansion bolts into countersunk holes on adapter plate and tighten using hexagon wrench. Note: • Concrete should be at least 6” thick (8” for rooftop applications). Adapter Plate Expansion Bolts...
- Page 5 AMK-G IN-GROUND MOUNT KIT AMK-G In-Ground Mount Kit includes: A - (1) Adapter Plate (8.5” diameter) B - (1) In-Ground Fitting C - (4) Stem Bolts D - (1) Hexagon Wrench Final installation hardware should be determined by and professionally installed by a license contractor. STEP PREPARATION •...
- Page 6 STEP BOLT ADAPTER PLATE • Once concrete has cured, bolt adapter plate onto in-ground fitting. • Insert (4) countersunk stem bolts through adapter plate. • Tighten all (4) countersunk stem bolts with supplied hexagon wrench. Stem Bolts Adapter Plate...
- Page 7 STEP ATTACH ROTATING HUB • Align rotating hub holes with adapter plate holes. • Insert (5) hub bolts and tighten using hexagon wrench to secure. Note: • Rotating hub and hub bolts are included with umbrella. Hub Bolts AKZP/AKZ/AG25T & Washers Rotating Hub (included with (included with...
-
Page 8: Adapter Plate
• Remove enough deck screws or nails from these boards to be able to install base plate underneath the boards. Adapter Plate Specifications Adapter Plate Specifications 4 - 90˚ 4 - ø0.79”/22mm 0.26”/6.5mm 0.04”/1mm 0.47”/12mm 4 - ø0.43”/11mm 5 - M10 © 2022 Treasure Garden, Inc. www.treasuregarden.com Rev. 8/24/22... - Page 9 STEP ATTACH BASE & ADAPTER PLATES TO DECK BOARDS • Using four (4) countersunk bolts, attach the base plate and adapter plate together, with the base plate under the deck and the adapter plate on top of the deck boards. Note: If deck is thicker, longer bolts may be required. Your licensed contractor can help determine appropriate size bolts.
-
Page 10: Safety Precautions
AMK mounting kit installed by a licensed professional contractor. Treasure Garden makes no warranty except as expressly stated herein, and no warranty except Title to Materials furnished shall be implied with respect to this order. - Page 11 WARRANTY: In the event that warranted factory service is required, Treasure Garden will assume the responsibility of the Treasure Garden warrants this product (for return freight charges for the first year only. residential use ONLY) to be free from defects in...
- Page 12 ©2022 Treasure Garden, Inc. - All Rights Reserved. v.08.29.22...
