ClassFlow Connect at a glance

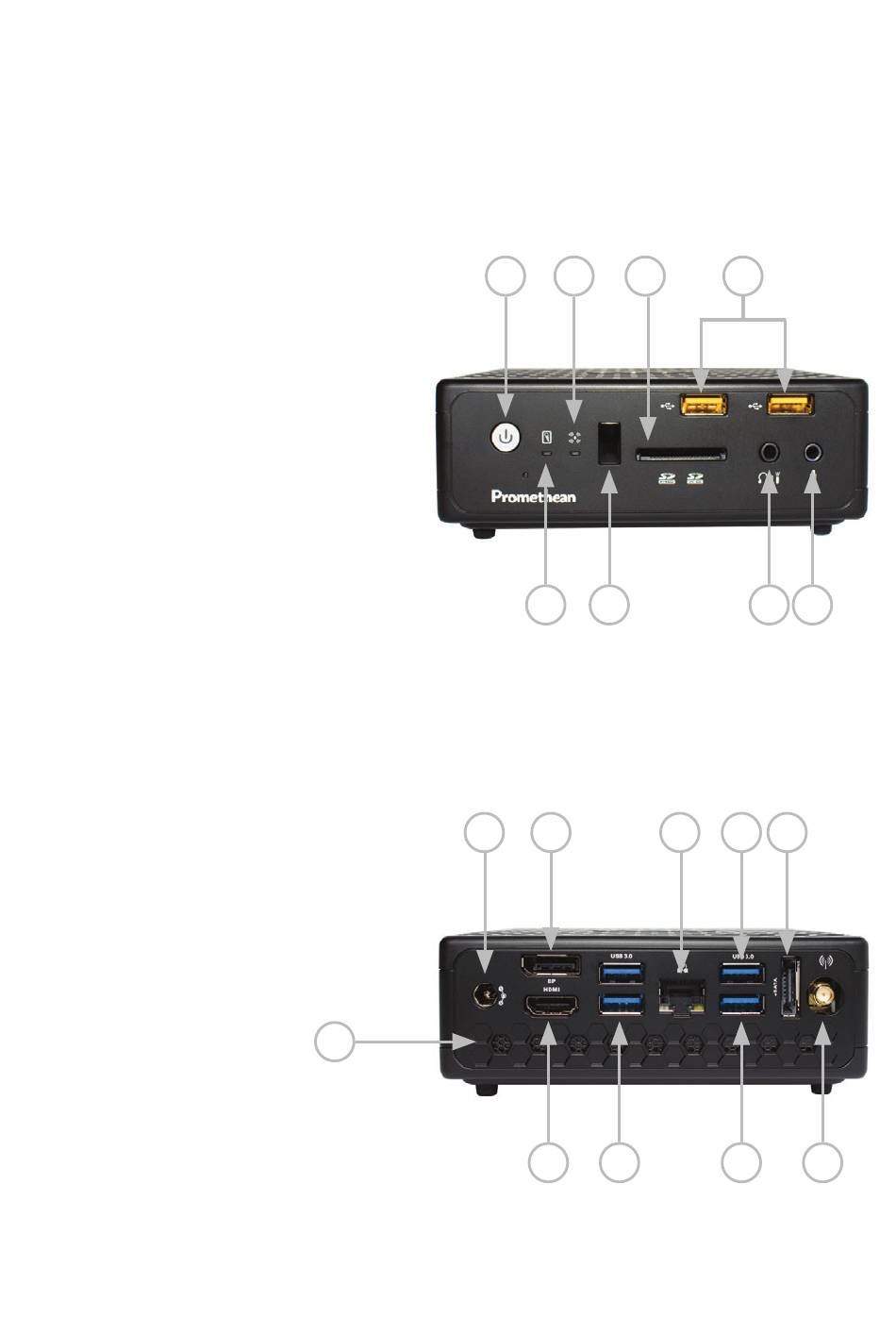

Front of device
1. Power switch
2. Hard disk status indicator
3. WiFi status indicator
4. Infrared receiver
5. Memory card slot
6. Headphone/S/PDIF audio
output jack
7. USB 2.0 ports
8. Microphone jack
Rear of device
9. Power input (19V DC 2.1A)
10. HDMI output
11. DisplayPort
12. USB 3.0 ports
13. Ethernet port
14. eSATA port
15. WiFi antenna connector
16. Ventilation area
17. USB port for interactive surface
