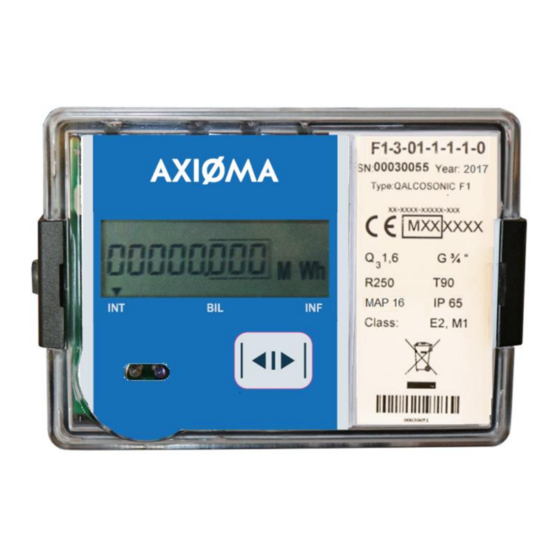

- Page 1 Axioma LEZ UAB ULTRASONIC WATER METER QALCOSONIC F1 TECHNICAL DESCRIPTION, INSTALLATION AND USER INSTRUCTIONS PLF1V04 KAUNAS...
-
Page 2: Table Of Contents
Content SAFETY INFORMATION ............................. 3 APPLICATION FIELD ............................3 TECHNICAL DATA ............................. 5 OPERATING PRINCIPLE ........................... 8 MARKING AND SEALING ..........................8 INSTALLATION ..............................8 OPERATION ..............................11 VERIFICATION ..............................19 TRANSPORTATION AND STORAGE REQUIREMENTS................19 WARRANTY ..............................19 Annex A ................................20 Annex B ................................. -
Page 3: Safety Information
Storage and transportation temperature: 1. APPLICATION FIELD Ultrasonic water meter QALCOSONIC F1 is desighed for measurement of cold and hot water consumption in households and blocks of flats well as industry. The meter corresponds to essential requirements of the Technical Regulation requirements Annexes I and MI 001. - Page 4 Structure of the meter type number (corresponding to the order code): – - - - Meter QALCOSONIC F1 Type Temperature class: Code T30/90 End connections and overall length (L): Code G ¾ L =105mm G ¾ L =110mm G ¾...
-
Page 5: Technical Data
2. TECHNICAL DATA Permanent flow rate Q , flow rate ratio Q (R), overload flow rate Q , minimum flow rate Q , transitional /h , end connections type, overall length ( L) and pressure losses class ΔP are flow rate Q , threshold value in m presented in 1.1 table. - Page 6 Firmware version 0.08 Behavior of the meter, when the flow rate exceeds the maximum Q value Q ≤ 1,2Q linear The error „Maximum Q > 1,2Q limit 1,2Q allowable value of flow rate is exceeded“ is registered and duration of error is calculated.
- Page 7 External communication modules and interfaces Optical interface Integrated into the front panel of calculator. It is designed for data reading via M-bus protocol and parameterizing of the meter. It is activated by a button (After 5 minutes of the end of the communication or after pressing the button - automatically switch off).
-
Page 8: Operating Principle
3. OPERATING PRINCIPLE The flow measuring principle is based on ultrasonic measurement method. The ultrasonic signal along the measuring section moves many times before, and the flow downstream between the ultrasonic sensors have to perform transmitter and receiver functions. From the resulting time difference the flow rate is calculated. The calculator calculates the volume of water integrating the measured flow rate during the time and indicates the data in display. - Page 9 Only qualified personnel may install the equipment, following the requirements listed in this document, in technical documentation of other system components and in water meter installation project It is forbidden to wire signal cables nearby (less than 5 cm) with power cables or cables of other devices.
- Page 10 Panel mounting on standard DIN-rail: Important: It is forbidden to attach the calculator directly to a wall if there is a risk that on walls can be condensed humidity or temperature of a surface of a wall can fall lower than 5 °. In this case, it is recommended to attach the calculator so that between it and wall surfaces there was an air gap not less than 5 cm.
-
Page 11: Operation
Jumper is not set (contacts are Jumper is set (contacts are connected) opened) NORMAL MODE VERIFICATION (TEST) MODE The first pulse output is active The first pulse intput is active ( terminals 52,53) (terminals 52,53) ( In „TEST“ mode the jumper must be removed) The second pulse output is active The second pulse intput is active (terminals 50,51) - Page 12 6.3. Meniu structure The menu structure in a normal operating mode is presented in the Fig 6.1. Integral parameters values (1.2) or– if at least one error has been detected – error codes (1.1) are displayed if the button has not been activated for more than 60 seconds.
- Page 13 Forvard volume revers volume mode is activ Revers volume Possibility for special ordering Volume of 1-st additional pulse input Volume of 2-nd additional pulse input Segment test Changes each 1 second Working hours without error Customer number Corresponds to a wire transmission via MBus protocol 1.10 Control number...
- Page 14 Revers volume on set day with date Possibility for special ordering. stamp Changing with date stamp every 1 second Volume of 1-st additional pulse input on Changing with date stamp every 1 set day with date stamp second Volume of 2-nd additional pulse input Changing with date stamp every 1 on set day with date stamp second...
- Page 15 2.12 Maximum temperature of previous Changing with date stamp every 1 month with date stamp (if used) second 2.13 Minimum temperature of previous month Changing with date stamp every 1 with date stamp (if used) second 2.14… The data of previous months with date By analogy During installation of the meter, it is 2.294...
- Page 16 3.11 Software version number 3.12 Serial number 3.13* MBus adress 3.14 Working hours without error 3.15* Battery operation time * Configuration is possible via optical interface and in conjunction with the special configuration programme in a test mode, when jumper is set ( see p.6.4). In the same way it is possible to switch off indication of irrelevant parameters.
- Page 17 6.3.3. Error codes Error code may consist from up to 4 symbols. Code Description 1st digit 0- no error, normal operation 1- air in the measuring section 2- flow flows in an reverse direction 4- flow rate greater than 1.2∙Q (are displayed q=1,2 Q 2nd digit 0- no error, normal operation...
- Page 18 Fig. 6.3. Destination of contacts of connector J Activation of test (verification) mode In test mode it is possible to achieve precise results within short measuring time. For activation of Verification (Test) mode you must opening device and set up jumper on the connector (J) contacts as shown in Figure 6.4.
-
Page 19: Verification
Warranty period - 12 months from bringing into operation, but not more than 18 months from manufacturing date. Manufacturer’s address: UAB “Axioma LEZ ”, Kulautuvos g. 45a, Kaunas LT-47190, Lithuania tel. +370 37 360234; fax. +370 37 360358. PEF1IP68V04 2017 11 20... -
Page 20: Annex A
Annex A Fig.A1. Electrical wiring diagrams V1-additional pulse input / output 1, V2 –additional pulse input / output 2, additional temperature sensor (if used) PEF1IP68V04 2017 11 20... - Page 21 Annex A (continued) Fig.A2. External power supply electrical wiring diagram A1 table. Numbering of terminals Terminal no: Destination 2nd additionl pulse input/output GND 2nd additionl pulse input/output (In/Out2) (Volume output for TEST mode) 1st additionl pulse input/output GND 1st additionl pulse input/output (In/Out1) Terminal for temperature sensor (If temperature sensor is used) Terminal for temperature sensor (If temperature sensor is used) Terminal no:...
-
Page 22: Annex B
Annex B B1. Mechanical dimensions of calculator of water meter QALCOSONIC F 1 Fig.B1. Mechanical dimensions of calculator B2. Sizes and dimensions of water meter QALCOSONIC F1 Fig.B2.1. Threaded end connections G3/4“ Fig.B2.2 Threaded end connections G1“ mounting length L=110 mm (or 105; 165 mm) mounting length L=130 mm (or 105;110 mm) - Page 23 Annex B (continued) Fig.B2.4. Mounting length L=260 mm a) Threaded end connections G1 1/4“; b) Flanged end commections DN25 PEF1IP68V04 2017 11 20...
- Page 24 Annex B (continued) B2.5 pav. Mounting length L=300 mm a) Threaded end connections G2“; b);c) Flanged end commections DN40 (two design options) PEF1IP68V04 2017 11 20...
- Page 25 Annex B (continued) a) Dimensions of flow sensors DN50 (MAP16/MAP25), DN65 (MAP16) Brass housing b) Dimensions of flow sensors DN65 (MAP25), DN80 (MAP16/MAP25), DN100 (MAP16/MAP25) Brass housing PEF1IP68V04 2017 11 20...
- Page 26 B priedas (pabaiga) DN65 DN80 DN100 c) Dimensions of flow sensors DN65 (MAP16/MAP25), DN80 (MAP16/MAP25), DN100 (MAP16/MAP25) Steel housing Fig.B2.6. Flanged end connections DN50, DN65, DN80, DN100 PEF1IP68V04 2017 11 20...
-
Page 27: Annex C
Annex C Fig.C1. Sealing of the water meter Calculator general view: the cover is closed, and the cover is opened (1-manufacturer adhesive seal-sticker on the access to the adjustment activation jumper -verification seal, 2-manufacturer adhesive seal-sticker on the fixer of the cover protecting electronic module - warranty seal, 3 –mounting seal after installation) a) Sealing of flow sensor b) Sealing of flow sensor...
